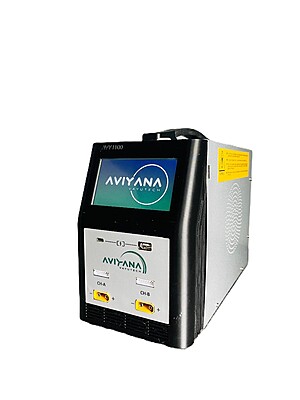

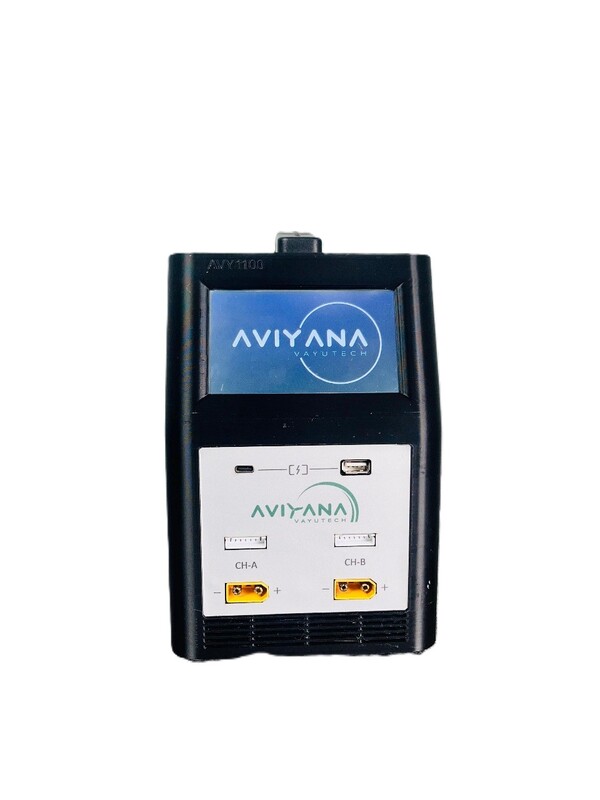

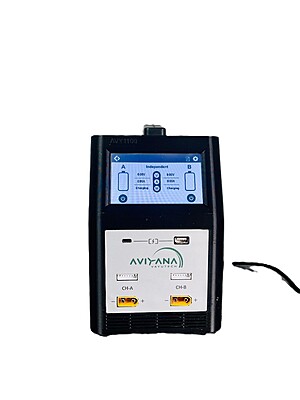

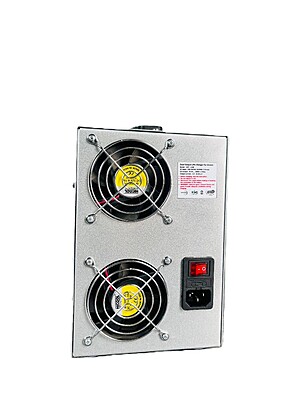

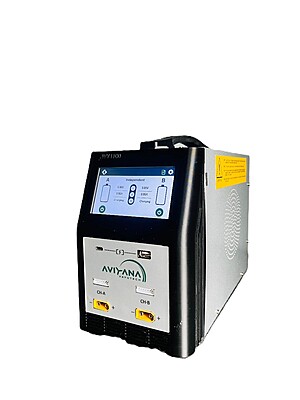

Made In India Logicare AVY 1100+ Charger

Features:

• Designed and manufactured in India.




• Provides clean and efficient power distribution.




• Supports multiple high-power ESC connections.




• Robust construction for industrial drone applications.




• Dedicated pads for power distribution.




• Minimizes wiring and simplifies drone builds.




• Essential for managing high current loads.




• Protects sensitive electronics from power spikes.




• Compact and lightweight design.




• An ideal upgrade for heavy-lift drones.

Technical Specifications:

• Model: Logicare AVY 1100+

• Input Voltage: 90–265V (Safe up to 305V AC)

• Output Power: 1100W (550W × 2)

• Discharge Power: 50W (25W × 2)

• Charge Current: 1.0 – 20.0A × 2

• Balance Current: 1.5A

• Battery Type: LiPo / Li-Ion / Solid State

• Battery Cell Count: 6S

• Working Modes: Balance Charge, Storage, Fast Charge, Discharge

• Working Environment Temperature: 0℃ – 60℃

• Working Environment Humidity: 5% – 75%

• Storage Environment Temperature: 0℃ – 70℃

• Storage Environment Humidity: 5% – 75%

• Battery Voltage Meter: Yes

• Conformal Coating: Yes

• Active PFC: Yes

• Cooling Fans: High Speed

• Battery IR Meter: Yes

• Multi-Charger Sync: Wireless

• Heat Sink: High Density Fin-type Aluminium

• Battery Chemistry Support: LiPo, Li-Ion & Solid State

• Master/Slave Mode: Yes (Wireless)

• Protection: Short-circuit, Reverse Polarity, Overheat

• Indication: LED Indication on Top (Diffused LED)

• Display: 4.3″ Touch Screen

• Control Buttons: 4.3″ Touch Screen (Touch-based control)

• Memory of Last Charge Current: Yes

• Adjustable Charge Current: Yes

• Real-time Charge/Discharge View: Yes

• Firmware Upgrade: Via Cloud

• Data Logging: Wi-Fi Offline Page + Cloud

Additional Details:

• Manufacturer: Logicare

• Brand: Logicare

• Generic Name: Power Distribution Board || PDB || Drone Power System || UAV Electronics || Power Distribution Hub || Drone Part || BEC Board || Power Supply || Drone Gear || Power Management

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Industrial Drones || Heavy-Lift Drones || Agricultural Drones || Drone Builders || Professional UAVs || Custom Drone Builds || Drone Repair & Maintenance || Multicopter Projects || Aerial Cinematography || Power System Upgrades

Package Details:

• Includes:

  • 1x Logicare AVY 1100+ Power Distribution Board

Frequently Asked Questions:

Q1. What is the primary purpose of a power distribution board?

Ans. A PDB acts as a central hub to cleanly distribute power from a single main battery to all the drone's components, such as the Electronic Speed Controllers (ESCs), flight controller, and other accessories. It simplifies wiring and ensures each part receives a stable and reliable power supply.

Q2. Can this PDB be used with any drone?

Ans. This PDB is a high-quality, universal component that can be used with a wide variety of drones. However, it is primarily designed for high-power, heavy-lift industrial and agricultural drones due to its robust current handling capabilities. You must ensure its size and mounting holes fit your drone frame.

Q3. What is the benefit of a "Made in India" product?

Ans. A "Made in India" product from Logicare signifies a commitment to local manufacturing and quality control. This ensures the product is designed to meet the specific needs of the Indian and regional drone market, with readily available support and supply.
