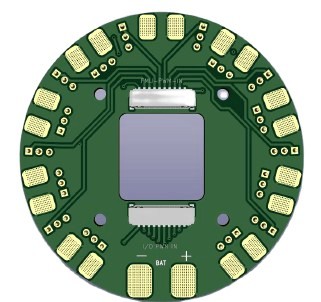

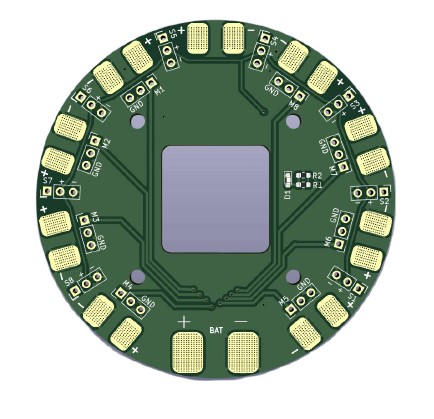

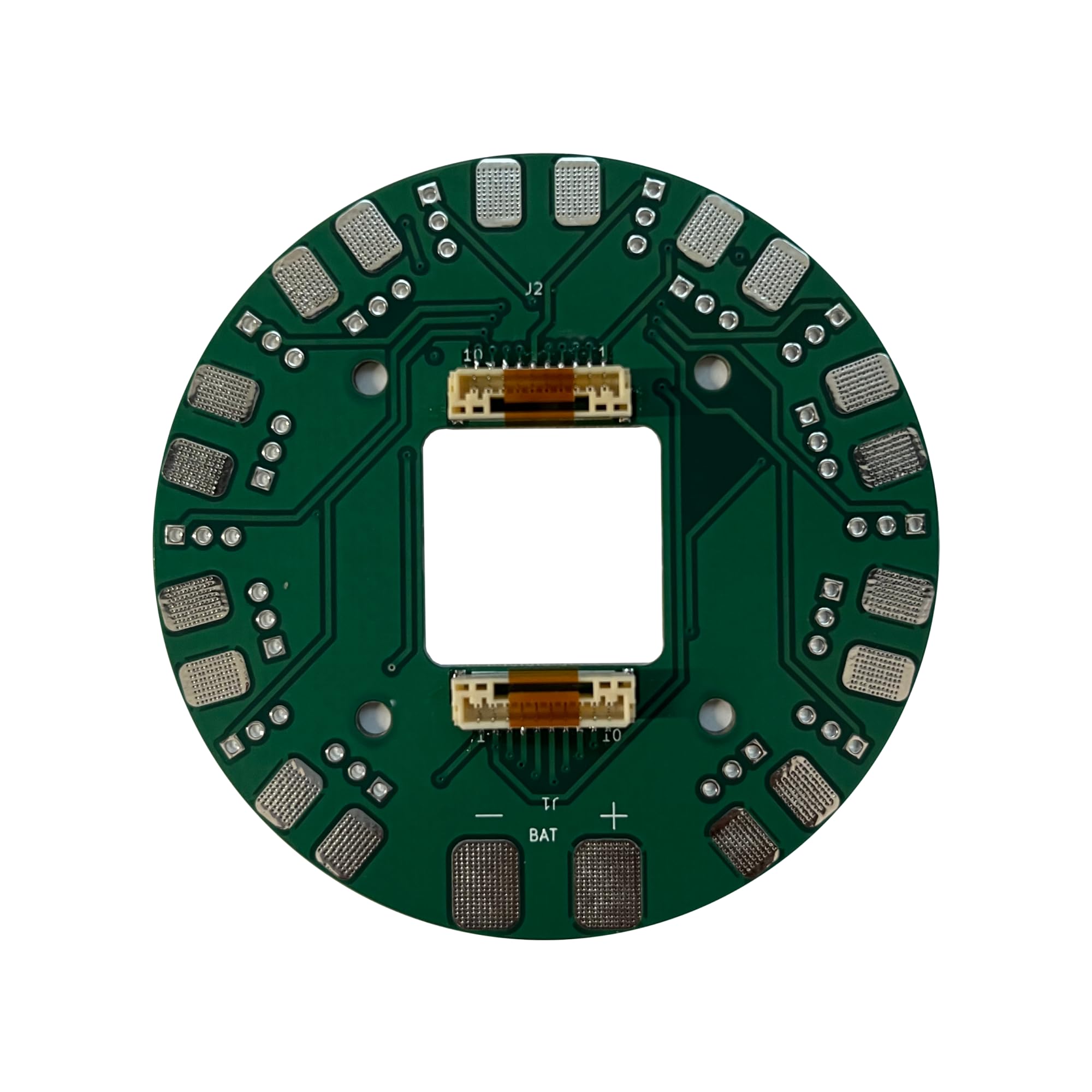

Made in India AXLPDB 100A

Features :

• High continuous current rating (100A).




• Manufactured with quality in India.




• Robust power distribution for drones.




• Ideal for medium to large UAVs.




• Durable PCB construction.




• Minimizes power loss and interference.




• Ensures stable current flow.




• Designed for reliable performance.




• Enhances system reliability.




• Supports multirotor configurations.

Technical Specifications:

• Model: AXL PDB 100A

• Continuous Current Rating: 100A (Max)

• Burst Current Rating: Assumed 120A (for short bursts, to be verified)

• Input Voltage Range: Assumed 3S to 12S LiPo (wide compatibility for various drone sizes)

• Current Carrying Capacity: Supports 100A continuous current

• Support Configuration: Up to Octa-Copter (8 motor outputs)

• Number of Motor Outputs: Typically 4 to 8

• Battery & ESC Connections: Solder pads for main battery input and ESC outputs

• Control Connectors: FMU PWM connector , I/O PWM OUT connector

• Wire Compatibility: Designed for appropriate gauge wires for up to 100A load

• BEC: Not included (focused solely on power distribution)

• Sensors: No integrated current/voltage sensors

• Dimensions: 35 mm radius (circular design)

• Weight: 17g (lightweight, ideal for mid-size drones)

• Material: Glass fiber with thick copper traces (for durability and efficient current handling)

• Design: Optimized for integration into drone frames

Additional Details:

• Manufacturer: AXL (Implied as the brand name for "Made in India AXLPDB")

• Brand: AXL

• Generic Name: Power Distribution Board || PDB || High Current PDB || Drone PDB || UAV Power Board || 100A PDB || Multirotor PDB || ESC Distribution Board || Power Hub || Drone Electronics

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Quadcopters || Hexacopters || Octocopters || FPV Drones || Camera Drones || Agricultural Drones (smaller) || Custom Drone Builds || Robotics Projects || Drone Repair & Upgrades || Educational Drone Kits

Package Details:

Includes:

• 1x AXL PDB 100A Power Distribution Board

Frequently Asked Questions:

Q1. What makes the AXL 100A PDB suitable for drone builds?

Ans. The AXL 100A PDB is suitable for drone builds due to its ability to efficiently distribute up to 100 Amperes of continuous current to multiple ESCs. This ensures stable and reliable power delivery to the motors, which is crucial for consistent flight performance. Its robust construction further enhances durability in demanding drone environments.

Q2. Does this "Made in India" PDB come with any specific certifications or quality assurances?

Ans. While the "Made in India" tag indicates local manufacturing, specific certifications (like CE, RoHS, etc.) or detailed quality assurance processes would need to be verified directly from the AXL manufacturer's documentation or product listings. Generally, locally made products aim for high quality to compete effectively in the market.

Q3. Can the AXL 100A PDB also power a flight controller directly?

Ans. The AXL 100A PDB is primarily designed for power distribution to ESCs and does not typically include an integrated BEC (Battery Eliminator Circuit) for providing regulated 5V or 3.3V power to a flight controller. Therefore, a separate BEC or a flight controller with a built-in BEC would be required to power your flight controller and other sensitive electronics.
