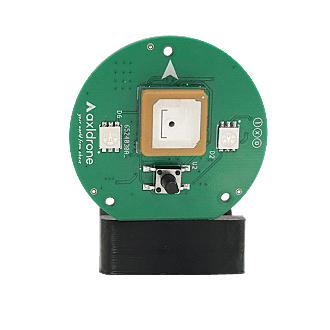

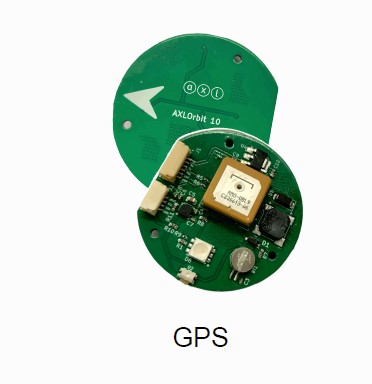

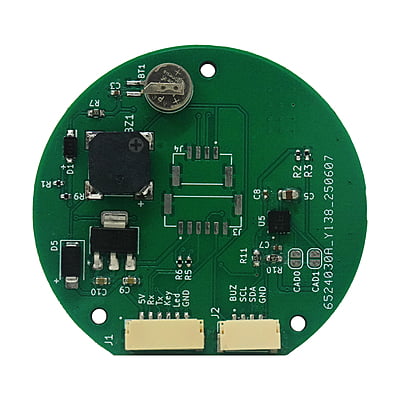

Made in India Axl Orbit-N GPS

Features:

• Superior 1.5-meter positioning accuracy.




• Multi-GNSS support (GPS, GLONASS, Galileo, BeiDou).




• Integrated QMC5883L compass for heading.




• Built-in anti-spoofing and jamming detection.




• Rechargeable backup battery for continuity.




• Wide operating temperature range.




• Compact, lightweight, and durable design.




• Optimized for UAV, surveillance, defense.




• Versatile JST-GH connectors.




• 100% Made in India (non-Chinese components).

Technical Specifications:

• Model: Axl Orbit-N GPS

• GNSS Receiver: Specific chipset not explicitly stated, but supports multiple constellations

• Satellite Systems Supported: GPS, GLONASS, Galileo, BeiDou (concurrently)

• Positioning Accuracy: Horizontal: Up to 1.5 meters (precision) , Heading Accuracy: 0.3 degrees

• Compass: Integrated QMC5883L

• Anti-Spoofing & Jamming: Built-in detection capabilities

• Backup Battery: Rechargeable backup battery for uninterrupted operation

• Operating Voltage: Typically 5V. One source mentioned 5.2V.

• Max Operating Current: 10 mA

• Signal Sensitivity: Up to -165 dBm

• Maximum Altitude Support: 80,000 meters

• Operating Temperature: -40°C to +85°C

• Communication Interface: Typically UART/Serial for GPS data and I2C for compass. JST-GH-06 and JST GH-04 ports are mentioned, implying standard interfaces.

• Dimensions: Approximately 18.7 mm diameter (for module) or 2.5 x 2.5 x 1 Centimeters (packaged)

• Weight: Approximately 45 Grams (module only)

• Housing: Encased in environmentally controlled heat shrink (for models without cover)

• Manufacturing: 100% Made in India with non-Chinese components

Additional Details:

• Manufacturer: Axldrones

• Brand: Axldrone (AXL)

• Generic Name: Drone GPS || GNSS Module || UAV Positioning System || Navigation Sensor || GPS Compass || Multi-GNSS Receiver || Indian GPS Module || Anti-Jamming GPS || Autonomous Flight Sensor || Drone Location Tracker

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: UAVs (Unmanned Aerial Vehicles) || Drone Surveillance || Defense Sector Drones || Agricultural Drones || Industrial Inspection Drones || Mapping & Surveying Drones || Custom Drone Builds || High-Altitude Drone Operations || Autonomous Navigation Systems || Indian Drone Projects

Package Details:

Includes:

• 1x Axl Orbit-N GPS Module

Frequently Asked Questions:

Q1. What is the significance of the Axl Orbit-N GPS being "Made in India"?

Ans. The "Made in India" designation for the Axl Orbit-N GPS signifies its complete design, development, and manufacturing within India, often utilizing non-Chinese components. This aligns with the "Make in India" initiative, promoting self-reliance and boosting the domestic defense and technology sectors. For users, it can imply local support, adherence to Indian quality standards, and contributes to national technological independence in critical drone components.

Q2. How does the Axl Orbit-N GPS achieve its "superior accuracy" of 1.5 meters?

Ans. The Axl Orbit-N GPS achieves its "superior accuracy" of 1.5 meters primarily through its Multi-GNSS capability. It simultaneously supports and processes signals from multiple satellite constellations, including GPS, GLONASS, Galileo, and BeiDou. This increased number of visible satellites significantly improves the robustness and precision of the positioning solution compared to single-constellation receivers, even without RTK corrections, making it highly reliable for drone navigation.

Q3. What role does the integrated QMC5883L Compass play in the Axl Orbit-N GPS module?

Ans. The integrated QMC5883L compass in the Axl Orbit-N GPS module provides crucial heading and orientation information to the drone's flight controller. While the GPS determines the drone's position, the compass tells the drone which direction it is facing. This combined data is vital for stable flight, accurate waypoint navigation, executing precise turns, and maintaining desired headings, especially important for surveillance and defense applications where directional accuracy is paramount.
