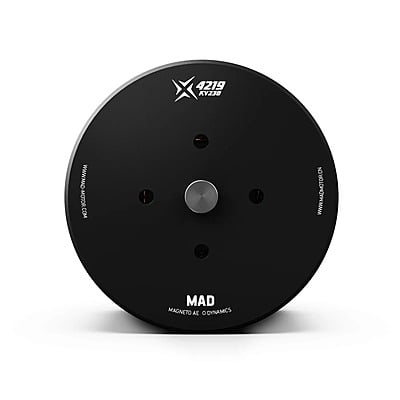

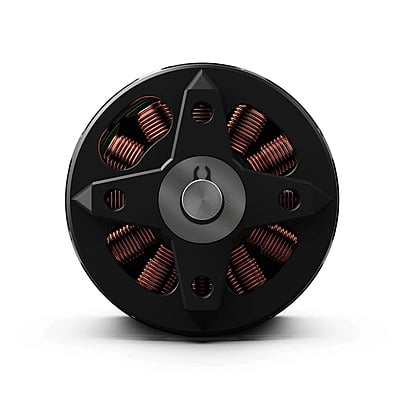

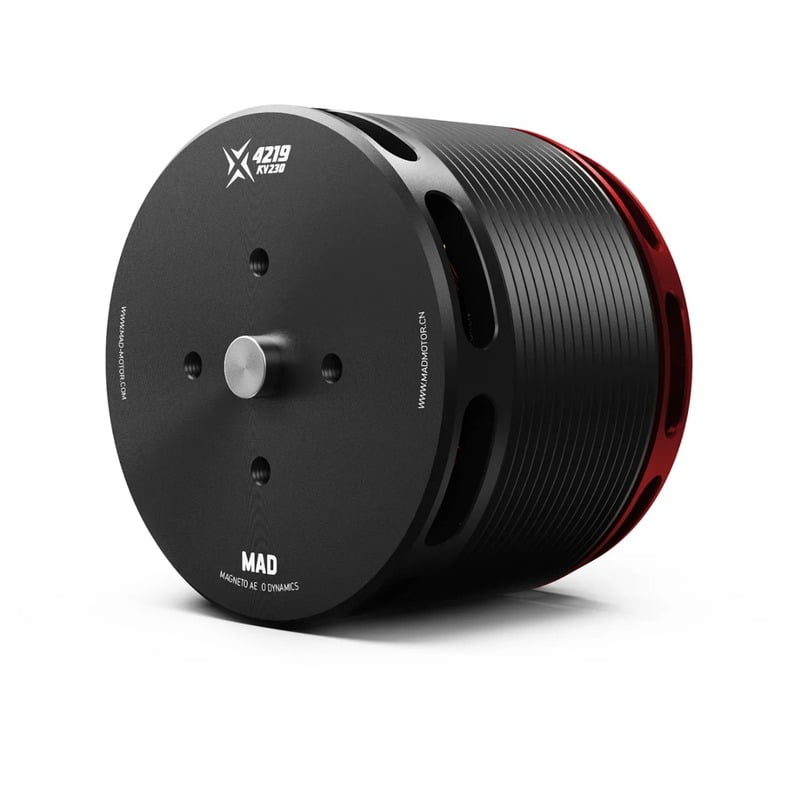

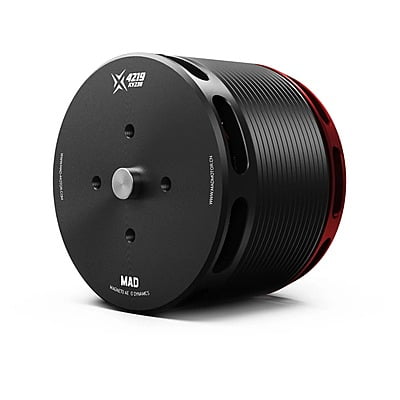

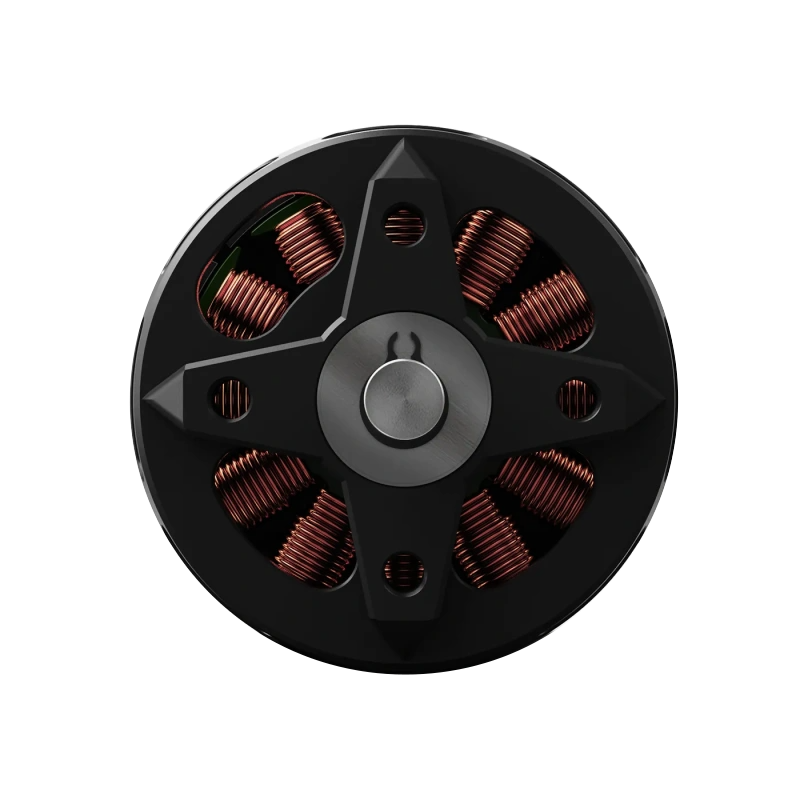

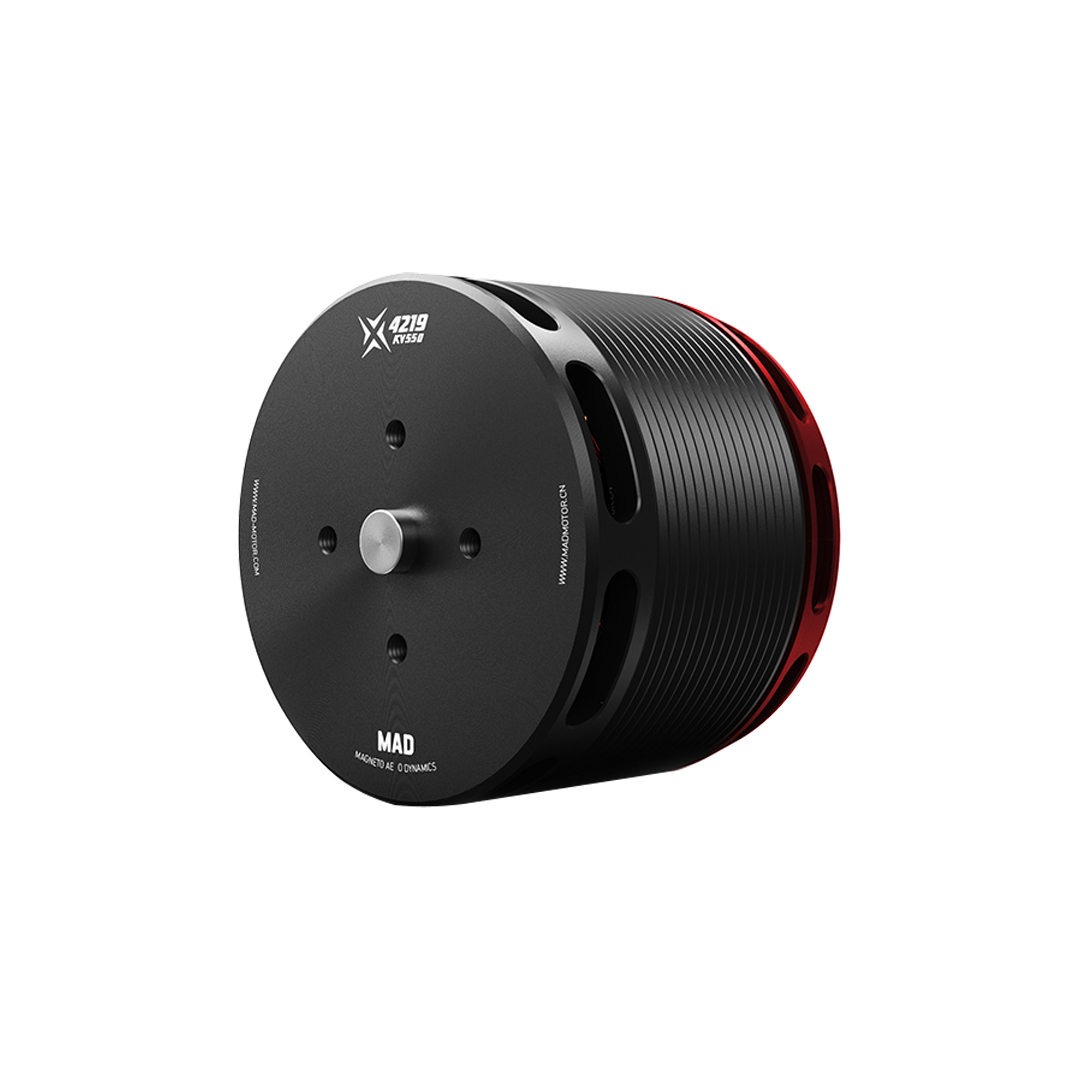

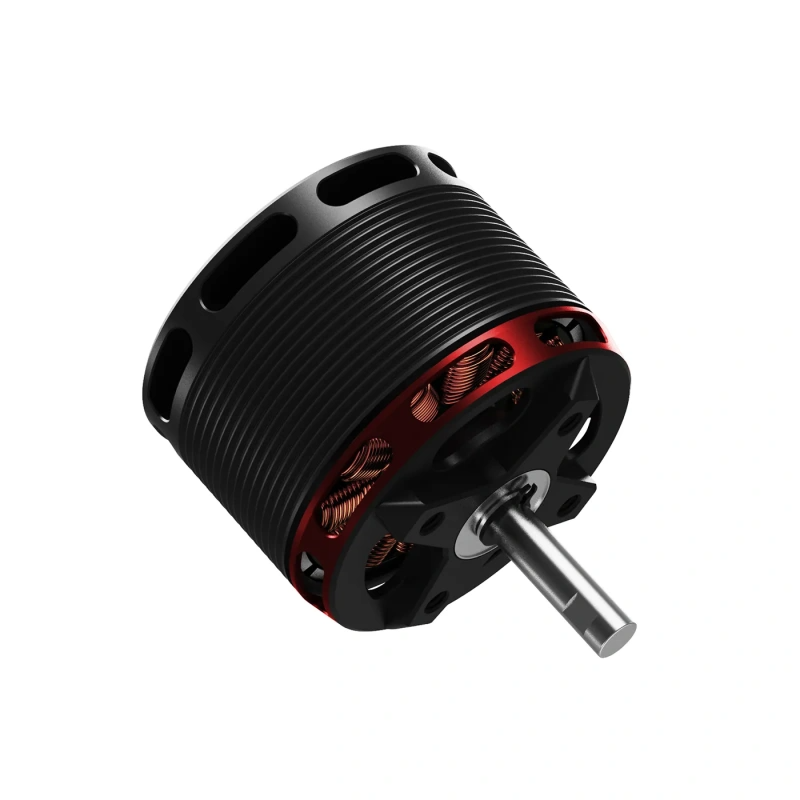

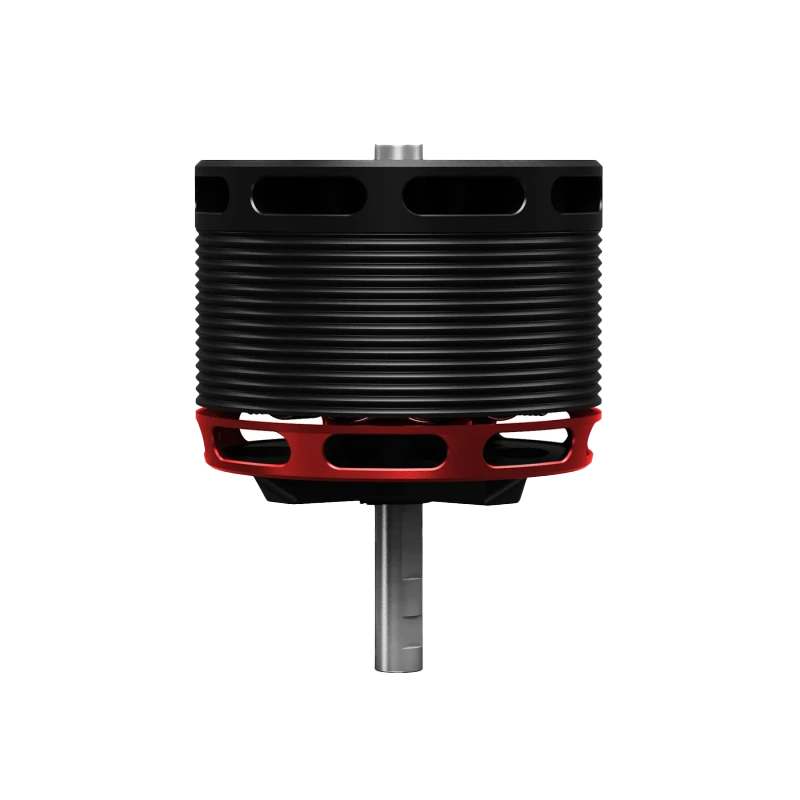

MAD MOTOR X4219 VTOL Airplane Drone Motor
₹10,199.00
The MAD X4219 550KV is a highly efficient brushless motor engineered for VTOL aircraft and fixed-wing drones. Designed for rigorous conditions and endurance flights, it offers substantial thrust (up to 6.8kg) and reliability. Its IP35 water and dust resistance make it ideal for demanding industrial, commercial, and cinematography applications requiring robust and consistent performance.
KV
Choose Quantity
Product Details
Features:
- High 550KV for balanced efficiency.
- Optimized for VTOL and fixed-wing UAVs.
- Max thrust up to 6.8 kg.
- IP35 water and dust resistant.
- Centrifugal heat dissipation system.
- More powerful and efficient than similar motors.
- Anticorrosive stator material.
- Rotor balance ≤5 mg for smooth operation.
- High-temperature resistant varnished wire (180°C).
- Designed for endurance flying in harsh conditions.
Technical Specifications:
- RPM/V: 550 KV
- Nominal Voltage: 6S lipo battery
- No Load Current: 1.5A/10V
- Internal resistance: 14.2mΩ
- Motor Weight: 286 g
- Product Boxed Weight: 538g (110 x 110 x 95 mm)
- Maximum Current: 76.8 A
- Maximum Power: 1498W
- Maximum thrust: 5.5 kg
- Maximum Torque: 1.3 Nm
- Recommended ESC: MAD AMPX 80A (5-14S)
- Recommended Propellers: 15x8, 16x8
- UAV take-off weight: 6S-16" / 8kg - Quadcopter, 12kg - Hexacopter, 16kg - Octocopter
- Single rotor take-off weight: 2kg ~ 3kg
- Motor Model: MAD X4219 IPE V1.0
- Number of pole pairs: 7
- Stator: TAIWAN / Anticorrosive
- Varnished wire Degree: 180°C
- Motor Size: D:50 × 65 mm
- Magnet Degree: 150°C
- Degree of Protection: IP35
- Cable Length: 110 mm 14# Awg(Black) silicone
- Centrifugal Heat Dissipation: YES
- Rotor Balance: ≤5 mg
- Propeller Mounting Holes: D:20 M3x4 / M8 Nut
- Motor Balance: ≤10 mg
- Shaft Diameter: IN: 6 mm
- Motor Mounting Holes: D:30 M4x4, D:56 M4x4, D:60 M4x4
- Bearing: EZO 686ZZ *2 / EZO 696ZZ
- Disruptive test: 500 V
Additional Details:
Manufacturer: MAD Components
Brand: MAD
Generic Name: Drone Motor || Brushless Motor || VTOL Motor || Airplane Motor || Fixed-Wing Motor || UAV Motor || Electric Plane Motor || Outrunner Motor || Industrial Drone Motor || Commercial Drone Motor
Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Ideal For: VTOL Aircraft || Fixed-Wing UAVs || Industrial Inspection Drones || Commercial Drone Applications || Cinematography Drones || Endurance Flying Missions || Surveillance Drones || Professional Aerial Photography || RC Airplanes requiring high power and efficiency || Custom Drone Builds for harsh conditions.
Package Details:
Includes:
1 x MAD X4219 550KV VTOL Airplane Drone Motor
1 x hardware set (includes propeller nut/adapter, mounting screws etc.)
Frequently Asked Questions:
Q1. What is the maximum thrust capability of the MAD X4219 550KV motor?
Ans. This motor can produce a maximum thrust of up to 6.8kg, making it a very powerful option for its class in VTOL and fixed-wing applications.
Q2. Does the MAD X4219 550KV motor offer protection against environmental elements?
Ans. Yes, it has an IP35 protection rating, meaning it is water and dust resistant, suitable for operation in various challenging outdoor conditions.
Q3. Is this motor designed for long endurance flights?
Ans. Yes, the MAD X4219 550KV is specifically designed for endurance flying, offering very high efficiency to maximize flight times for professional and commercial applications.
