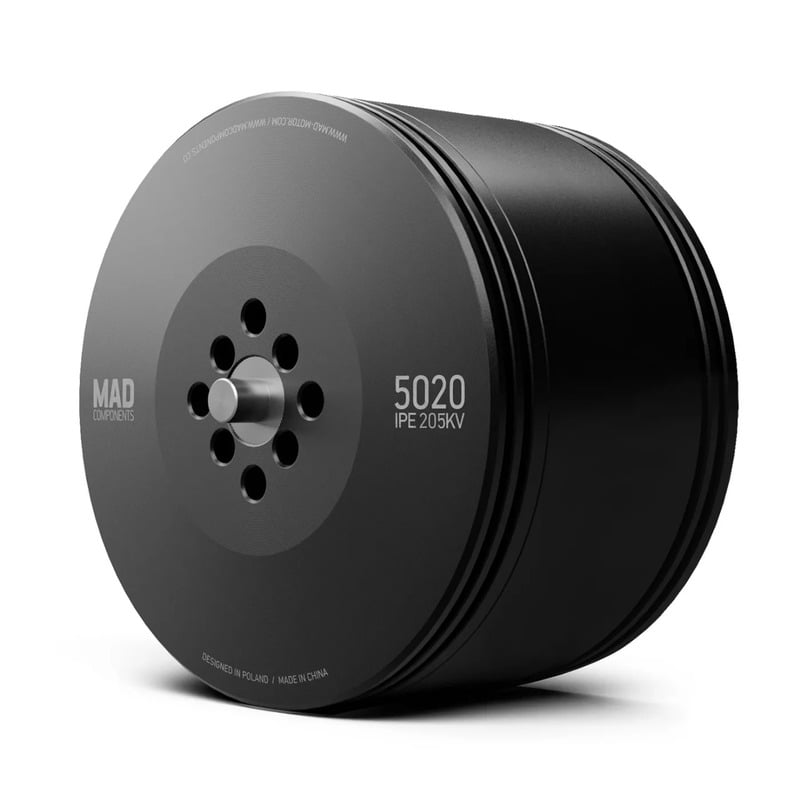

MAD MOTOR 5020 IPE V3.0 VTOL Drone Motor
₹16,499.00
The MAD 5020 IPE V3.0 205KV is a high-performance brushless motor, optimized for 2.5-3.5kg VTOL aircraft and quadcopters. Delivering impressive thrust (up to 8kg) and power (1905W), it's the ideal solution for long-range inspection, mapping, and surveying drones. With IP45 protection and robust design, it ensures reliable operation in demanding industrial applications.
KV
Product Details
Features:
- Industry Professional Edition (IPE) durability.
- Optimal 205KV for VTOL aircraft.
- Max thrust up to 8 kg.
- Max power output 1905W.
- IP45 dust and water protection.
- Centrifugal heat dissipation design.
- Precision balanced rotor (≤5 mg).
- Robust anticorrosive stator.
- High-quality EZO 696ZZ bearings.
- High-temperature resistant varnished wire (180°C).

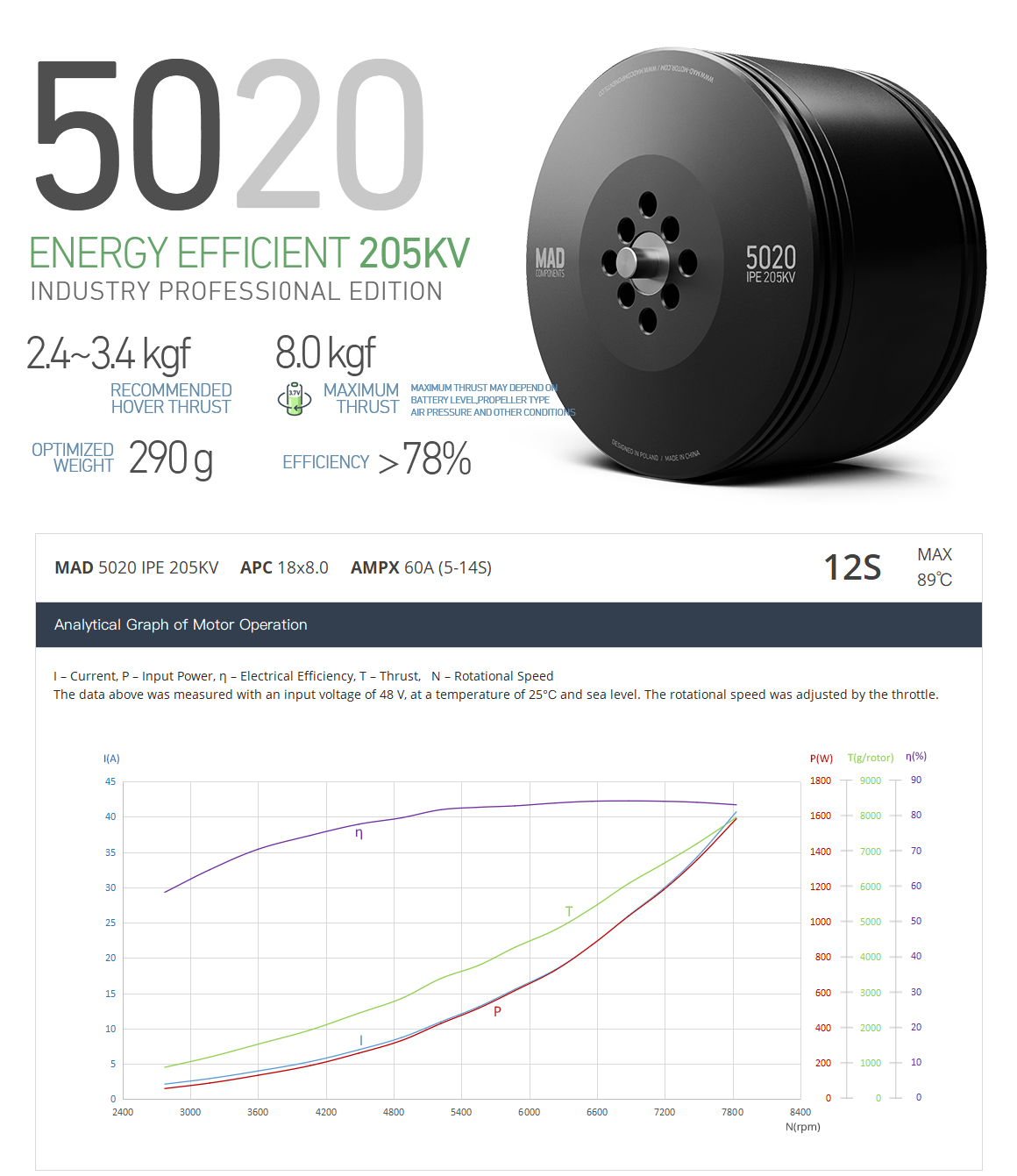

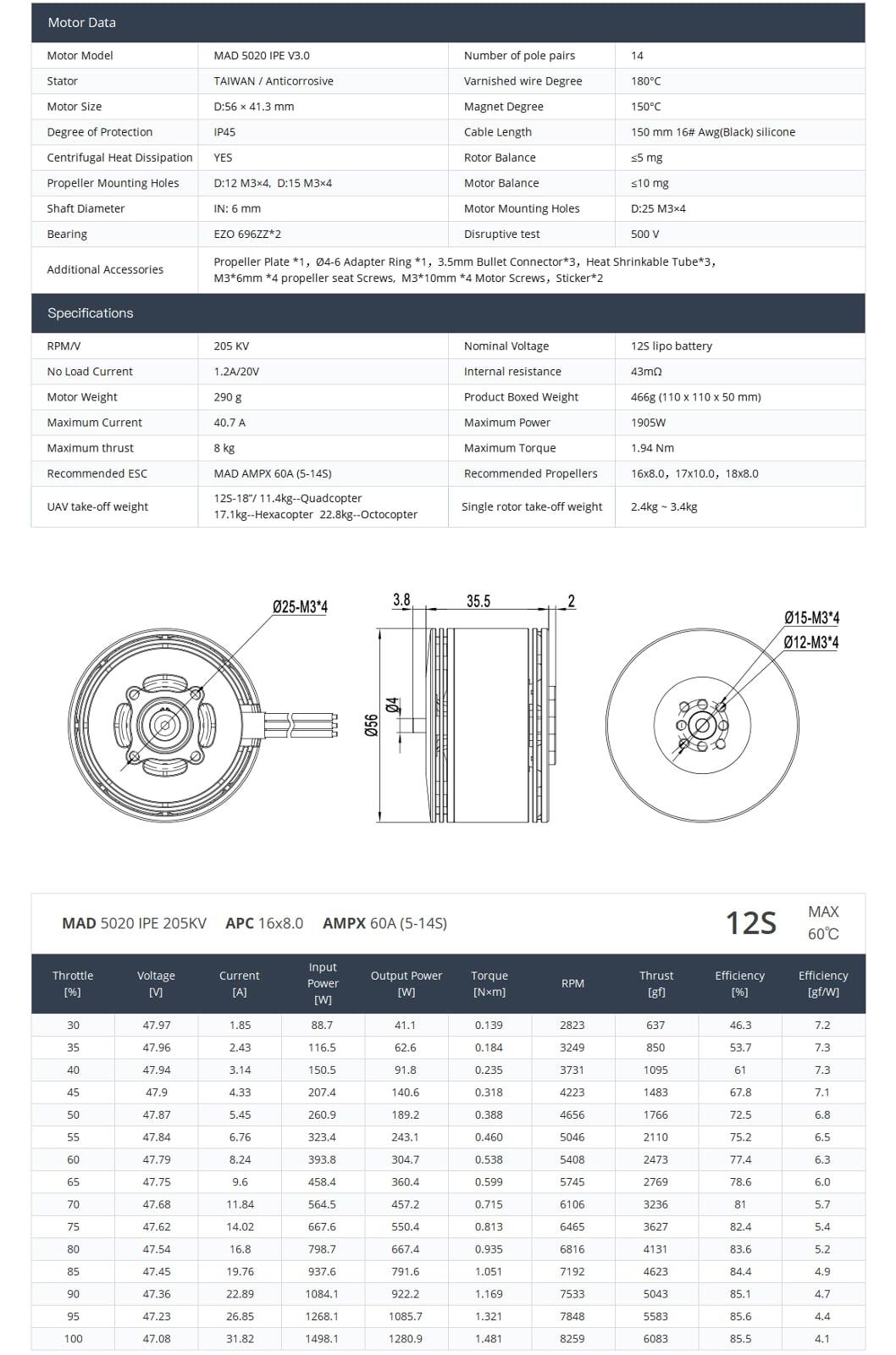

Technical Specifications:
- Motor Model: MAD 5020 IPE V3.0
- Number of pole pairs: 14
- Stator: Anticorrosive
- Varnished wire Degree: 180°C
- Motor Size: D:56 × 41.3 mm
- Magnet Degree: 150°C
- Degree of Protection: IP45
- Cable Length: 150 mm 16# Awg(Black) silicone
- Centrifugal Heat Dissipation: YES
- Rotor Balance: ≤5 mg
- Propeller Mounting Holes: D:12 M3x4, D:15 M3x4
- Motor Balance: ≤10 mg
- Shaft Diameter: IN: 6 mm
- Motor Mounting Holes: D:25 M3x4
- Bearing: EZO 696ZZ*2
- Disruptive test: 500 V
- RPM/V: 205 KV
- Nominal Voltage: 12S lipo battery
- No Load Current: 1.2A / 20V
- Internal resistance: 43mΩ
- Motor Weight: 290 g
- Product Boxed Weight: 466g (110 x 110 x 50 mm)
- Maximum Current: 40.7 A
- Maximum Power: 1905W
- Maximum thrust: 8 kg
- Maximum Torque: 1.94 Nm
- Recommended ESC: MAD AMPX 60A (5-14S)
- Recommended Propellers: 16x8.0, 17x10.0, 18x8.0
- UAV take-off weight: 12S-18" / 11kg - Quadcopter, 16.5kg - Hexacopter, 22kg - Octocopter
- Single rotor take-off weight: 2kg ~ 3kg
Additional Details:
- Manufacturer: MAD Components
- Brand: MAD
- Generic Name: Drone Motor || Brushless Motor || VTOL Motor || UAV Motor || Long Range Motor || Industrial Drone Motor || Electric Motor || Outrunner Motor || Professional Drone Motor || Mapping Drone Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: VTOL Aircraft (2.5-3.5kg class) || Long-Range Inspection Drones || Mapping & Surveying UAVs || Professional Quadcopters, Hexacopters, Octocopters || Heavy-Lift Multirotors (up to 22kg for octocopters) || Custom Industrial UAV Builds || Commercial Drone Applications || All-Weather Drone Operations || Demanding Payload Missions

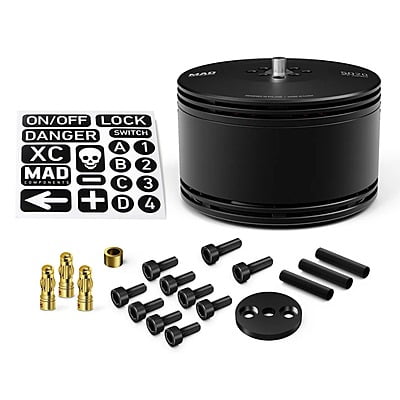

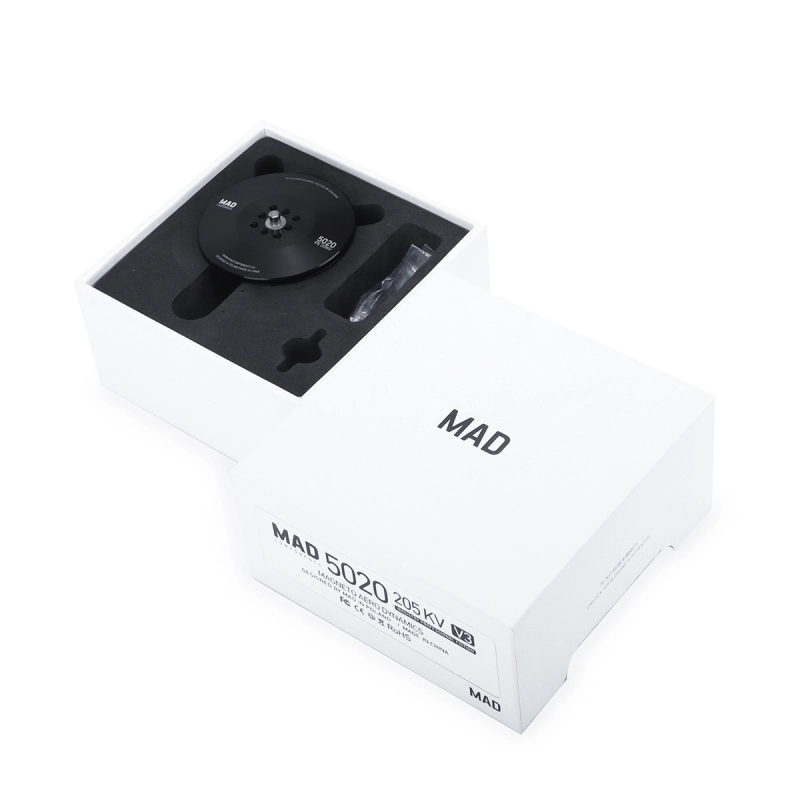

Package Details:
Includes:

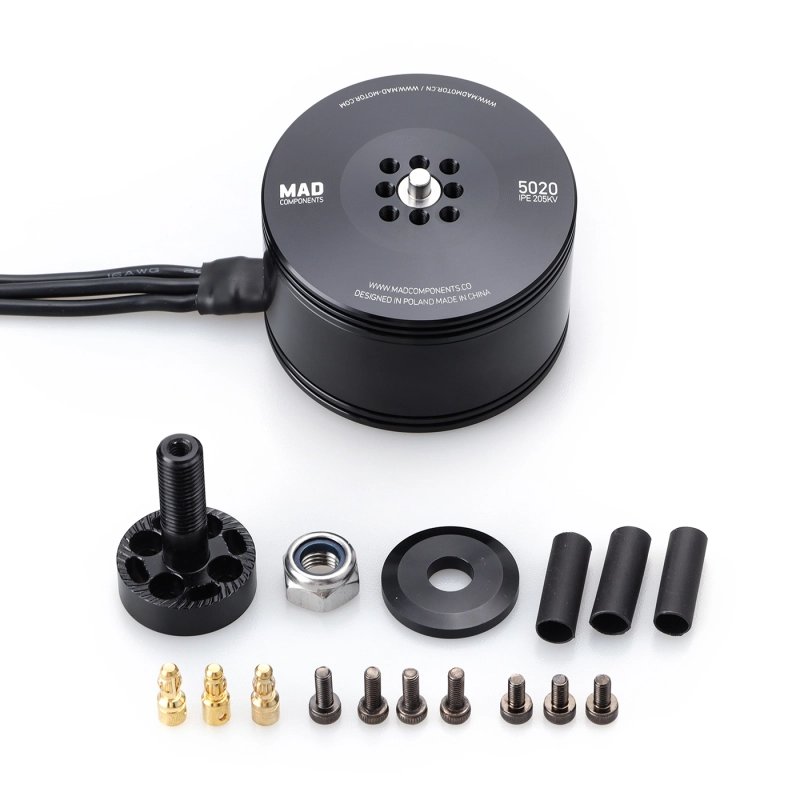

- 1 x MAD 5020 IPE V3.0 205KV VTOL Drone Motor
Frequently Asked Questions:
Q1. What is the ideal application for the MAD 5020 IPE V3.0 205KV motor?
Ans. This motor is specifically designed as the best power solution for 2.5-3.5kg VTOL aircraft and is widely used for long-range inspection, mapping, and surveying drones.
Q2. What battery voltage is recommended for optimal performance with this motor?
Ans. The MAD 5020 IPE V3.0 205KV motor is primarily designed to operate optimally with 12S LiPo batteries, providing the necessary power for heavy-lift and long-range applications.
Q3. What does the IP45 rating indicate about this motor's durability?
Ans. The IP45 rating means the motor is protected against dust ingress and resistant to water splashes from any direction, making it highly reliable for outdoor use in various environmental conditions, including light rain.
