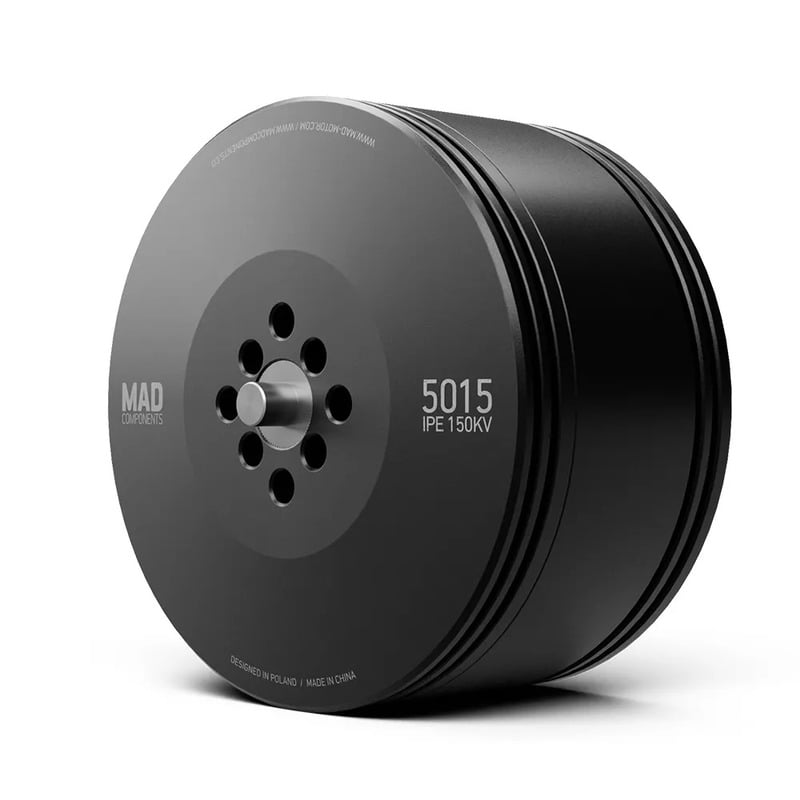

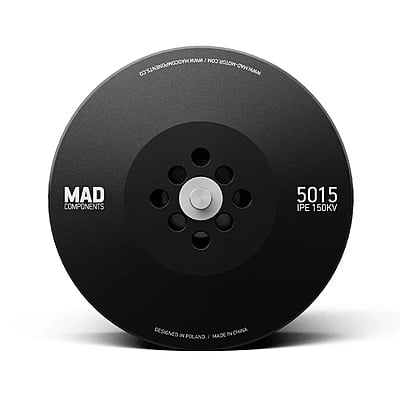

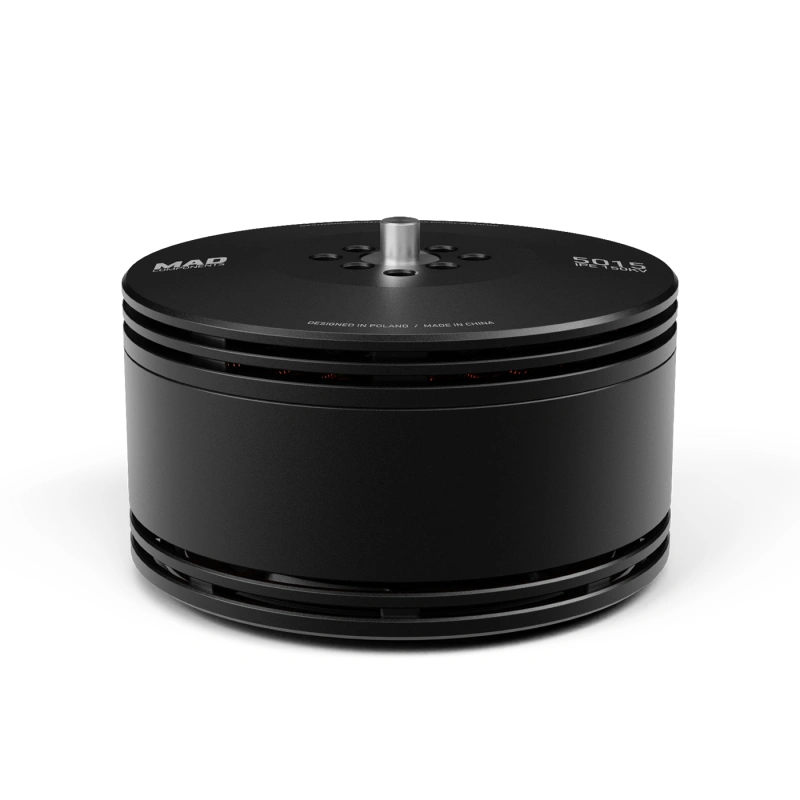

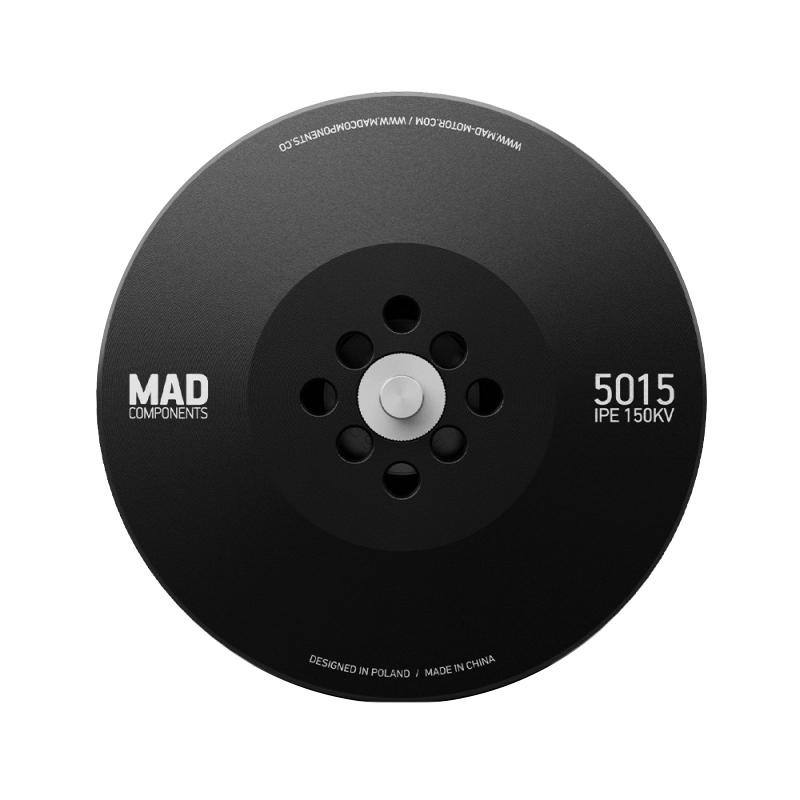

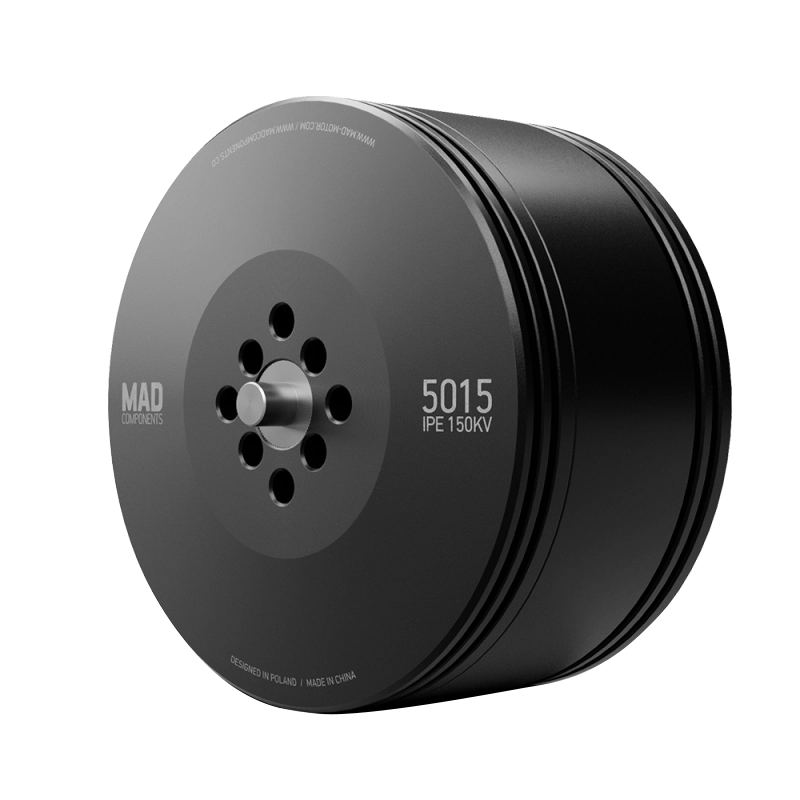

MAD MOTOR 5015 IPE V3.0 VTOL Drone Motor
₹14,499.00
The MAD 5015 IPE V3.0 150KV is an Industry Professional Edition brushless motor, optimized for heavy-lift multirotor drones and VTOL aircraft (8-14kg quadcopters). Its ultra-low KV and high efficiency deliver exceptional endurance and powerful thrust (up to 8.6kg). With IP45 protection and robust construction, it ensures reliable, stable performance for demanding industrial missions like long-range inspection and mapping.
KV
Product Details
Features:
- Industry Professional Edition (IPE) durability.
- Ultra-low 150KV for maximum endurance.
- Optimized for 8-14kg quadcopters.
- Max thrust up to 8.6 kg.
- Max power output 2529W.
- IP45 dust and water protection.
- Centrifugal heat dissipation design.
- Precision balanced rotor (≤5 mg).
- Robust anticorrosive stator (Japan-sourced).
- High-quality EZO 696ZZ bearings.
Technical Specifications:
- RPM/V: 150 KV
- Nominal Voltage: 12S lipo battery
- No Load Current: 0.7A/20V
- Internal resistance: 129mΩ
- Motor Weight: 226 g

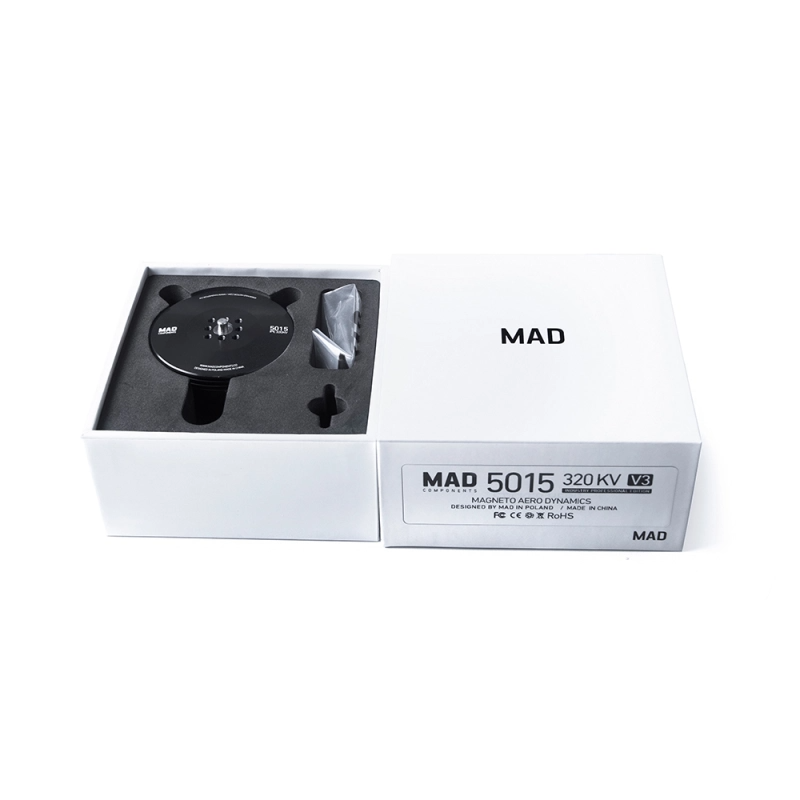

- Product Boxed Weight: 389g (110 x 110 x 50 mm)
- Maximum Current: 22.2 A
- Maximum Power: 1052W
- Maximum thrust: 6.4 kg
- Maximum Torque: 1.5 Nm
- Recommended ESC: MAD AMPX 40A (5-14S) HV
- Recommended Propellers: 20x6.0, 22x6.6
- UAV take-off weight: 12S-22" 10kg - Quadcopter, 15kg - Hexacopter, 20kg - Octocopter
- Single rotor take-off weight: 2kg ~ 3kg
- Motor Model: MAD 5015 IPE V3.0
- Number of pole pairs: 14
- Stator: Anticorrosive
- Varnished wire Degree: 180°C
- Motor Size: D:56 × 36.3 mm
- Magnet Degree: 150°C
- Degree of Protection: IP45
- Cable Length: 150 mm 16# Awg(Black) silicone
- Centrifugal Heat Dissipation: YES
- Rotor Balance: ≤5 mg
- Propeller Mounting Holes: D:12 M3x4, D:15 M3x4
- Motor Balance: ≤10 mg
- Shaft Diameter: IN: 6 mm

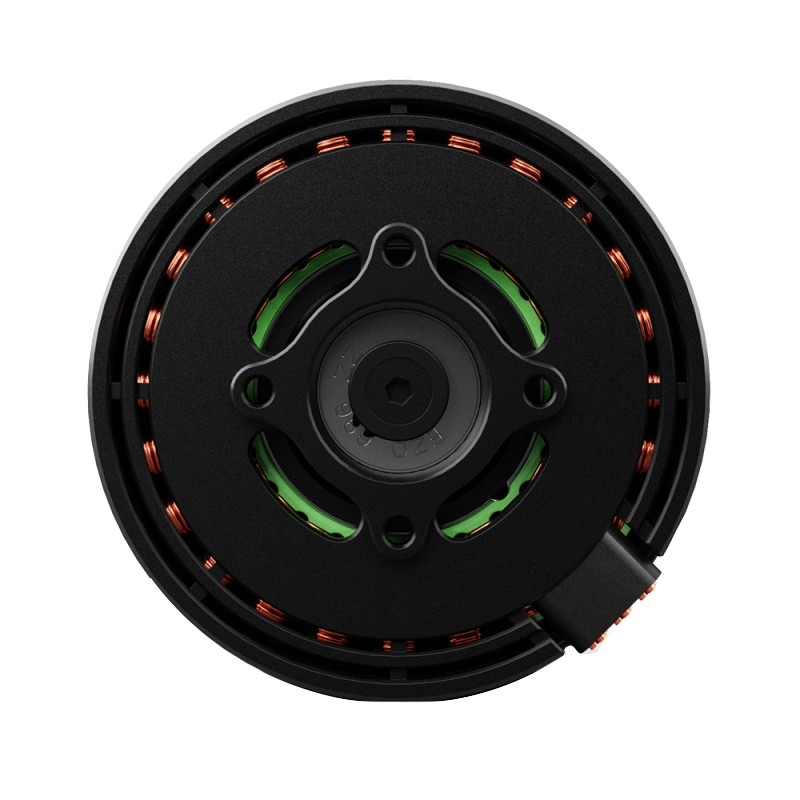

- Motor Mounting Holes: D:25 M3x4
- Bearing: EZO 696ZZ*2
- Disruptive test: 500 V
Additional Details:
- Manufacturer: MAD Components
- Brand: MAD
- Generic Name: Drone Motor || Brushless Motor || VTOL Motor || UAV Motor || Long Range Motor || Industrial Drone Motor || Electric Motor || Outrunner Motor || Professional Drone Motor || Mapping Drone Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Heavy-Lift Quadcopters (8-14kg takeoff weight) || VTOL Aircraft || Long-Range Inspection Drones || Mapping & Surveying UAVs || Professional Hexacopters & Octocopters || Custom Industrial UAV Builds || Commercial Drone Applications || All-Weather Drone Operations || Demanding Endurance Missions || Cinematic UAVs (heavy setups)
Package Details:

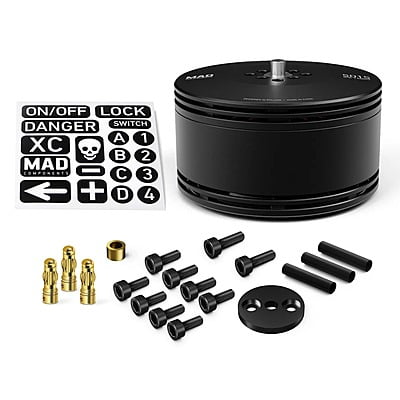

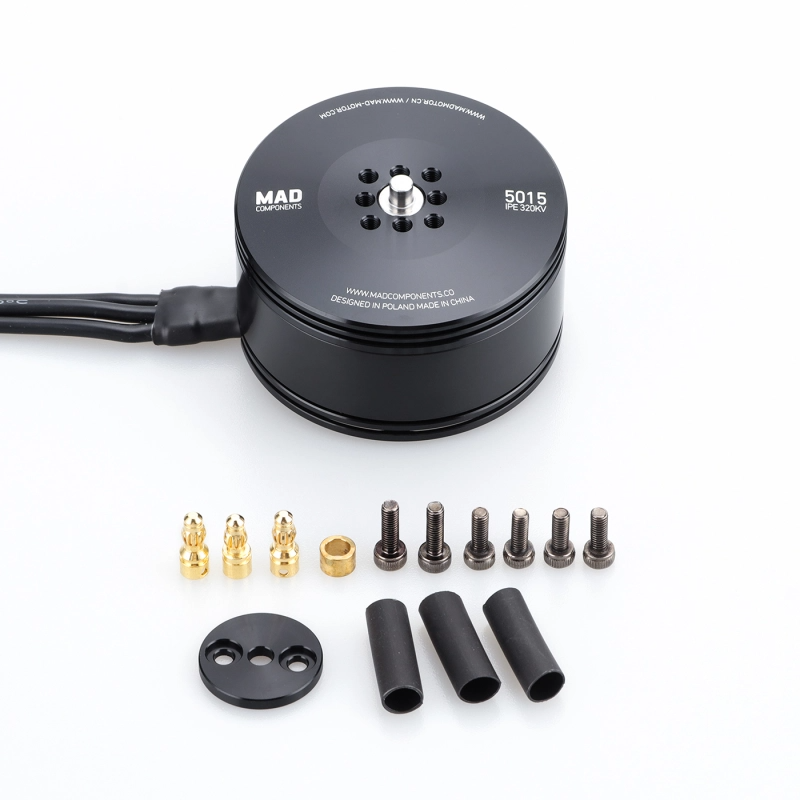

Includes:
- 1 x MAD 5015 IPE V3.0 150KV VTOL Drone Motor
- 1 x Hardware set (screws etc)
Frequently Asked Questions:
Q1. What is the ideal application for the MAD 5015 IPE V3.0 150KV motor?
Ans. This motor is specifically designed as the best power solution for quadcopters with an 8-14kg takeoff weight, and is widely used for long-range inspection, mapping, and surveying drones, as well as VTOL aircraft.
Q2. What battery voltage is recommended for optimal performance with this motor?
Ans. The MAD 5015 IPE V3.0 150KV motor is primarily designed to operate optimally with 12S LiPo batteries, providing the necessary efficiency and power for heavy-lift and long-range applications.
Q3. Can this motor operate reliably in adverse weather conditions like rain or dust?
Ans. Yes, with an IP45 degree of protection, the motor is dust-resistant and protected against water splashes from any direction, ensuring reliable operation in various outdoor environmental conditions.
