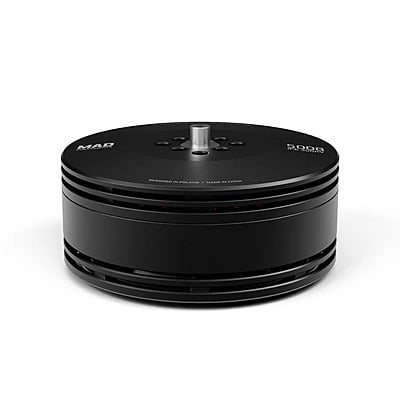

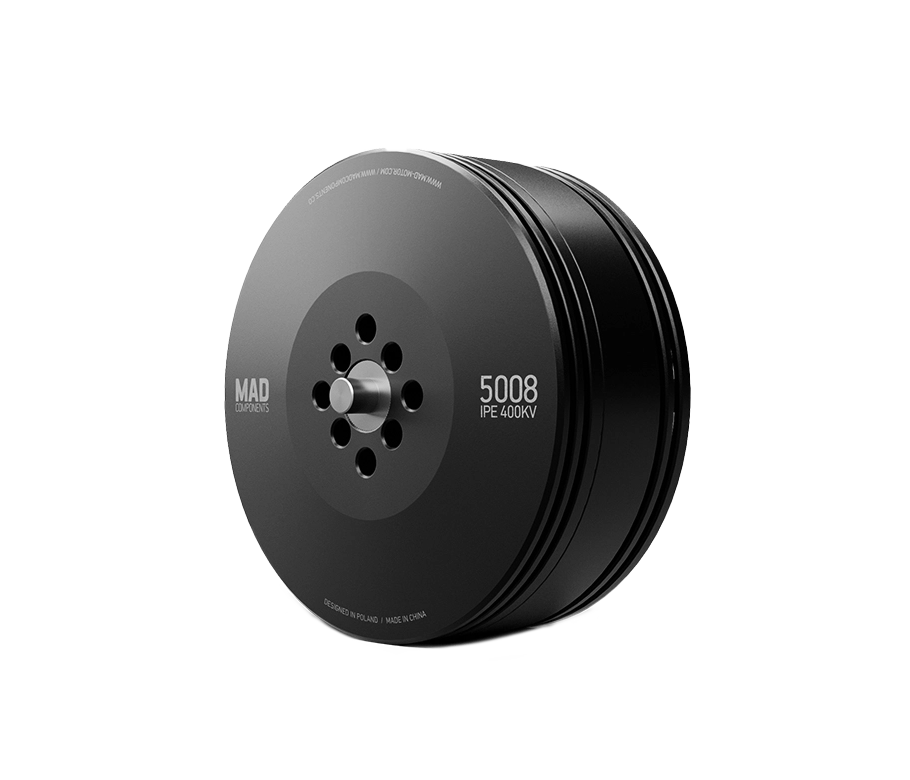

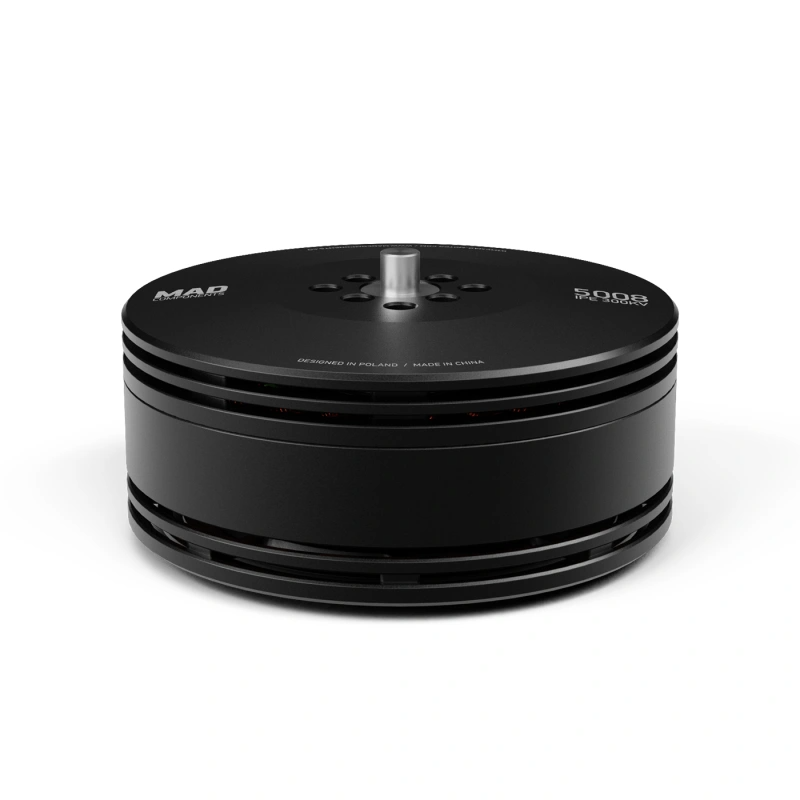

MAD MOTOR 5008 IPE V3 Brushless Motor
₹13,999.00
The MAD 5008 IPE V3 400KV is an Industry Professional Edition brushless motor designed for heavy-lift multirotor UAVs requiring extended flight times. Optimized for 6S LiPo, it offers exceptional efficiency and reliable thrust (up to 4.1kg). With IP45 protection and robust construction, it ensures stable and durable performance for demanding industrial applications like mapping and inspection.
KV
Product Details
Features:
- Industry Professional Edition (IPE) durability.
- High 400KV for balanced efficiency.
- Optimized for 6S LiPo systems.
- IP45 dust and water protection.
- Centrifugal heat dissipation design.
- Precision balanced rotor (≤5 mg).
- Robust anticorrosive stator.
- High-quality EZO 696ZZ bearings.
- High-temperature resistant varnished wire (180°C).
- Standardized mounting holes for versatility.
Technical Specifications:
- Motor Model: MAD 5008 IPE V3.0
- Number of pole pairs: 14
- Stator: Anticorrosive
- Varnished wire Degree: 180°C
- Motor Size: D:56 x 29.3 mm
- Magnet Degree: 150°C
- Degree of Protection: IP45
- Cable Length: 150 mm 16# Awg(Black) silicone
- Centrifugal Heat Dissipation: YES
- Rotor Balance: ≤5 mg

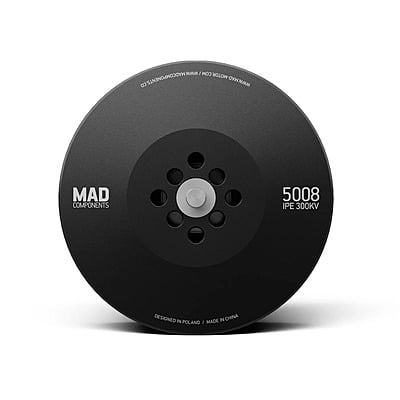

- Propeller Mounting Holes: D:12 M3x4, D:15 M3x4
- Motor Balance: ≤10 mg
- Shaft Diameter: IN: 6 mm

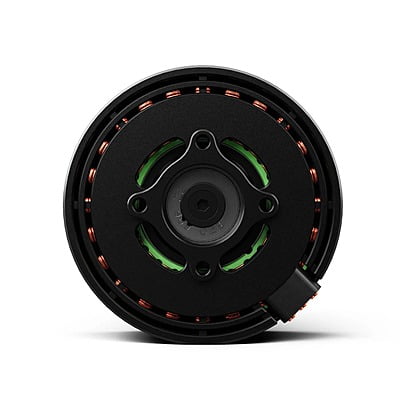

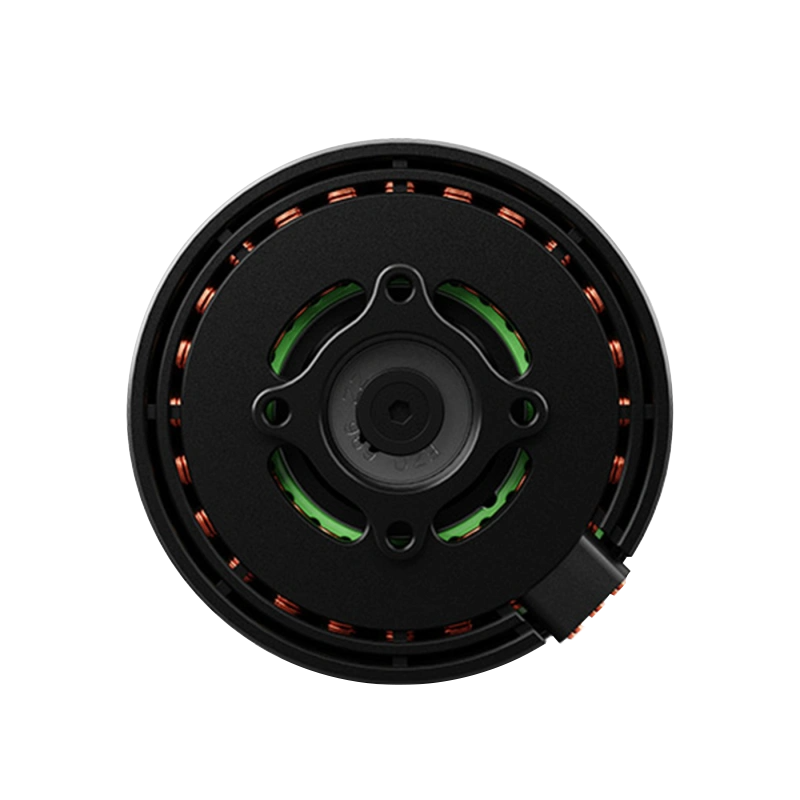

- Motor Mounting Holes: D:25 M3x4
- Bearing: EZO 696ZZ*2
- Disruptive test: 500 V
- RPM/V: 400 KV
- Nominal Voltage: 6S lipo battery
- No Load Current: 1.35A / 20V
- Internal resistance: 44.5mΩ
- Motor Weight: 141 g
- Product Boxed Weight: 304g (110 x 110 x 50 mm)
- Maximum Current: 33.3 A
- Maximum Power: 776.8W
- Maximum thrust: 4.1 kg
- Maximum Torque: 0.82 Nm
- Recommended ESC: MAD AMPX PRO 40A (2-6S)
- Recommended Propellers: 16x5.4, 17x5.8
- UAV take-off weight: 6S-17" / 7kg - Quadcopter, 10.5kg - Hexacopter, 14kg - Octocopter
- Single rotor take-off weight: 1.5kg ~ 2kg
Additional Details:
- Manufacturer: MAD Components
- Brand: MAD
- Generic Name: Drone Motor || Brushless Motor || Multirotor Motor || UAV Motor || Long Endurance Motor || Aerial Photography Motor || Electric Motor || Outrunner Motor || Professional Drone Motor || Surveying Drone Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Professional Multirotors || Long-Range Inspection Drones || Mapping & Surveying UAVs || Quadcopters, Hexacopters, Octocopters || Heavy-Lift Drones (1.5-2kg payload/rotor) || Custom Endurance Builds || Commercial Drone Applications || Cinematic UAVs || Industrial Monitoring Drones || All-Weather Drone Operations

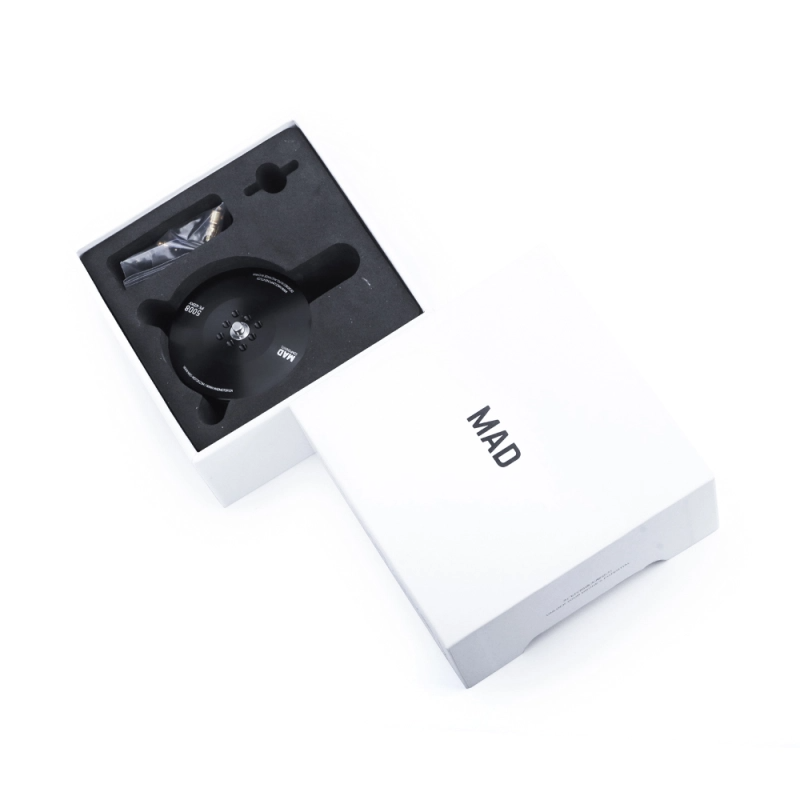

Package Details:
Includes:

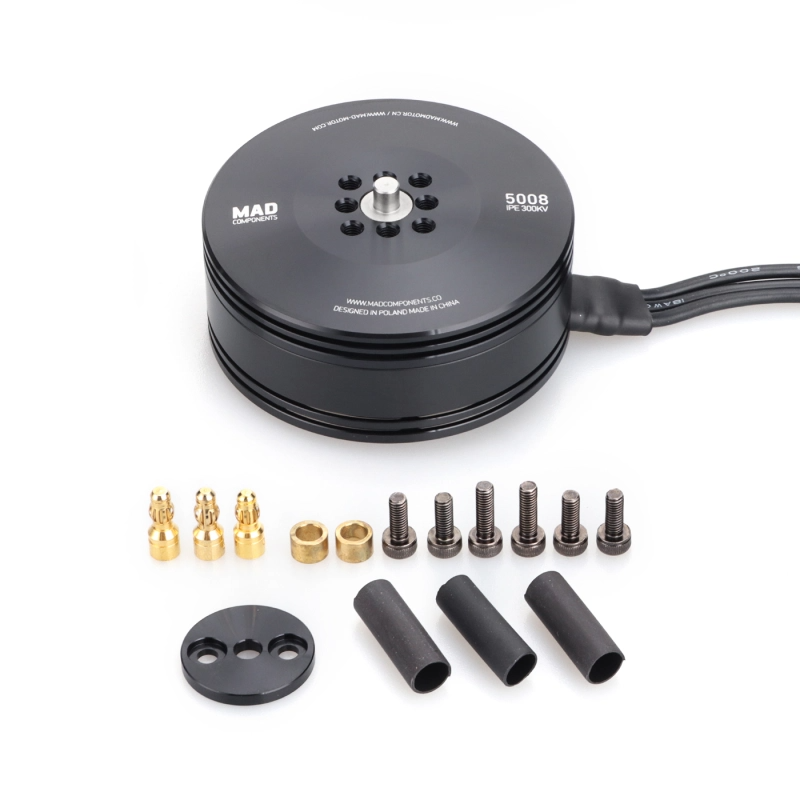

1 x MAD 5008 IPE V3 400KV Brushless Motor
1 x Hardware set
Frequently Asked Questions:
Q1. What is the key difference between MAD's IPE and EEE motor versions?
Ans. The IPE (Industry Professional Edition) focuses on higher levels of waterproof and protection (IP45 for this model), while the EEE (Enthusiasts Extreme Edition) emphasizes extreme weight reduction for peak performance.
Q2. What battery voltage is best suited for the MAD 5008 IPE V3 400KV motor?
Ans. This motor is primarily designed for optimal performance with 6S LiPo batteries, providing a balance of power and efficiency for its target applications.
Q3. Can this motor handle outdoor operations in light rain or dusty conditions?
Ans. Yes, with an IP45 degree of protection, the MAD 5008 IPE V3 400KV motor is rain-resistant and protected against dust ingress, making it suitable for use in various outdoor environmental conditions.
