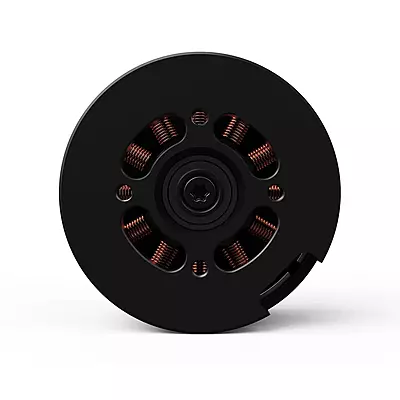

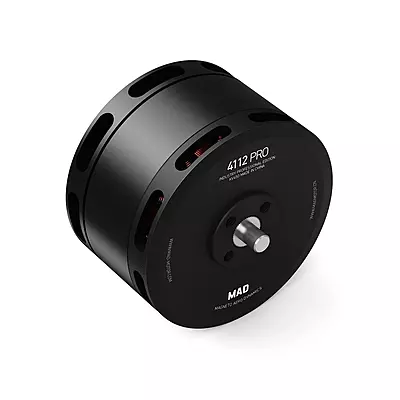

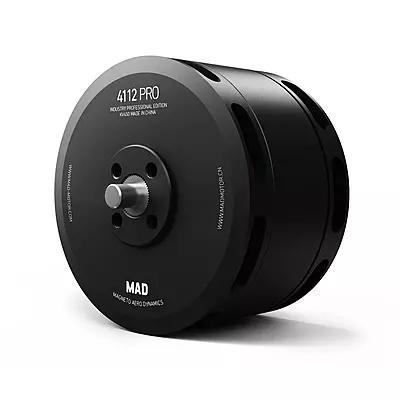

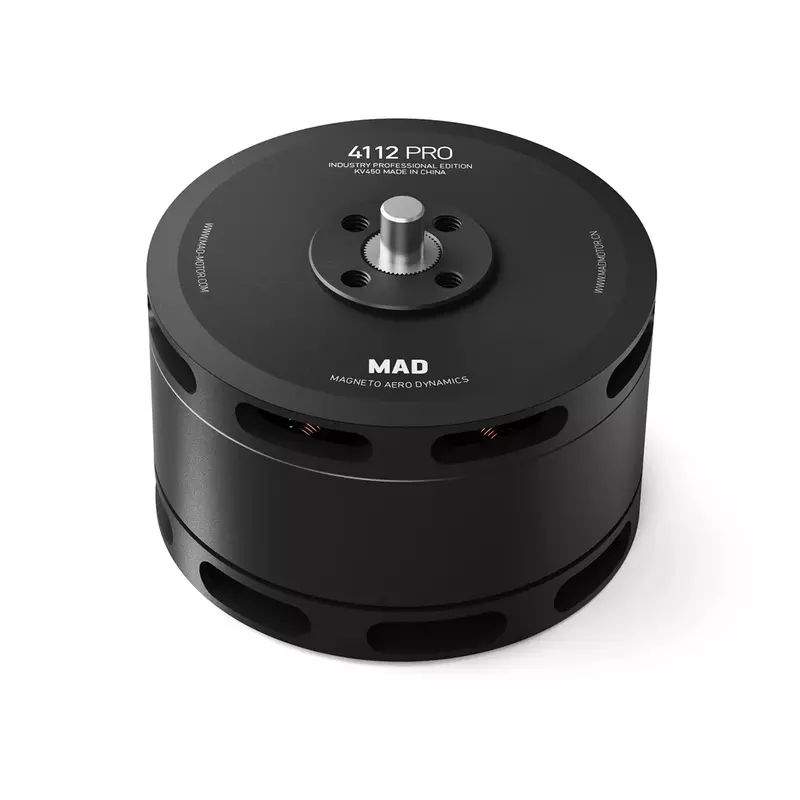

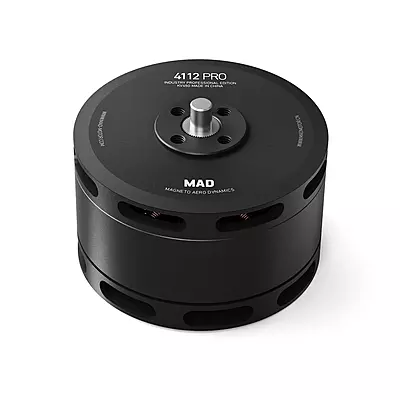

MAD MOTOR 4112 PRO IPE 450KV
₹13,999.00
The MAD MOTOR 4112 PRO IPE 450KV is an advanced brushless propulsion motor engineered for long-range inspection drones, mapping platforms, and eVTOL aircraft. Featuring an innovative auto-centering feathering propeller mechanism, it automatically aligns the blades upon motor shutdown to minimize drag, delivering exceptional thermal efficiency, robust IP35 protection, and reliable heavy-lift performance.
Choose Quantity
Product Details
Features :
- Advanced auto-centering feathering propeller support designed to reduce drag and increase glide efficiency during engine failure.
- High-efficiency 450KV rating optimized for 6S power configurations and precise multirotor control.
- Robust anticorrosive stator architecture with 150°C high-temperature resistant varnished wire and magnets.
- Integrated centrifugal heat dissipation design ensuring optimal thermal regulation under continuous heavy loads.
- IP35 ingress protection rating offering enhanced durability against dust and moisture during field operations.
Technical Details :
- Motor Model: MAD 4112 PRO IPE V1.0 (450KV)
- Motor Dimensions: 46.6mm Diameter x 34.7mm Height
- Maximum Thrust & Power: Up to 3.8 kg per motor | 920W Maximum Power
- Operating Voltage: 6S LiPo Battery Configuration
- Weight & Shaft Size: 146g Motor Weight | 5mm Input Shaft Diameter
Additional Details:
Manufacturer: MAD Motor
Brand: MAD Motor
Generic Name: eVTOL Brushless Drone Motor
Sold By: UAV Marketplace
Ideal For: Long-range inspection drones, mapping and surveying UAVs, eVTOL aircraft, and custom quadcopters or hexacopters
Package Details:
1x MAD MOTOR 4112 PRO IPE 450KV Brushless Motor, 2x Propeller Plates, 2x Adapter Rings, 6x Bullet Connectors, Heat-Shrinkable Tubes, Mounting Screws, 1x User Manual
FAQs:
Q1) What is the main advantage of the PRO IPE feathering mechanism?
Ans : The auto-centering feathering mechanism automatically aligns the propeller blades to a horizontal position upon shutdown, drastically reducing aerodynamic drag.
Q2) What battery configuration and propellers are recommended for this motor?
Ans : It is optimized for a 6S LiPo power setup and pairs ideally with 15-inch to 16-inch high-stiffness carbon fiber propellers.
Q3) What is the maximum thrust output of the MAD 4112 PRO IPE motor?
Ans : It delivers a maximum thrust of approximately 3.8 kg per motor, making it ideal for high-payload industrial multirotors.
