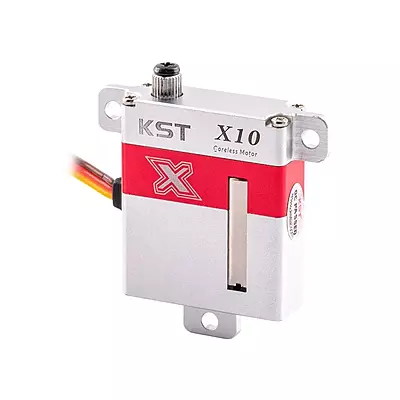

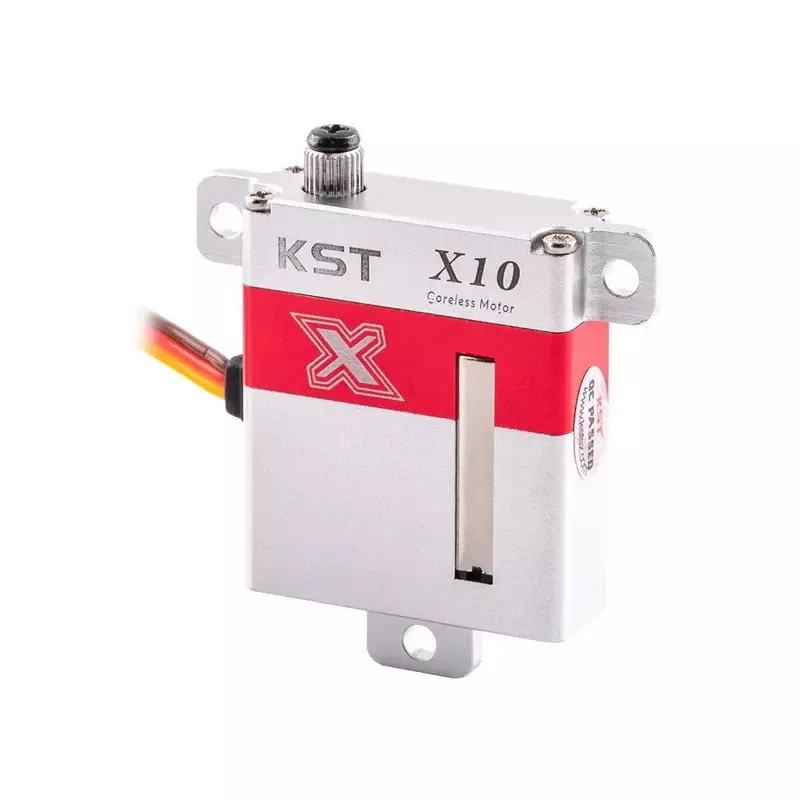

KST X10 V8 Metal Gear Servo
₹14,999.00
The KST X10 V8 Metal Gear Servo is a high-performance, high-voltage digital servo engineered for demanding aerodynamic surfaces, high-speed gliders, and precision UAV applications. Featuring a slim 10mm CNC-machined aluminum housing, hardened steel gears, and a powerful coreless motor, it delivers up to 10.8kg.cm of torque while maintaining exceptional speed, efficiency, and reliability under heavy aerodynamic loads.
Choose Quantity
Product Details
Features :
- High-torque output delivering up to 10.8 kgf.cm at 8.4V for powerful control surface actuation.
- Super-fast response achieving 0.10 sec/60° at high voltage for crisp maneuverability.
- Wide operating voltage range from 4.8V to 8.4V supporting 2S LiPo and 4S NiMH systems.
- Coreless DC motor design ensuring smooth operation, high efficiency, and rapid acceleration.
- Hardened steel geartrain and rugged 7075 aluminum alloy case offering maximum durability and heat dissipation.
Technical Details :
- Item Code & Model: KST-MTRS-3041 | KST X10 V8.0
- Stall Torque Ratings: 6.2 Kgf.cm (4.8V) | 7.5 Kgf.cm (6.0V) | 9.5 Kgf.cm (7.4V) | 10.8 Kgf.cm (8.4V)
- Operating Speed: 0.16 sec/60° (4.8V) down to 0.10 sec/60° (8.4V)

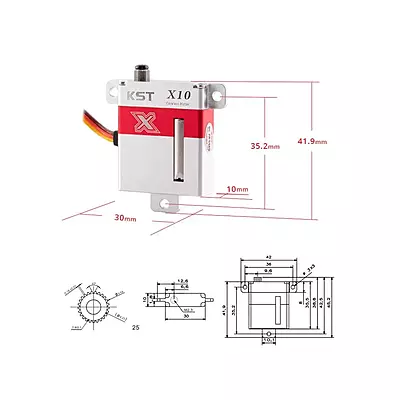

- Dimensions & Weight: 30.0 mm x 10.0 mm x 35.5 mm | 28g
Additional Details:
Manufacturer: KST
Brand: KST
Generic Name: High-Voltage Digital Metal Gear Servo
Sold By: UAV Marketplace
Ideal For: High-speed gliders, F3J/F3B/F3F sailplane wings, fixed-wing UAV control surfaces, and precision robotics
Package Details:
1x KST X10 V8 Digital Servo, 5x Plastic Servo Horns, 1x Servo Horn Screw, 3x Mounting Screws
FAQs:
Q1) What is the maximum torque output of the KST X10 V8 servo?
Ans : It delivers a maximum stall torque of 10.8 kgf.cm when operated at an 8.4V input.
Q2) Can this servo be powered directly by a 2S LiPo battery?
Ans : Yes, it supports an operating voltage range from 4.8V to 8.4V, making it fully compatible with 2S LiPo setups.
Q3) What type of motor and gear construction does it use?
Ans : It utilizes an efficient coreless DC motor paired with ultra-durable hardened steel gears inside a CNC aluminum case.
