KST X10 V8.0 Digital Metal Gear Servo 10.8kg.cm
Non-returnable
₹5,799.00
The KST X10-710 V8 is a high-performance, high-voltage digital servo designed for demanding applications such as high-speed gliders, electric aircraft, and UAVs. Compact yet powerful, this servo delivers up to 7.5Kg.cm torque, excellent speed, and precise control. Featuring hardened steel gears, a coreless motor, and a CNC-machined aluminum case, the X10-710 is known for its durability, accuracy, and efficiency across a wide voltage range from 4.8V to 8.4V.
Choose Quantity
Product Details
Key Features
- Torque Rated 6.2Kgf.cm@4.8V
- Super-fast response: up to 0.10 sec/60°
- Wide voltage support: 4.8V to 8.4V (supports 2S LiPo or 4S NiMH)
- Coreless motor for fast and smooth operation
- Hardened steel geartrain for maximum durability
- CNC aluminum alloy housing for efficient heat dissipation
- Precision control ideal for fuselage or wing mounting
- USB/Programming box compatible for easy tuning
Technical Specifications
- Operation Voltage (Rated): DC 7.4V
- Voltage Range: DC 4.8V ~ 8.4V
- Torque: 6.2Kgf.cm@4.8V, 7.5Kgf.cm@6.0V, 9.5Kgf.cm@7.4V, 10.8Kgf.cm@8.4V
- Speed: 0.16sec/60° @4.8V, 0.14sec/60° @6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
- Travel Angle: ±50°
- Operating Temperature: -20°C ~ +65°C
- Motor Type: Coreless
- Gears: Hardened Steel
- Case Material: CNC Aluminum
- Programming Support: Compatible with Programming Box / USB Link
- Applications : Electric Gliders (F5J, F3F, F3B, etc.), High-speed fuselage or wing servo applications, RC Planes, UAVs, Fixed-Wing Drones, Precision surface control in RC aircraft, Robotics requiring high-speed, high-torque actuators

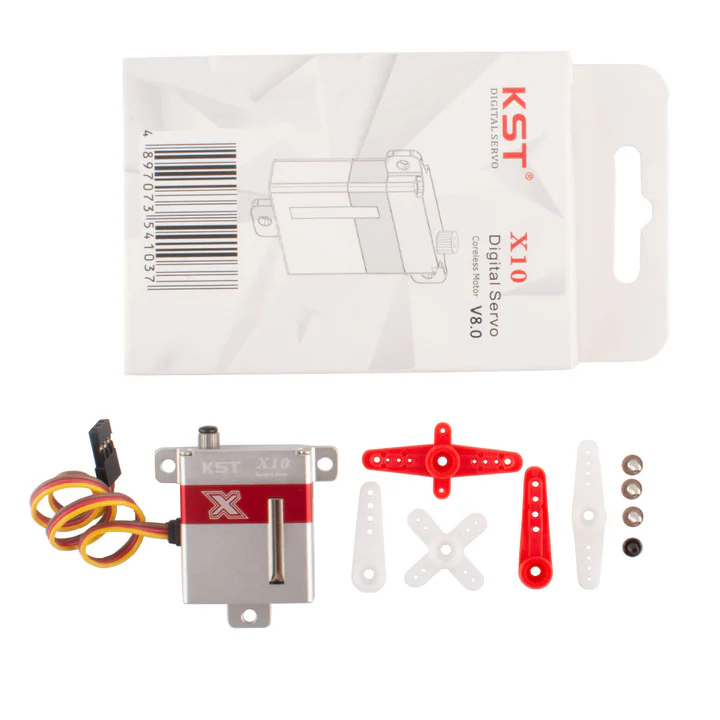

Package Includes
- 1 × KST X10-710 V8 Servo
- 1 × Pack of mounting accessories
Additional Details
- Brand: KST
- Model: X10-710 V8
- Generic Name: High Torque Digital Servo || Metal Gear RC Servo || 7.4V Coreless Servo || CNC Aluminum Servo || UAV Flight Control Servo || Programmable Aircraft Servo
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Frequently Asked Questions
Q1. Can I use this servo with 2S LiPo battery systems?
A: Yes, it supports up to 8.4V, making it perfect for 2S LiPo or 4S NiMH setups.
Q2. Does this servo support programming for travel or centering?
A: Yes, it’s compatible with programming boxes and USB links for customization.
Q3. Is this servo suitable for wing mounting in gliders?
A: Absolutely. Its compact size and excellent torque make it ideal for wing or fuselage use in electric gliders.
