KST BLS815
Non-returnable
₹8,109.00

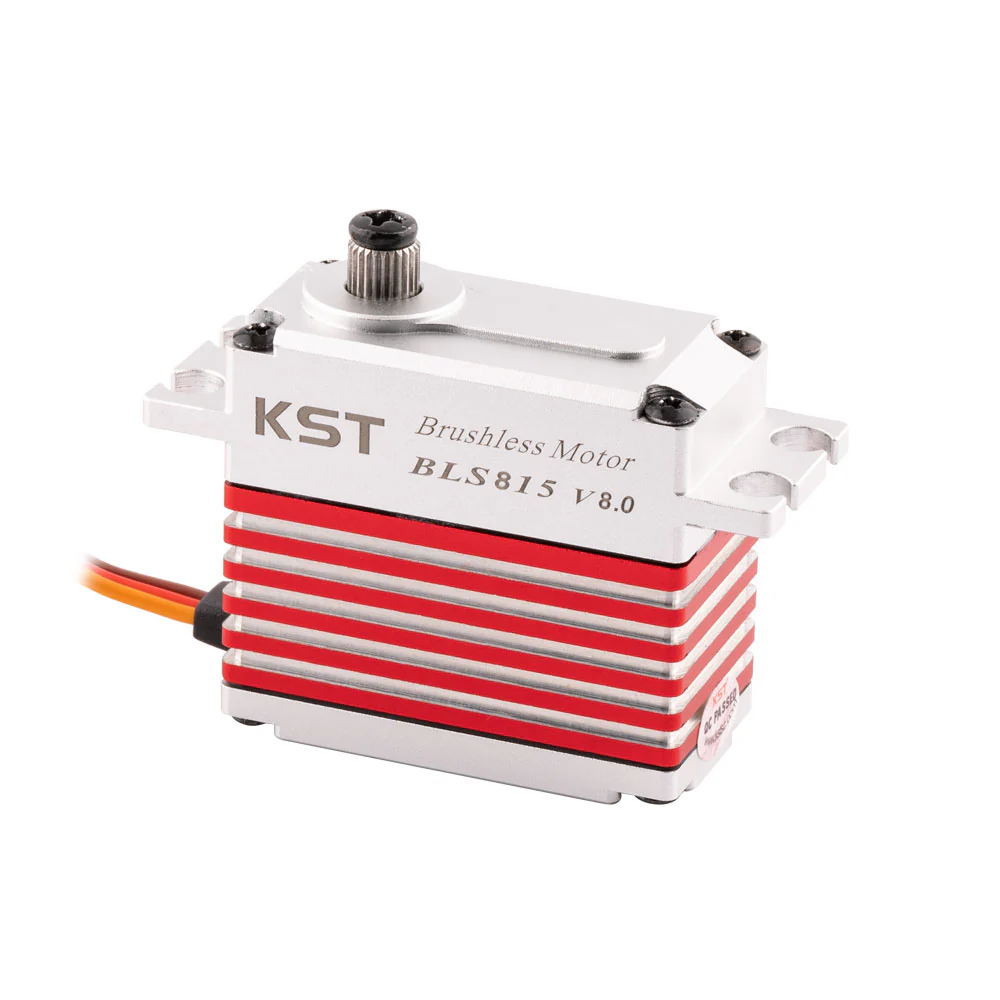

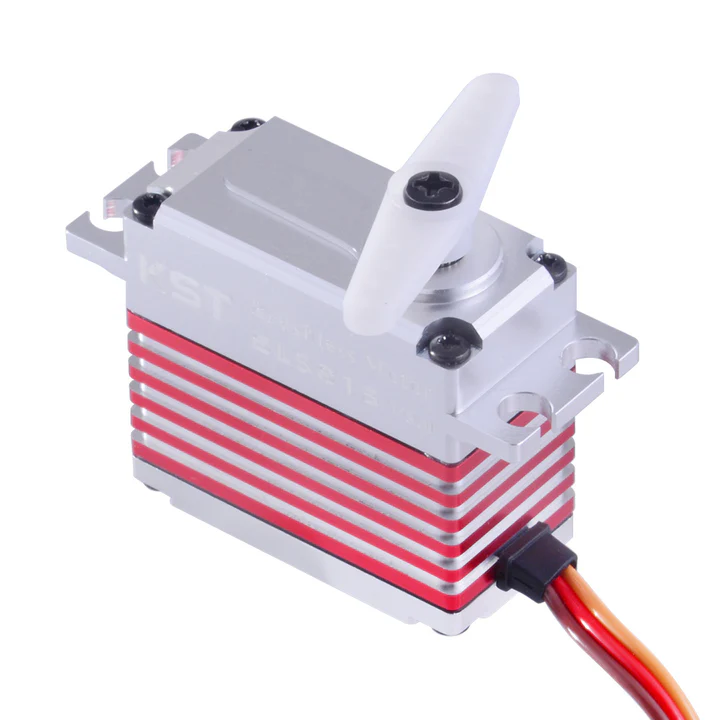

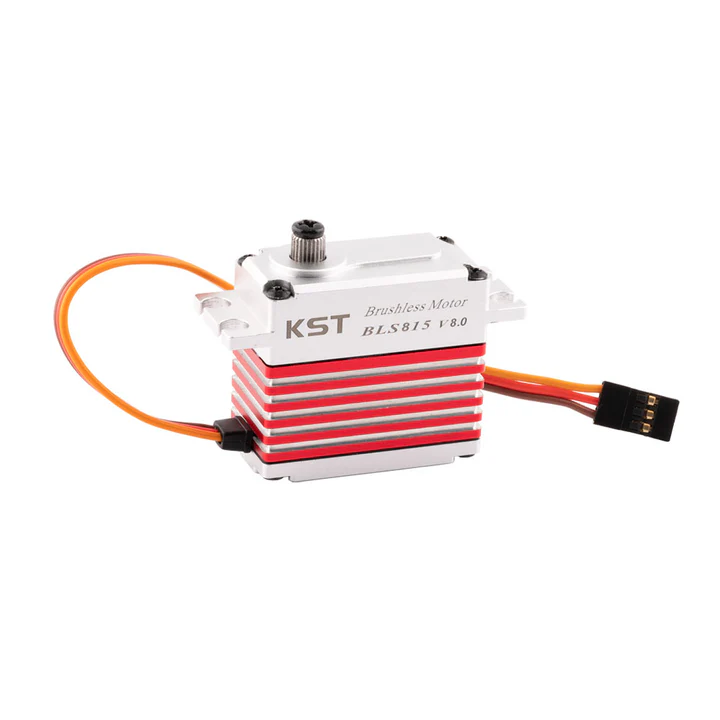

The KST BLS815 is a high-performance, high-voltage (HV) digital servo featuring a powerful brushless motor and durable hardened steel gears.Housed in a full CNC aluminum case for maximum cooling and strength, it delivers ultra-fast speed (0.07s/60°) and high torque (20kg.cm at 8.4V), making it ideal for the demanding cyclic control of 550 to 700 class RC helicopters and high-end models
Choose Quantity
Product Details
Features
- Ultra High Torque & Excellent Speed
- Hardened Steel Gear
- CNC Aluminium Case
- High Quality Brushless Motor
- Dual Ball Bearings
- Ideal for 550-700 Class Helicopter Cyclic
Specification
- Item: BLS815 V8.0 Brushless Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 14Kgf.cm@6.0V / 17Kgf.cm@7.4V / 20Kgf.cm@8.4V
- Speed: 0.09sec/60°@6.0V / 0.08sec/60°@7.4V / 0.07sec/60°@8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±50°=100°when1000μs-2000μs
- Temperature Range: -10℃.......+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

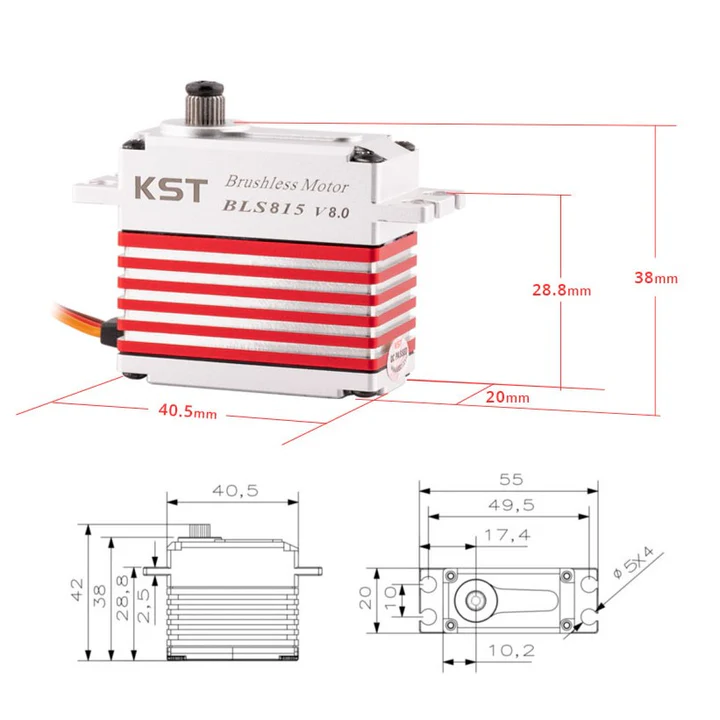

- Case Dimensions: 40.5mm*20mm*38mm ±0.2mm
- Weight: 70g±10%
Additional Details:
- Manufacturer: KST Digital Technology Limited
- Brand: KST
- Generic Name: Brushless High Voltage Servo, Standard Digital Servo, RC Control Actuator
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Cyclic (swashplate) and rudder control in 550-700 class RC helicopters, high-performance fixed-wing aircraft, competition-grade RC cars, and advanced robotics/UAV applications requiring high speed and torque.

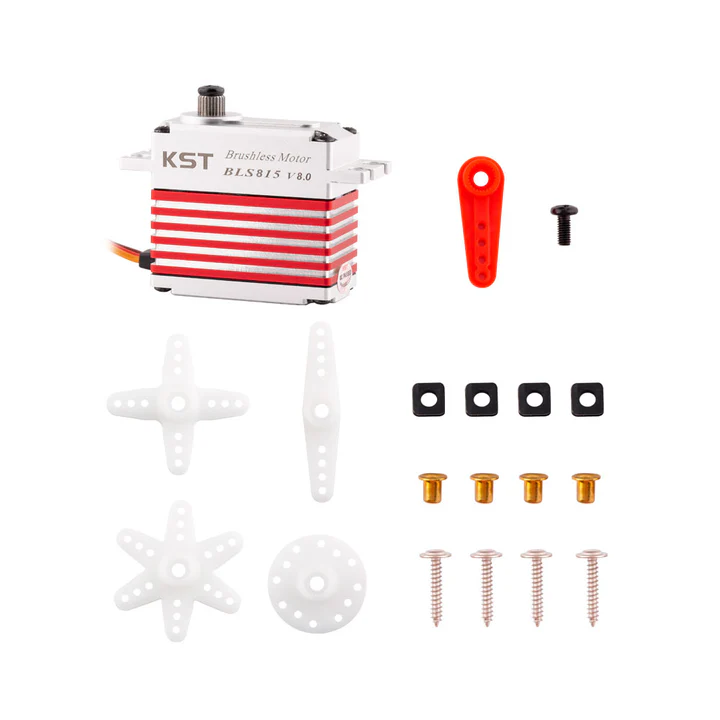

Package Including
- 1 * BLS815 V8.0 Brushless Standard Servo
- 5 * Plastic Servo Horn
- 1 * Servo Horn Screw
- 4 * Grommet
- 4 * Eyelet
- 4 * Mounting Screw
Frequently Asked Questions:
Q: Is the BLS815 suitable for use as a tail/rudder servo?
A: It is primarily designed for high-torque cyclic (swashplate) use, but KST offers dedicated, faster tail servos like the BLS805X/905X.
Q: What is the maximum safe operating voltage for this servo?
A: The maximum rated operating voltage for the BLS815 is 8.4V, making it a true High Voltage (HV) servo.
Q: Does this servo require a special servo programmer to set the soft start feature?
A: Yes, programming features like soft start and travel limits usually require a dedicated KST servo programmer tool.
