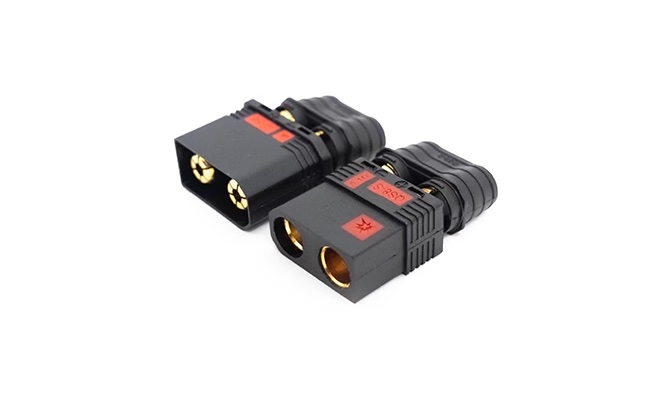

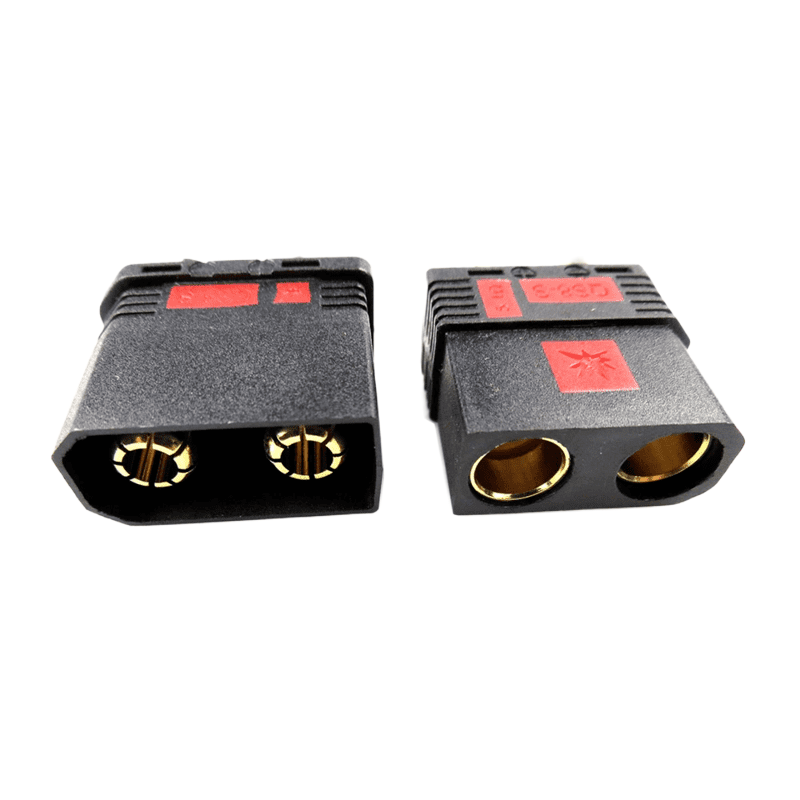

JIYI QS8 Male/Female Connector
₹799.00
Out of stock
The JIYI QS8 Male/Female Connector set is engineered for robust and reliable high-current connections in demanding applications. Featuring a secure anti-spark design and gold-plated terminals, these connectors ensure efficient power transfer and prevent damaging sparks during connection. Ideal for drones, RC vehicles, and high-power battery systems, they offer superior durability and safety for critical electrical links.
Product Details
Features:
- Robust anti-spark design ensures safe, reliable high-current connections.
- Secure fit prevents accidental disconnections under vibration.
- The design also provides no chance of incorrect polarity connection.

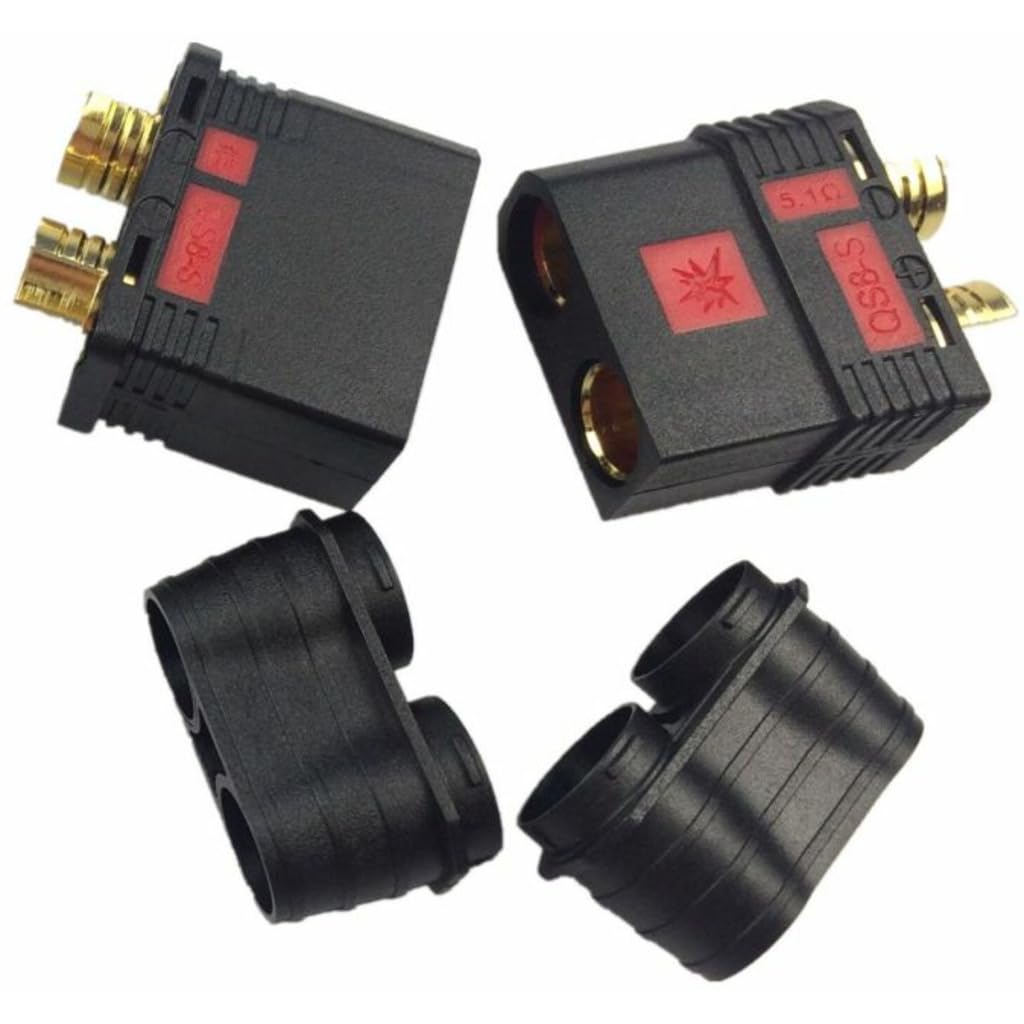

- Once soldered up, there are plastic guards that clip on each connector giving you a neatly wired plug and helps prevent short circuits.
- These QS8-S heavy duty gold plated connectors.
- High current rating supports powerful drone and RC applications.
- Male and female pairing for complete connection solutions.
- Easy to solder, simplifying assembly for DIY enthusiasts.
- Compact size for efficient integration into tight spaces.
- Provides reliable power link for critical electronic components.
- Prevents arcing, enhancing safety and component longevity.
Technical Details:
- Continuous Current: 110A
- Instantaneous current: 180A
- Contact resistance: 0.51mΩ
- Max Peak Current: 500A
- MAX Wire: 6AWG-10AWG

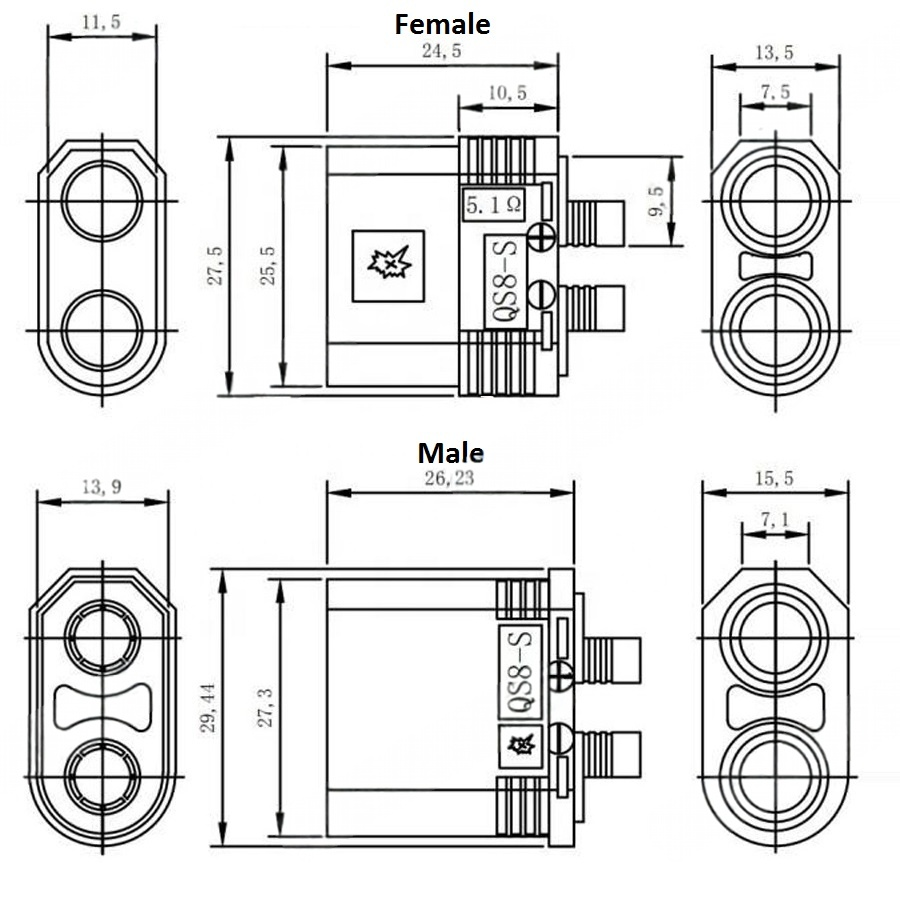

- Diameter: 8.0mm
- Guaranteed Long Battery Life
- Operating temperature: -20°C to -120°C
- Selected application: Battery controller charger
- Metal Material: Gold Plated Brass
- Plastic Material: Nylon with fiber
Additional Detail:
- Manufacturer: JIYI Robotics (or equivalent, if JIYI is the manufacturer of the connector itself)
- Brand: JIYI
- Generic Name: High-current battery connector, anti-spark connector, drone power connector, RC connector, QS8 plug, QS8 socket
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: High-current battery connections in drones, RC cars/planes, robotics, and other applications requiring robust power transfer.
Package Details:

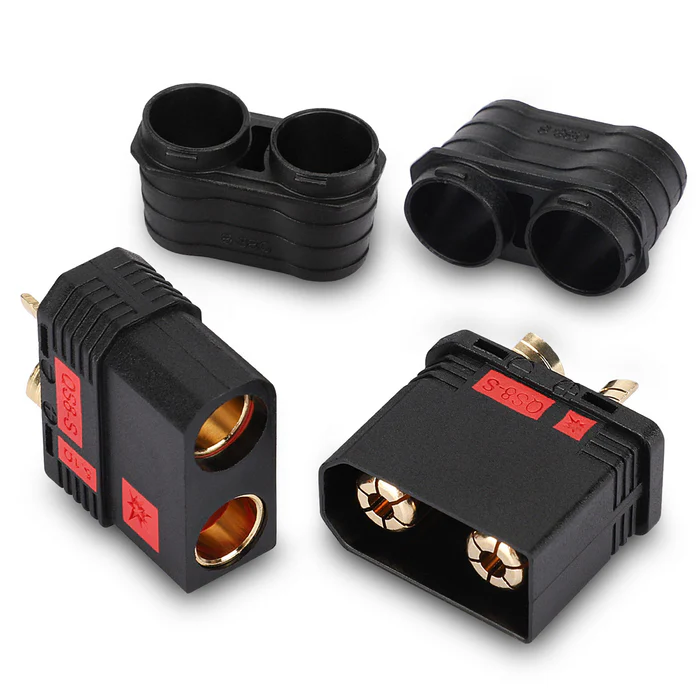

- Includes: 1 x JIYI QS8 Male Connector with housing, 1 x JIYI QS8 Female Connector with housing
Frequently Asked Questions:
Q1. What makes the QS8 connector "anti-spark"?
Ans - The QS8 connector features a specialized design where one of the pins connects slightly earlier than the other, discharging any initial voltage surge through a resistor and preventing damaging sparks during connection.
Q2. What wire gauge is best suited for the JIYI QS8 connectors?
Ans - The JIYI QS8 connectors are designed to accommodate up to 8AWG wire, allowing for very high current transfer suitable for large drone and RC applications.
Q3. Are these connectors suitable for continuous high-current discharge from large LiPo batteries?
Ans - Yes, the JIYI QS8 connectors are specifically designed for continuous high-current discharge from large LiPo batteries, offering excellent reliability and minimal resistance for demanding applications.
