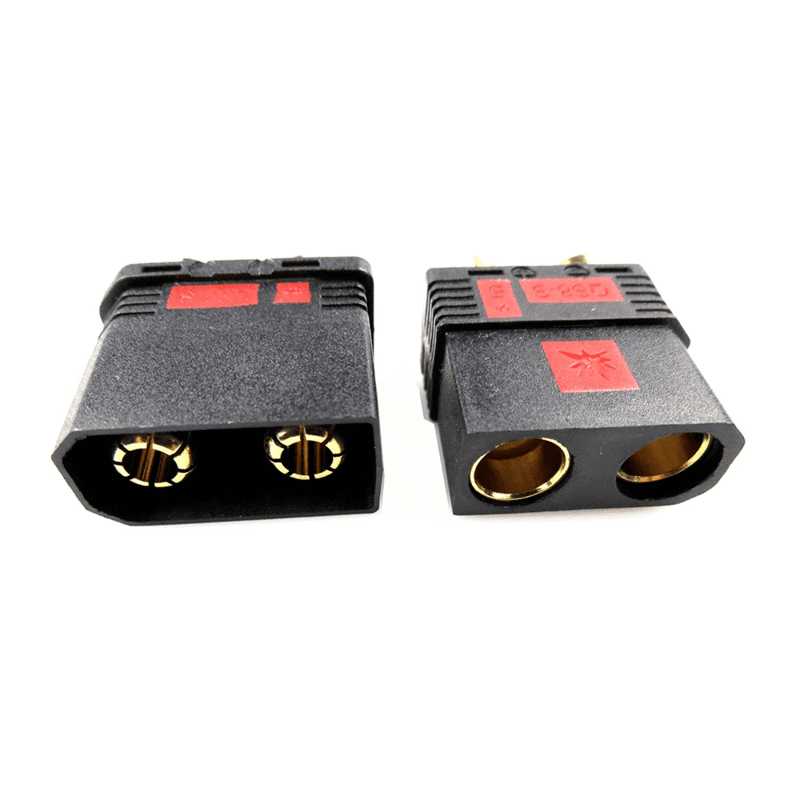

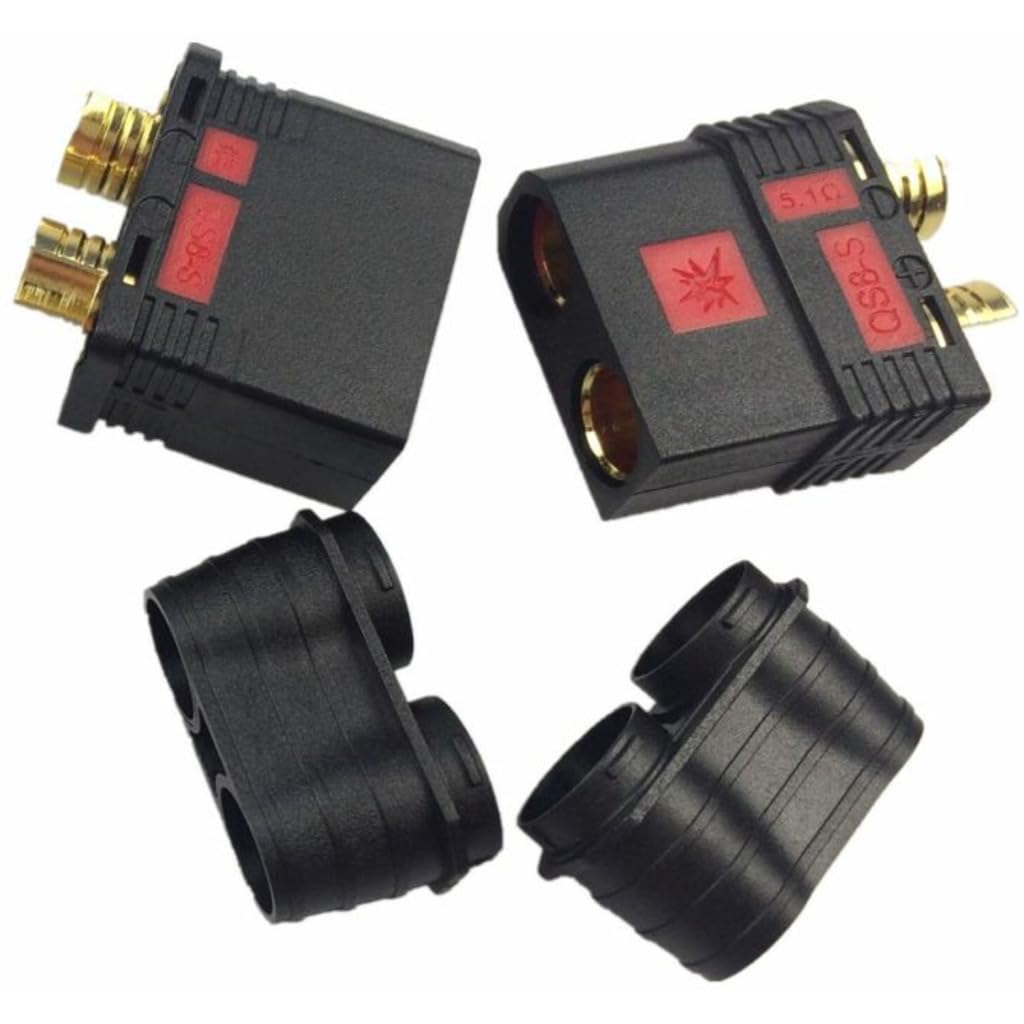

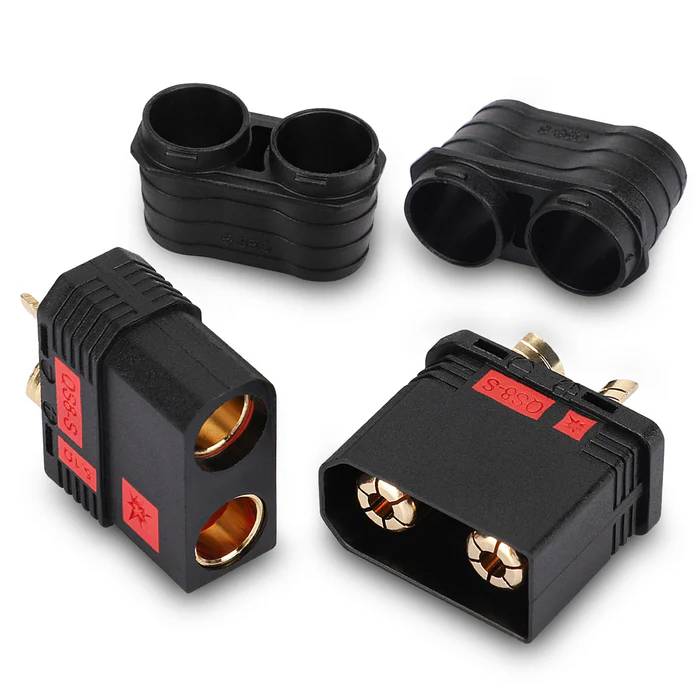

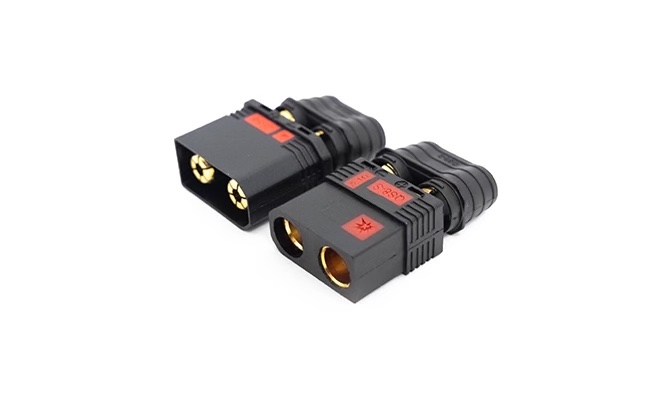

QS8-S high temperature and high current anti-firing male and female plant protection drone power supply battery plug

This system guarantees constant charging of the capacitors on ESC and allows the battery to be connected without sparks on your ESC when you first plug in.The design also provides no chance of incorrect polarity connection. Once soldered up, there are plastic guards that clip on each connector giving you a neatly wired plug and helps prevent short circuits. These QS8-S heavy duty gold plated connectors with built-in antispark resistors are great for high power electric models equipped

---

Specification:

• Continuous Current: 110A
• Instantaneous current: 180A
• Contact resistance: 0.51mΩ
• Max Peak Current: 500A
• MAX Wire: 6AWG-10AWG
• Diameter: 8.0mm
• Guaranteed Long Battery Life
• Operating temperature: -20°C to -120°C
• Selected application: Battery controller charger
• Metal Material: Gold Plated Brass
• Plastic Material: Nylon with fiber

Package Includes:

• 1 x QS8-S Connectors with Housing- Male
• 1 x QS8-S Connectors with Housing - Female
