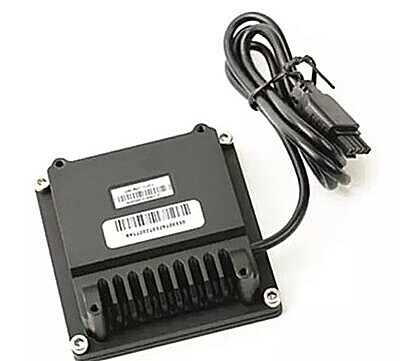

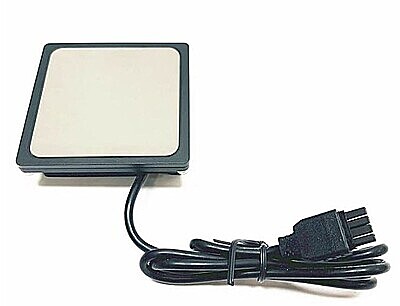

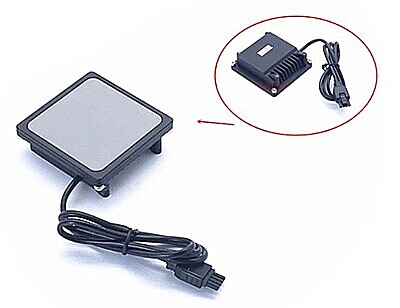

JIYI Obstacle avoidance back module

Features:

• 24GHz millimeter-wave radar technology.




• Real-time rear obstacle detection.




• All-weather performance (dust, fog, rain, night).




• High sensitivity for small objects.




• Long detection range up to 25 meters.




• Fast and stable signal transmission.




• IP67 waterproof and dustproof rating.




• Compatible with JIYI K++ and KX flight controllers.




• Enhances drone safety during backward flight.




• Ideal for plant protection and industrial drones.

Technical Specifications:

• Model: JIYI Obstacle Avoidance Back Module

• Sensor Type: Millimeter-Wave Radar

• Modulation Mode: FMCW

• Center Frequency: 24.125GHz

• Detection Range: 1 to 25 meters (or 1-20m for some specific models like UAV-R21-B)

• Detection Accuracy: ±0.1 meter

• Detection Resolution: 0.6 meter

• Refresh Rate / Output Frequency: 40Hz

• Working Voltage: 9-28V DC

• Power Consumption: 3W (at 25°C)

• Operating Temperature: -20°C to +85°C

• Protection Level: IP67 (Dust tight and protected from immersion in water)

• Output Interface: CAN Bus (Baud rate typically 1Mbps)

• Dimensions: Approximately 67.5mm x 66mm x 16.5mm

• Weight: Approximately 80g (or 109.5g with cable for UAV-R21-B)

• Compatibility: JIYI K++ Flight Controller (Firmware version 190617 or later), JIYI KX Flight Controller.

• Field of View (FOV): Often similar to front radars, Horizontal: ±120°, Vertical: ±30°, but specific for rear. For UAV-R21-B, Azimuth ±17∘, Elevation ±3∘ noted in one source, verify general back module FOV if different . Assuming a more general FOV for typical obstacle avoidance: Horizontal: 120°, Vertical: 30°.

Additional Details:

• Manufacturer: JIYI UAV (JIYI Technology Co., Ltd.)

• Brand: JIYI

• Generic Name: Rear Obstacle Radar || Drone Backward Sensor || UAV Anti-Collision Module || Back Sensing Radar || 24GHz Radar || Millimeter-Wave Sensor || Drone Safety Sensor || Autonomous Flight Module || Plant Protection Drone Sensor || JIYI Radar

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Spraying Drones || Plant Protection UAVs || Industrial Inspection Drones (especially in confined spaces) || Logistics & Delivery Drones || Autonomous Flight Systems || Drones Operating in Complex Environments || Search & Rescue Drones || Heavy-Lift Drones || Any Drone Requiring Rear Collision Protection || JIYI Flight Controller Users

Package Details:

Includes:

• 1x JIYI Obstacle Avoidance Back Module

Frequently Asked Questions:

Q1. How does the JIYI Obstacle Avoidance Back Module protect my drone during flight?

Ans. The JIYI Obstacle Avoidance Back Module actively scans the area behind your drone using 24GHz radar technology. When an obstacle is detected within its range, it quickly sends real-time distance data to the drone's flight controller. This allows the flight controller to initiate automated responses such as slowing down, stopping, or performing an avoidance maneuver, effectively preventing collisions, especially when the drone is backing up or operating in tight spaces.

Q2. Can this "back module" be used in conjunction with other JIYI obstacle avoidance sensors?

Ans. Yes, the JIYI Obstacle Avoidance Back Module is designed to complement other JIYI obstacle avoidance sensors, such as front or terrain radars. By integrating multiple modules, drones can achieve comprehensive 360-degree obstacle sensing, significantly enhancing overall flight safety and enabling more complex autonomous operations in diverse and challenging environments. Compatibility is typically seamless with JIYI K++ and KX flight controllers via the CAN bus.

Q3. What makes 24GHz radar technology suitable for drone obstacle avoidance, especially in challenging conditions?

Ans. 24GHz radar technology is highly suitable for drone obstacle avoidance because it utilizes radio waves, which can penetrate conditions that optically-based sensors (like cameras or LiDAR) cannot. This means the JIYI module performs reliably in adverse weather such as fog, heavy rain, dust, and even in complete darkness or bright sunlight. Its strong anti-interference capability ensures consistent and accurate detection, making it ideal for robust outdoor drone operations.
