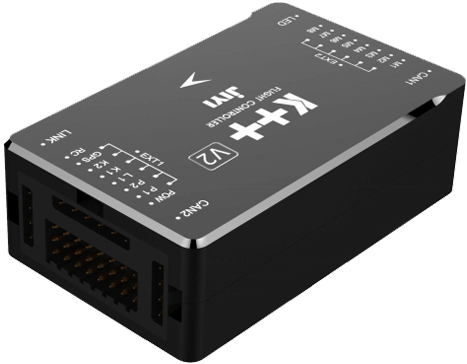

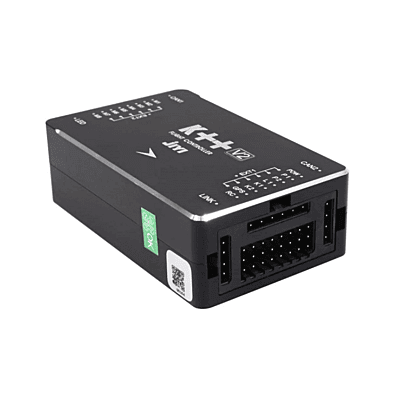

JIYI K++ V2 Flight Controller
₹33,999.00 ₹45,000.00
Out of stock
The JIYI K++ V2 is a flagship, industrial-grade flight controller system for agricultural UAVs. It ensures superior safety and precision with triple-redundant IMU and dual-redundant barometers. Featuring strong anti-vibration design, dual CPU architecture, and compatibility with advanced peripherals like RTK and Obstacle Radar, it guarantees highly reliable and accurate autonomous spraying operations.
Product Details
Key Features:
- Triple redundant IMU and dual redundant barometers ensure maximum flight safety.
- Industrial-grade sensors with one-time, lifetime calibration, simplifying setup significantly.
- Dual CPU configuration allows powerful processing for highly complex calculations.
- Double shock-absorbing structure design minimizes complex vibration effects effectively.
- Precise spraying function supports double water pump mode and efficient dosage control.
- Terrain following function maintains consistent altitude above uneven ground or crops.
- Supports 2S-12S LiPo battery types, ideal for large, heavy-duty agricultural drones.
Technical Specifications:
- Item Type: Kit
- Supported Multirotor Types: I4, X4 (Quadcopter), IY6, Y6, I6, V6 (Hexacopter), V8, I8, X8, IX8 (Octocopter)
- Battery Type: 3S - 12S Lithium Polymer Battery (LiPo)
- Receiver Type: Sbus, PPM Receiver
- Operating System (OS): Windows 7, 8, 10 (32 bit and 64 bit)
- Maximum Tilt Angle: 30 deg
- Maximum Yaw Speed: 150 deg/sec
- Maximum Vertical Speed: 6 m/s
- Maximum Wind ResistanceContinuous wind level 4, gust level 5
- Power Consumption (W): <5
- Voltage Range of FC: 4.8 V – 5.3 V
- PMU 2 (UPS) Input: 11.1 V – 50 V (3S – 12S LiPo recommended)
Additional Details:
- Manufacturer:JIYI
- Brand: JIYI
- Generic Name: Agricultural Drone Autopilot, UAV Autopilot System, Industrial Flight Control, Plant Protection FC, Dual CPU Autopilot
- Sold By:UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Professional Agricultural Spraying Drones, Plant Protection UAVs, High-Reliability Industrial Multi-Rotor Drones, Large-Scale Autonomous Operations, Mapping
Package Details:

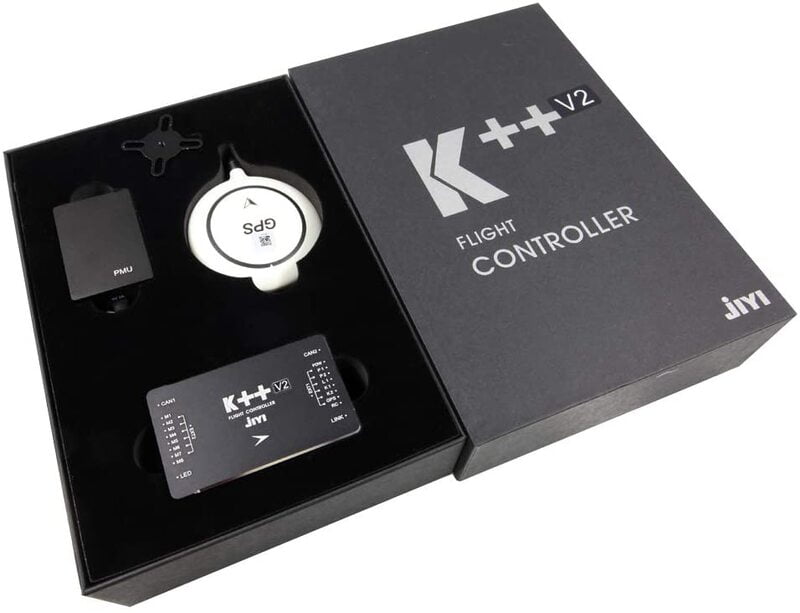

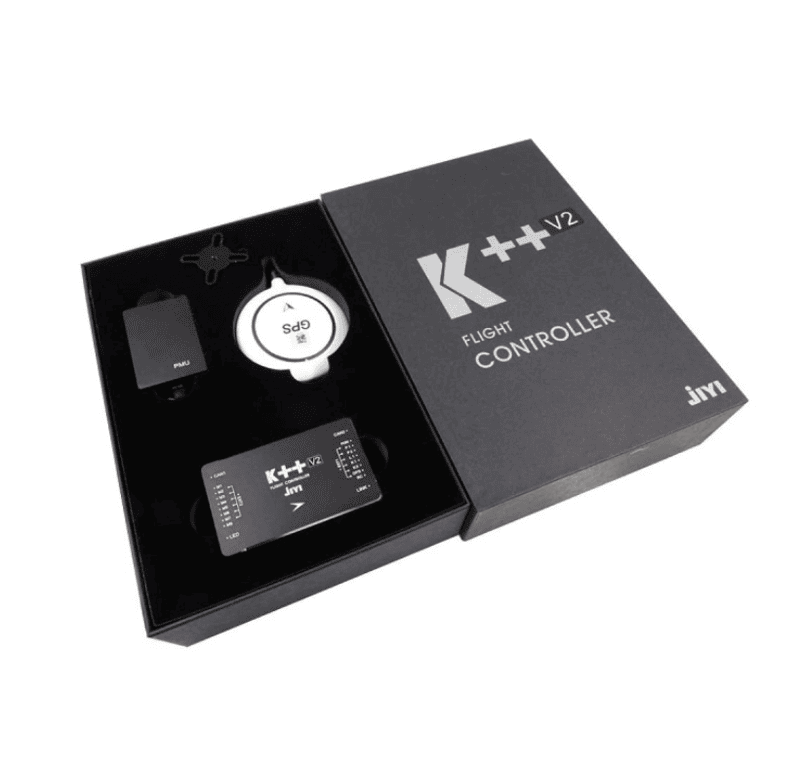

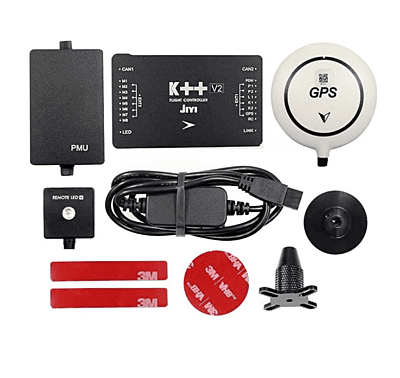

- Includes: 1 x JIYI K++ V2 Flight Controller
Frequently Asked Questions:
Q1. What makes the K++ V2 so reliable for high-stakes missions?
Ans. It features triple redundant IMU (Inertial Measurement Units) and dual redundant barometers, providing multiple hardware backups in case of a sensor malfunction.
Q2. Does the K++ V2 require frequent re-calibration?
Ans. No. It uses industrial-grade sensors with optimized algorithms, requiring only one-time IMU calibration for the lifetime of the system, even in changing environments.
Q3. Can I use the K++ V2 with a large battery and frame?
Ans. Yes, it supports a wide battery voltage range from 3S to 12S LiPo and is compatible with heavy-duty multi-rotor frames, including Quadcopters, Hexacopters, and Octocopters (up to 8 output channels).
