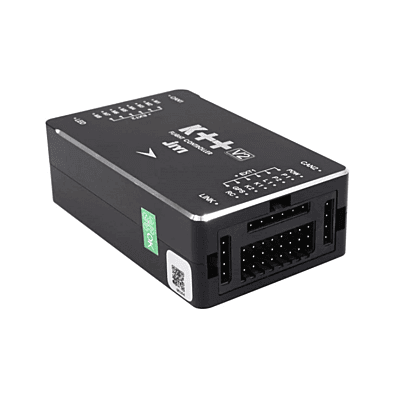

JIYI K++ V2 Flight Controller (Combo)

Features:

• Precise control with 25% increased flight accuracy.

• Strong shock resistance via double absorption structure.

• Multiple redundant backups: three IMU, two barometers.

• Reduced motor noise (3x smaller) and 5-15% power saving.

• Calibration-free industrial-grade sensors; one-time calibration lasts lifetime.

• Enhanced attitude control stability and wind resistance.

• Dual CPU configuration for powerful processing and up to 1000Hz ESC control.

• Backup power interface for reliable power supply.

• Intelligent vibration analysis with real-time safety warnings via app.

• Supports various flight modes: GPS, attitude, AB operation, route operation.

• Failsafe functions: one-button return, out-of-control protection.

• Low voltage protection and no-fly zone function.

• Supports expansion equipment like RTK, obstacle avoidance radar, terrain radar.

• Designed for durability and anti-aging properties.

Technical Specifications:

Product Parameters

• Supported frame types:

• Quadcopter (+ type, X type)

• Hexacopter (+ type, X type, Y type coaxial twin propellers)

• Octocopter (+ type, X type, V type)

• Supported ESC types: ESC below 490Hz PWM

• Maximum output channels: 8 channels

• Suggested remote control type: SBUS receiver

• Supported receiver types: PPM, S-BUS receiver

• Supported peripherals: RTK, K-BOX, IOT, obstacle avoidance radar, terrain following radar, integrated remote transmitter, FPV camera, binocular vision sensor, flow meter, liquid level meter, etc.

• Lipo battery types: 2-12S

• Power dissipation: <5W

• Working temperature: -10~60°C

• Storage temperature: -25~60°C

• Seismic rating: <1G

Hardware Specifications

• Weight:

• Total net weight: 321g

• FC: 87g

• PMU: 41g

• PMU2(UPS): 44g

• Size:

• FC: 72.6 × 48.0 × 22.8 mm

• PMU: 53.4 × 34.4 × 14.5 mm

• PMU2(UPS): 53.4 × 34.4 × 14.5 mm

• GPS: Φ62.0 × 14.3 mm

• LED: 24.0 × 24.0 × 8.0 mm

Flight Performance

• Hover accuracy: Horizontal: ±1.5m, Vertical: ±0.5m

• Maximum tilt angle: 30 degrees

• Maximum yaw speed: 150 degrees/sec

• Maximum vertical speed: 6 m/s

• Wind resistance: Continuous wind: level 4 ,Gust: Level 5

• Flight modes and functions: Attitude mode, GPS mode, ABT operation, autonomous operation, one-button return, out of control protection, out of control to continue operation, low voltage protection, drug out protection function, precision spraying, fence function, log storage function, landing lock function, vibration protection function, star loss protection function, active noise reduction function, motor sequence detection function, direction detection function, dual water pump mode, water pump switch control, water pump linkage control.

Additional Details:

• Manufacturer: JIYI

• Brand: JIYI

• Generic Name: Drone Flight Controller || UAV Autopilot || Drone Control System || Agricultural Drone FC || Professional Drone FC || Redundant Flight Controller || GPS Navigation System || Drone Electronics || Aerial Control Unit || Industrial Drone Controller

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural spraying drones || Large-scale farm mapping || Industrial UAV applications || Crop monitoring || Precision agriculture || Forestry management || Search and rescue drones || Heavy-lift drones || Commercial drone operations || Research and development in UAVs

Package Details:

Includes:

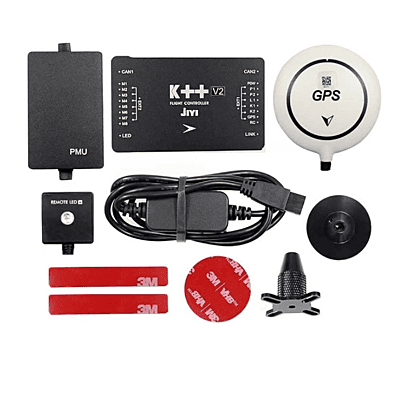

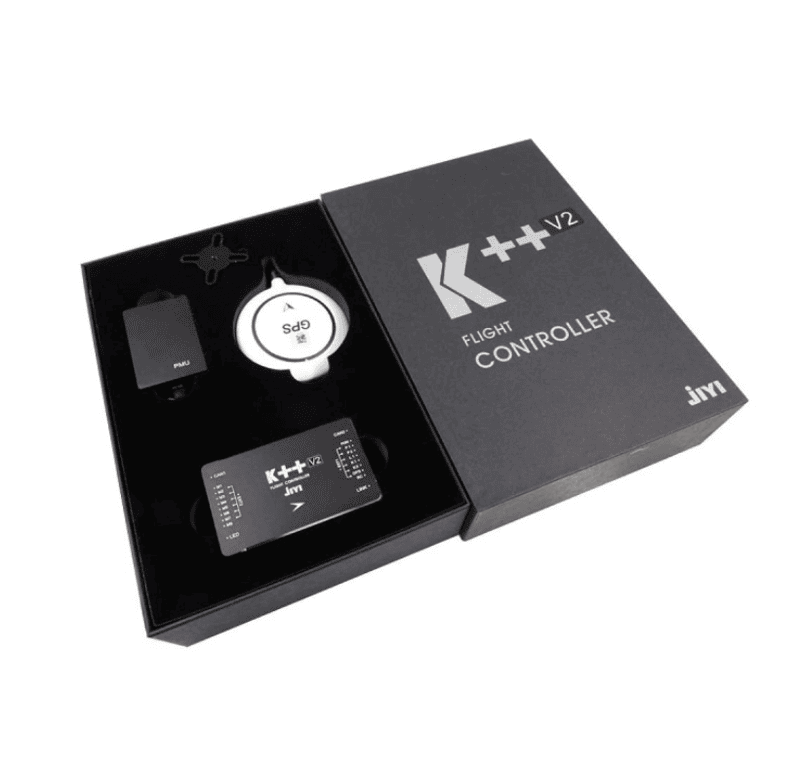

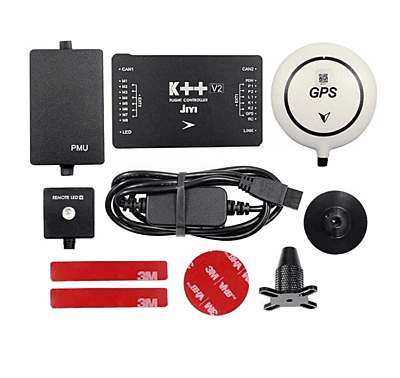

• 1 x JIYI K++ V2 Flight Controller combo

Frequently Asked Questions:

Q1. What makes the JIYI K++ V2 Flight Controller reliable for agricultural use?

Ans. The JIYI K++ V2 offers superior reliability through its triple redundant IMU (Inertial Measurement Unit) and dual redundant barometer sensors, ensuring safe and stable flight even if one sensor malfunctions. It also has strong shock resistance and can operate in a wide range of temperatures.

Q2. Does the K++ V2 require frequent calibration?

Ans. No, the JIYI K++ V2 features industrial-grade sensors and optimized algorithms that allow for one-time IMU calibration. Once calibrated, it does not require recalibration even if the operating environment changes, making it very user-friendly.

Q3. Can the JIYI K++ V2 integrate with other drone accessories like radars?

Ans. Yes, the K++ V2 supports a wide range of expansion equipment, including RTK systems, obstacle avoidance radars, terrain following radars, flow meters, and FPV cameras, allowing for comprehensive and intelligent agricultural drone operations.
