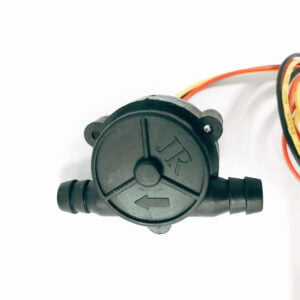

JIYI Flow Meter Sensor

Features:

• Accurate 0.2-6 L/min flow measurement.

• Designed for agricultural spraying drones.

• Compatible with JIYI K3A, K3A-PRO, K++ FCs.

• Provides real-time flow data.

• Ensures uniform liquid application.

• Non-intrusive measurement technique.

• NPN pulse signal output.

• Wide operating voltage range (5-24V).

• Quick 0.2-second response time.

• Optimizes pesticide/fertilizer usage.

Technical Specifications:

• Model: JIYI Flow Meter Sensor

• Flow Measurement Range: 0.2 - 6 Liters/Minute (L/min)

• Flow Accuracy: ±10%

• Working Water Pressure: 0.1 - 0.35 MPa

• Operating Voltage: DC 5 - 24V (rated 5V recommended)

• Max Operating Current: 10mA

• Signal Output: NPN pulse signal

  • Output pulse high level (at 5V rated): > 4.5V

  • Output pulse low level (at 5V rated): < 0.5V

  • Output pulse duty ratio: 50% ±10%

  • Flow pulse characteristics: F = 25 * Q ±10% (where F is frequency in Hz, Q is flow rate in L/min)

• Response Time: 0.2 seconds

• Working Medium: Water (or similar agricultural liquids), temperature not exceeding 60°C

• Interface Outer Diameter: 8-10mm

• Lead Length: 25cm (3P terminal XH2.54)

• Insulating Property: Dielectric resistance > 100M$\Omega$

• Electrical Strength: AC500V 50Hz

• Dimensions: Generally compact, but specific dimensions were not consistently found for the body, only shipping 12 × 9 × 4 cm .

• Weight: Approximately 34g (shipping weight)

• Durability: Resistance to 0.35MPa pressure on

Additional Details:

• Manufacturer: JIYI UAV (JIYI Technology Co., Ltd.)

• Brand: JIYI

• Generic Name: Flow Sensor || Liquid Flow Meter || Drone Flow Sensor || Agricultural Flow Meter || Sprayer Flow Sensor || Fluid Flow Sensor || UAV Liquid Sensor || Dosage Control Sensor || Water Flow Sensor || Precision Agriculture Sensor

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Spraying Drones || Plant Protection UAVs || Precision Farming || Pesticide Application Drones || Fertilizer Spraying Drones || JIYI K3A Flight Controller Users || JIYI K3A-PRO Flight Controller Users || JIYI K++ Flight Controller Users || Automated Liquid Dispensing || Smart Agriculture Solutions

Package Details:

Includes:

• 1x JIYI Flow Meter Sensor

Frequently Asked Questions:

Q1. How does the JIYI Flow Meter Sensor contribute to efficient agricultural spraying?

Ans. The JIYI Flow Meter Sensor contributes to efficient agricultural spraying by providing real-time, accurate measurement of the liquid flow rate from the drone's spray system. This data allows the flight controller to precisely adjust the spray volume according to the drone's speed and target area, ensuring uniform coverage of crops. This precision prevents over- or under-spraying, leading to optimized use of expensive pesticides or fertilizers and ultimately improving crop yields while reducing waste.

Q2. Is this flow meter compatible with drone flight controllers other than JIYI's own models?

Ans. The JIYI Flow Meter Sensor is specifically designed and optimized for seamless integration with JIYI's flight controllers, including the K3A, K3A-PRO, and K++ series. While it outputs a standard NPN pulse signal, compatibility with other flight controllers (like Pixhawk or DJI) would require custom wiring and specific firmware configuration or adapters to interpret the pulse data correctly. For plug-and-play functionality and guaranteed performance, it's best used within the JIYI ecosystem.

Q3. What is the significance of the ±10% flow accuracy for agricultural drone applications?

Ans. A ±10% flow accuracy means that the measured flow rate can vary by up to 10% from the actual flow rate. For agricultural drone applications, this level of accuracy is generally considered acceptable for ensuring reasonably uniform spraying across fields. While higher precision might be desirable for certain specialized applications, for general pesticide and fertilizer distribution, this accuracy allows for effective management of liquid resources and helps achieve consistent crop treatment without significant wastage or missed areas.
