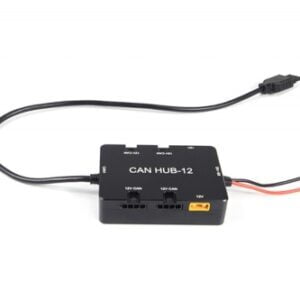

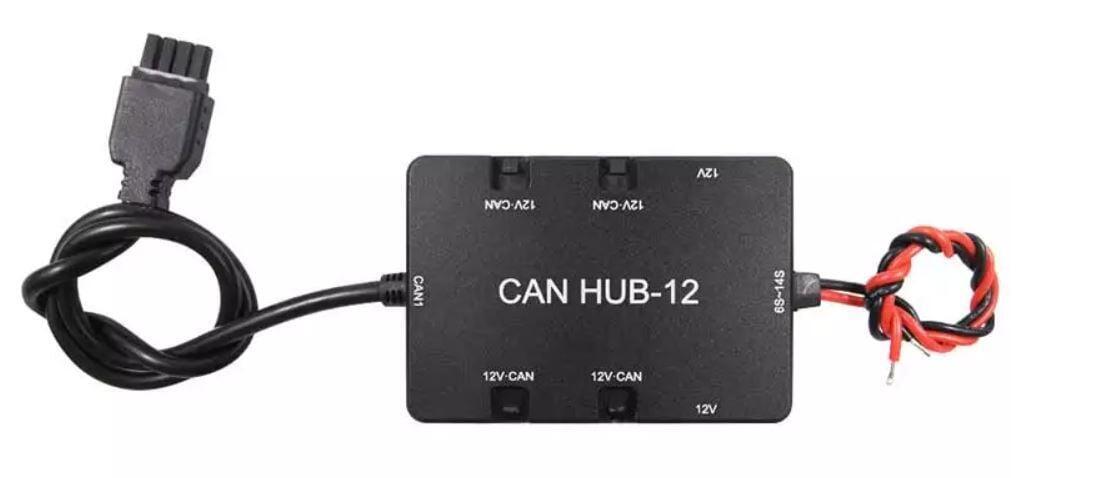

JIYI CAN HUB

Features:

• Expands one CAN port to multiple ports.




• Simplifies wiring and system integration.




• Provides a reliable CAN bus connection.




• Essential for connecting multiple CAN peripherals.




• Compact and lightweight design.




• Supports JIYI and compatible flight controllers.




• Enhances the scalability of your drone.




• Allows for flexible component placement.




• Reduces communication bottlenecks.




• Robust build for field use.

Technical Specifications:

• Model: JIYI CAN HUB

• Input Voltage: 5V

• Output Voltage : 12V

• Connector Type: JST-GH (common for JIYI and similar systems)

• Number of Ports: Typically 1 input port to 2 or 3 output ports

• Communication Protocol: CAN Bus

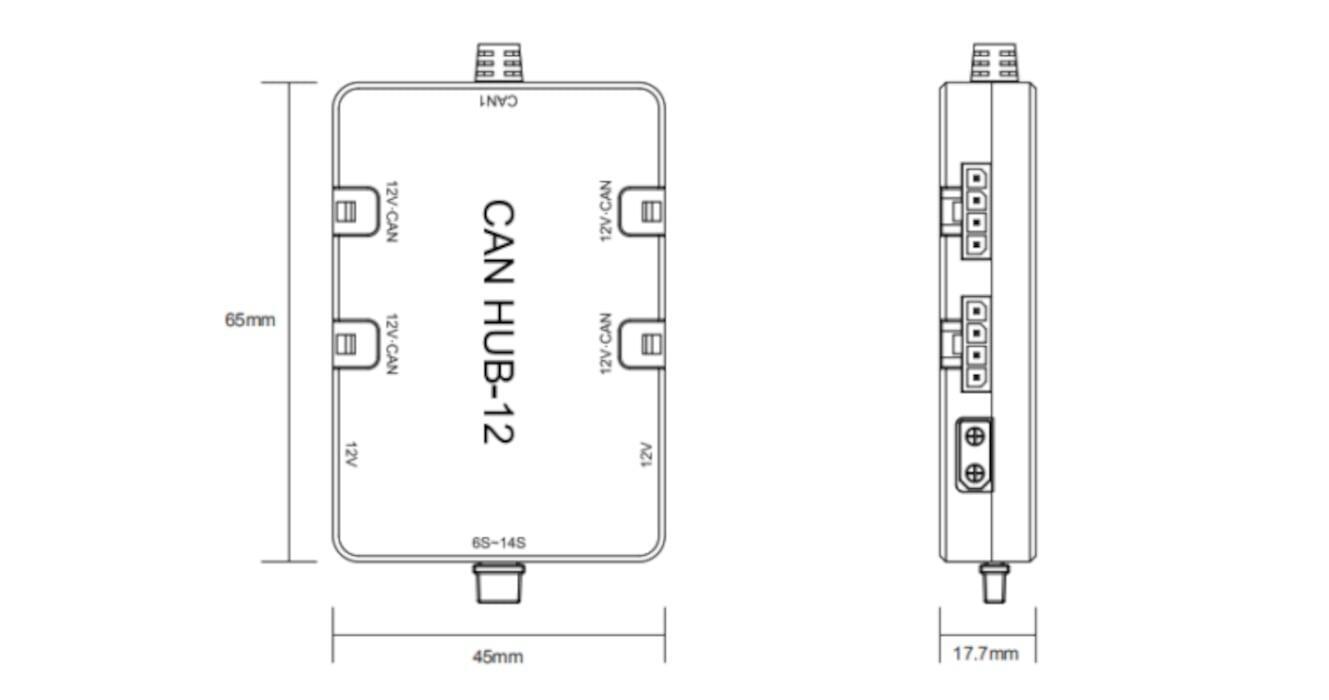

• shipping Dimensions: A small, compact board, 14 × 10 × 4 cm

• shipping Weight: Very lightweight 0.097 kg

• Compatibility: Designed for use with JIYI flight controllers and any peripherals that utilize a standard CAN bus interface.

• Item Type: GPS Module

Additional Details:

• Manufacturer: JIYI

• Brand: JIYI

• Generic Name: CAN Hub || CAN Bus Hub || CAN Splitter || Drone Electronics || UAV Component || Expansion Module || Drone Accessory || JIYI Hub || Professional Drone Part || Flight Controller Accessory

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Professional Drone Builders || Industrial UAVs || Agricultural Drones || Custom Multirotor Projects || Drone R&D Platforms || Robotics Projects || UAV Electronics Integration || Long-Range Drones || Aerial Surveying || Scientific Research UAVs

Package Details:

Includes:

• 1x JIYI CAN HUB

Frequently Asked Questions:

Q1. What is the primary purpose of a CAN Hub in a drone system?

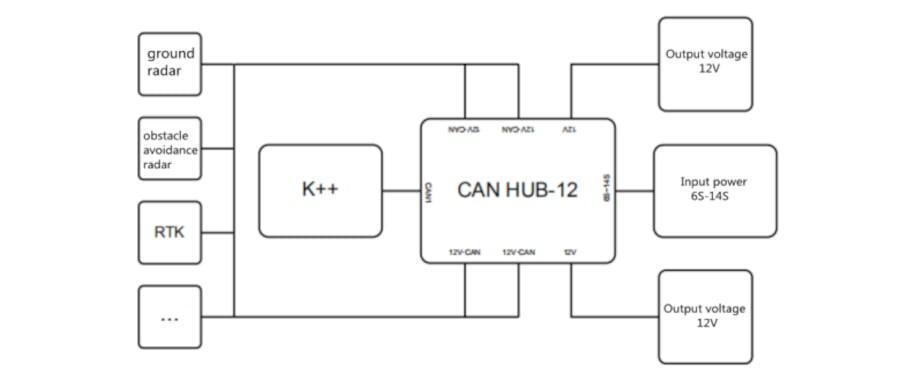

Ans. The primary purpose of a CAN Hub is to expand the number of available CAN bus ports on a flight controller. Professional drones often use a single CAN port to connect multiple peripherals such as GPS modules, ESCs, and sensors in a chain. A CAN Hub allows you to split the bus into multiple branches, making the wiring cleaner and more manageable, especially in complex builds.

Q2. How is a CAN bus different from a traditional UART or I2C connection?

Ans. A CAN (Controller Area Network) bus is a robust and high-speed communication protocol that is highly resistant to electrical noise and interference. Unlike UART or I2C, it allows multiple devices to communicate on the same two wires without requiring a master-slave configuration, which is essential for ensuring reliable data transmission in complex, high-power drone environments.

Q3. Is the JIYI CAN HUB only compatible with JIYI brand products?

Ans. While the JIYI CAN HUB is designed and optimized for JIYI flight controllers, it can be compatible with any flight controller and peripherals that use a standard CAN bus communication protocol. The main consideration is the physical connector type (e.g., JST-GH) and ensuring that the firmware and hardware are configured to recognize the devices on the bus.
