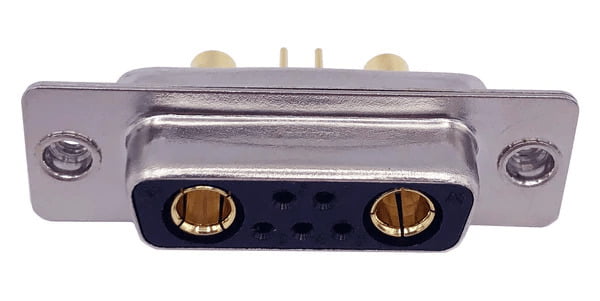

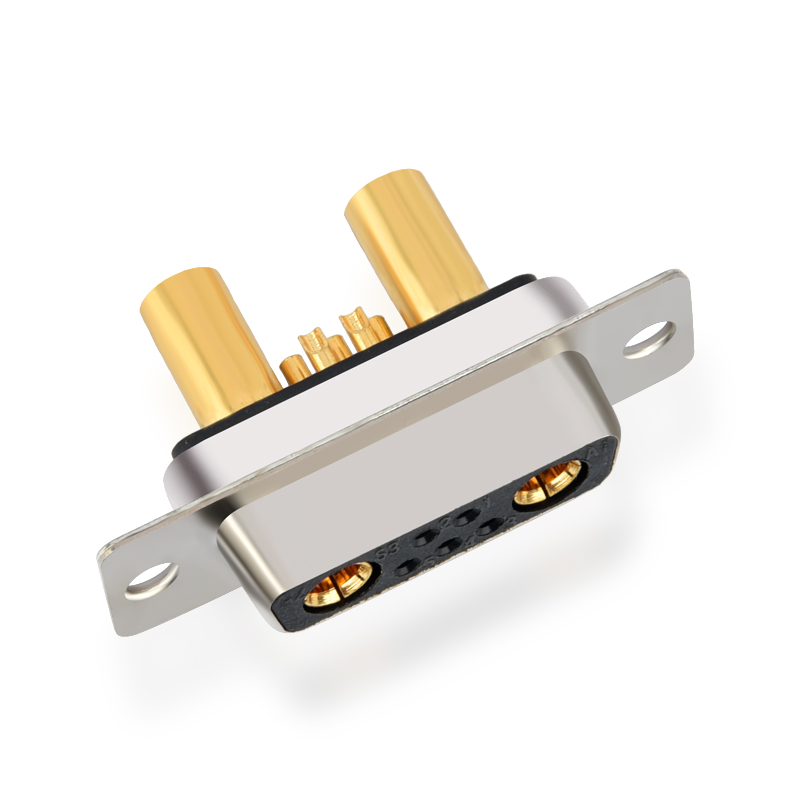

JIYAYI 7W2 High Voltage Connector
₹299.00 ₹359.00
The JIYAYI 7W2 High Voltage Connector is a robust D-sub style connector designed for applications requiring both high voltage and signal lines in a single compact unit. Its mixed-contact configuration allows for efficient integration, saving space and simplifying wiring. Ideal for industrial controls, medical equipment, and other systems demanding reliable high-voltage and signal transmission in challenging environments.
Choose Quantity
Product Details
Features:
- Safeguard the function of electrical devices and systems in interactive relationship.
- Machined contacts to guarantee stability and smooth signals transmission.
- Compact and cost combination design ideal for non-consumer applications.
- With IP67 rating for water resistant applications, widely used in harsh environments and outdoors, where connectors are exposed to moisture, dust and dirt.
- Small MOQ(minimal order quantity) to help you reduce inventories and avoid market risks.
- Accept OEM & ODM order to meet your customized requirement.
Technical Specifications :
- Shell Material: Steel/Zinc with Tin Plated
- Insert Material: Thermoplastic, UL 94V-0
- Contact Material: Copper Alloy with Gold/Nickel/Tin Plated
- Hardware(except Boardlocks): Steel with Tin Plated
- Boardlocks: Copper Alloy with Tin Plated
Additional Details:
- Manufacturer: JIYAYI
- Brand: JIYAYI
- Generic Name: Mixed-contact D-sub connector || High-voltage D-sub connector || Combo D-sub connector || 7W2 D-sub connector || D-sub power and signal connector || Waterproof D-sub connector || Industrial D-sub connector || Medical connector || Test and measurement connector || Robotics connector
- Sold By: UAV Marketplace (as per search results, an authorized seller)
- Ideal For: Industrial automation, medical diagnostics equipment, aerospace systems, test and measurement instruments, military applications, power supplies, robotics, data communication, harsh environments, outdoor installations where moisture and dust are present.
Package Details:
- Includes: JIYAYI 7W2 High Voltage Connector
Frequently Asked Questions:
Q1. What does "7W2" signify in this connector's name?
Ans - "7W2" indicates the contact arrangement: two high-power/high-voltage contacts and five standard signal contacts within a standard D-sub shell size.
Q2. Can this connector withstand harsh environmental conditions?
Ans - Yes, the JIYAYI 7W2 connector often features an IP67 rating, making it suitable for water-resistant applications and use in environments with moisture, dust, and dirt.
Q3. What is the main advantage of a mixed-contact D-sub connector?
Ans - The primary advantage is the ability to combine power/high-voltage and signal lines into a single connector, which saves space, reduces wiring complexity, and simplifies system design.
