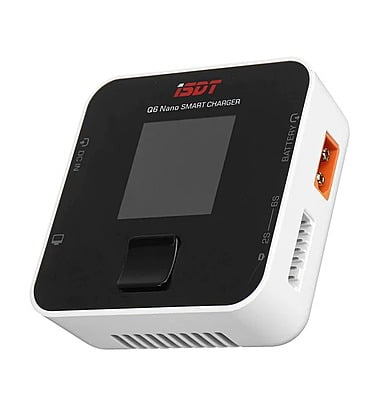

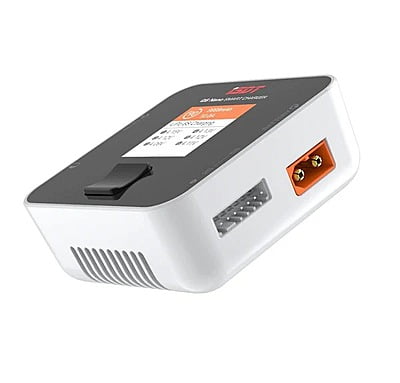

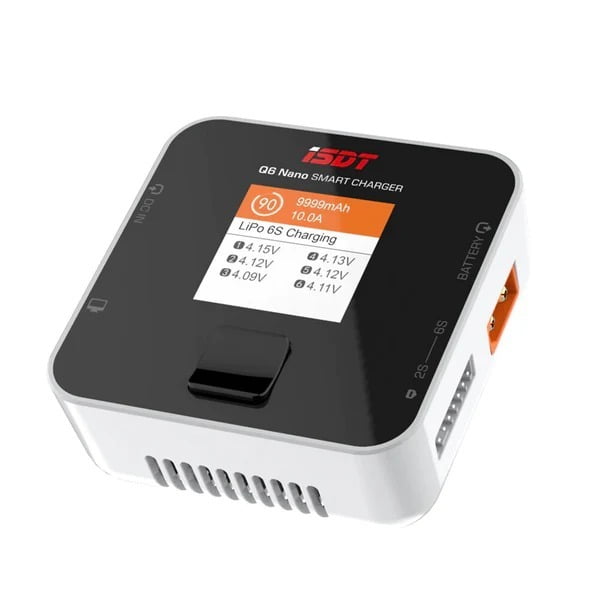

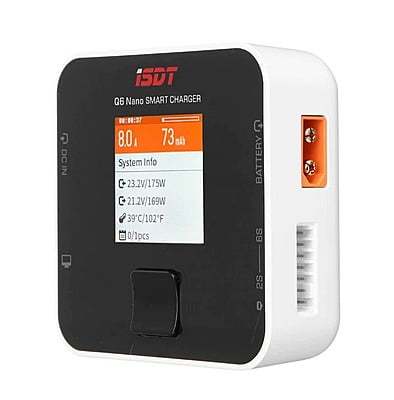

ISDT Q6 Nano Smart Portable Digital Charger
Features:
ARM Cortex-M4.
20x increased speed.
2.4 inch IPS display with automatic brightness.
High speed ball bearing fan increases cooling performance by 300%.
ARM 32-bit high speed processor.
Update firmware with your PC.
Package includes:
1 x ISDT Q6 Nano balance charger.
1 x manua
Product description:
This small charger has been specially designed for an intelligent charging system and has double the capacity of most Lite chargers. With a 2.4 inch LCD screen with automatic brightness value and 178° viewing angle, the screen is still visible even in strong sunlight.
iSDT has reduced the size of the Q6 charger by 50% and inserted a new round edge design that fits easily in your pocket or bag. With a highly efficient cooling system, optimised internal construction and digital power supply technology, this charger is perfect for all your charging needs.
The Q6 Nano charger will be booted up within seconds. Improved accuracy, 20x speed and one-key metal shutter control ensure an optimised charging experience.
Description:
Input voltage: DC 7-32V
Maximum input current: 12A
Output voltage: 0-30V
Charging current: 0.1-8.0A
Discharge current: 0.1-3.0A
Maximum load capacity: 200 W
Max. Discharge capacity: 5 W
Compensation current: 0.8A / cell
Balance cells: 2-6S
Battery Type: LiFe, Lilon, LiPo, LiHV (1-6S); NiMH, Cd (1-16S); Pb (1-12S)
Display: 2.4 inch 320 x 240 IPS LCD
Operating temperature: 0-40 °C
Storage temperature: -20 - 60 °C.
Dimensions: 72 x 72 x 32 mm
Weight: 119g
Languages: English, German, French, Spanish, Japanese, Traditional Chinese, Simplified Chinese
