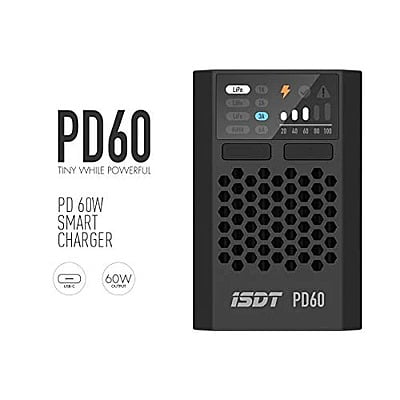

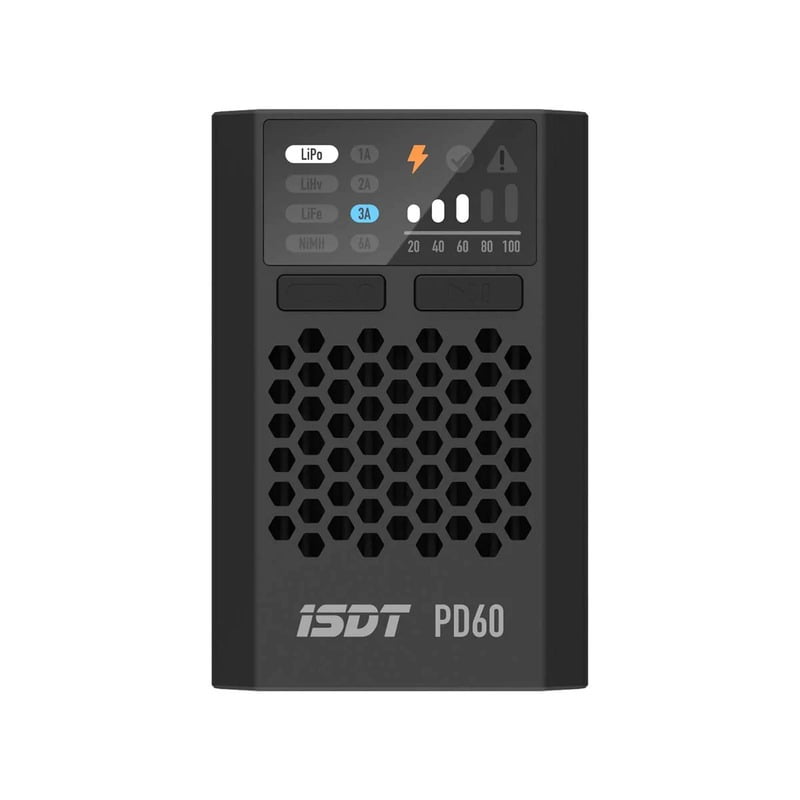

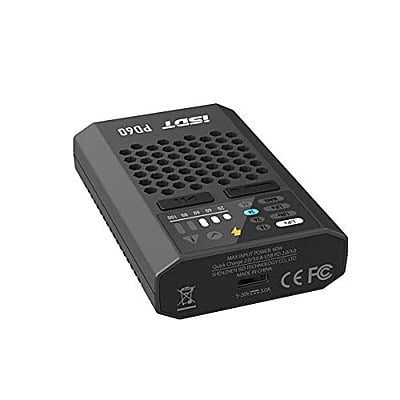

ISDT PD60 60W/6A 1-4s LiPo Balance Charger
₹1,239.00 ₹2,349.00
The ISDT PD60 is a compact and powerful 60W smart battery charger designed to support 1–4S LiPo, LiHV, LiFe, and 1–12S NiMH/Cd battery types. With a charging current of up to 6A and compatibility with PD 2.0/3.0 and QC 2.0/3.0 fast-charging protocols, it ensures efficient, safe, and rapid battery charging even in the field.
Whether you're recharging a drone battery or topping up your RC vehicle's power, the ISDT PD60 delivers professional-grade performance in a pocket-sized form factor.
Choose Quantity
Product Details
Features
- 60W maximum output power with up to 6A charging current
- Supports LiPo, LiHV, LiFe (1–4S) and NiMH/NiCd (1–12S) batteries
- Fast-charge ready with PD 2.0/3.0 and QC 2.0/3.0 support (5V/1A not supported)
- Built-in abnormal voltage and incorrect cell count alarms
- Compact design with XT60 input connector
- High-efficiency balance charging: 0.5A/cell max
- Wide input voltage range: DC 5–20V
- Real-time monitoring of charging status
- Lightweight and portable—perfect for field use or travel
- Durable ABS housing and smart thermal management
Technical Specifications
- Model No.: PD60
- Input Voltage: DC 5V–20V
- Max Input Current: 3A
- Output Voltage: DC 1.0V–20V
- Max Charging Power: 60W
- Charging Currents: 1A / 2A / 3A / 6A
- Balance Current: Max 0.5A/cell
- Supported Battery Types: LiPo / LiFe / LiHV: 1–4S, NiMH / NiCd: 1–12S
- Fast-Charge Protocols: PD 2.0 / 3.0, QC 2.0 / 3.0 (not compatible with 5V/1A input)
- Alarms: Abnormal Voltage Alarm, Incorrect Cell Count Setting Alarm
- Operating Temperature: 0–40°C
- Storage Temperature: -20–60°C
- Connector Type: XT60
- Dimensions: 56 × 85 × 21 mm
- Weight: 87g
Additional Details
- Brand: ISDT
- Charger Type: Smart LiPo/NiMH Balance Charger
- Form Factor: Pocket-Size / Travel-Friendly
- Applications: FPV Drones, RC Planes, Cars, Boats, Field Charging Stations
- Generic Name: Portable FPV LiPo Charger || Mini Drone Battery Charger || Pocket-Sized RC Charger || Smart XT60 Balance Charger || Field-Ready LiHV Charger
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Package Includes
- 1 × ISDT PD60 Smart Balance Charger (XT60 Input)
- 1 × Instruction Manual
Frequently Asked Questions
Q1. What is the maximum number of cells it can charge?
A: The ISDT PD60 supports up to 4S LiPo/LiHV/LiFe and up to 12S NiMH/NiCd battery packs.
Q2. Can I use a 5V USB phone adapter to power it?
A: No, it does not support 5V/1A power input. You must use QC 2.0/3.0 or PD 2.0/3.0 compatible adapters.
Q3. Is this charger safe to use for LiHV batteries?
A: Yes, the PD60 supports LiHV chemistry and ensures safe charging with voltage and cell count alarms.
