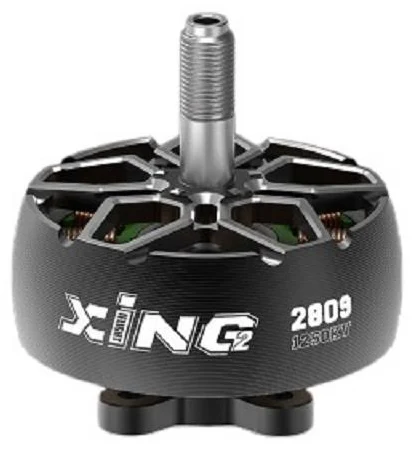

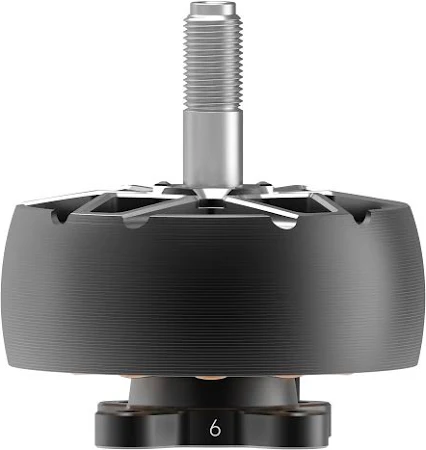

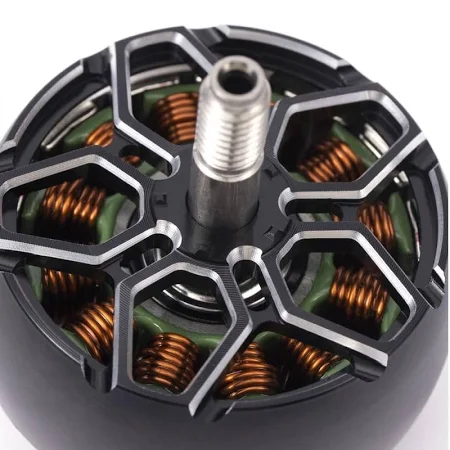

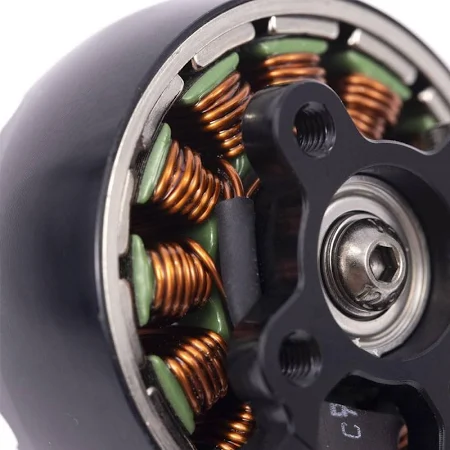

IFLIGHT XING2 2809 FPV Motor
₹2,999.00
The IFLIGHT XING2 2809 FPV Motor is engineered for long-range and cinematic drones, providing incredible thrust and efficiency for larger props. Its robust construction ensures reliability, while optimized performance allows for extended flight times and stable, smooth footage. Perfect for pilots demanding maximum power and control for heavy-lift or endurance FPV applications.
KV
Product Details
Features:
- 5mm titanium alloy shaft, our strongest prop shaft ever!
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 11x5x5 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced
Technical Details:
- Model: XING2 2809 Motor
- KV: 1250KV
- Weight(included wire): 60.7g
- Dimension: φ35.33*21.7mm
- Interphase Resistance: 65.46mΩ
- Input Volts: 24V
- Peak Current: 50A
- Max Watt: 1145W
- Mounting Holes: 19*19 φ3mm
- Rotor Specifications: Unibell
- Shaft Diameter: 5mm
- Shaft Protruding Length: 15mm
- Lead: 260mm/18AWG
- Magnet: N52H Curved
- Configuration: 12N14P
- Bearing Type: NSK
- Bearing Specification: φ11*φ5*5
- Winding: Single Strand copper winding
Additional Details:
- Manufacturer: IFLIGHT
- Brand: IFLIGHT
- Generic Name: FPV Motor || Long-Range Motor || Cinematic Motor || Drone Motor || Brushless Motor || Quadcopter Motor || RC Motor || Electric Motor || 2809 Motor || Heavy Lift Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Long-Range FPV Drones || Cinematic FPV Drones || 7-inch FPV Drones || 8-inch FPV Drones || Heavy Lift Drones || Professional FPV Filming || Endurance Drone Builds || DIY Drone Builds || Large Quadcopters || Custom FPV Platforms
Package Details:
- Includes: 1 x XING2 2809 Brushless Motor, 4 x M3x8 screws 1 x M5 Flange Nut
Frequently Asked Questions:
Q1. What propeller sizes are recommended for the IFLIGHT XING2 2809 motor?
Ans. The IFLIGHT XING2 2809 motor is designed for larger propellers, typically ranging from 7 to 8 inches, which are ideal for long-range and cinematic applications.
Q2. Is this motor suitable for carrying heavy payloads, like a full-size GoPro camera?
Ans. Yes, the IFLIGHT XING2 2809 motor provides significant thrust and efficiency, making it highly suitable for carrying heavier payloads, including cinematic cameras like a full-size GoPro.
Q3. What are the advantages of using a titanium alloy hollow shaft in this motor?
Ans. The titanium alloy hollow shaft offers an excellent balance of strength and lightness, ensuring the motor can withstand demanding conditions while minimizing overall weight, which is crucial for long-range efficiency.
