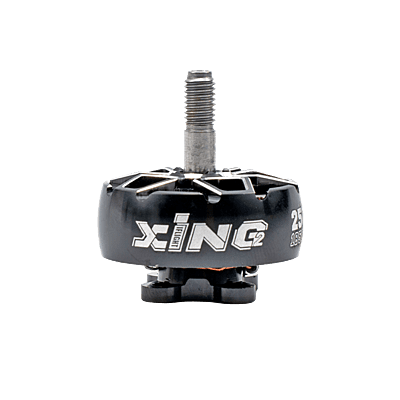

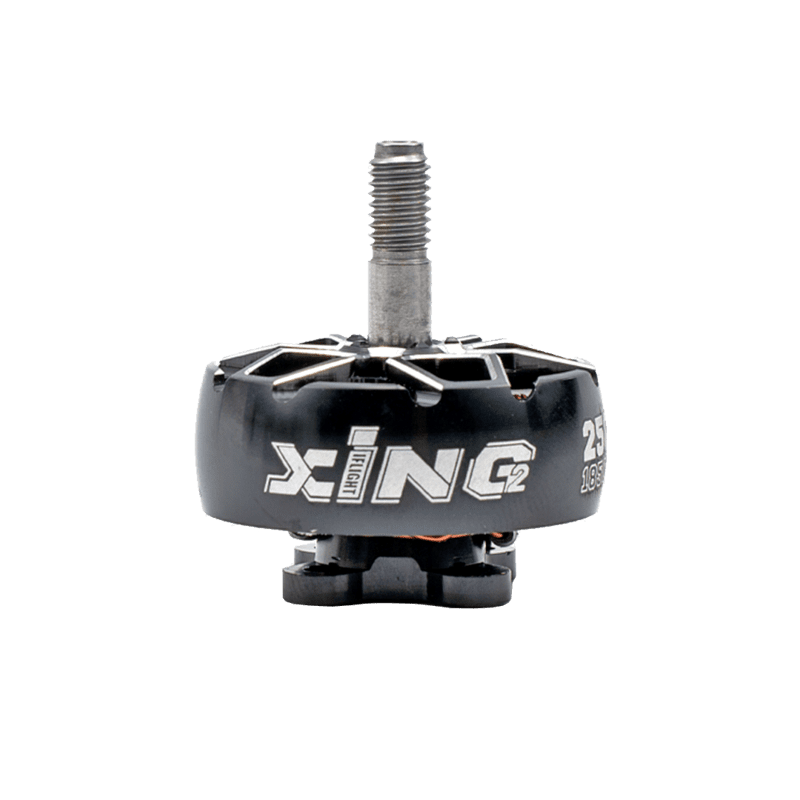

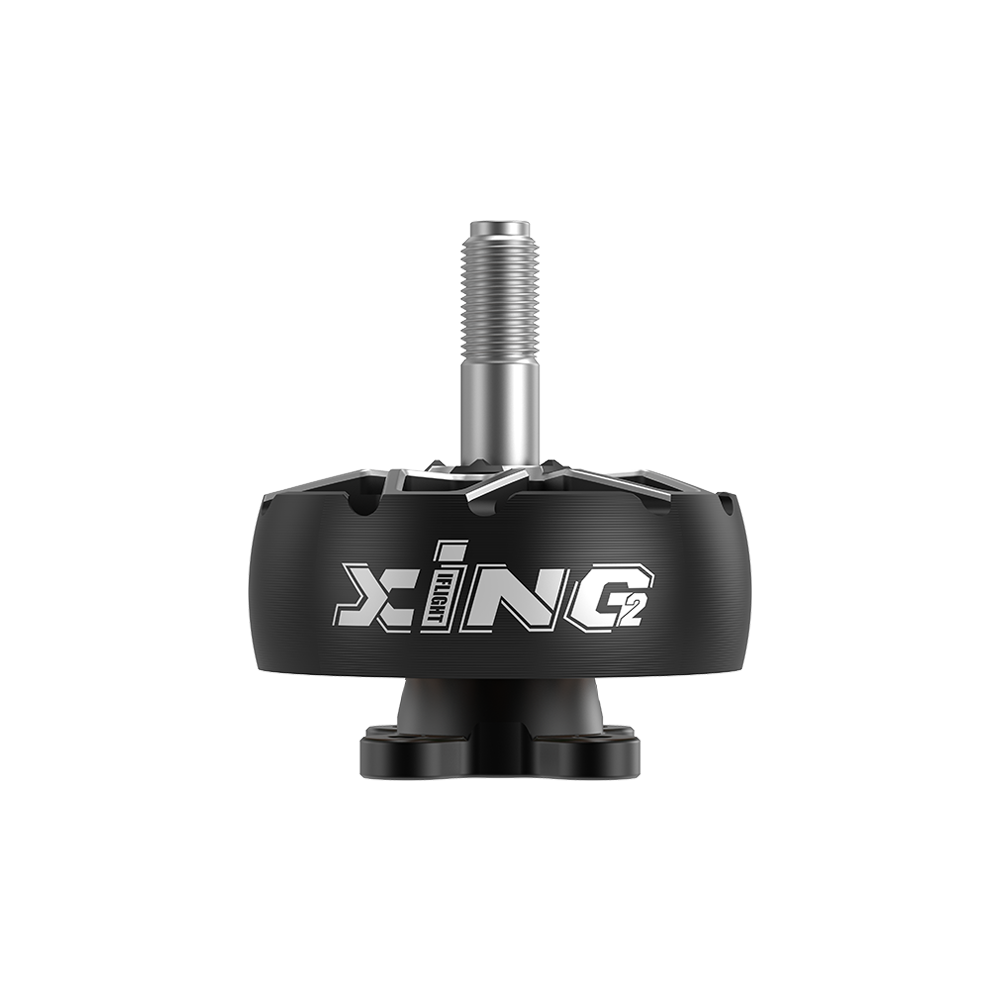

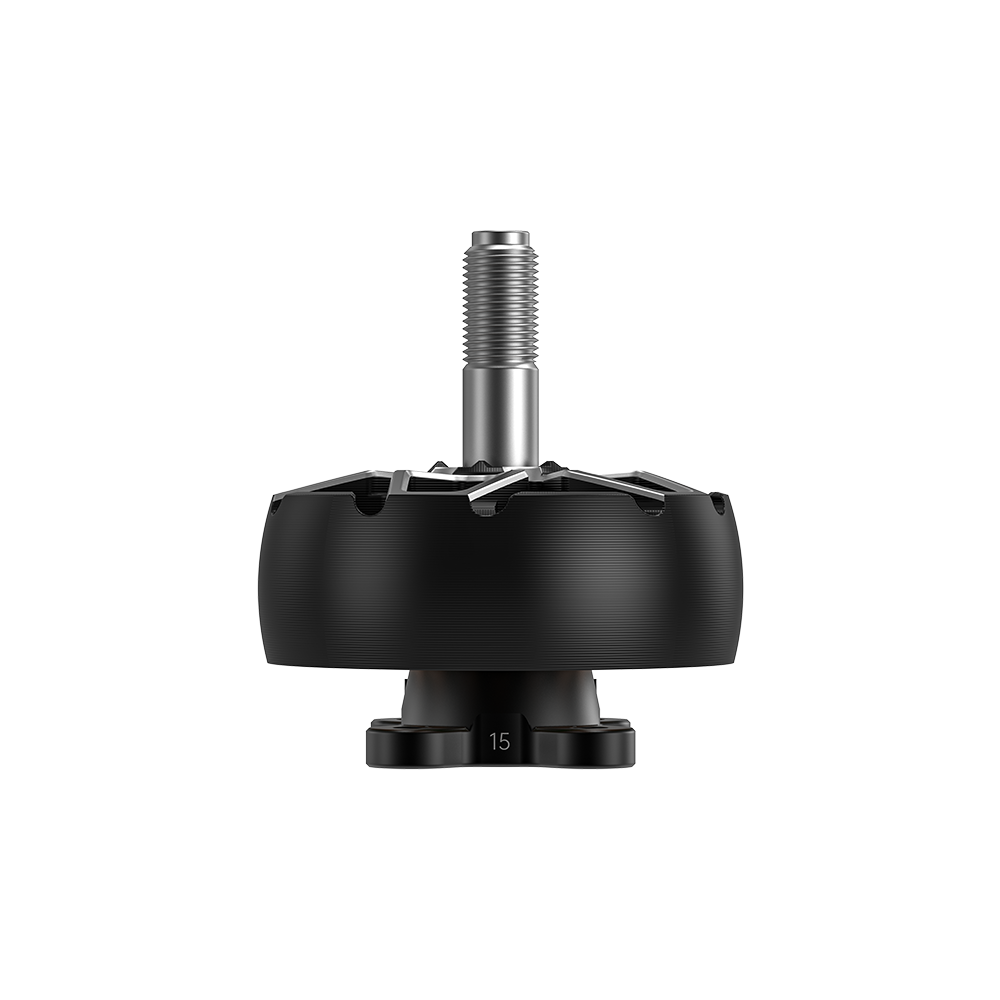

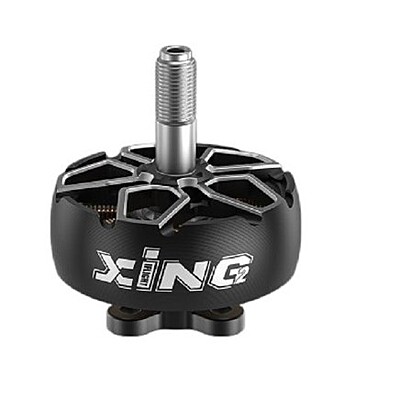

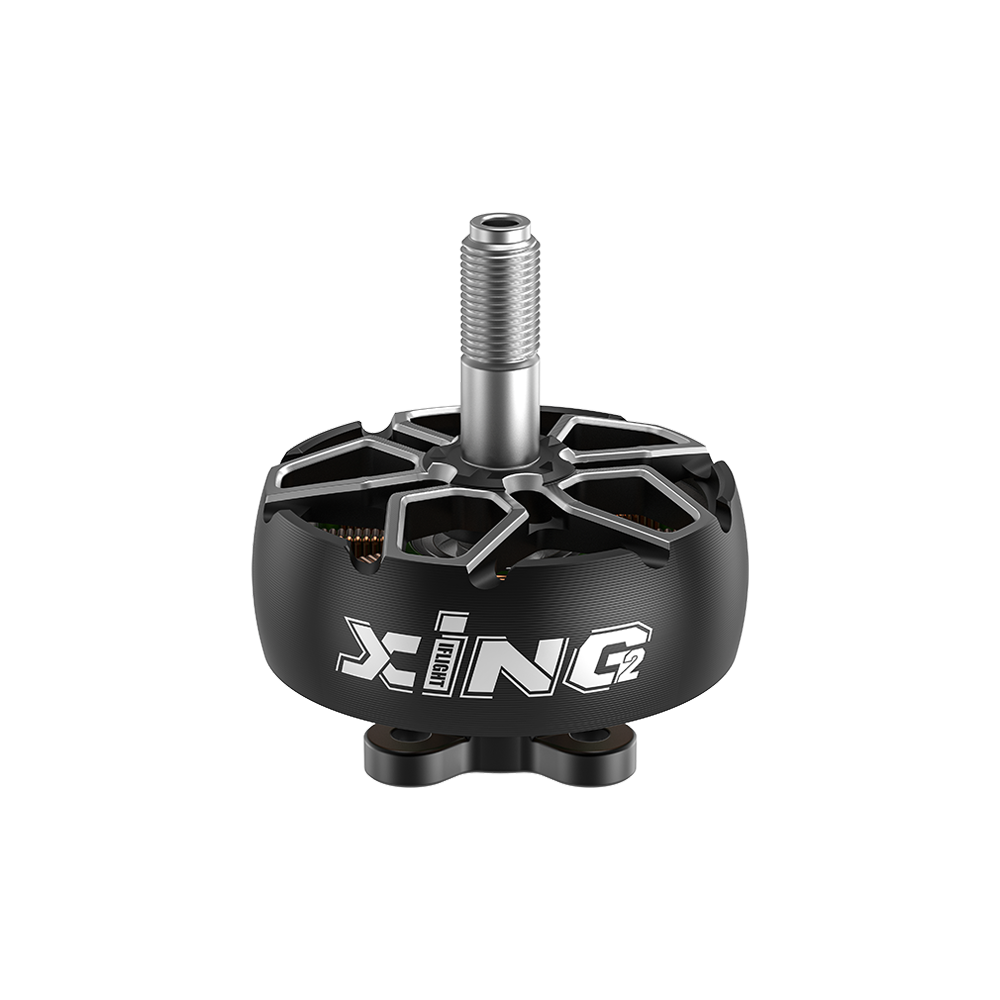

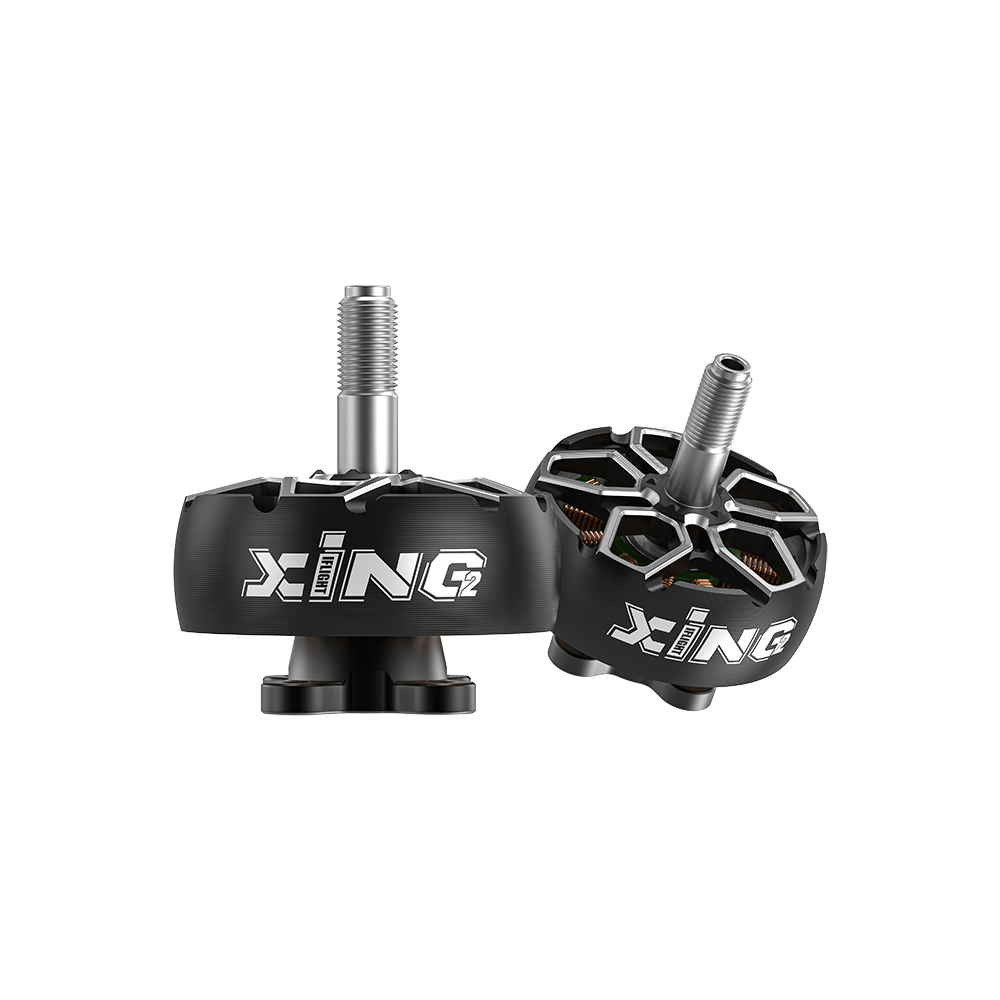

IFLIGHT XING2 2506 FPV Motor
₹2,199.00
Unleash extreme power with the IFLIGHT XING2 2506 FPV Motor. Engineered for ultimate performance, this motor features a durable 7075 aluminum bell, titanium alloy shaft, and N52H curved magnets for maximum torque and efficiency. Its advanced heat dissipation design ensures consistent power during intense flights, making it perfect for aggressive freestyle and racing pilots seeking uncompromised thrust and reliability.
KV
Choose Quantity
Product Details
Features:
- Durable 7075 aluminum bell for crash resistance.
- High-strength titanium alloy shaft enhances longevity.
- N52H curved magnets for maximum torque.
- Optimized heat dissipation for consistent power.
- Unibell design increases overall motor strength.
- Japanese NSK bearings ensure smooth, quiet operation.

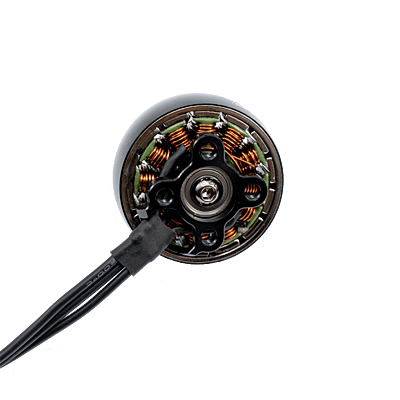

- High-temperature resistant copper windings.
- Excellent balance of thrust and efficiency.
- Perfect for demanding freestyle and racing.
- Lightweight design for agile drone performance.
Technical Details:
- KV: 1500/1850 KV
- Motor Dimensions (Dia.*Len): Φ31.7×19.6mm
- Stator Diameter: 25mm
- Stator Height: 6mm
- Shaft Diameter: 5mm
- Configuration: 12N14P
- Input Voltage: 25.2V
- Prop Adapter Shaft Thread: M5
- Weight: Approximately 37.5g (without silicone wire)
- Wire Length: Approximately 160mm-20AWG / 200mm-18AWG
- Bell Material: 7075 Aluminum
- Magnets: N52H Curved Magnets
- Bearings: NSK
- Internal Resistance: 74.88mΩ
Additional Details:
- Manufacturer: IFLIGHT
- Brand: IFLIGHT
- Generic Name: Brushless Motor || FPV Drone Motor || RC Motor || Electric Motor || Quadcopter Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: FPV Racing Drones, Freestyle Drones, Quadcopters, DIY Drone Builds, High-Performance RC Aircraft.
Package Details:
- includes: 1 x M5 Flanged Nylon Insert Lock Nut, 1 x XING2 2506 Motor Black, 4 x M3*8mm screws.
Frequently Asked Questions:
Q1. What battery voltage (S) is recommended for this motor?
Ans. The IFLIGHT XING2 2506 FPV Motor is generally designed for 4-6S LiPo batteries, with the specific KV rating determining the optimal voltage for peak performance and efficiency.
Q2. Are these motors durable enough for frequent crashes during FPV flying?
Ans. Yes, the XING2 series features a robust 7075 aluminum unibell design and a titanium alloy shaft, making them highly durable and resistant to damage from typical FPV crashes.
Q3. How does the "unibell" design benefit the motor's performance?
Ans. The unibell design integrates the bell and shaft into a single piece, significantly increasing the overall structural integrity and crash resistance of the motor while also improving balance and reducing vibrations.
