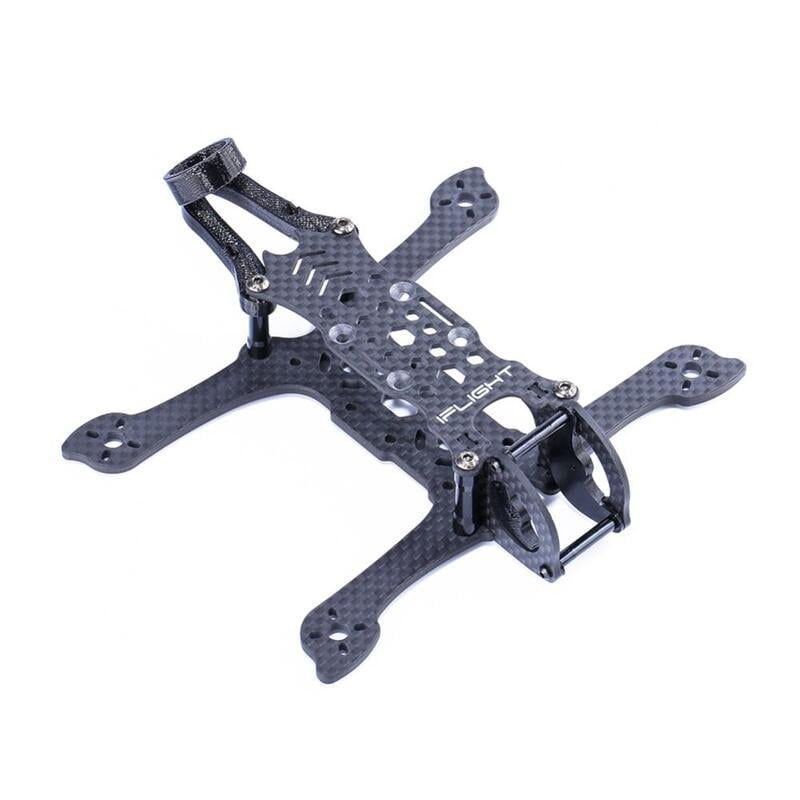

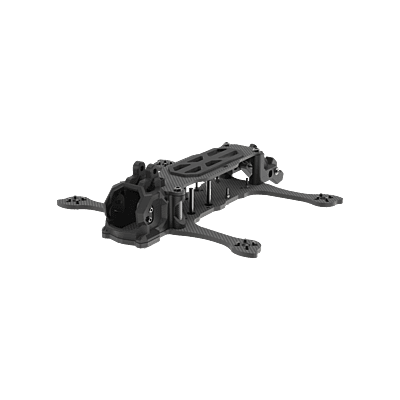

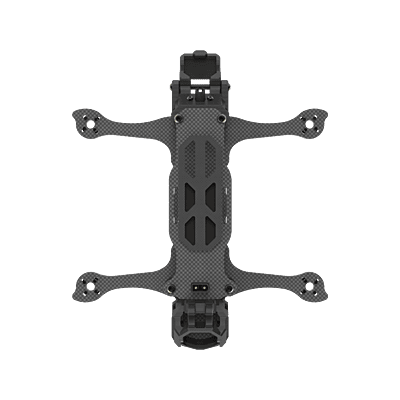

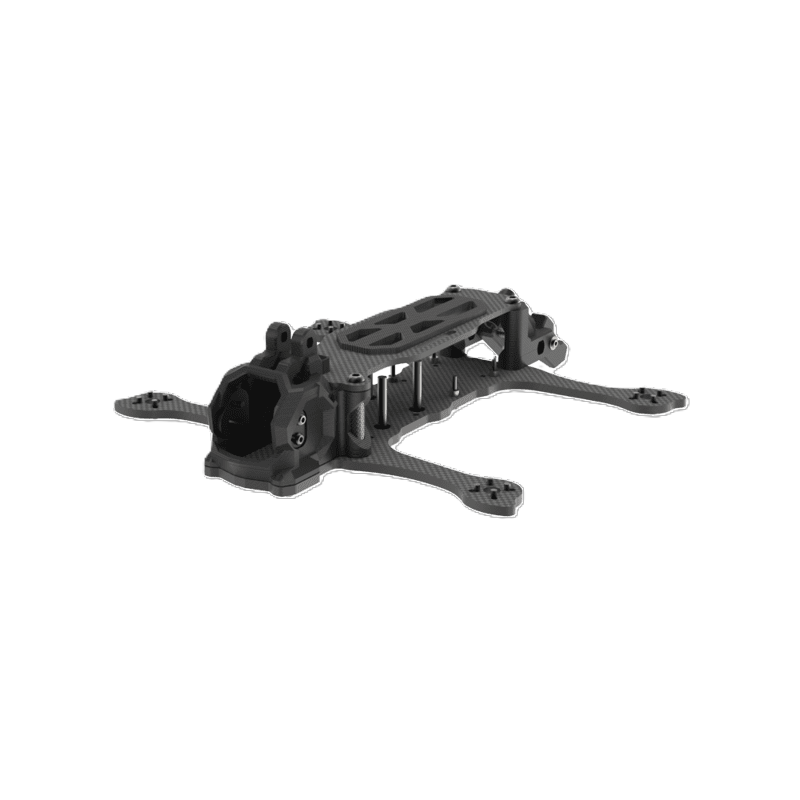

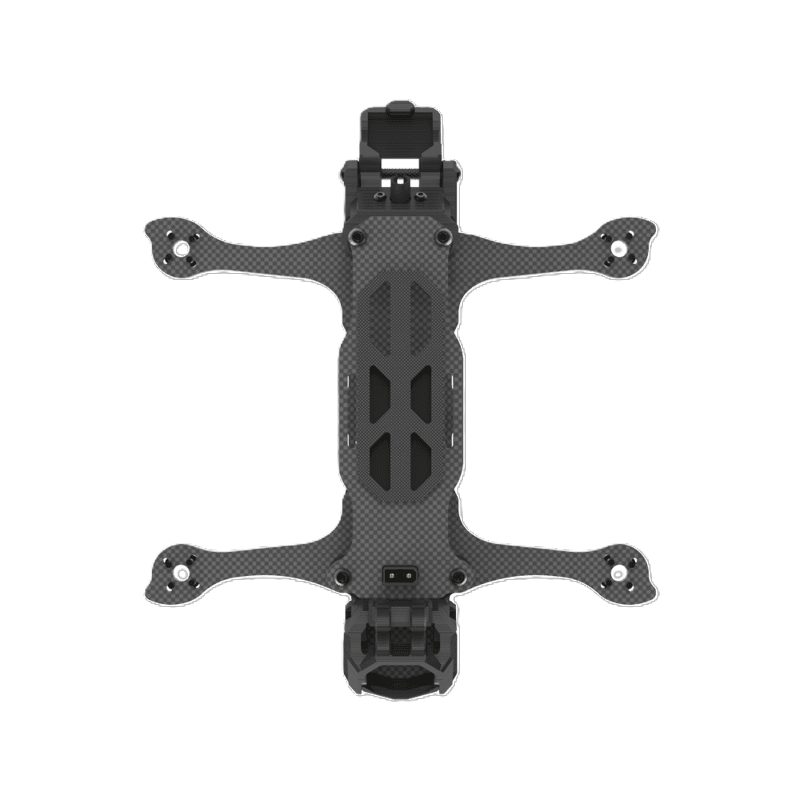

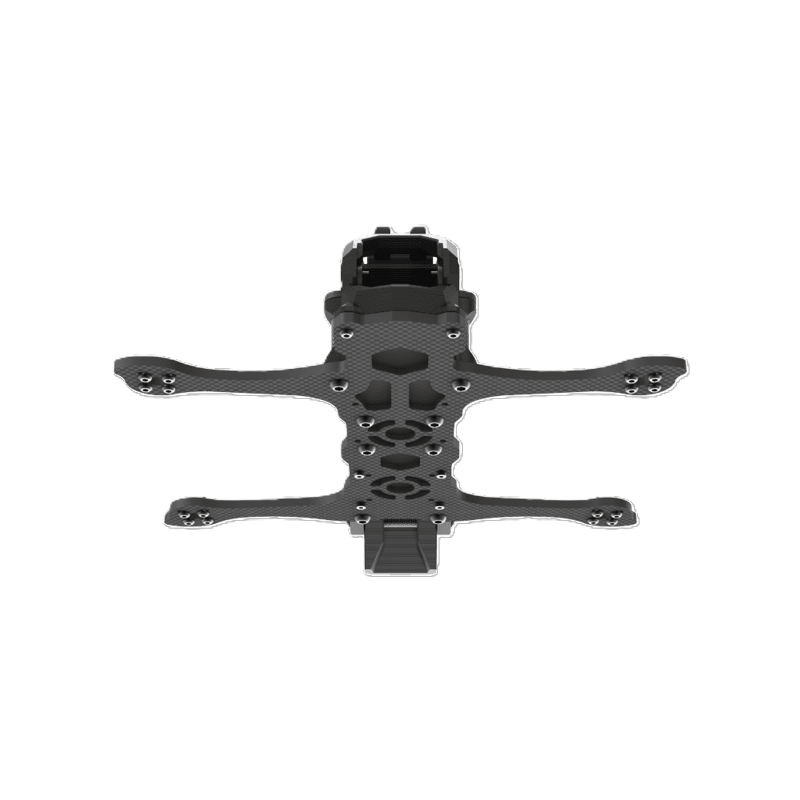

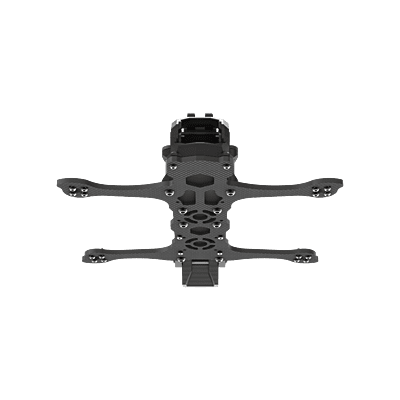

IFLIGHT iH3 O3 Frame kit
₹3,849.00 ₹6,599.00
The IFLIGHT iH3 O3 Frame Kit is a compact and durable frame designed for building lightweight FPV drones. Optimized for the DJI O3 Air Unit, it offers excellent compatibility and easy integration. Its robust carbon fiber construction ensures resilience during flights, making it ideal for both freestyle and cinematic drone pilots seeking a high-performance, agile platform.
Choose Quantity
Product Details
Features:
- Compact, lightweight carbon fiber frame.
- Designed for DJI O3 Air Unit.
- Durable for FPV drone use.
- Easy component integration.
- Suitable for freestyle flying.
- Great for cinematic shots.
- Offers high agility.
- Robust construction ensures resilience.
- Optimized for performance.
- Ideal for custom builds.
Technical Details:
- Material: High-quality carbon fiber
- Frame Dimensions (L×W×H): 135 × 100 × 40 mm (From Canopy)
- Arm Thickness: 3mm
- Bottom Plate Thickness: 3mm
- Top Plate Thickness: 2mm
- Max Flight Stack Height: 19mm
- Max VTX Height: 22mm
- Motor Mounting：9 x 9mm/12x12mm
- VTX Mounting：20*20 Φ2mm/ 25.5 * 25.5 Φ1.6mm
- Weight: 110 grams
Additional Details:
- Manufacturer: IFLIGHT
- Brand: IFLIGHT
- Generic Name: FPV Drone Frame, Quadcopter Frame, Drone Kit, O3 Frame
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: FPV drone builders, freestyle pilots, cinematic drone enthusiasts, DIY drone projects, small FPV builds.
Package Details:
includes:
- 1 x iH3 Frame
- 1 x Screw Bag
- 1 x TPU Set
- 1 x Battery anti-slip mat
- 1 x Battery strap
Frequently Asked Questions:
Q1: Is this frame compatible with analog FPV systems?
Ans: While primarily designed for the DJI O3 Air Unit, skilled builders might adapt it for analog systems with careful planning, though it's not a direct fit.
Q2: What size motors are recommended for this frame?
Ans: The recommended motor size depends on your desired flight characteristics, but typically 14XX to 15XX series motors are suitable for this compact frame.
Q3: Does the kit include all electronics needed for a drone?
Ans: No, this is a frame kit only. You will need to purchase motors, ESCs, flight controller, FPV system (like DJI O3 Air Unit), battery, and propellers separately.
