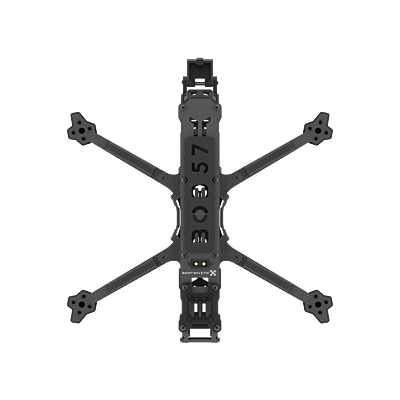

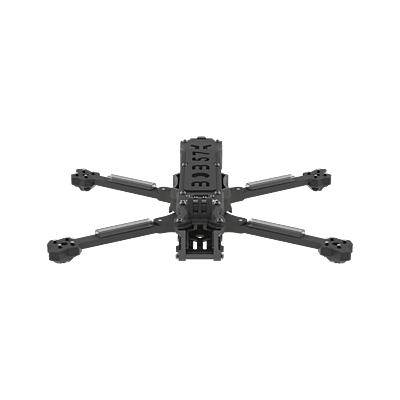

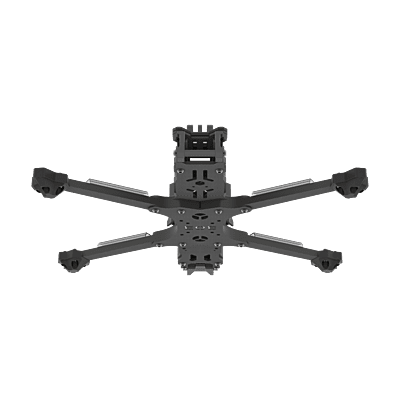

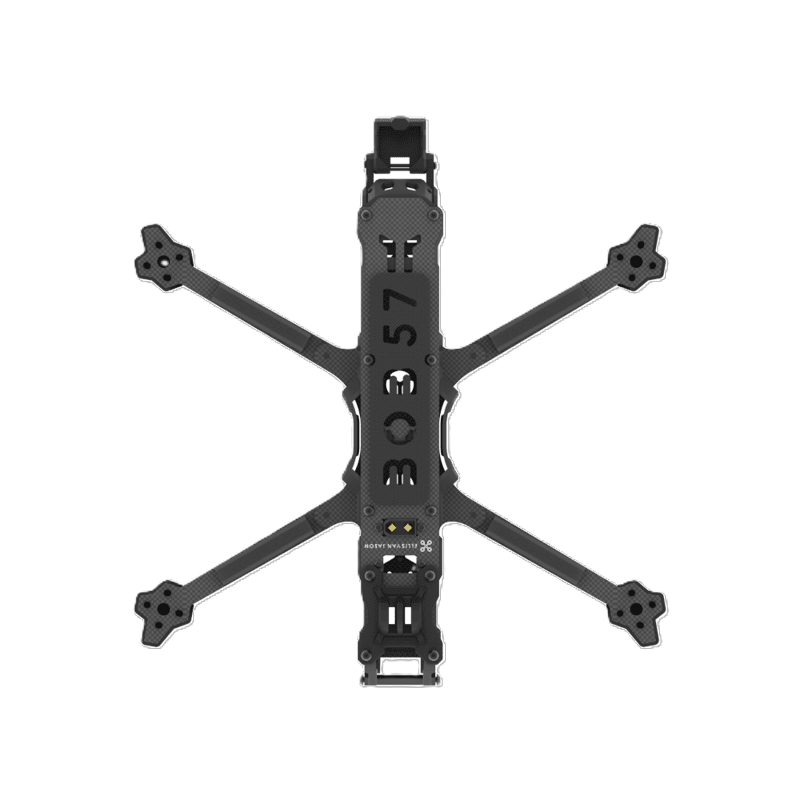

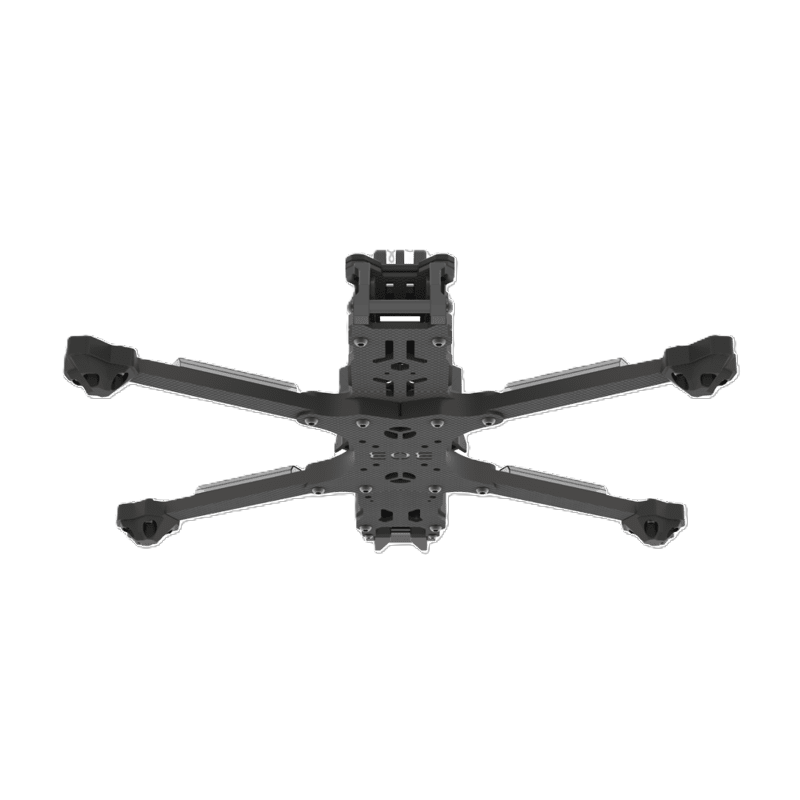

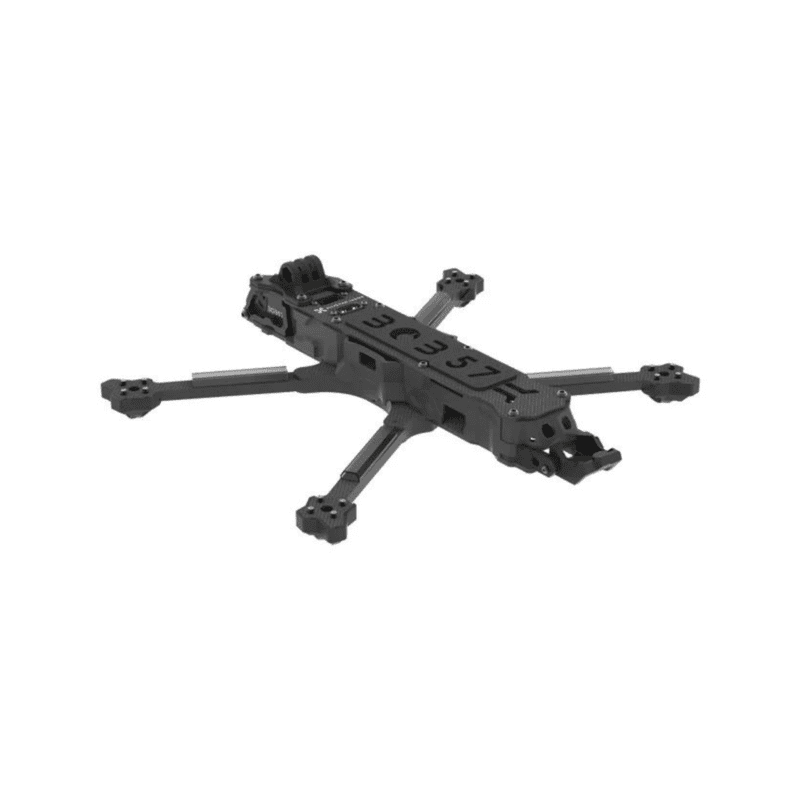

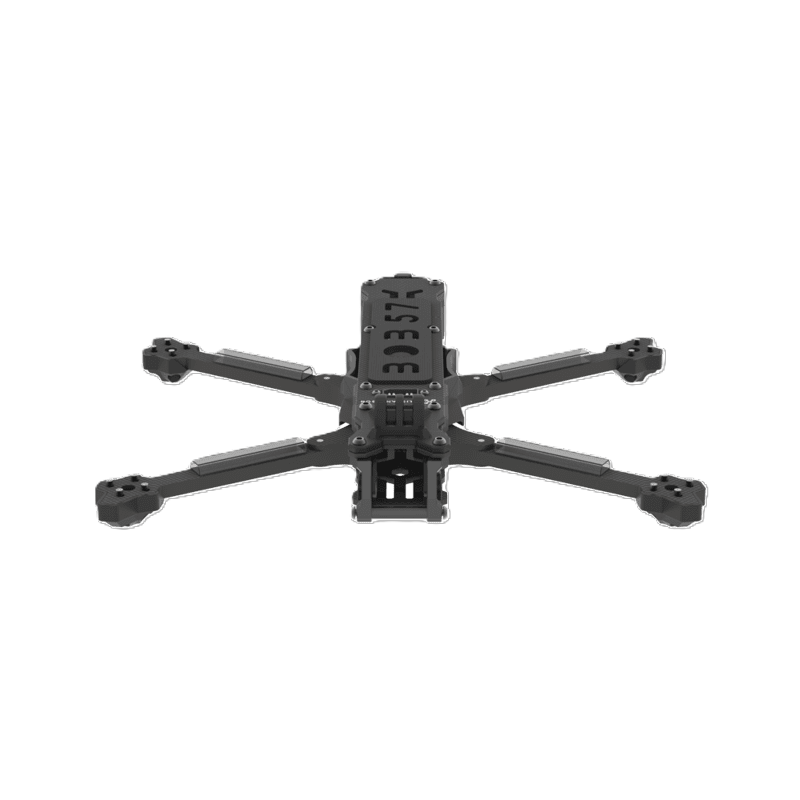

IFlight BOB57 O3 Drone Frame Kit
₹10,309.00 ₹16,299.00
The iFlight BOB57 O3 Drone Frame Kit is a meticulously designed 6-inch frame, ideal for long-range HD cinematic and freestyle FPV drone builds. Developed in collaboration with pilot Ellis van Jason, it balances agility and extended flight times, merging advantages of 5-inch and 7-inch drones. This robust frame is optimized for the DJI O3 Air Unit.
Choose Quantity
Product Details
Features:
- Optimized for DJI O3 Air Unit seamless integration.
- Hybrid motor design for bi-blade/tri-blade 6" propellers.
- Solid antenna mount reduces oscillations effectively.
- H-shaped frame with robust middle section for minimal props in view.
- Gladiator shell protects components from dust and water.
- Front-mounting XT-60 for convenient power connection.
- Compatible with DJI O3 Air Unit and Vista systems.
- Designed for both cinematic and freestyle flight.
- Balances agility with prolonged flight endurance.
- Durable construction for demanding FPV sessions.
Technical details:
- Product Name: BOB57 Frame Kit
- Frame wheelbase: 278mm
- Frame Dimension: L165*W225*H34 mm
- Weight: 305g
- Frame Body Dimension: 34mm
- Arm Thickness: 6mm
- Bottom Plate Thickness: 1.5mm
- Top Plate Thickness: 2mm
- Upper Plate Thickness: 2.5mm
- Max Flight Stack Height: 22mm
- Max VTX Height: 22mm
- Flight Stack Mounting: 20*20 Φ3mm / 30.5*30.5/Φ3mm
- VTX Mounting: 20*20 Φ2mm / 25.5*25.5 Φ1.6mm
- Motor Mounting: 16x16mm -φ2
- Weight: 305±5g
- Compatibility: DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX(O3 Ver.) / DJI O4 Air Unit Pro(O4 Ver.)
Additional details
- Manufacturer: iFlight
- Brand: iFlight
- Generic Name: Drone Frame, FPV Frame Kit, Quadcopter Frame, FPV Quad Frame
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: FPV Pilots, Drone Builders, Cinematic FPV, Freestyle FPV, Long-Range Drones, DIY Drone Enthusiasts
Package details:
Includes:
- 1 x BOB57 O3 Frame Kit
- 1 x BOB57 TPU Parts
- 2 x 215mm MIPI Video Cable for DJI O3 Air Unit
- 4 x Motor Wire Shield Tube
- 1 x Battery Anti-Slip Pad
- 2 x Battery Strap
- 1 x Screw Bag
Frequently Asked Questions:
Q1: Is the iFlight BOB57 O3 Frame Kit compatible with other video transmission systems besides DJI O3?
Ans: While primarily optimized for DJI O3 Air Unit, this frame kit is also compatible with the DJI Vista system. For other VTX systems, you would need to verify mounting compatibility.
Q2: What propeller sizes are recommended for the iFlight BOB57 O3 Drone Frame Kit?
Ans: The frame's hybrid motor design is optimized for both bi-blade and tri-blade 6-inch propellers.
Q3: Does the iFlight BOB57 O3 Frame Kit come with all the necessary components to build a complete drone?
Ans: No, this product is a frame kit only. It includes the frame, TPU parts, and some essential cables/accessories. You will need to purchase additional components like motors, ESC, flight controller, video transmission system, battery, and receiver separately to complete your drone build.
