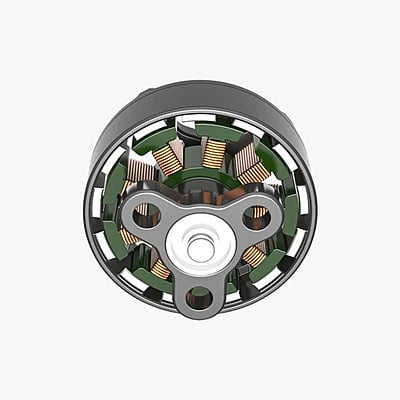

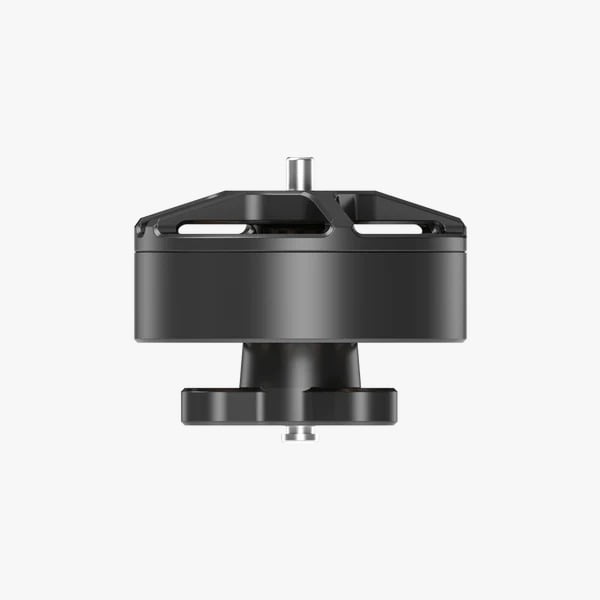

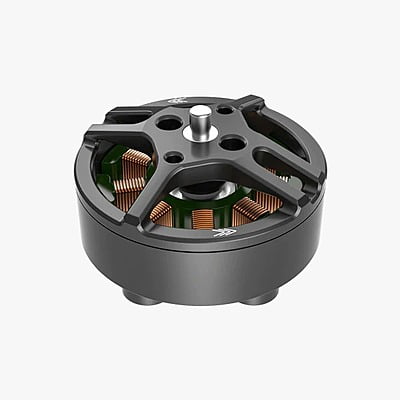

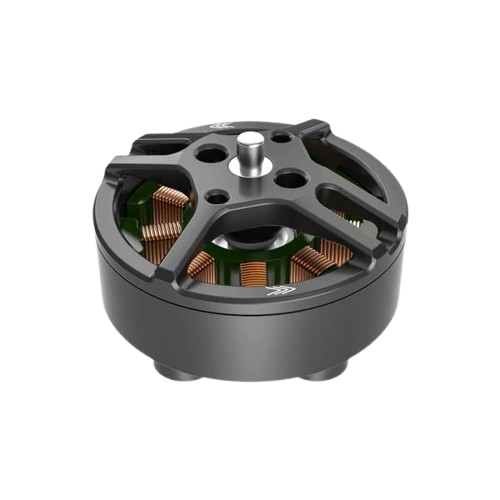

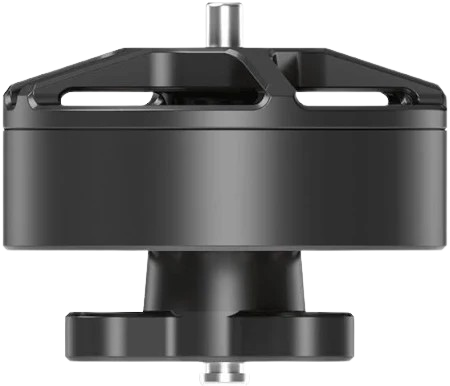

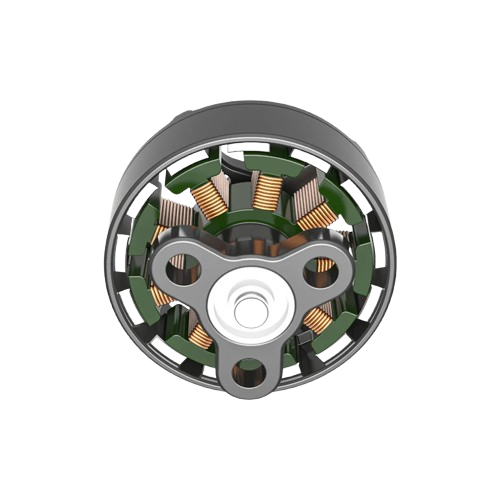

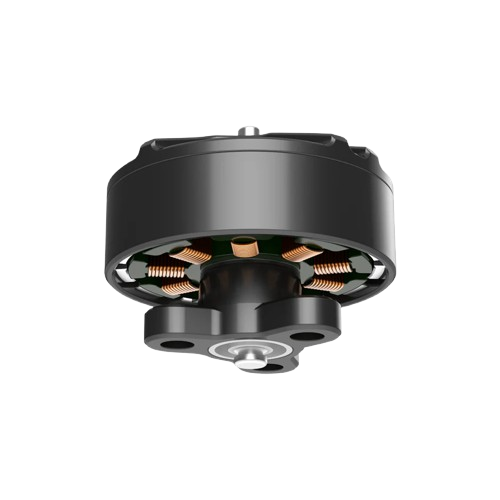

IFLIGHT 1404 4150KV FPV Motor

The iFlight Defender 25 Motor is designed for an ultralight build. This 1404 4150KV motor is light and durable and allows pilots to stay in the Sub250 category.

• Works well with the iFlight Defender 25
• Ultralight Motor
• CW

• Mounting Holes: 3 x 9 x 9 /2mm (3 mounting holes)
• Shaft Protruding Length: 1.8mm/0.2mm
• Winding: Single Strand copper winding
• Rotor Specifications: Segmented bell
• Weight (including wire): 8g/0.5g
• Interphase Resistance: 0.188Ω
• Bearing Specification: 5x2x2.5
• Model: Defender 25 Motor
• Dimension: 17.7×12.5mm
• Shaft Diameter: 1.5mm
• Magnet: N52H Curved
• Peak Current: 12.03A
• Configuration: 9N12P
• Lead: 65mm/26AWG
• Bearing Type: NMB
• Max Watt: 200.8W
• Input Volts: 4S
• Rotation: CW
• KV: 4150KV

• iFlight Defender 25 1404 Motor – 4150KV (CCW)


• 1x iFlight Defender 25 1404 Motor – 4150KV (CW)
• 4x M2x5 Screws
