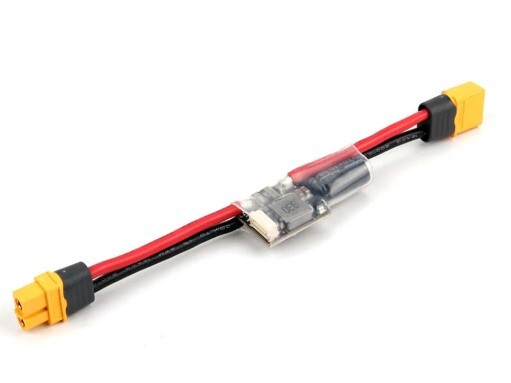

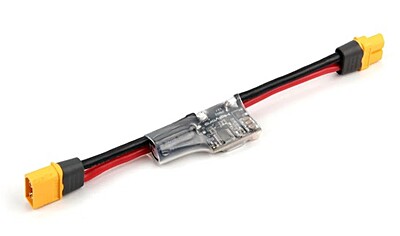

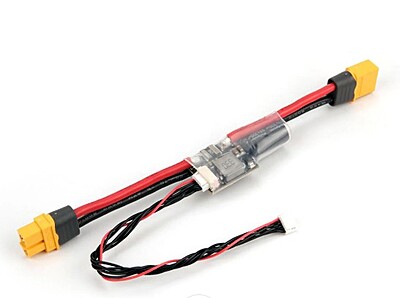

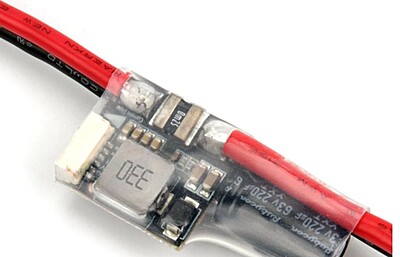

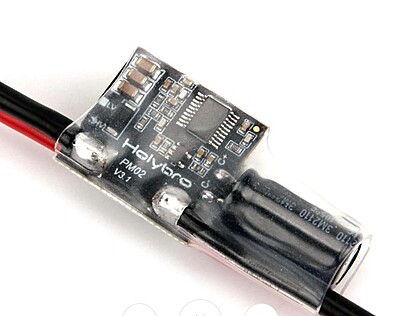

HOLYBRO PM02 V3.3
HOLYBRO PM02 V3.3 is a reliable power module designed for Pixhawk flight controllers. It provides stable 5.2V power while accurately measuring battery voltage and current. Supporting up to 12S LiPo, it ensures safe, efficient power distribution for UAV systems.
Features:
Supports wide 2S to 12S LiPo input range
Accurate voltage and current monitoring for flight controllers
Stable 5.2V regulated output for reliable FC power
High continuous and burst current handling capability
Lightweight compact design for UAV installations
Integrated current sensing up to 120A
Designed specifically for Pixhawk compatibility
Clean power output reduces electrical noise
Durable PCB for high power drone applications
Ideal for multirotors, fixed-wing, and VTOL drones
Technical Specifications:
Input Voltage: 2S–12S LiPo
Continuous Current Rating: 60A
Burst Current Rating: 100A (<60 seconds)
Maximum Current Sensing: 120A
Output Voltage: 5.2V
Output Current: 3A maximum
Voltage Divider Ratio: 18.182
Amperes per Volt: 36.364
Weight: 20g
- Manufacturer: Holybro
- Brand: Holybro
- Generic Name: Power Module, UAV Power Board, Drone Power Module, Pixhawk Power Supply
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Multirotor drones, fixed-wing UAVs, VTOL systems, Pixhawk-based flight controllers
Package Details:
- Includes: 1 × HOLYBRO PM02 V3.3
Frequently Asked Questions:
Q1. Which flight controllers are compatible with HOLYBRO PM02 V3.3?
Ans. It is designed for Pixhawk flight controllers and compatible systems requiring voltage and current monitoring.
Q2. Can this power module handle high current UAV setups?
Ans. Yes, it supports 60A continuous current and up to 100A burst current, suitable for high-power drones.
Q3. Does PM02 V3.3 provide battery telemetry data?
Ans. Yes, it measures both battery voltage and current, enabling accurate power monitoring during flight.
