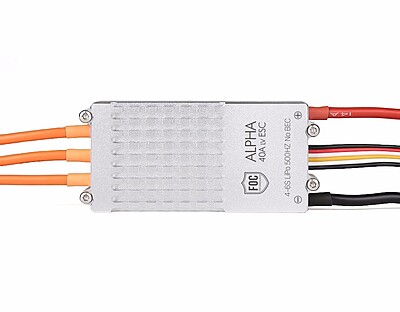

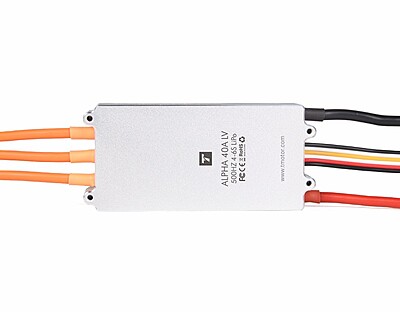

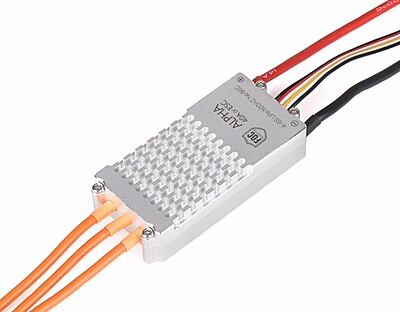

T-Motor ALPHA 40A 6S ESC
Features:
- Special core program for multi-rotor controller greatly improve throttle response
- Power by independence stabilivolt IC supply microprocessor is with better antijamming performance for stability
- FOC sine driving is adopted for less noise and torque ripple , and better motor and ESC protection
- FOC ESCs are with output interface of RPM signal and error status signal
- Parameter as to real-time output throttle, RPM, current, capacity temperature and MOSFET temperature are available
- 30KHz PWM driving frequency
Online upgrading of ESC firmware is available (Data LINK is needed)
- Special core program for multi-rotor controller greatly improve throttle response
- Power by independence stabilivolt IC supply microprocessor is with better antijamming performance for stability
- FOC sine driving is adopted for less noise and torque ripple , and better motor and ESC protection
- FOC ESCs are with output interface of RPM signal and error status signal
- Parameter as to real-time output throttle, RPM, current, capacity temperature and MOSFET temperature are available
- 30KHz PWM driving frequency
Online upgrading of ESC firmware is available (Data LINK is needed)
Description:
Low noise ALPHA 40A 6S T-motor ESC Featured with low voltage, fast response and linear throttle, Low interference and high efficiency. ALPHA ESC has faster responses with less pulse current and steady startup as compared with traditional square wave driving. This Tiger motor ESC contains over current/Motor Lock-up/short circuit/Low voltage protection. Its Intelligent design enables ALPHA ESC to timely detect parameters as to voltage, current and temperature.
Incorporates IP55 grade to keep water and dust away protect ESC from damage of liquid corrosion as to pesticide for safe operation and 15-20% light-weight design.

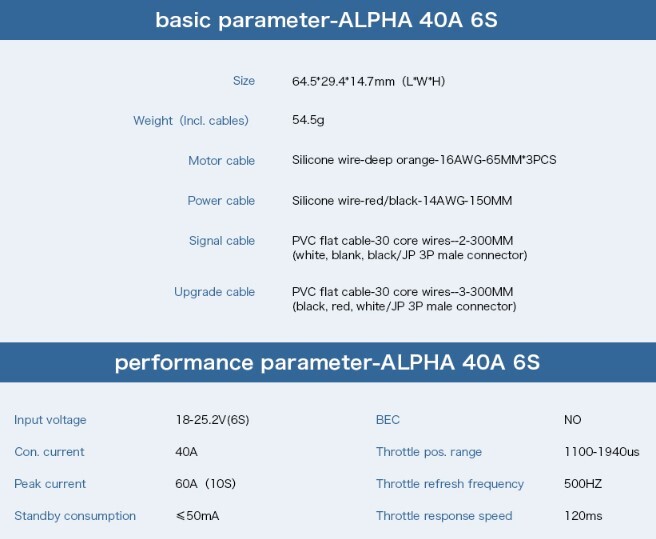

Specification:-
Item Type: | Brushless ESC |
Model | ALPHA 40A |
Operating Voltage | 4-6S ( 18-25.2V) |
Continuous Current (A): | 40 |
Instantaneous current | （10s):60A |
Programming Line | PVC wiring-30 CORE-3-300MM (Black Red White/JR 3P head) |
Standby power consumption | ≤50mA |
Throttle range | 1100-1940μs |
Throttle refresh frequency | 500Hz |
Throttle Response Speed | 120ms |
Recommend Motor | U3 700KV,U5 400KV,MN5212 340KV,MN4006 380KV,MN501S 360KV,MN501S 300KV,MN7005 230KV |
Signal Line | PVC wiring-30 CORE-2-300MM (blank BLACK/JR 3P head) |
Color: | Silver |
Length(mm) | 6 |
Width(mm) | 3 |
Height (mm): | 1.5 |
Shipping Weight | 0.178 kg |
Shipping Dimensions | 16 × 7 × 6 cm |

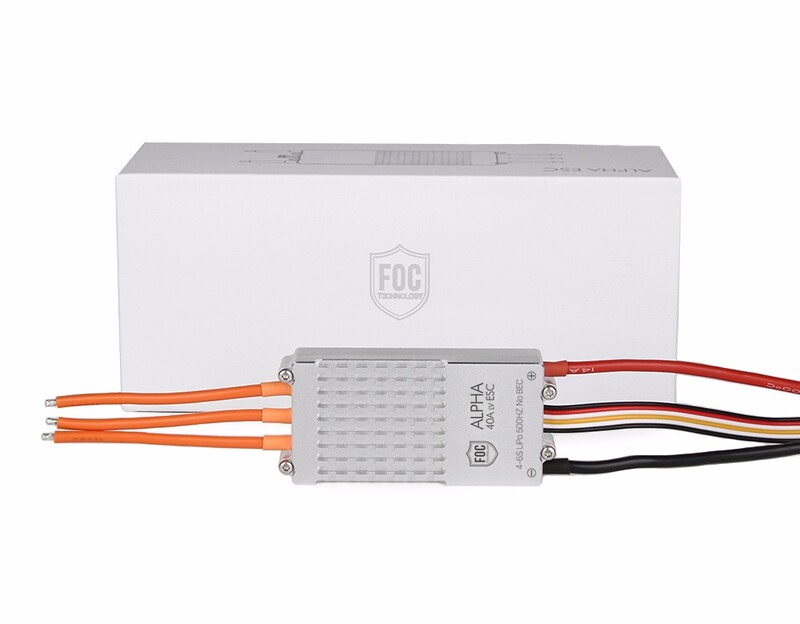

Packages Includes:
1 x T Motor ALPHA 40A 6S ESC
1 x User Manual
