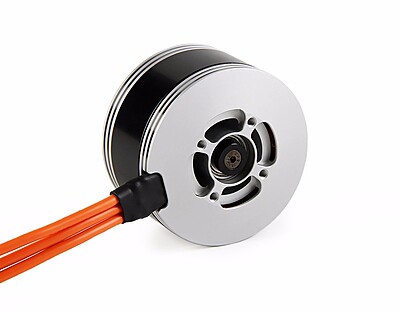

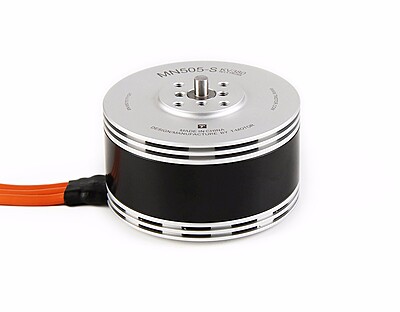

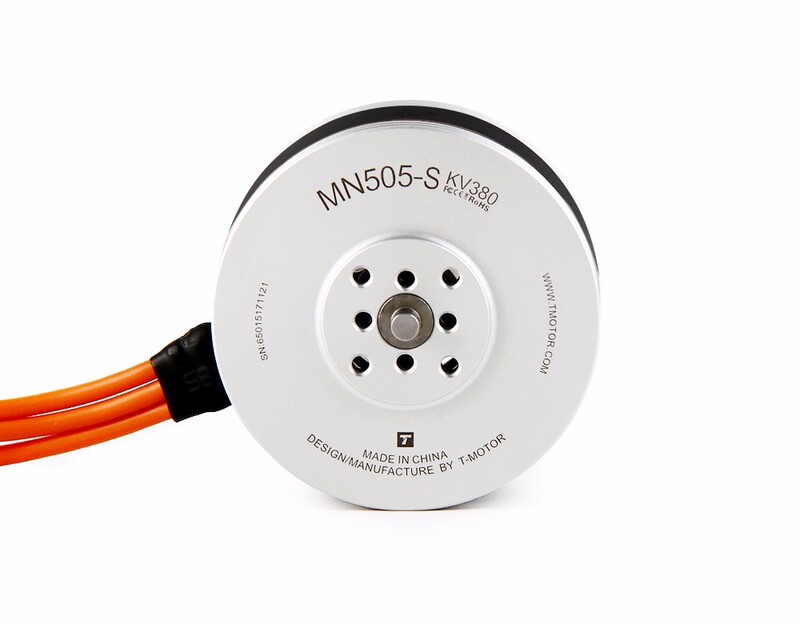

T-Motors MN505-S-KV320

About T-MOTOR Navigator MN505-S Multirotor Fixed Wing UAV Motor KV380

Motor Navigator Waterproof MN505-S 320 KV is a premium motor engineered for marine applications like ROVs and AUVs. Built for durability and performance, it offers exceptional cooling, heat dissipation 10% better than standard motors, and high-temperature resistance. The centrifugal fan design ensures active cooling, while anti-corrosion, dust- and water-resistant features make it ideal for harsh underwater environments. With long service life and overload protection, the MN505-S delivers reliable power for demanding marine robotics.

Navigator MN505-S Highlights:

• Max thrust: 6.6kg
• MTBF: About 1000hours

• Features: Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion

"Navigator" motors are for general uses like aerial photography. For demand of multi-rotors, VTOL and fixed wings.

Application Areas：

Cargo Drones, Tethered, Mapping and Inspection.

Specifications:

Motor size	Φ55.6*38.9mm
Stator	Imported silicon steel sheet; anti-rust treatment; 150°chigh temperature-resisting coatings
Configuration	24n28p
Shaft diameter	In：6mm，out：4mm
Bearing	Imported 696zz
Magnet level	180℃ high temperature resistance
Lead cable	16awg*150mm
Copper wire	220℃ high temperature resistance: level c
Coil insulation test	500v
Centrifugal cooling design	Yes
Rotor dynamic balance standard	≤5mg
Motor dynamic balance standard	≤10mg
Ip	Ip45
KV	320
Idle Current(18V)	1.8A
Peak Current(180s)	55A
Max.Power(180s)	1300W
Internal Resistance	38mΩ
Rated Voltage ( Lipo )	6S
ESC Recommendation	FLAME 60A 12S
Propeller Recommendation	20-22"
Motor Weight (indl. Cable)	225g
Package Weight	400g

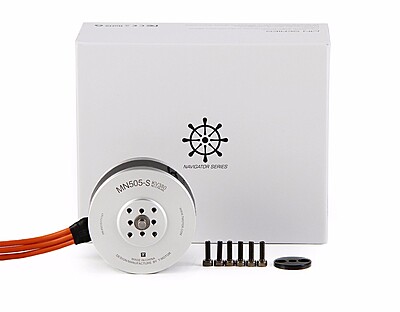

Packing List Includes:

1x T-MOTOR MN505 Motor KV320 ( kv which you choose)

1x Hardware pack
