HQ PROP Thin Electric Fixed Wing Propeller
This HQProp Thin Electric Propeller is aerodynamically optimized for high-efficiency, fixed-wing flight. Constructed from durable composite material, it delivers strong, consistent thrust and minimal drag, resulting in longer flight times and smoother, more stable performance for RC airplanes and UAVs. It is an essential component for electric-powered aerial applications.
Features:
- Thin aerodynamic blades deliver efficient thrust with minimal drag losses.
- Lightweight composite construction reduces motor load and improves flight endurance.
- Precision molded design ensures balanced rotation and vibration free performance.
- Optimized for electric motors powering fixed wing aircraft platforms efficiently.
- Durable material withstands repeated flights and varying environmental conditions reliably.
- Smooth airflow profile enhances stability during cruising and maneuvering phases.
- Factory balanced propeller minimizes noise and stress on components overall.
- Easy installation compatible with standard electric fixed wing mounts universally.
- Consistent pitch geometry provides predictable throttle response and control authority.
- Suitable for hobbyists trainers professionals requiring reliable electric propulsion systems.
Technical Specifications:
- Material: Carbon Fiber Composite
- Color: Black
- Rotation: CW
- Adaptor Rings: 6/5/4/3

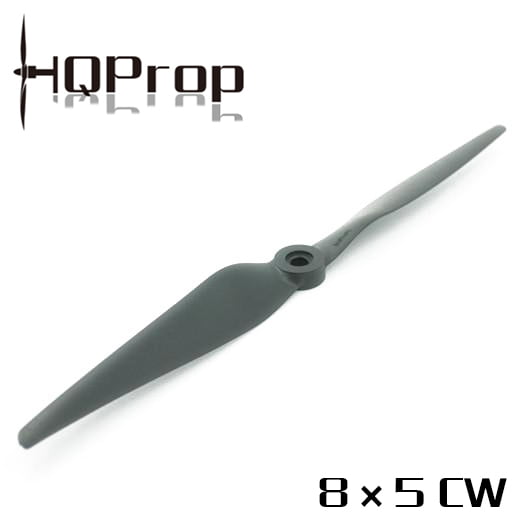

- Propeller Diameter: 8 inch
- Pitch: 5
- Blades: 2
- Weight: 7.21g
- Hub Diameter:17mm
- Hub Thickness: 6mm
- Shaft :9.5/8/5mm

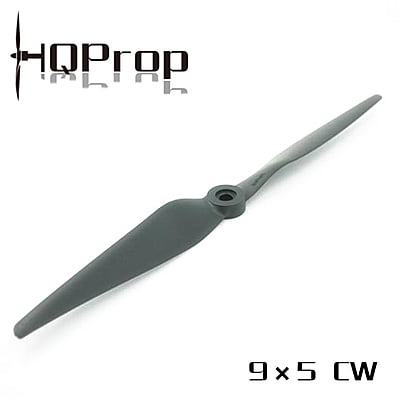

- Propeller Diameter: 9 inch
- Pitch: 5
- Blades: 2
- Weight: 9g
- Hub Diameter: 18mm
- Hub Thickness: 7mm
- Shaft :9.5/8/6mm
- Propeller Diameter: 11 inch
- Pitch: 5
- Blades: 2
- Weight: 13.59g
- Hub Diameter: 18mm
- Hub Thickness: 7.5mm
- Shaft :9.5/8/6mm

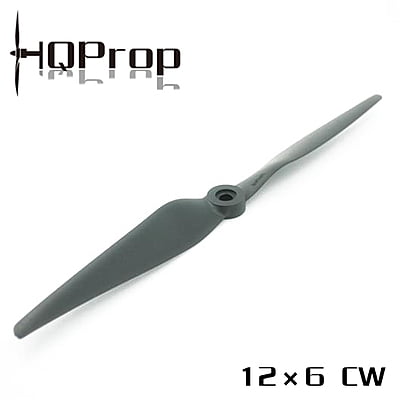

- Propeller Diameter: 12 inch
- Pitch: 6
- Blades : 2
- Weight : 18.4g
- Hub Diameter : 18mm
- Hub Thickness: 7.5mm
- Shaft :9.5/8/6mm
- Manufacturer:HQProp
- Brand:HQProp
- Generic Name:RC Propeller, Fixed Wing Propeller, Electric Propeller, UAV Propeller, Aeroplane Propeller, 2-Blade Propeller
- Sold By:UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For:Electric RC Airplanes, Fixed-Wing UAVs (Drones), FPV Wings, and other high-efficiency electric-powered aerial platforms.
Package Details :
- includes: 1 x Thin Electric Pusher Prop (2CW)
Q1: What is the main advantage of the "Thin Electric" design for my fixed-wing aircraft?
A: The main advantage is high aerodynamic efficiency and reduced drag during forward flight. This design allows for better thrust per watt, leading to longer flight times and a more efficient use of battery power compared to broader prop designs.
Q2: How do I choose the correct propeller size (diameter and pitch) for my RC plane?
A: The correct size depends on your motor's specifications (KV rating), battery voltage, and the weight/wing area of your aircraft. Always consult your motor manufacturer's recommendations or use a prop calculator to avoid overheating your motor or ESC.
Q3: Are these propellers durable enough for regular use and minor crashes?
A: Yes, they are made from durable composite plastic (like reinforced nylon), which provides a good balance of lightweight performance and resilience, making them a reliable choice for typical fixed-wing operations.
