HOLYBRO Power Distribution Board

Features:

• Distributes power to multiple ESCs.




• Built-in 5V BEC output.




• High current handling capability.




• Integrated XT60 connector.




• Robust design for reliable power flow.




• Minimizes wiring complexity.




• Dedicated pads for easy soldering.




• Compatible with a wide voltage range.




• Supports various multirotor configurations.




• Essential for custom drone builds.

Technical Specifications:

• Model: Holybro Power Distribution Board

• Input Voltage: 3S-6S LiPo

• Rated Current: 60A

• Max Burst Current: 120A (<60 sec)

• BEC Output: 5V / 3A (for powering Flight Controller, FPV gear)

• Output Ports: Typically 4-8 pairs of positive and negative pads for ESCs.

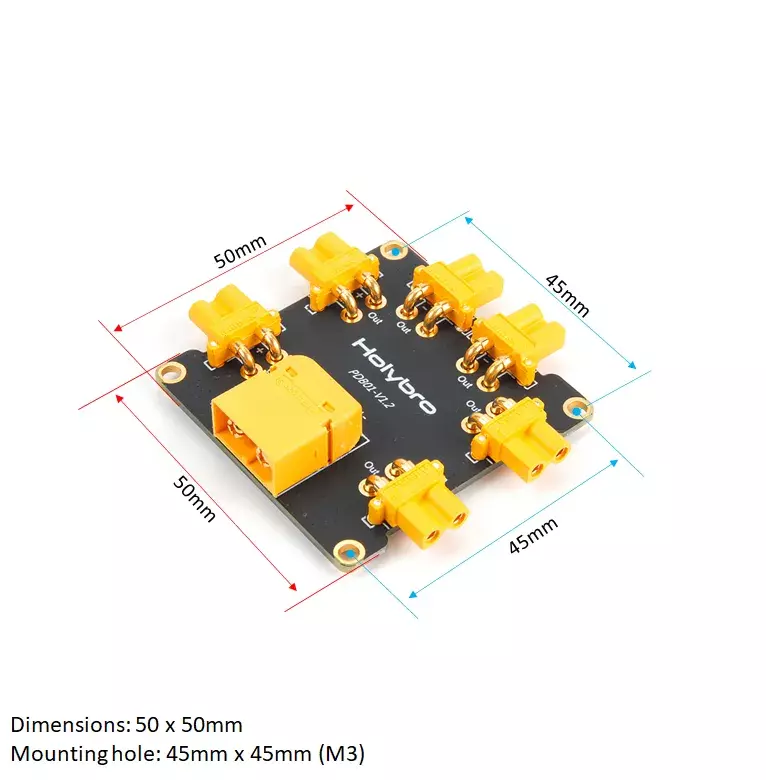

• Mounting Pattern: Standard 30.5x30.5mm

• Mounting Holes : 45x45mm

• Dimensions: 50x50mm

• shipping Weight: Lightweight, 0.017 kg

• Connectors: Integrated XT60 for battery connection.

Additional Details:

• Manufacturer: Holybro

• Brand: Holybro

• Generic Name: Power Distribution Board || PDB || Drone Power Board || UAV Electronics || Multirotor PDB || Battery Distribution Board || Drone Component || Power Hub || RC Electronics || Drone Accessory

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: DIY Drone Builders || Custom FPV Drone Builds || Multi-rotor Repairs || Quadcopter Upgrades || Fixed-wing Projects || Robotics Platforms || RC Enthusiasts || Drone Hobbyists || Educational Robotics || Custom Power Systems

Package Details:

Includes:

• 1x Holybro Power Distribution Board

• 1x XT60 Connector

Frequently Asked Questions:

Q1. What is the main purpose of a Power Distribution Board in a drone?

Ans. A Power Distribution Board (PDB) serves as a central hub that distributes power from the drone's main battery to all the electronic components, primarily the ESCs and motors. It simplifies the wiring, making the drone build cleaner and more organized while providing a stable power supply to all connected parts.

Q2. Does this PDB have a BEC, and why is that important?

Ans. Yes, this Holybro PDB has a built-in BEC (Battery Eliminator Circuit). A BEC's purpose is to step down the high voltage of the main battery (e.g., 16.8V for a 4S battery) to a lower, regulated voltage, typically 5V. This 5V output is then used to safely power sensitive electronics like the flight controller, receiver, and FPV camera without damaging them.

Q3. Can this PDB be used for a drone with more than four motors?

Ans. Yes, most Holybro PDBs are designed to be versatile and can be used for drones with more than four motors, such as a hexacopter (6 motors) or an octocopter (8 motors). You would simply solder multiple ESCs to a single set of power pads if the board doesn't have a dedicated set for each ESC. The total current draw must not exceed the PDB's maximum rated current.
