HOLYBRO PM02D 12s HV Power Module

Features :

• Digital current and voltage sensing.




• High voltage input up to 12S LiPo.




• Provides stable 5.2V regulated output.




• Accurate real-time battery monitoring.




• Essential for high-voltage drone telemetry.




• Designed for Pixhawk flight controllers.




• Enhances drone safety and reliability.




• Compact and robust design.




• Efficient power conversion.




• Holybro quality and performance.

Technical Specifications:

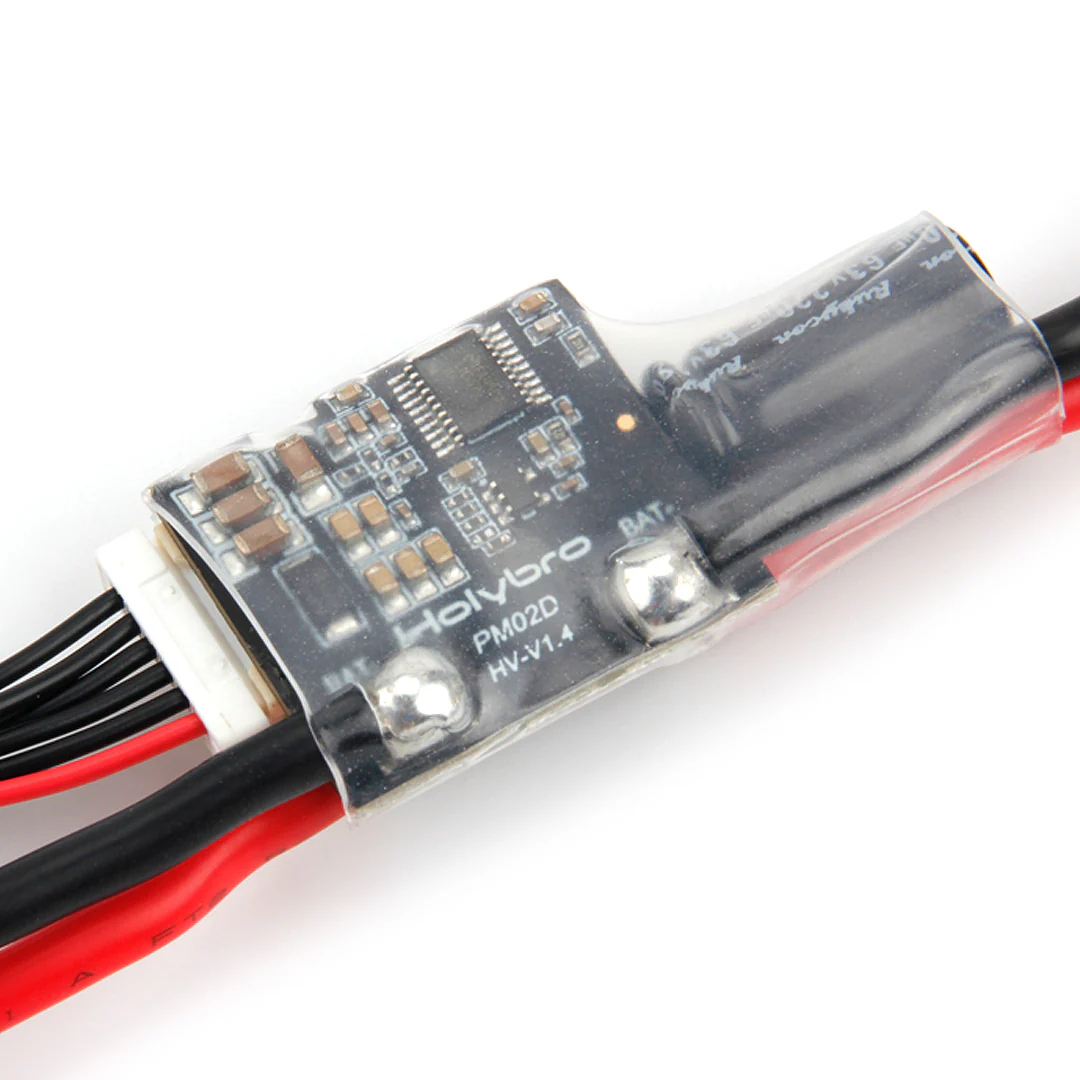

• Model: Holybro PM02D 12S HV Power Module

• Input Voltage: 4S to 12S LiPo (approximately 14.8V to 50.4V)

• Max Continuous Current: 100A (Typically for this class of module, but always verify with Holybro's official datasheet for the PM02D 12S HV.)

• Max Burst Current: 120A (Typically, but always verify with Holybro's official datasheet for the PM02D 12S HV.)

• Output Voltage: 5.2V (Regulated for flight controller)

• Output Current: 3A (Typically, but always verify with Holybro's official datasheet for the PM02D 12S HV.)

• Current Sensor: Yes, Integrated (Digital output)

• Voltage Sensor: Yes, Integrated (Digital output)

• Communication Protocol: UAVCAN / I2C The "D" often signifies digital output; specific protocol needs verification from Holybro's datasheet.

• Connectors: XT60/XT90 for battery input (often user-selected or pre-soldered), and a multi-pin connector (e.g., JST-GH, Molex) for connecting to flight controller's power module port.

• Dimensions: Compact, designed to be placed near the battery.

• Weight: 20g Lightweight.

Additional Details:

• Manufacturer: Holybro

• Brand: Holybro

• Generic Name: Power Module || HV Power Module || 12S Power Module || Digital Power Module || Current Sensor || Voltage Sensor || Battery Monitor || Drone Power Module || Flight Controller Power || UAV Power Module

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Heavy-Lift Drones || Industrial Inspection UAVs || Agricultural Spraying Drones || Long-Endurance Drones || Custom High-Voltage Drone Builds || Professional Cinematography Drones || Pixhawk-based Systems || Large Fixed-Wing UAVs || Critical Mission Drones || Drone Repair & Replacement

Package Details:

Includes:

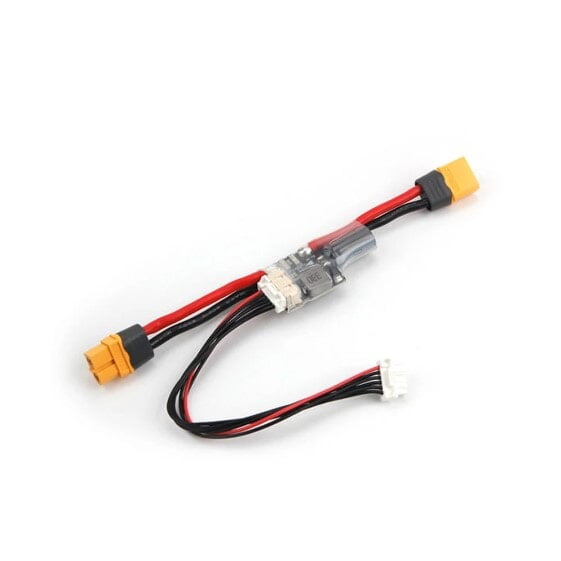

• 1x Holybro PM02D 12S HV Power Module

• 1x 6-pin Power Module Cable

Frequently Asked Questions:

Q1. What does the "D" in Holybro PM02D 12S HV Power Module signify?

Ans. The "D" in Holybro PM02D typically signifies "Digital" output. Unlike older power modules that provide analog voltage signals for current and voltage, digital power modules, often communicating via protocols like UAVCAN or I2C, offer more precise, noise-resistant data transmission to the flight controller, improving the accuracy of telemetry readings.

Q2. How does this 12S HV Power Module differ from other Holybro PM02 versions?

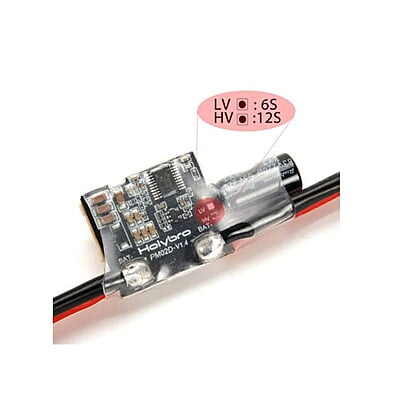

Ans. The "12S HV" designation signifies that this PM02D version is specifically designed to handle high-voltage battery inputs, up to 12S LiPo. This makes it suitable for larger, more powerful drones that utilize high-cell-count batteries for increased efficiency and longer flight times, unlike lower-voltage versions (e.g., 6S) which cannot withstand such high input voltages.

Q3. Is this Power Module suitable for drones using non-Pixhawk flight controllers?

Ans. While the Holybro PM02D is optimized for Pixhawk and CubePilot flight controllers due to their standard power module input ports and expected digital communication protocols, it may be compatible with other flight controllers that support similar digital power module interfaces (e.g., I2C/UAVCAN power input). However, it is crucial to verify your specific flight controller's power module requirements and pinout to ensure full compatibility and proper functionality.
