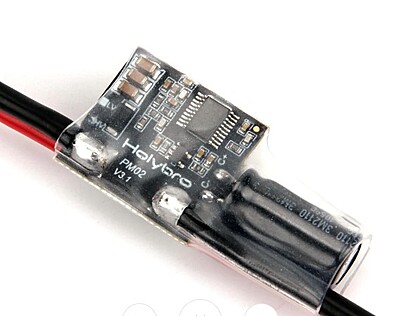

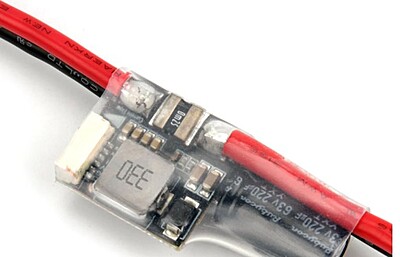

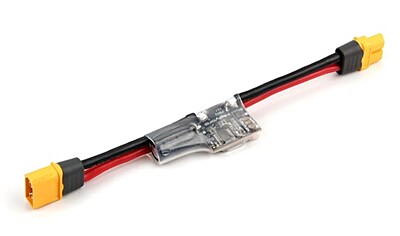

HOLYBRO PM02 V3 12S

Features :

• Supports high voltage up to 12S LiPo.




• Provides stable 5.2V regulated output.




• Accurate current and voltage sensing.




• Essential for high-voltage drone telemetry.




• Designed for Pixhawk flight controllers.




• Enhances drone safety and reliability.




• Compact and robust design.




• Efficient power conversion.




• Easy to integrate into HV systems.




• Holybro quality and performance.

Technical Specifications:

• Model: Holybro PM02 V3 12S Power Module

• Input Voltage: 4S to 12S LiPo (approximately 14.8V to 50.4V)

• Max Continuous Current: Typically 60A-120A - Assuming 100A continuous for a versatile power module.

• Max Burst Current: Typically higher, e.g., 150A.

• Output Voltage: 5.2V (Regulated for flight controller)

• Output Current: Typically 2.5A - 3A for a power module. - Assuming 3A

• Current Sensor: Yes, Integrated (Analog output, scaled for FC input)

• Voltage Sensor: Yes, Integrated (Analog output, scaled for FC input)

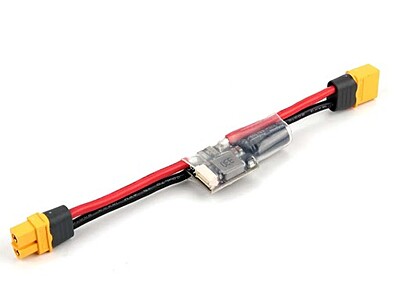

• Connectivity: Standard 6-pin DF13 or similar connector to flight controller (compatible with Pixhawk series power module input). XT60 or XT90 for battery input (often pre-soldered).

• Dimensions: Compact, designed to be placed near the battery.

• Weight: 20g Lightweight

Additional Details:

• Manufacturer: Holybro

• Brand: Holybro

• Generic Name: Power Module || PM || Current Sensor || Voltage Sensor || Battery Monitor || Drone Power Module || Flight Controller Power || UAV Power Module || High Voltage Power Module || 12S Power Module

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Heavy-Lift Drones || Industrial Inspection UAVs || Agricultural Spraying Drones || Long-Endurance Drones || Custom High-Voltage Drone Builds || Professional Cinematography Drones || Pixhawk-based Systems || Large Fixed-Wing UAVs || Critical Mission Drones || Drone Repair & Replacement

Package Details:

Includes:

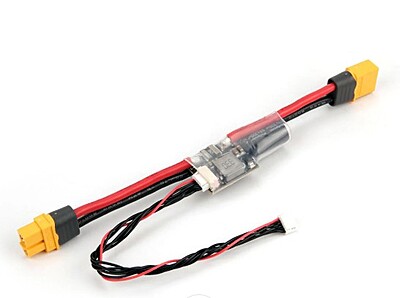

• 1x Holybro PM02 V3 12S Power Module

• 1x 6-pin Cable (for connecting to flight controller power module port)

Frequently Asked Questions:

Q1. What is the primary advantage of using a 12S Power Module like the Holybro PM02 V3?

Ans. The primary advantage of the Holybro PM02 V3 12S Power Module is its ability to handle high-voltage battery systems, specifically up to 12S LiPo. This is essential for larger, heavier-lift, and long-endurance drones, which benefit from higher voltages for more efficient propulsion and extended flight times. It enables these advanced UAVs to accurately monitor their high-voltage batteries, providing crucial telemetry for safe and efficient operations.

Q2. Is the Holybro PM02 V3 12S Power Module compatible with all Pixhawk versions?

Ans. The Holybro PM02 V3 12S Power Module is generally compatible with Pixhawk flight controllers that feature a standard 6-pin power module input port, providing both regulated 5.2V power and analog current/voltage telemetry. While broadly compatible with most Pixhawk versions (e.g., Pixhawk 2.4.8, Pixhawk 4, Pixhawk 6C, etc.), it's always recommended to consult your specific Pixhawk's documentation to confirm the pinout and voltage scaling are appropriate for direct integration.

Q3. How does the PM02 V3 ensure accurate current and voltage readings from a 12S battery?

Ans. The PM02 V3 12S Power Module utilizes internal voltage dividers and current sensing circuitry (typically shunt resistors) specifically designed and calibrated for the higher voltage and current ranges of 12S LiPo batteries. It outputs these scaled measurements as analog signals to the flight controller. The flight controller's firmware (such as ArduPilot or PX4) then applies inverse scaling factors to accurately interpret the real-time battery voltage and current consumption, ensuring precise telemetry.
