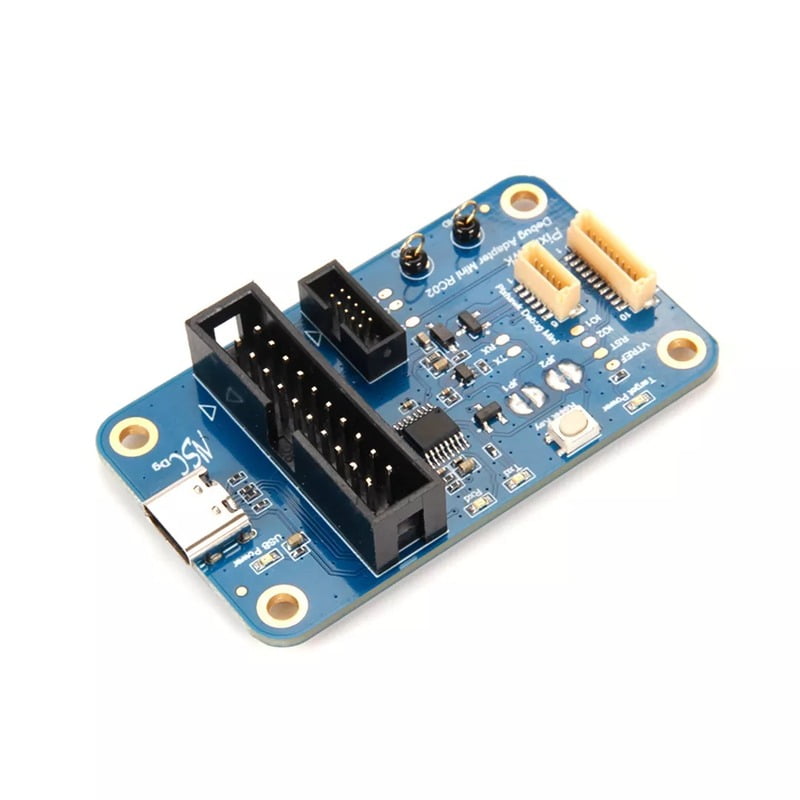

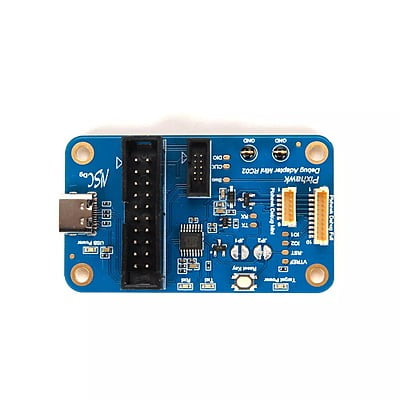

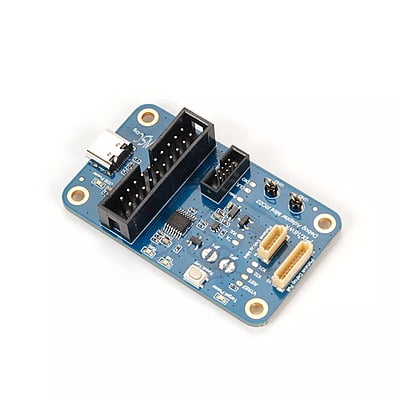

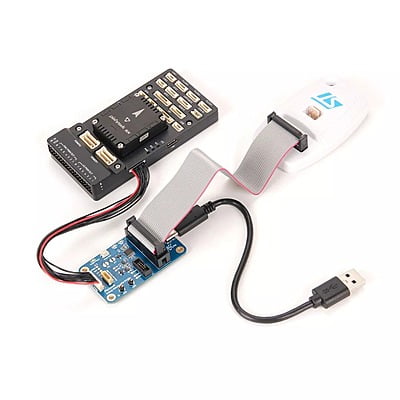

HOLYBRO Pixhawk Debug Adapter

Features:

• JTAG SWD and Serial interface.




• Integrated FTDI eliminates extra cables.




• Prevents back-feeding the FMU.




• Supports 6-pin and 10-pin debug connectors.




• Compatible with J-Link and ST-Link.




• Target reset via a push button.




• Provides accessible ground points.




• Designed for stable and reliable debugging.




• Compact and portable design.




• Essential for drone development.

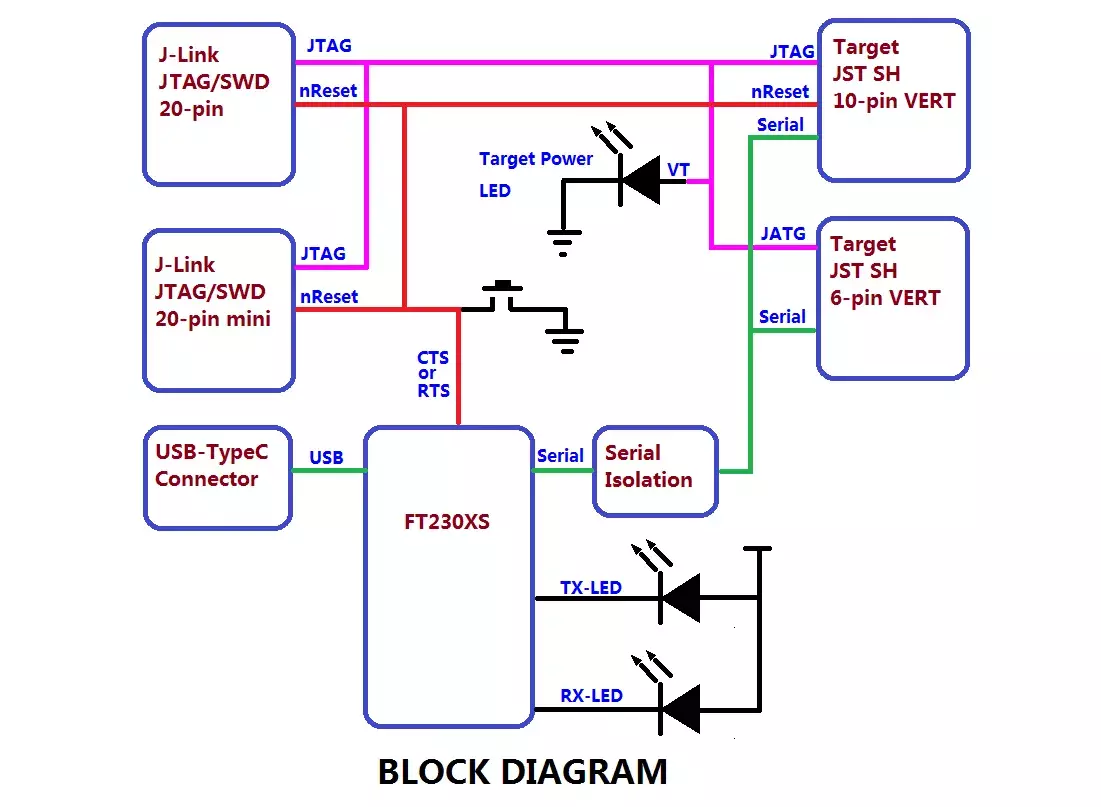

Technical Specifications:

• Model: Holybro Pixhawk Debug Adapter

• Debug Interfaces: JTAG SWD (Serial Wire Debug) and Serial

• Supported Target Connectors: Target 6-pin JST-SH (FMUV5 standard) , Target 10-pin JST-SH (FMUVxX standard)

• Supported Host Interfaces: 10-pin ARM compatible (for Segger J-Link-mini) , 20-pin compatible (for Segger J-Link or ST-Link)

• Onboard Features: Integrated FTDI serial interface , Back-feeding protection diode , Push button for CPU reset , Jumper options for advanced configurations (JP1, JP2)

• Connectivity: USB Type-C port

• Dimensions: Specific dimensions may vary slightly, but it's a small board, approximately 2-3 inches in length.

• Weight: Very lightweight, typically under 20g.

Additional Details:

• Manufacturer: Holybro

• Brand: Holybro

• Generic Name: Debugging Tool || Pixhawk Accessory || UAV Electronics || Flight Controller Tool || Drone Debugger || JTAG Adapter || Serial Adapter || Pixhawk Hardware || Drone Programmer || System Diagnostic Tool

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Drone Developers || PX4 and ArduPilot Researchers || University Robotics Teams || UAV Maintenance Technicians || Advanced Hobbyists || Custom Drone Builders || Firmware Engineers || Embedded Systems Engineers || Commercial Drone Operators || Educational Institutions

Package Details:

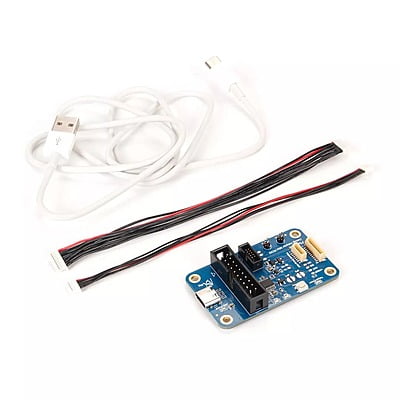

Includes:

• 1 x Pixhawk Debug Adapter Board

• 1 x JST SH 6 Pin Cable

• 1 x JST SH 10 Pin Cable

• 1 x USB Type-c  Cable

Frequently Asked Questions:

Q1. What is the main purpose of this debug adapter?

Ans. The main purpose of the Holybro Pixhawk Debug Adapter is to allow for low-level hardware access, debugging, and programming of Pixhawk flight controllers. It is a tool primarily for firmware development, system diagnostics, and troubleshooting beyond standard software interfaces, making it essential for developers and serious researchers.

Q2. Is this adapter compatible with my Pixhawk flight controller?

Ans. The Holybro Pixhawk Debug Adapter is designed to be compatible with any Pixhawk flight controller that uses the standard 6-pin (FMUV5) or 10-pin (FMUVxX) debug connectors. This includes many models from Holybro and other manufacturers that follow the official Pixhawk standard. You should check your specific flight controller's documentation to confirm its debug port type.

Q3. What is the benefit of the integrated FTDI serial interface?

Ans. The integrated FTDI serial interface on the Holybro Pixhawk Debug Adapter is a key feature that eliminates the need for a separate USB-to-UART cable. It provides a direct serial connection for firmware flashing or reading the system console output, simplifying your setup and making the entire debugging process more convenient, especially in a field environment.
