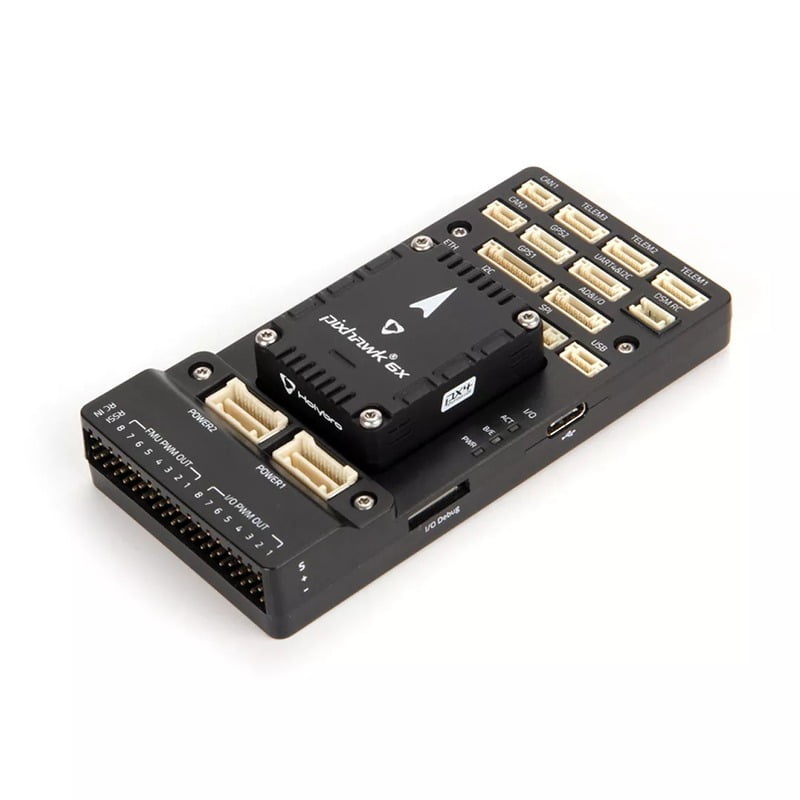

HOLYBRO Pixhawk 6X Flight Controller Standard Set
The Holybro Pixhawk 6X is a next-gen autopilot system for professional and advanced drone applications. Featuring a powerful H7 processor and triple-redundant IMU, it delivers unparalleled reliability and performance. This standard set includes a GPS module and power management board, making it the perfect foundation for complex, reliable, and autonomous drone missions.
Features:
Powerful STM32H753 processor.
Triple-redundant IMU system.
Integrated vibration isolation system.
Extensive UARTs, I2C, CAN, PWM ports.
Dedicated power management board.
Includes Holybro M8N GPS module.
Compatible with PX4 and ArduPilot.
Ideal for complex autonomous missions.
Robust and reliable design.
Enhanced security with new bootloader.
Technical Specifications:
Model: Holybro Pixhawk 6X Autopilot Flight Controller
Main FMU Processor: STM32H753IIT6 (Cortex-M7, 480MHz, 2MB Flash, 1MB RAM)
I/O Processor: STM32F103
Gyroscope/Accelerometer: ICM-42688-P (x2), ICM-20602 (x1), ICM-20649 or BMI088, ICM-42670-P
Magnetometer: BMM150 (onboard)
Barometer: 2× BMP388
Redundancy: Triple-redundant IMU, Dual-redundant Barometer
UART: 5
I2C: 4
CAN: 2
PWM Output: 16 (8x on IO, 8x on FMU)
ADC Inputs: 3
Input Voltage (via FC): 4.75–5.25V (recommended 4.5–5.5V via Power Module)
Supported Power Input (via PM02 V3): 2–12S LiPo
Current Rating: 1.5A
Flight Controller Module: 38.8×31.8×14.6mm; Weight: 23g
Standard Baseboard: 52.4×103.4×16.7mm; Weight: 51g
Full Stack (FC + Carrier + PM + GPS): Approx. 38.5×70×20mm; Weight: ~100g
Shipping Dimensions: 16×11×8 cm
Shipping Weight: 0.374 kg
Additional Details:
Manufacturer: Holybro
Brand: Holybro
Generic Name: Autopilot System || Drone Flight Controller || Pixhawk FC || UAV Controller || Drone Brain || Multirotor Controller || Industrial Drone Controller || Autonomous Flight Controller || Holybro Pixhawk || Flight Control Unit
Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Ideal For: Professional Drone Builders || Advanced Autonomous Drones || Aerial Mapping & Surveying || Research & Development Platforms || Agricultural Drones || Industrial Inspection UAVs || Heavy-Lift Multirotors || Search & Rescue Drones || Fixed-Wing Drones || Robotics Projects
Package Details:
Includes:
1 x Pixhawk 6X Flight Controller Module
1 x Pixhawk Standard Base
1 x PM02D LV Power Module
1 x Cable Set
Frequently Asked Questions:
Q1. What is the primary benefit of the Pixhawk 6X's redundant IMU system?
Ans. The primary benefit of the Pixhawk 6X's triple-redundant IMU system is enhanced reliability and safety. In the event of a sensor failure or data inconsistency from one IMU, the flight controller can switch to a healthy sensor, preventing a potential crash. This is a critical feature for high-value professional, industrial, and research drone applications where system integrity is paramount.
Q2. Can the Holybro Pixhawk 6X be used for both multirotors and fixed-wing drones?
Ans. Yes, the Holybro Pixhawk 6X is a versatile autopilot system that is fully capable of controlling both multirotors and fixed-wing drones. Its compatibility with popular open-source firmwares like PX4 and ArduPilot, which have robust codebases for various airframes, makes it a powerful and flexible choice for a wide range of unmanned aerial vehicle (UAV) projects.
Q3. What is the purpose of the included Power Module in the standard set?
Ans. The included Power Module (PM02 V3) serves two main purposes. First, it provides a clean and regulated power supply to the flight controller and its peripherals, protecting sensitive electronics. Second, it acts as a current and voltage sensor, allowing the Pixhawk 6X to accurately monitor the battery's state and display information like remaining capacity and total current draw, which is essential for safe and planned flight.
