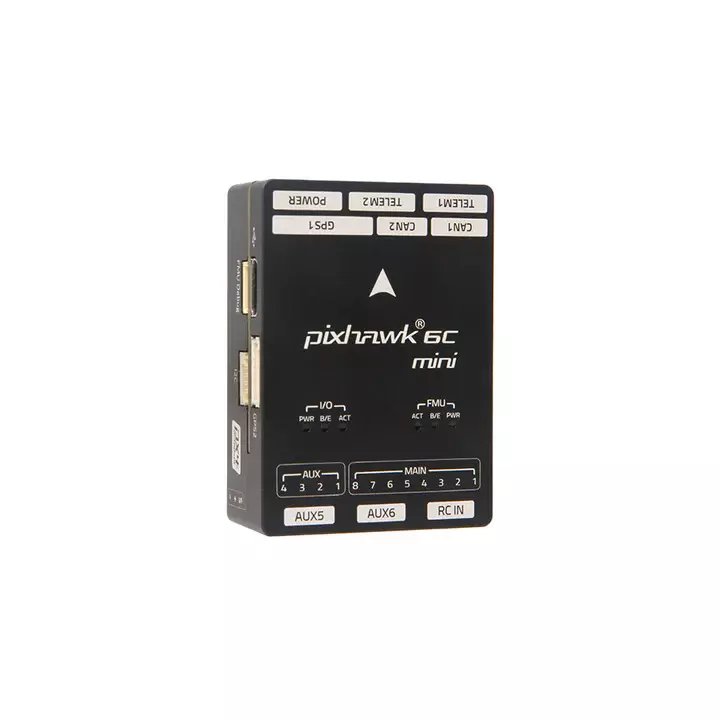

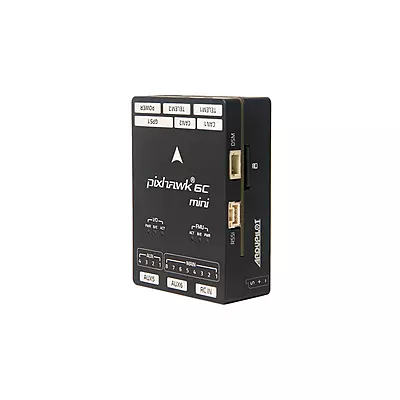

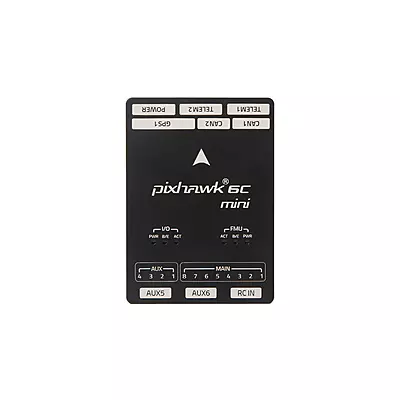

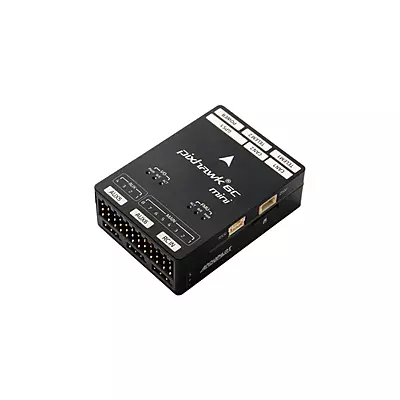

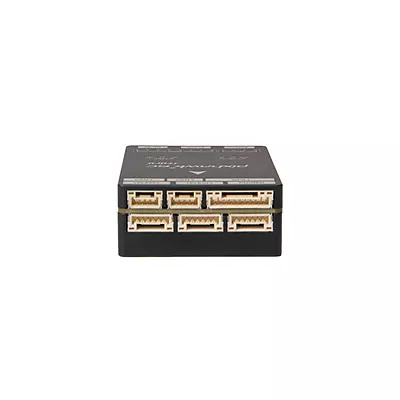

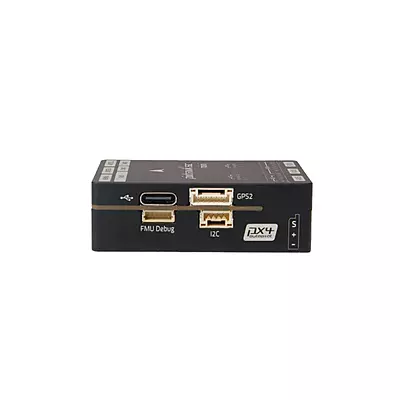

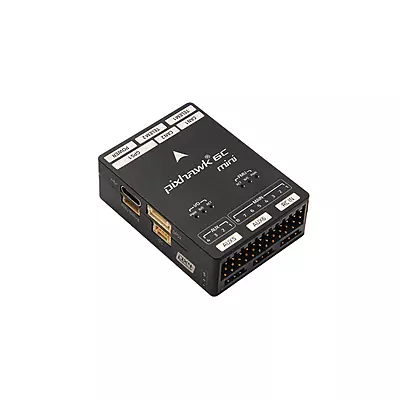

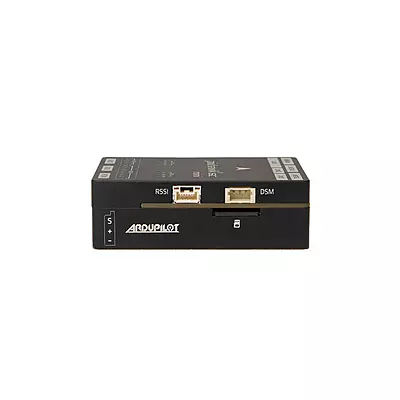

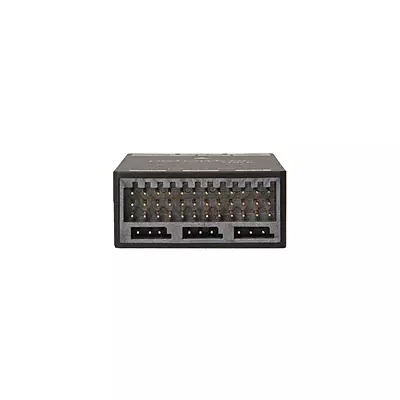

HOLYBRO Pixhawk 6C Mini With PM02 V3 And M10 GPS

Features:

• Powerful STM32H753 processor for advanced flight control.

• Integrated triple redundant IMUs ensure exceptional reliability and safety.

• Compact Mini form factor, ideal for space-constrained drone builds.

• Includes PM02 V3 Power Module for stable and clean power.

• Features M10 GPS module for superior positioning accuracy.

• Supports ArduPilot and PX4 open-source flight firmware.

• Multiple I/O ports for extensive peripheral connectivity.

• Robust design for reliable performance in demanding environments.

• Perfect for custom fixed-wing, multirotor, and VTOL projects.

• Enhances drone autonomy, stability, and navigation capabilities

Technical Specifications:

Processors & Sensors :

• FMU Processor: STM32H743 , 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM

• IO Processor: STM32F103 , 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

• On-board sensors :

  • Accel/Gyro: ICM-42688-P

  • Accel/Gyro: BMI055

  • Mag: IST8310

  • Barometer: MS5611

Electrical data

• Voltage Ratings:

  • Max input voltage: 6V

  • USB Power Input: 4.75~5.25V

  • Servo Rail Input: 0~36V

• Current Ratings:

  • Telem1 & GPS2 combined current limit: 1.5A

  • All other ports combined current limit: 1.5A

• Operating Temperature: -25-85°C

Mechanical data

• Dimensions: 84.8 * 44 * 12.4 mm

• Weight (Aluminum Case) : 59.3g

• Weight (Plastic Case) : 34.6g

Additional Details:

• Manufacturer: HolyBro

• Brand: HolyBro

• Generic Name: Flight Controller || Autopilot System || UAV Brain || Drone Control Board || Pixhawk FC || RC Flight Controller || Drone Computer || Multi-Rotor Controller || Fixed-Wing Autopilot || PX4 Compatible FC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Custom Drone Builds || FPV Drones || Autonomous UAVs || Quadcopters || Hexacopters || Octocopters || Fixed-Wing Drones || VTOL Aircraft || Robotics Projects || Research & Development Platforms







Package Details:

Includes:

• 1x HolyBro Pixhawk 6C Mini Flight Controller

• 1x HolyBro PM02 V3 Power Module with XT60 Connectors

• 1x HolyBro M10 GPS Module (with compass)

Frequently Asked Questions:

Q1. What is the main advantage of the Pixhawk 6C Mini's processor?

Ans. The Pixhawk 6C Mini utilizes an STM32H753 processor, which is a high-performance H7 series microcontroller. This provides significantly increased processing power, allowing for more complex algorithms, faster execution of flight commands, and support for more advanced features in modern UAV applications.

Q2. Why is the M10 GPS module included in this combo important?

Ans. The M10 GPS module offers superior positioning accuracy and faster satellite acquisition due to its ability to simultaneously receive signals from multiple GNSS constellations (GPS, GLONASS, Galileo, BeiDou). This results in more reliable navigation, better loitering capabilities, and improved overall autonomous flight performance for your drone.

Q3. Is this combo suitable for both multirotors and fixed-wing aircraft?

Ans. Yes, the HolyBro Pixhawk 6C Mini, along with its included PM02 V3 power module and M10 GPS, is highly versatile and fully supports both multirotor (quadcopters, hexacopters, octocopters) and fixed-wing aircraft configurations. It is compatible with open-source firmware like ArduPilot and PX4, allowing for broad application.
