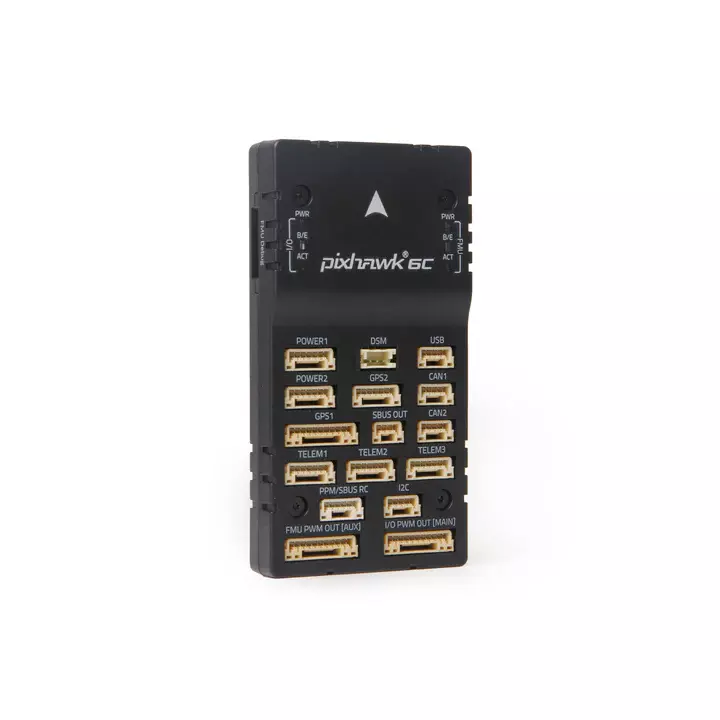

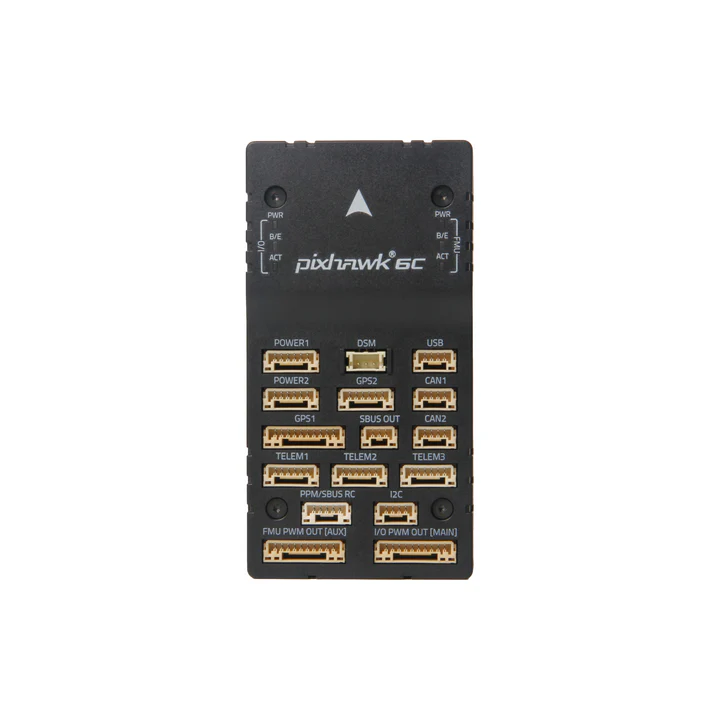

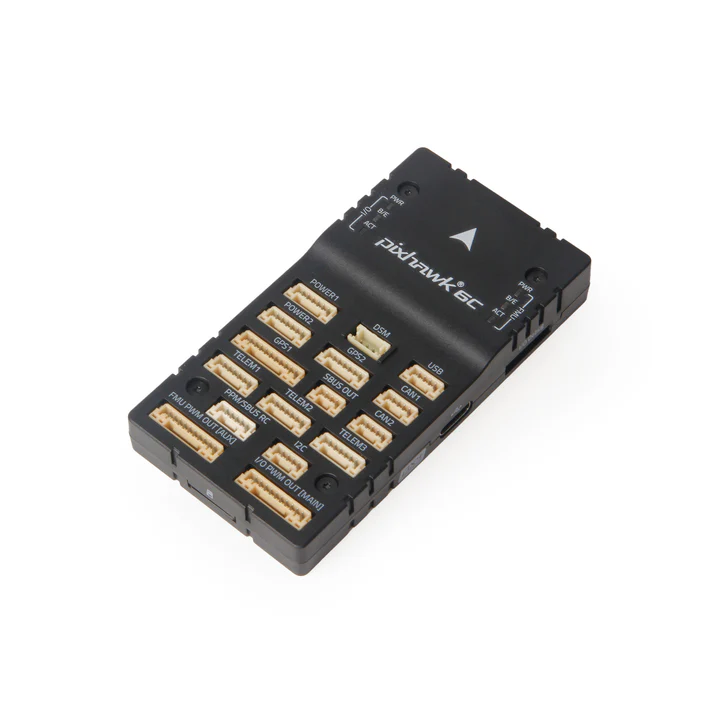

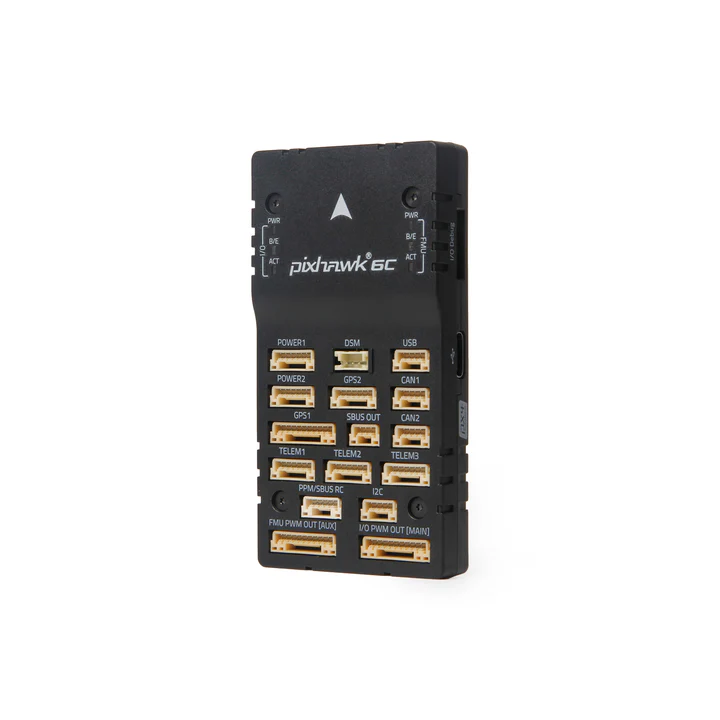

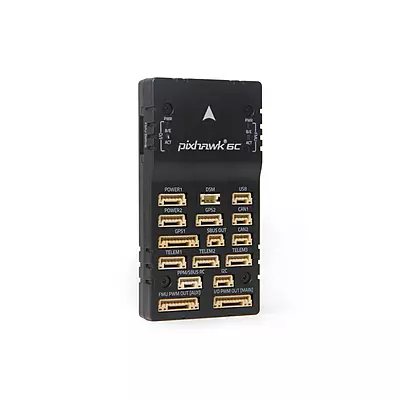

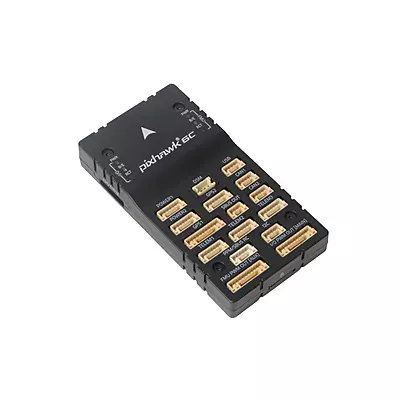

HOLYBRO Pixhawk 6C Flight Controller

Features :

• High performance H7 Processor with clock speed up to 480 MHz
• New cost-effective design with low-profile form factor
• Redundant inertial measurement unit (IMU) from Bosch® & InvenSense®
• Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
• IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
• Hardware switchable 3.3V or 5V PWM signal mode (requires opening the casing)

Processors & Sensors

• FMU Processor: STM32H743
• 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
• IO Processor: STM32F103
• 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
• On-board sensors
• Accel/Gyro: ICM-42688-P
• Accel/Gyro: BMI088 (BMI055 discontinued due to the end of production of the sensor)
• Mag: IST8310
• Barometer: MS5611

Electrical data

• Voltage Ratings:
• Max input voltage: 6V
• USB Power Input: 4.75~5.25V
• Servo Rail Input: 0~36V
• Current Ratings:
• Telem1 & GPS2 combined current limit: 1.5A
• All other ports combined current limit: 1.5A
• Operating Temperature: -25-85°C

Mechanical data

• Dimensions: 84.8 * 44 * 12.4 mm

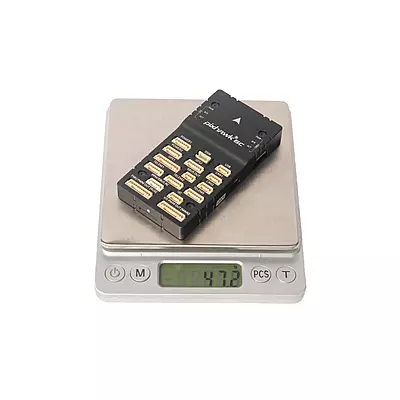

• Weight (Aluminum Case) : 59.3g
• Weight (Plastic Case) : 34.6g

• Manufacturer: HolyBro

• Brand: HolyBro

• Generic Nae: Flight Controller || Autopilot System || UAV Brain || Drone Control Board || Pixhawk FC || RC Flight Controller || Drone Computer || Power Management Unit || High Voltage PMU || Flight Stack

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Custom Drone Builds || High-Voltage Drones || Autonomous UAVs || Quadcopters || Hexacopters || Octocopters || Fixed-Wing Drones || VTOL Aircraft || Robotics Projects || Industrial Drones

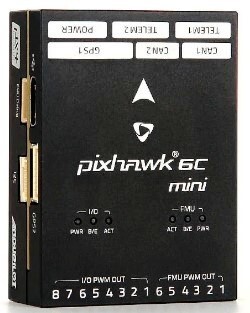

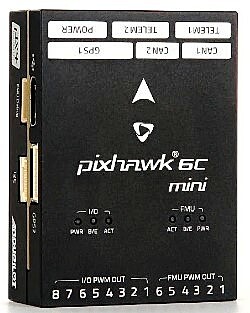

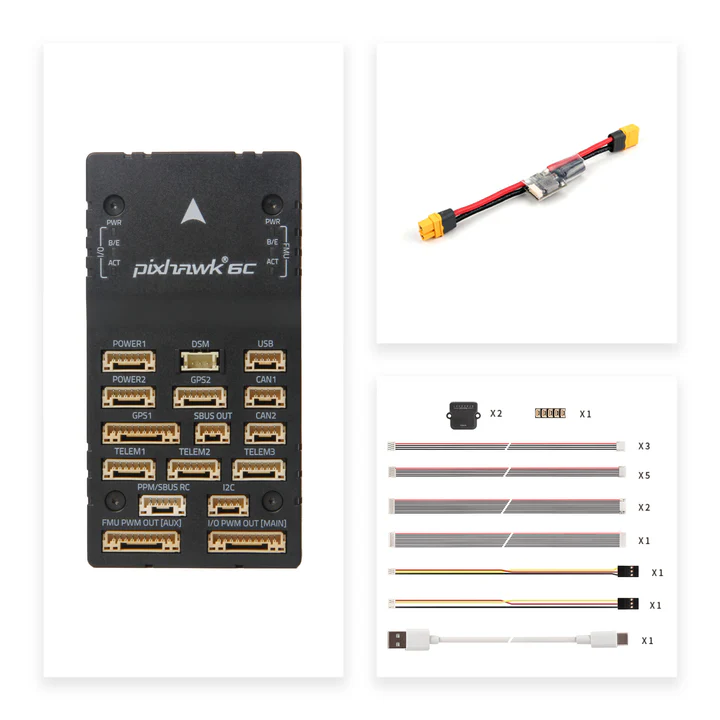

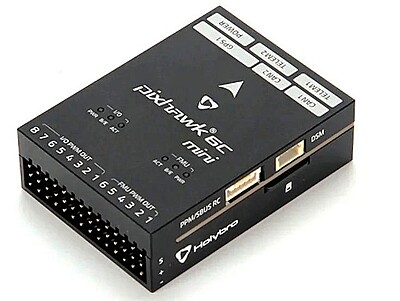

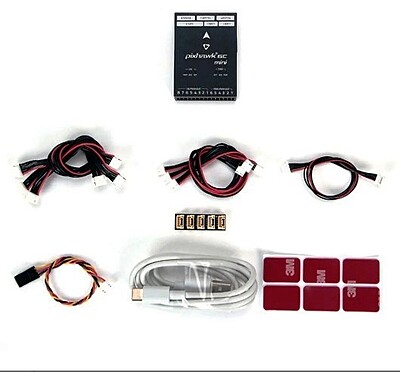

• 1x HolyBro Pixhawk 6C Mini Flight Controller Kit

Q1. What is the significance of the "12S" in the PM02 12S power module?

Ans. The "12S" indicates that the PM02 power module is designed to safely and accurately handle input voltages from battery packs up to 12 cells in series (approximately 50.4V fully charged). This makes it suitable for larger, more powerful drones that use high-voltage battery systems.

Q2. How does the Pixhawk 6C Mini's triple redundant IMU system improve drone reliability?

Ans. The triple redundant IMU system means the flight controller has three independent Inertial Measurement Units. If one IMU fails or provides inconsistent data, the system can automatically switch to or cross-reference data from the other IMUs, significantly increasing flight stability, reliability, and safety, especially in challenging conditions.

Q3. Is this flight controller compatible with both ArduPilot and PX4 firmware?

Ans. Yes, the HolyBro Pixhawk 6C Mini is fully compatible with both the popular open-source flight firmware projects, ArduPilot and PX4. This provides users with flexibility to choose the firmware that best suits their application and development workflow, allowing for extensive customization and advanced features.
