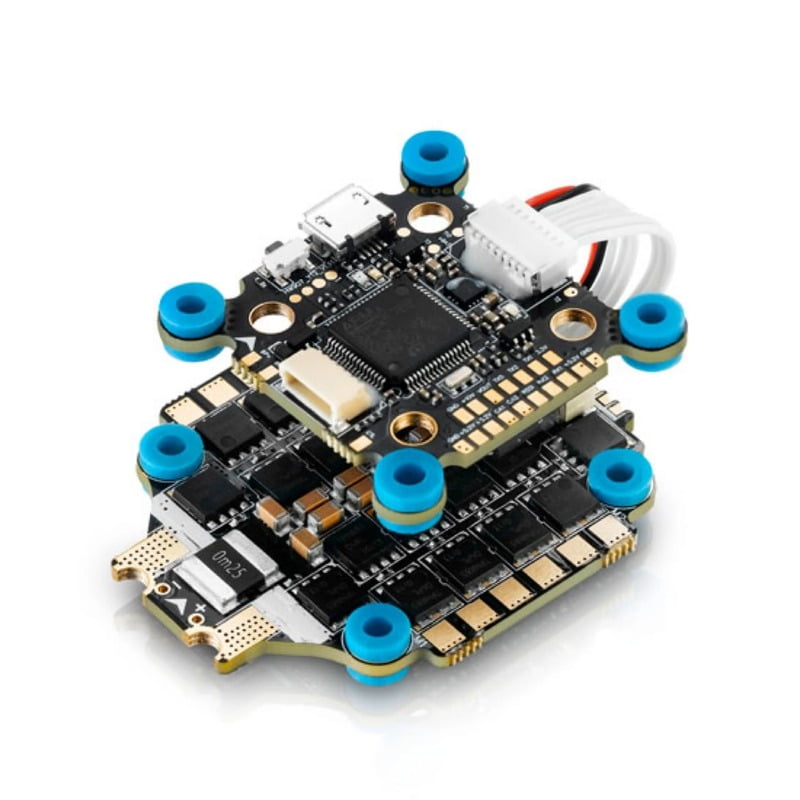

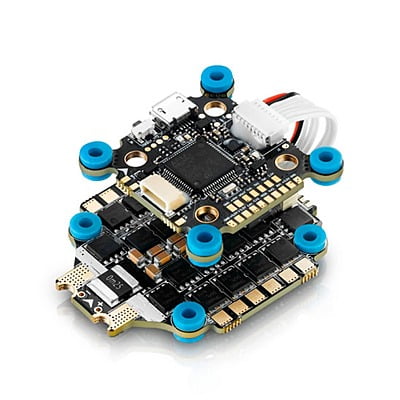

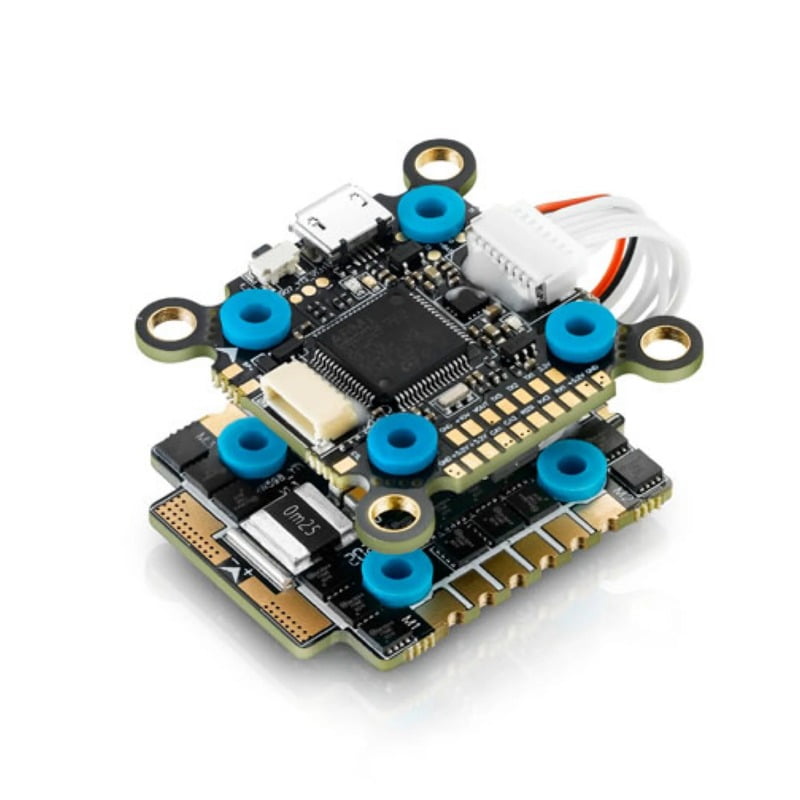

HOBBYWING XRotor Micro ESC & FC FPV Combo

Features :

• Integrated F7 Flight Controller for superior processing.

• High-performance 4-in-1 ESC (45A or 65A option).

• Pre-flashed with advanced BLHeli_32 firmware.

• Supports DShot1200 and other digital protocols.

• Built-in Betaflight OSD for real-time data.

• Ultra-compact and lightweight stack design.

• Robust 3-6S LiPo input voltage compatibility.

• Multiple UARTs and I2C for peripheral connectivity.

• BEC output for powering FPV camera and VTX.

• Excellent heat dissipation and protection features.

Technical Specifications :

• Processor: STM32F722 (216 MHz)

• IMU (Gyroscope/Accelerometer): MPU6000 (connected via SPI)

• Barometer: BMP280

• OSD: Integrated Betaflight OSD

• BEC Output: 5V @ 1.5A , 10V @ 1.5A (for VTX/Camera)

• UART Ports: 5 UARTs

• I2C Port: 1×

• DShot Support: DShot150 / DShot300 / DShot600

• Mounting Options: 20×20 mm and 30.5×30.5 mm (adapters typically included)

• Continuous Current: 45A per channel (45A variant) , 65A per channel (65A variant)

• Peak Current (10s): 60A per channel (45A variant) , 80A per channel (65A variant)

• Input Voltage: 3–6S LiPo

• BEC Output: None (OPTO design; requires external BEC for receiver/FC if needed)

• Firmware: BLHeli_32 (32-bit ARM MCU)

• Signal Protocol Support:

  • DShot150 / DShot300 / DShot600 / DShot1200

  • ProShot1000

  • MultiShot

  • OneShot125

• Telemetry: ESC Telemetry supported via BLHeli_32

• Mounting Holes: 30.5 × 30.5 mm

• Stack Dimensions (L × W × H): Approx. 40 × 36 × 10 mm

• Stack Weight: Approx. 20–25 g (excluding wires)

Additional Details:

• Manufacturer: HOBBYWING

• Brand: HOBBYWING

• Generic Name: Flight Controller Stack || ESC FC Combo || FPV Stack || Drone Electronics || AIO Flight Controller || FC ESC Combo || Race Drone Stack || Multirotor Controller || Brushless Combo || FPV System

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: FPV Racing Drones || Freestyle Drones || Quadcopters || Cinewhoops || Mini Drones || Drone Builds || DIY FPV Drones || Competitive FPV Pilots || High-Performance UAVs || Custom Drone Projects

Package Details:

Includes:

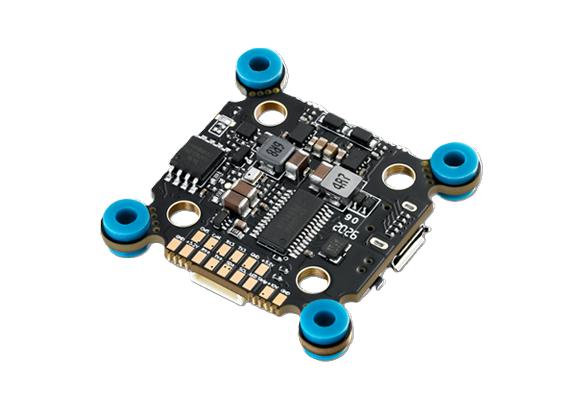

• 1x HOBBYWING XRotor Micro F7 Flight Controller

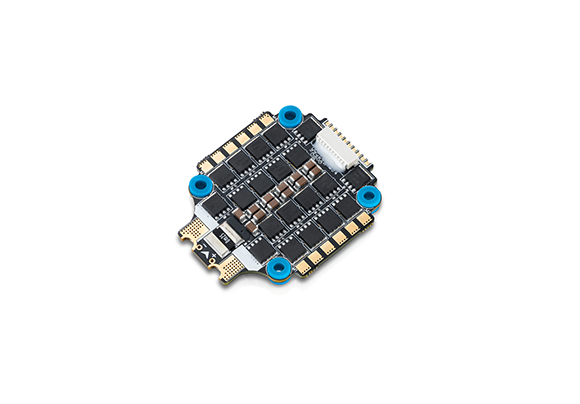

• 1x HOBBYWING XRotor Micro 4-in-1 ESC (45A or 65A, as per chosen combo)

• 1x XT60/XT90 power cable with capacitor

• 1x FC to ESC connection cable (usually a flat ribbon cable or direct solder pad)

• Various signal wires and connection cables

• Mounting hardware (e.g., nylon standoffs, nuts, grommets)

• 1x User Manual / Wiring Diagram

Frequently Asked Questions:

Q1. What is the benefit of getting an FC & ESC "combo" or "stack" like the XRotor Micro?

Ans. An FC & ESC combo or "stack" significantly simplifies the build process for FPV drones by integrating the Flight Controller and 4-in-1 ESC into a single, compact, and pre-wired unit. This reduces wiring complexity, saves space and weight, and minimizes potential points of failure, leading to a cleaner and more reliable build.

Q2. Does the HOBBYWING XRotor Micro F7 FC support Betaflight OSD?

Ans. Yes, the HOBBYWING XRotor Micro F7 Flight Controller features an integrated Betaflight OSD (On-Screen Display). This allows you to view critical flight data such as battery voltage, current draw, flight mode, RSSI, and more directly on your FPV video feed, providing essential real-time information to the pilot.

Q3. What's the difference between the 45A and 65A ESC versions in this combo?

Ans. The primary difference lies in the continuous current handling capability per motor. The 45A version can continuously deliver 45 Amps to each motor, while the 65A version can deliver 65 Amps. The 65A version is designed for more powerful motors and propellers that draw higher current, making it suitable for larger, heavier, or more aggressive FPV racing and freestyle builds.
