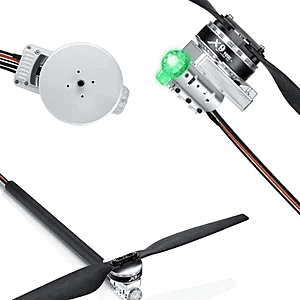

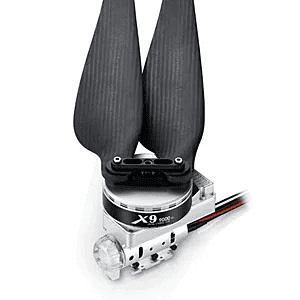

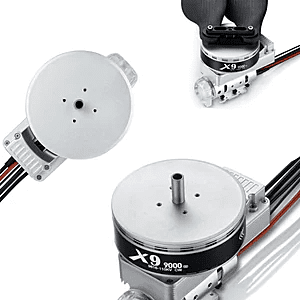

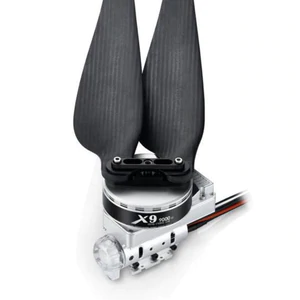

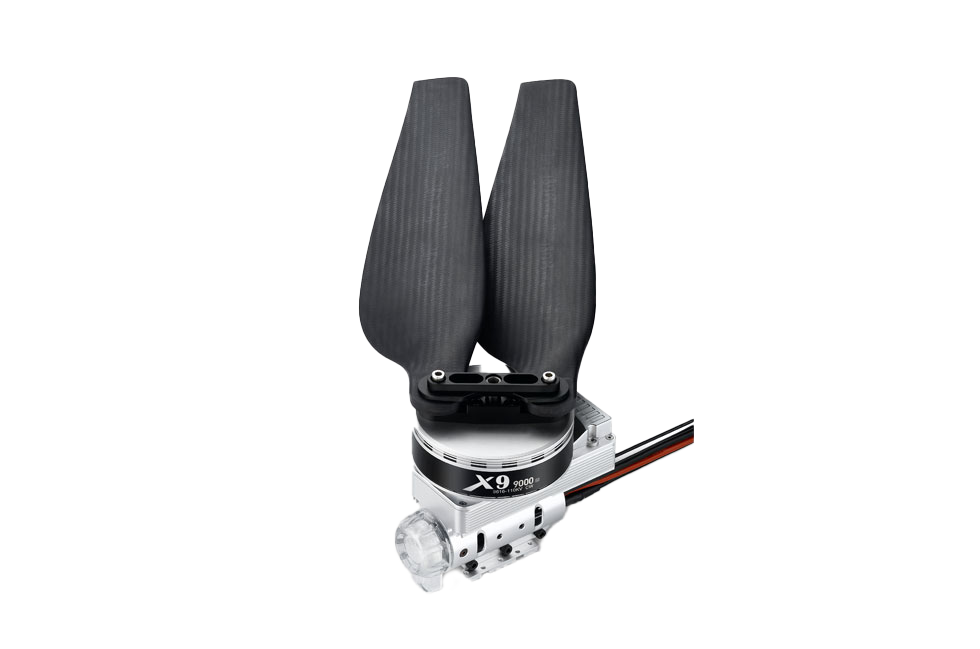

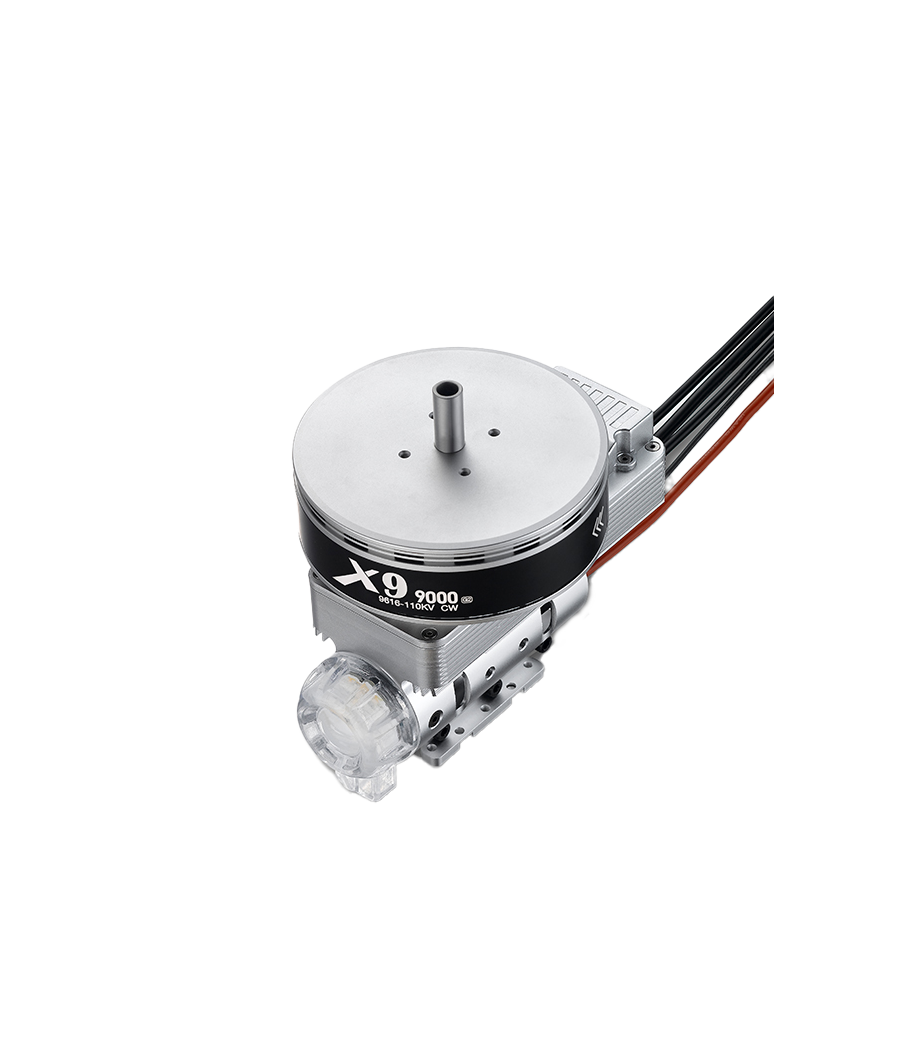

Xrotor Pro X9 brushless motor with built-in ESC RTF

The COMBO-XRotor Pro-X9 brushless power system is a plant protection power system that adapts to a uniaxial 7-9.5kg load. The maximum pulling force of uniaxial is 19.2kg, integrated with a 40mm carbon fiber tube arm. The waterproof grade is IPX7. It is resistant to rainwater, pesticides, salt spray, high temperature, sand and dust, impact, mud, and soil. ESC FOC-motor PMS system has optimized computing, with multiple protection functions such as power-on self-check, power-on voltage abnormal protection, overcurrent protection, lock-up protection and etc. as well as real-time data transmission

XROTOR X9 Series ESC+Motor

Hobbywing XRotor 9 Power System Combo

Specifications:

• Max. Thrust: 22kg/Axis (46V, Sea Level)
• Recommended Takeoff Weight: 7-9.5kg/Axis (46V, Sea Level)
• Recommended LiPo Battery: 12-14S（LiPo)
• Operating Temperature: -20-55 DegC
• Combo Weight: 1524g
• Waterproof Rating: IPX7



Motor
KV Rating: 110 rpm/V
Stator Size: 96*16mm
Tube Diameter: 40mm
Bearing: Imported Waterproof Bearing

ESC
Recommended LiPo Battery: 12-14S LiPo
PWM Input Signal Level: 3.3V/5V(Compatible)
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1100-1940us(Fixed or cannot be Programmed)
Max. Input Voltage: 52.2V(Standard )， 61V(14S- Version)
Max. Input Current (Cont.): 120A(w/ Good Heat Dissipation)
Max. Peak Current (10s): 150A(w/ Good Heat Dissipation)
BEC: No
Mounting Holes for Nozzle: 28.4mm-2*M3

Propeller: 3411

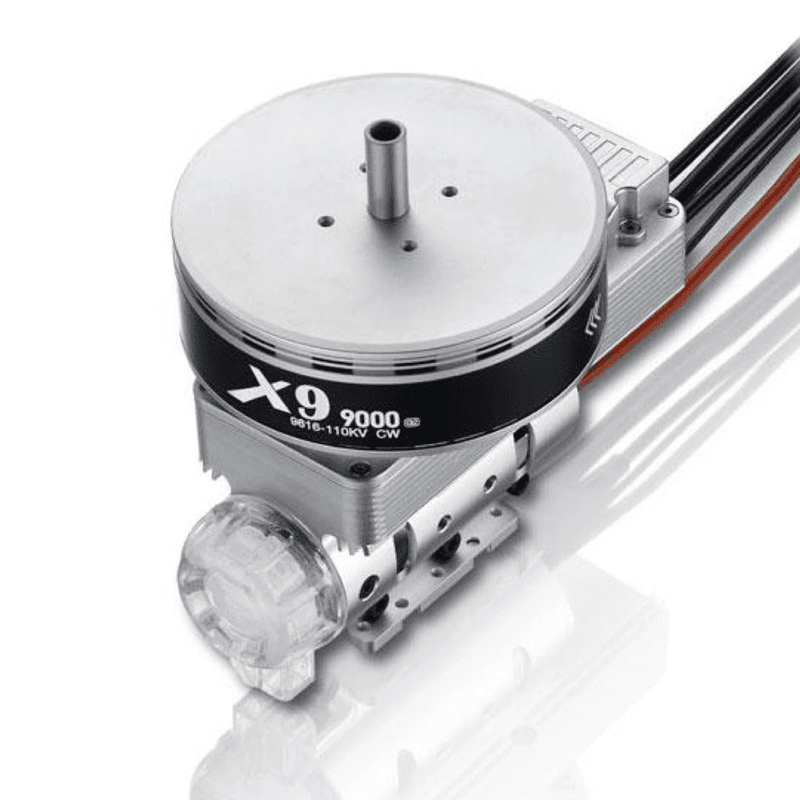

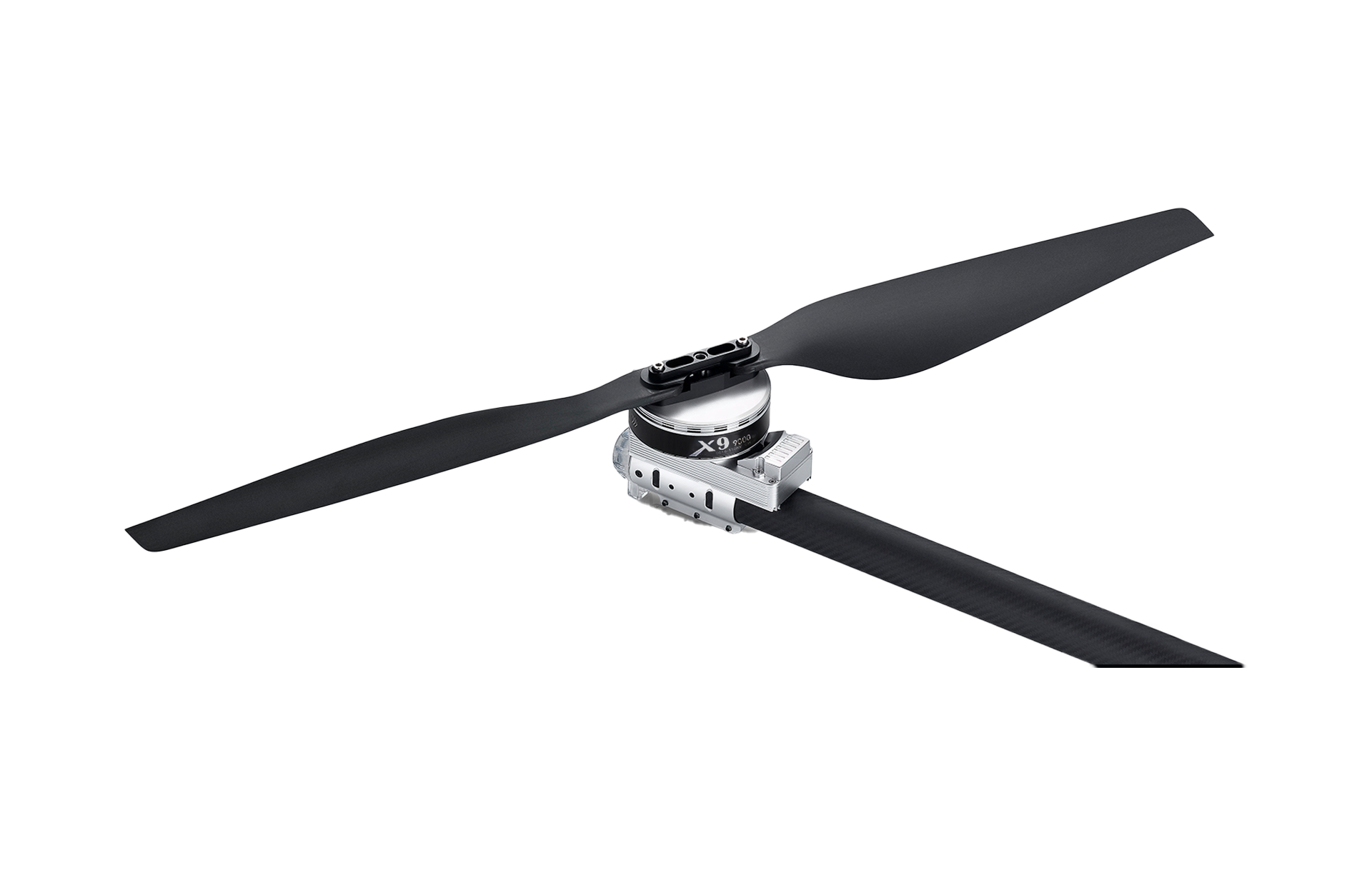

Tube-on-one structural design

The X9 is three-dimensional and designed with an integrated motor and ESC as one.
The installation of the lightweight structure is convenient and can be matched with
the circular carbon fiber tube(40mm). Optionally, it can be used with 34.7 propellers
or 3411 propellers, or 36120 propellers.

Smarter, more compatible
& the perfect powertrain

The power system is smoother and improves the compatibility of the flight controller
(can be used with more excellent flight controllers). The overall stability and
reliability of the aircraft have increased with an improved flight effect. LED
light color adjustment function removes the lampshade and uses the DIP switch
to adjust the LED light color. Smarter, more compatible & the perfect powertrain

The maximum tensile force of a single shaft can reach 23kg,

which is suitable for large-load plant protection machines with 7-10kg/axis

X9 large-duty plant protection aircraft application, using FOC ESC (optimization algorithm based on field-oriented control)
easy airworthiness 16kg load four-axis plant protection rotor aircraft or larger type.

All-weather application

The X9 is equipped with overall waterproofing protection of IPX7 rating.
It guarantees excellent waterproofing and dust proofing protection. The X9 is anti-corrosive and is fully sealed
to cope with harsh environments and climates around the world.

Excellent design for heat dissipation

The X9 system design is closely connected. The increase in the conductive area greatly
improves heat dissipation and can be used for higher power load. Overall
the structure is more reliable. Excellent design for heat dissipation

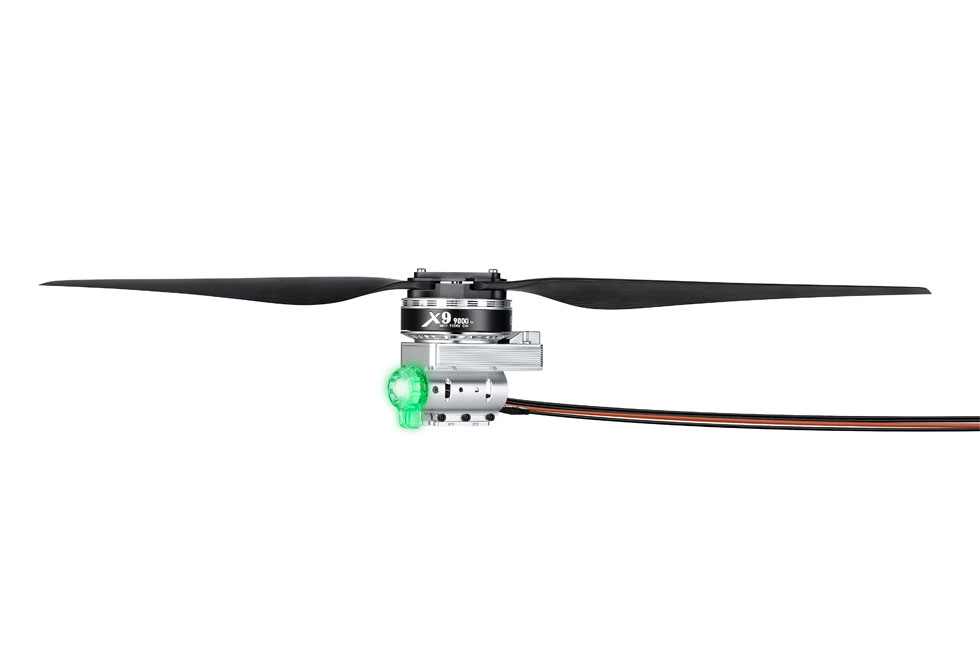

Collision avoidance structure LED lights

The X9 motor seat-tail and anti-impact design absorbs
impact, and protects both the motor and ESC from
damaging caused by a malfunction crash.

Accessibility interface

The bottom of the powertrain is reserved for the nozzle mounting mount.
It can be connected directly to various nozzles for installation using
a variety of plant protection models for auxiliary applications to simplify the structure.

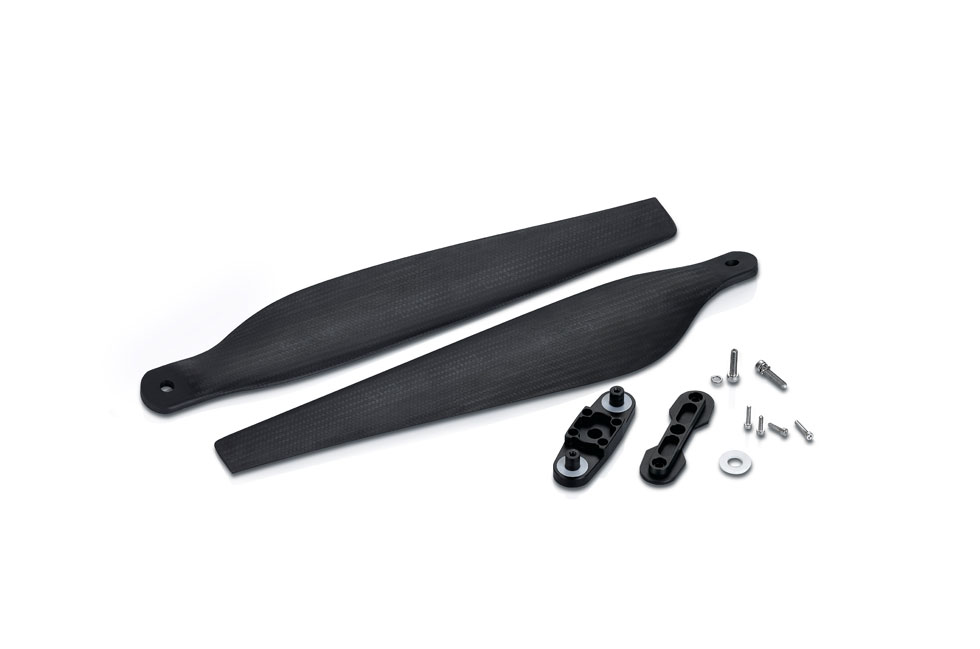

Propellers are available with a variety of options

34.7 carbon fiber propeller, 3411 carbon propeller,36190 carbon propeller

34.7 carbon fiber propeller

3411 carbon propeller

36190 carbon propeller

Multiple protection functions

The X9 power system is equipped with several protection functions such as:
Power-on self-test, Power-on voltage abnormal protection, Current protection, and Stall protection. It is able to output operating status data to the
flight controller in real-time including; input throttle amount, response
throttle volume motor speed, bus voltage, bus current, phase current,
capacitor temperature, MOSFET temperature, etc. This allows the flight
controller to grasp the electronics in real-time during operation to
improve flight performance and efficiency. It improves the overall
system reliability.

Note: Using the Hobbywing DataLink data acquisition
memory (Note: need to be purchased separately) can
simultaneously collect the real-time operation data
of the 8-channel power system, and pass it to the
flight controller through the bus interface to
form a closed-loop control system.

Multiple protection functions

Self-checking

Current protection

Start-up Protection

Over-load Protection

Support system upgrades

Hobbywing allows you to update your ESC to the latest firmware and synchronize it using a

computer via the Hobbywing Data Link software at all times.
