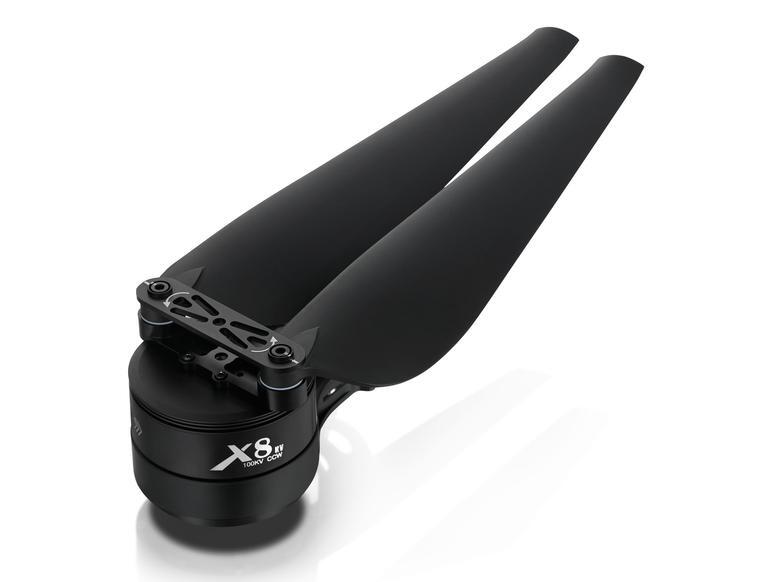

HOBBYWING X8 Rotor With 3011 Propeller Combo
Specifications:
Product Name :X8 Power System Combo
Max. Thrust :15.3kg/Axis (48V, Sea Level )
Recommended LiPo Battery :12S LiPo
Combo Weight :1040g
Waterproof Rating :IPX7
Operating Temperature :-20℃~65℃
Specifications:
Product Name :X8 Power System Combo
Max. Thrust :15.3kg/Axis (48V, Sea Level )
Recommended LiPo Battery :12S LiPo
Recommended Takeoff Weight : 5-7kg/Axis(48V,Sea Level)
Combo Weight :1040g
Waterproof Rating :IPX7
Operating Temperature :-20℃~65℃

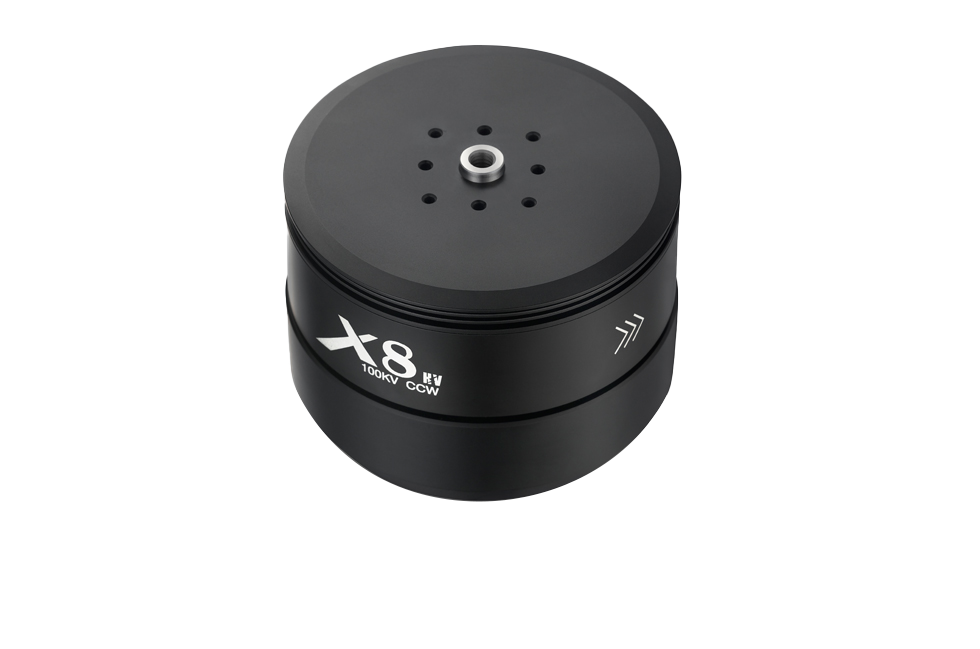

Motor
Stator Size :81*20mm
KV Rating :100KV
O.D of Carbon Fiber Tube :Φ35mm/Φ30mm (*Tube Adapter will be Needed)
Bearing :NSK Ball Bearing (Waterproof)
ESC
Recommended LiPo Battery :6-12S LiPo
PWM Input Signal Level :3.3V/5V (Compatible )
Throttle Signal Frequency :50-500Hz
Operating Pulse Width : 1100-1940 μs (Fixed or cannot be Programmed )
Max. Input Voltage : 52.2V
Max. Input Current (Cont.) :80 A(w/ Good Heat Dissipation )
Max. Peak Current (10s) :100 A (w/ Good Heat Dissipation )
BEC : No
Nozzle Mounting Holes :Φ28.4mm-2*M3
Propeller
Diameter×Pitch :3090
Weight :180g
