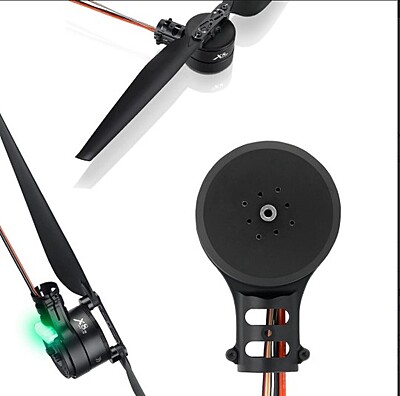

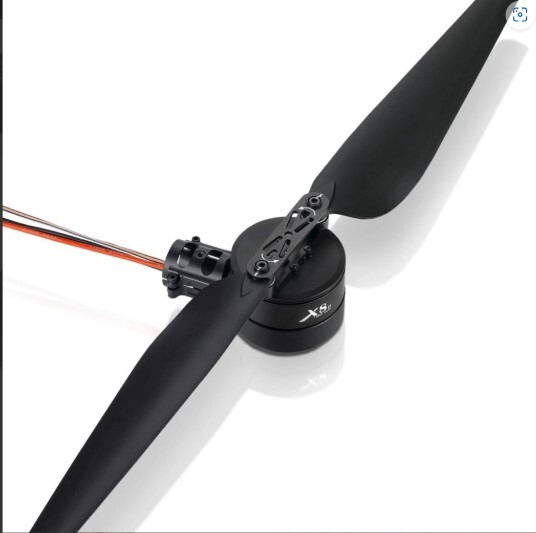

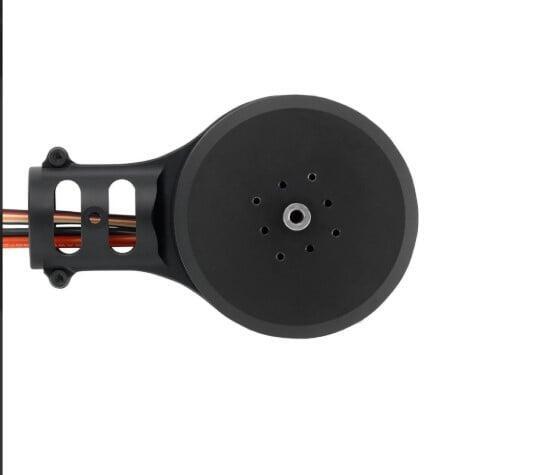

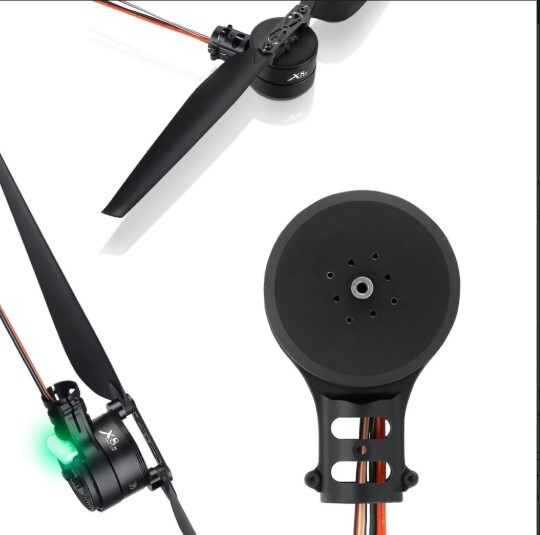

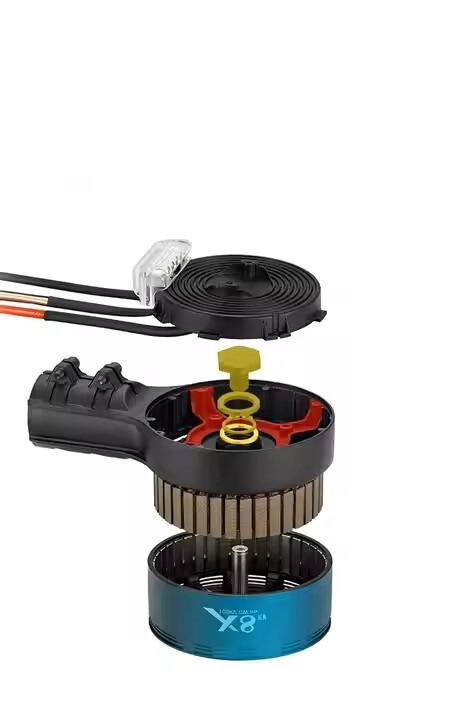

HOBBYWING X8 Combo ccw

Features:

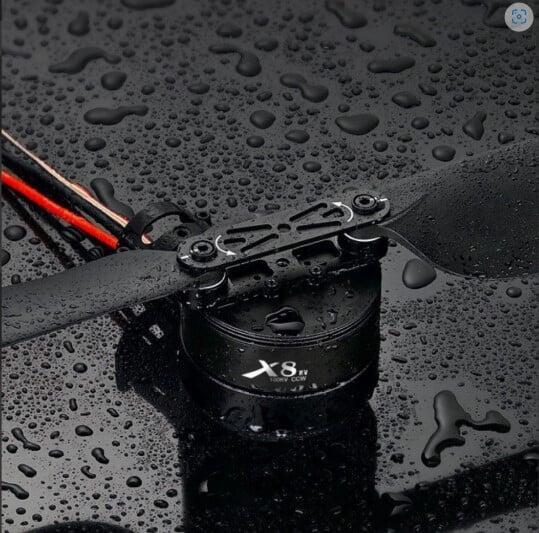

• Super Protection & IPX6 Waterproofing
• Harsh Environment Resilience (Rain, Salt Spray, Sand, etc.)
• High Lift, High Efficiency 3011 Propeller (Carbon Fiber Reinforced Nylon)
• Optimized Aerodynamics & FOC/Sine Wave Control
• Ultra-Bright LED Display Light with Status & Warning Prompts

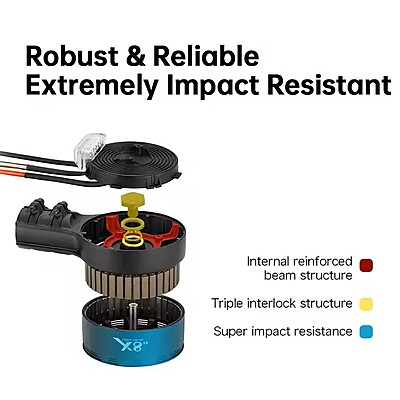

• Robust Aluminum Alloy Construction & Extreme Impact Resistance
• Internal Reinforced Beam & Triple Interlock Structure

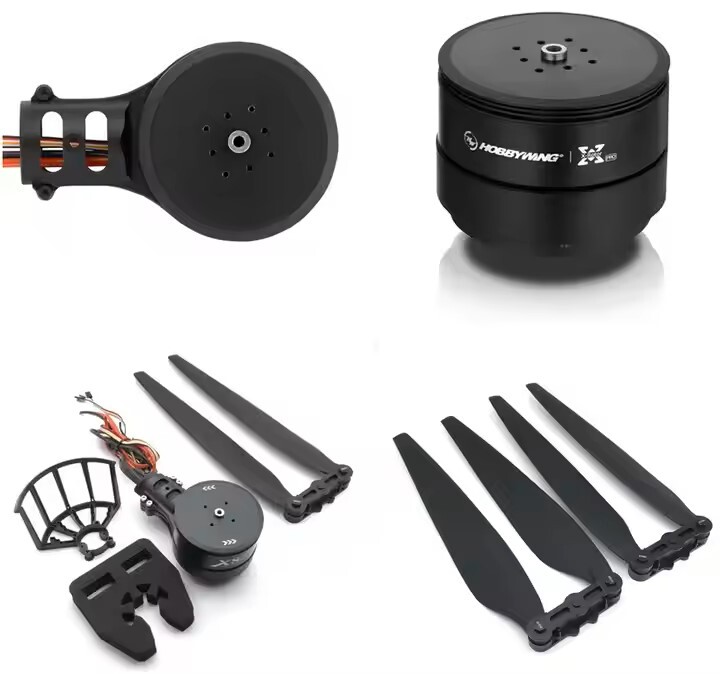

• Modular Design for Quick Maintenance (Motor, ESC, Propeller, Clip)

Specifications

• Max thrust 15kg
• Recommended takeoff weight per axis 5-7kg
• Efficiency of recommended takeoff weight 9.5-8.6g/W
• Input voltage 18-54V
• Rated voltage 12S-46V
• Lithium compatible 12S（LiPo）
• Tube outer diameter 35/40mm
• Weight（with cable and Props） 1150g
• Cable specification Power cord：12AWG*905±10mm Signal line：915±10mm
• Operating temperature-20~50℃
• Ingress Protection IPX6
• Rated power input 950W
• Rated power output 810W
• Size 143.1*90.2*78.5mm
• Pinout Black White-PWM、GND，Black Red White-GND、5V、P

ESC

• Model XRotor 80A-FOC
• Communication protocolUART
• Peak current （30 seconds）80A（30s）
• Continuous current20A
• Throttle travel calibrationNonsupport
• Double throttle signalNonsupport
• Operating pulse width 1100-1940μs
• BEC No

Motor

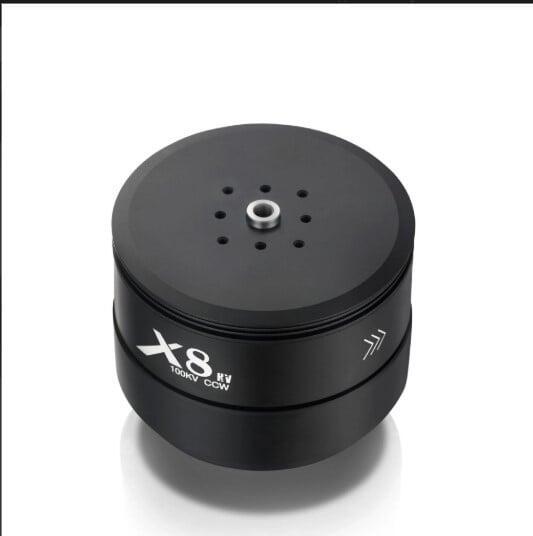

• Model 8120-100KV
• Slot& Pole 36N40P
• Motor diameter Φ88.6mm

Propeller

• Model 30*11"
• Total Weight 191±5g
• Material of Props Carbon fiber reinforced plastics
• Sigal Weight 51±5g

Additional detail

• Manufacturer: Hobbywing
• Brand: Hobbywing
• Generic Name: Drone Propulsion System || Integrated Motor ESC || UAV Power System || Agricultural Drone Motor || Industrial Drone Power || Heavy-Lift Motor || Brushless Motor Combo || Drone Engine || Multi-rotor Power System || Professional Drone Part
• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
• Ideal For: Agricultural Spraying Drones || Heavy-Lift Cargo Drones || Industrial Inspection UAVs || Large Mapping & Surveying Drones || Logistics Drones || Professional Cinematography Platforms || Custom Heavy-Duty Drone Builds || Firefighting Drones || Search and Rescue Drones || All-Weather Drone Operations.

Package details:

• Include
• 1 * HOBBYWING X8 Combo ccw

Frequently Asked Questions:

Q1: What is the main application of the HOBBYWING X8 Combo?

Ans: It is primarily designed as a robust, heavy-duty propulsion system for large agricultural spraying drones, industrial inspection UAVs, and other professional heavy-lift drone applications.

Q2: What is the significance of the "CCW" designation in the product name?

Ans: "CCW" stands for Counter-Clockwise, which indicates the rotation direction of the motor and the threading of the propeller adapter for balanced, stable flight on a multi-rotor drone.

Q3: What level of weather protection does the X8 Combo offer for outdoor use?

Ans: The system has a high ingress protection rating of IPX7 (or IPX6 on some models), making it highly resistant to rain, pesticides, salt spray, high temperature, and dust
