Hobbywing X6 Plus G2 Motor with 2480 Propellers Combo Kit - CW
₹12,669.00 ₹15,969.00

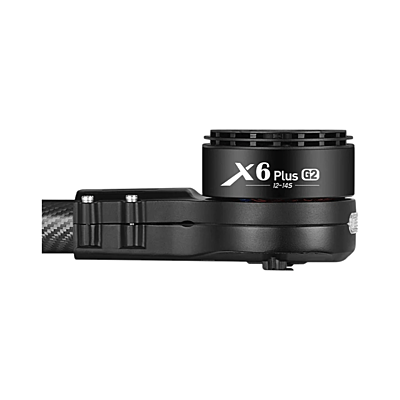

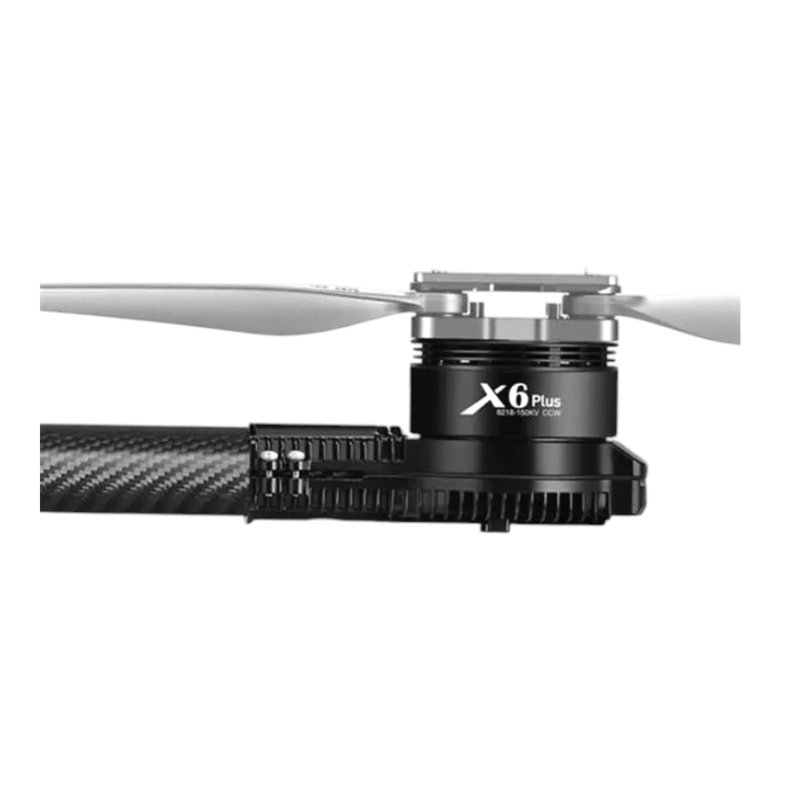

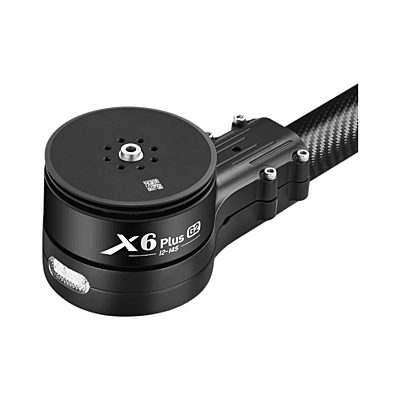

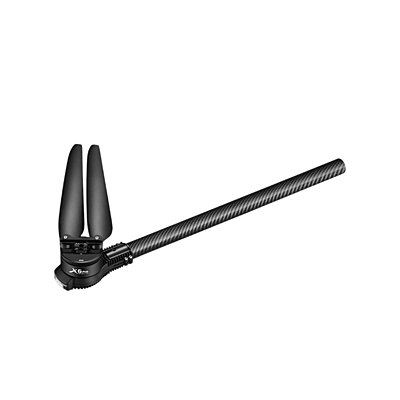

The Hobbywing X6 Plus G2 Propulsion System CW is an integrated motor, ESC, and 2480 folding propeller kit built for agricultural and industrial drones. Delivering up to 12.5 kg max thrust per axis with IPX6 waterproofing and CAN/PWM support, it provides high efficiency, durability, and reliable heavy-lift power.
Choose Quantity
Product Details
Features
- Integrated Design: Integrated motor, ESC, and folding propeller system for plug-and-play setup.
- High Thrust Capacity: High-performance propulsion system delivering up to 12.5 kg max thrust.
- IPX6 Weatherproof: IPX6 waterproof rating protects against harsh weather and chemical exposure.
- Dual Communication Protocols: Dual PWM and CAN protocols ensure broad flight controller system compatibility.
- Efficient Thermal Management: Advanced FOC motor driving with efficient dual-layer thermal heat management.
Technical Details
- Rated Single-Axis Load: 6 kg (at sea level)
- Maximum Thrust: 12.5 kg (at sea level)
- Operating Voltage Range: 12S – 14S LiPo (46 V – 54 V nominal, 63 V max)
- Motor KV: 150 KV Brushless Motor
- Arm Tube Outer Diameter: Fits 30 mm carbon fiber tube arms
- Total Assembly Weight: 748 ± 10 g (including cabling and propellers)
- Ingress Protection Rating: IPX6 Waterproof
- Throttle Signal & Communication: PWM + HWCAN / DroneCAN (UAVCAN / Cyphal)
- Rated Power: Input: 820 W / Output: 705 W
- Rated Current: 25 A
- Propeller Specification: MFP 24×8.0 inch carbon-reinforced folding propellers
Additional Details
- Manufacturer: Hobbywing
- Brand: Hobbywing
- Generic Name: Drone Propulsion System / Motor & ESC Combo Kit
- Sold By: UAV Marketplace
- Ideal For: Agricultural plant protection drones (5L–10L payload), industrial inspection UAVs, heavy-lift multirotors, and professional drone builds.
Package Details
Package Contents:
- 1 × Hobbywing X6 Plus G2 Integrated Motor & ESC System (CW Rotation)

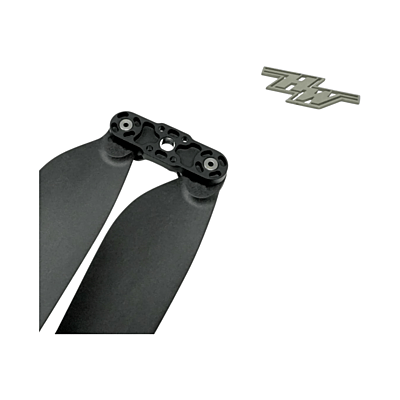

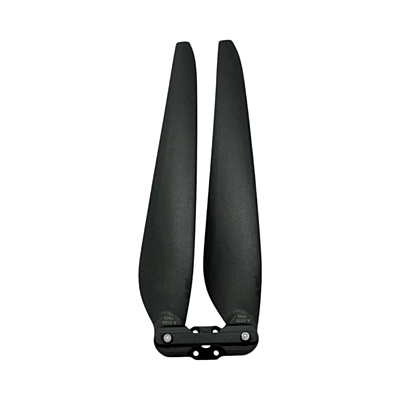

- 1 × Pair of MFP 24×8.0 Folding Propellers
- Mounting hardware and connecting cable set
- Quantity: 1 Kit (CW Rotation)
- Packaging Type: Standard protective manufacturer carton box (Gross weight: ~1.035 kg)
FAQs
Q1: What tube arm diameter does the X6 Plus G2 mount on?
A: It is engineered to mount directly onto 30 mm outer diameter carbon fiber tube arms.
Q2: What battery configuration is compatible with this propulsion kit?
A: It operates on 12S to 14S LiPo batteries with an input voltage range of 46 V to 54 V (up to 63 V maximum).
Q3: Does this CW motor support CAN communication with Pixhawk flight controllers?
A: Yes, it supports standard PWM input as well as HWCAN and DroneCAN protocols, allowing full integration and telemetry feedback with Pixhawk and other major flight controllers.
