Hobbywing X6 Plus G2 Motor with 2480 Propellers Combo Kit - CCW
₹12,669.00 ₹15,969.00

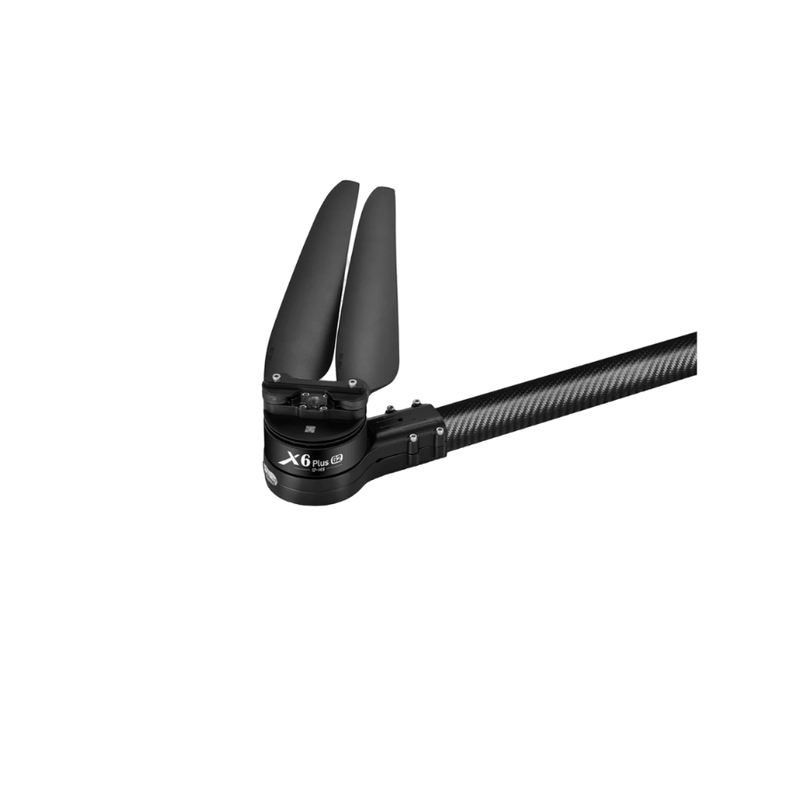

The Hobbywing X6 Plus G2 CCW Combo Kit integrates a 150KV brushless motor, FOC ESC, and 2480 folding propellers into a plug-and-play propulsion system. Engineered for 30mm drone arms, it delivers 12.5kg max thrust with IPX6 waterproofing and CAN telemetry, ideal for agricultural and industrial heavy-lift drones.
Choose Quantity
Product Details
Features
- Integrated Propulsion System: Combines motor, FOC ESC, and folding propellers for plug-and-play assembly.
- Heavy-Lift Thrust: Delivers 6kg rated load and up to 12.5kg maximum thrust.
- IPX6 Weatherproof Protection: IPX6 waterproof rating ensures reliable operation in harsh agricultural environments.
- Dual Communication Protocols: Supports PWM and DroneCAN protocols for seamless flight controller integration.
- Efficient Thermal Cooling: Dual-layer cooling design provides optimal thermal dissipation during heavy-load operations.
Technical Details
- Operating Voltage: 12S–14S LiPo (46V–54V nominal, 63V max)
- Maximum Thrust & Rated Load: 12.5 kg max thrust per axis, 6 kg rated load (at sea level)
- Motor & ESC Power: 150 KV Brushless Motor | Rated Input 820 W / Output 705 W | Rated Current 25 A
- Arm Tube Compatibility: Mounts on 30 mm outer diameter carbon fiber tube arms
- Protection Rating: IPX6 Waterproof and Dustproof
- Communication Protocols: PWM + HWCAN / DroneCAN (UAVCAN / Cyphal)

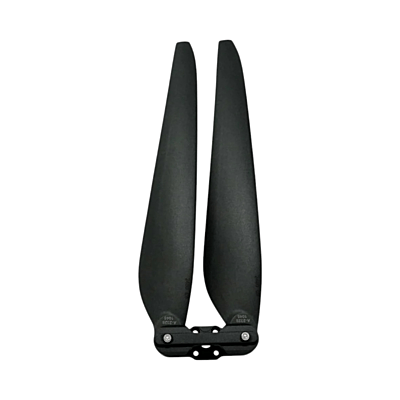

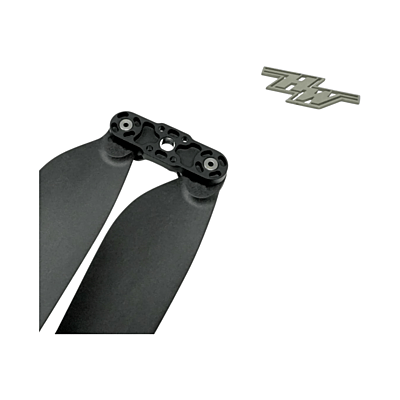

- Propeller Specification: MFP 24×8.0 inch carbon-reinforced folding propellers
- Total Unit Weight: 748 ± 10 g (including cabling and propellers)
Additional Details
- Manufacturer: Hobbywing
- Brand: Hobbywing
- Generic Name: Drone Propulsion System / Motor & ESC Combo Kit
- Sold By: UAV Marketplace
- Ideal For: Agricultural plant protection drones (5L–10L payload capacity), industrial inspection UAVs, multirotor crop sprayers, and commercial heavy-lift drone platforms.
Package Details

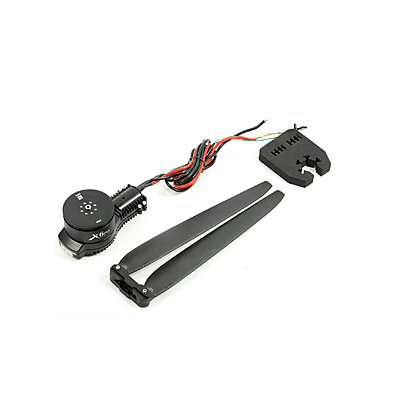

Contents: 1× Hobbywing X6 Plus G2 Integrated Motor & ESC Assembly (CCW Rotation), 1× Pair of MFP 24×8.0 Folding Propellers, integrated power and signal cabling.
Quantity: 1 Kit (CCW Rotation)
Packaging Type: Standard protective manufacturer carton box
Gross Package Weight: 1.035 kg
FAQs
Q1: What tube arm diameter does the Hobbywing X6 Plus G2 fit?
A: It is engineered to mount directly onto standard 30 mm outer diameter carbon fiber tube arms.
Q2: What battery voltage range is compatible with this CCW combo kit?
A: It operates on 12S to 14S LiPo battery setups with an operating voltage range of 46V to 54V (up to 63V maximum).
Q3: What is the difference between this CCW kit and the CW kit?
A: This kit features Counter-Clockwise (CCW) rotation motor and prop direction, which is used alongside CW motors on multirotor drone frames to counter rotational torque and provide directional control.
