HOBBYWING X6 Plus (CW+CCW) Combo
₹24,369.00
Out of stock
This Hobbywing X6 Plus Combo includes both CW and CCW integrated propulsion systems, featuring 150KV motors and 2480 folding propellers. Designed for heavy-duty agricultural and industrial drones, they deliver up to 11.8kg thrust per axis with IPX6 waterproofing. This set ensures robust, efficient, and reliable performance for demanding tasks like crop spraying in harsh environments.
Product Details
Features:
- Complete CW and CCW integrated systems.
- High thrust output, up to 11.8kg/axis.
- IPX6 waterproof and dustproof rating.
- FOC (Field Oriented Control) algorithm.
- Multiple intelligent protection functions.
- Real-time operating status data output (CAN/Serial).
- Optimized aerodynamic propeller shape.
- Unique keel-like structure for impact resistance.
- Enhanced heat dissipation for ESC and motor.
- Compatible with 28mm & 30mm carbon fiber arms.
Technical Specifications:
- KV Rating: 150rpm/V
- Stator Size: 62*18mm
- Powertrain Arm Tube Outer Diameter: 30mm
- Bearing: Waterproof
- Max Thrust: 11.8kg/Axis (46V, Sea Level)
- Recommended Takeoff Weight: 3.5-5.5kg/Axis (46V, Sea Level)
- Recommended Battery: 12-14S(LiPo)
- Operating Temperature: -20℃ ≤ 50℃
- Total Weight: 790g
- Ingress Protection: IPX6
- Rated power input: 700W
- Rated power output: 580W
- Recommended LiPo Battery: 12-14S(LiPo)
- PWM Input Signal Level: 3.3V/5V
- Throttle Signal Frequency: 50-500Hz
- Operating Pulse Width: 1050-1950us (Fixed or cannot be Programmed)
- Max. Input Voltage: 61V
- Max. Input Current (Short duration): 80A (Non-hermetic Ambient Temperature 60℃)
- BEC: No
- Diameter×Pitch: 24*8.0
Additional Details:
- Manufacturer: Hobbywing
- Brand: Hobbywing
- Generic Name: Drone Propulsion System || Integrated Motor ESC || UAV Power System || Agricultural Drone Motor || Industrial Drone Power || Heavy-Lift Motor || Brushless Motor Combo || Drone Engine || Multi-rotor Power System || Professional Drone Part
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Agricultural Spraying Drones || Industrial Inspection UAVs || Mapping & Surveying Drones || Logistics Drones || Professional Cinematography Platforms (specific light setups) || Custom Heavy-Duty Drone Builds (for up to 5.5kg/axis payload) || Firefighting Drones || Search and Rescue Drones || All-Weather Drone Operations

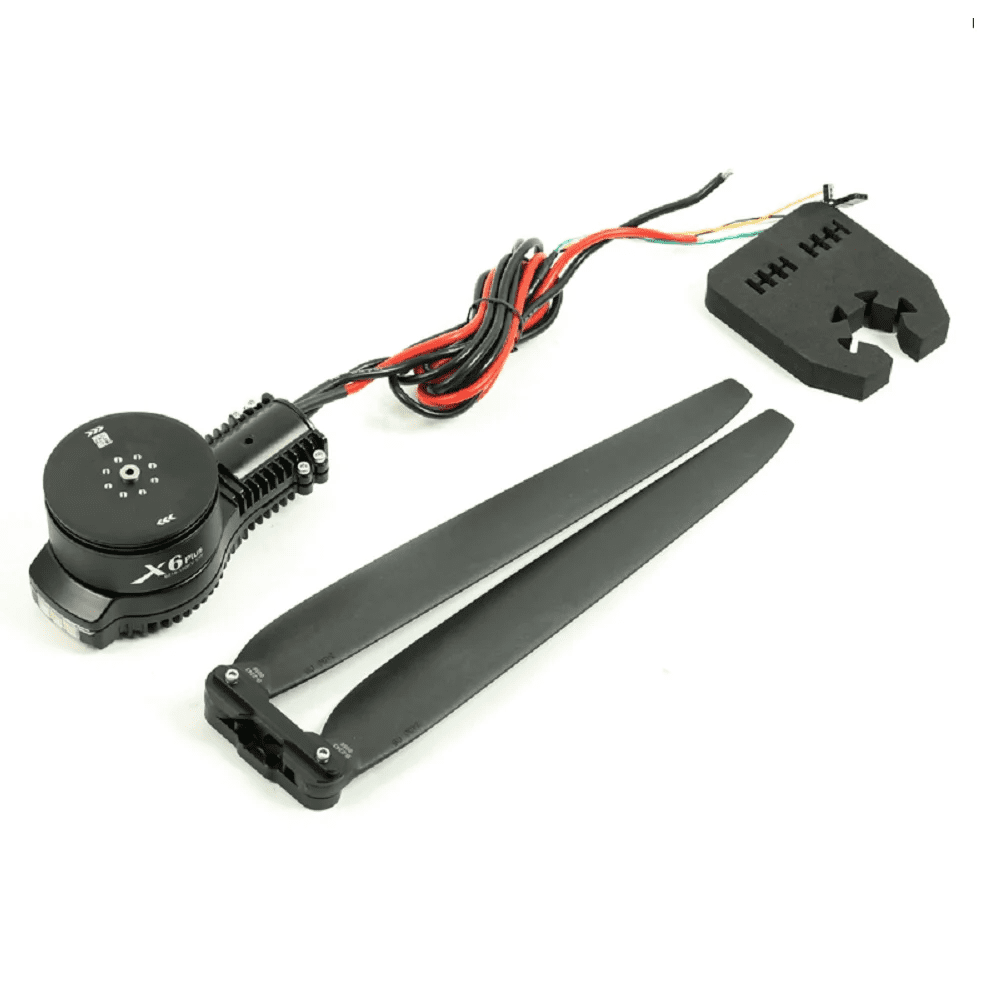

Package Details:
Includes:
- 1 x Hobbywing XRotor X6 Plus Motor (integrated with ESC) - CW Rotation
- 1 x Hobbywing XRotor X6 Plus Motor (integrated with ESC) - CCW Rotation
- 1 x Hobbywing 2480 Folding Propeller (CW)
- 1 x Hobbywing 2480 Folding Propeller (CCW)
- Mounting Screws for both units
Frequently Asked Questions:
Q1. What is the benefit of purchasing the Hobbywing X6 Plus as a CW+CCW combo?
Ans. This combo provides a complete set of motors and propellers with opposing rotations, essential for stable flight in multirotor drones, simplifying procurement for a balanced drone build.
Q2. What level of weather protection does the Hobbywing X6 Plus Combo offer for drone operations?
Ans. The X6 Plus Combo has an IPX6 waterproof rating, meaning the motor and ESC are highly resistant to powerful water jets and dust, ensuring high reliability in agricultural and industrial environments, even with rain or pesticides.
Q3. What kind of drones are best suited for the Hobbywing X6 Plus system?
Ans. This system is ideally suited for agricultural spraying drones, heavy-lift industrial drones, and other professional UAVs that require significant thrust, efficiency, and robust performance in challenging outdoor conditions.
