Hobbywing XRotor X6 Plus Agriculture Drone Propulsion Combo (CW) - Integrated 150KV Motor, ESC & 2480 Propeller
Based on the proven X6 architecture, the "Plus" version offers 8% higher efficiency and enhanced heat dissipation. For the Indian drone integrator, the X6 Plus represents a modular, "bolt-on" solution that significantly reduces assembly time and wiring complexity while providing the data redundancy required for industrial certification.
Key Technical Specifications:
Industrial-Grade Thrust: Optimized for a takeoff weight of 3.5kg–5.5kg per rotor, allowing for 10L to 16L spraying platforms to maintain high power redundancy and stable flight even in gusty conditions.
Dual Throttle Redundancy: Supports both CAN digital and PWM analog throttle signals. This provides a critical fail-safe: if the primary signal is lost, the system can automatically switch to the secondary, preventing mid-air failures.
Advanced FOC (Field Oriented Control): The integrated ESC utilizes FOC sine-wave algorithms to provide linear throttle response and lower operating temperatures (up to 10°C cooler than traditional ESCs).
Weather & Chemical Resistance: Features an IPX6 rating with anti-corrosive windings and a sealed heatsink housing, protecting the system from water, fertilizer, and pesticide exposure.
Keel-Structure Design: The unique "keel-like" structure of the motor mount provides superior impact resistance and optimized airflow, ensuring the electronics stay cool during continuous back-to-back spraying cycles.
Frequently Asked Questions (FAQ)

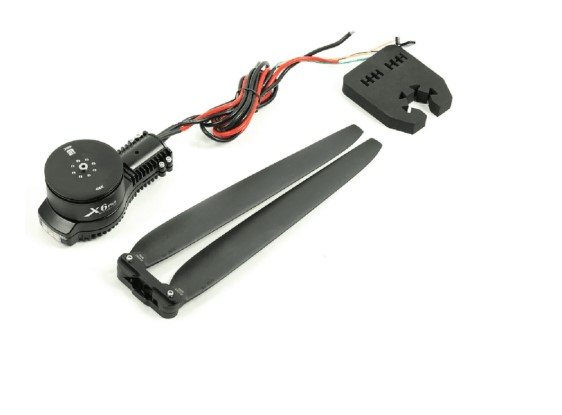

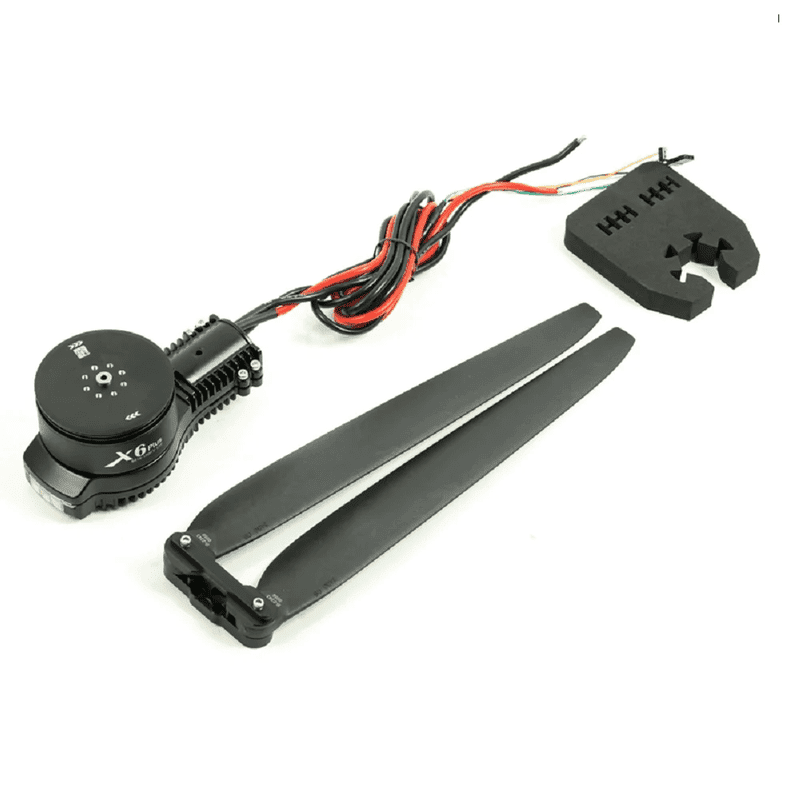

1. What is included in the "Propulsion Combo" package? The X6 Plus is a fully integrated system. Each combo includes a high-efficiency 150KV Brushless Motor, a Professional 80A ESC, and a 2480 Carbon-Fiber Propeller. It also includes the specialized motor mount that fits standard 30mm carbon fiber tubes, making it a "plug-and-play" solution for your drone frame.
2. What is the maximum thrust and payload capacity per axis? The X6 Plus is designed for heavy-duty work. A single combo can produce a maximum thrust of up to 11kg to 12kg. For a standard Hexacopter (6 axes) configuration, this allows for a total takeoff weight of approximately 30kg to 35kg, which is ideal for 10L to 16L agricultural sprayers.
3. Is the X6 Plus compatible with 12S LiPo setups? Yes, the integrated 80A ESC is specifically optimized for 12S LiPo (44.4V - 50.4V) power systems. Using 12S ensures higher efficiency and lower current draw compared to lower voltage setups, which is critical for extending the flight time of heavy-lift agricultural UAVs.
4. How does the system handle the harsh environment of crop spraying? The X6 Plus is built with an IPX7 waterproof rating. The motor and ESC are sealed to protect against corrosion from pesticides, fertilizers, and moisture. The integrated design also features large cooling fins and an internal centrifugal fan to maintain stable temperatures during long hours in the field.
5. What do the LED indicator lights on the motor mount signify? The motor mount features a high-brightness LED that serves as a status indicator. It provides real-time feedback on the ESC status and can be used for aircraft orientation during low-light operations. It can also flash specific codes to help you troubleshoot issues like low voltage or throttle signal loss.
Note on Stock Availability: The X6 Plus is the "Standard Powerhouse" for the Indian 10L-16L drone segment.
"Building a quad or hexa sprayer? We recommend keeping one CW and one CCW unit as field spares. If 'Out of Stock,' click 'Notify Me'—we receive bi-weekly Hobbywing shipments to support the growing Indian Agri-Drone industry."
