HOBBYWING X11Max Combo CCW
HOBBYWING X11Max Combo CCW
HOBBYWING X11Max Combo CCW
HOBBYWING X11Max Combo CCW
HOBBYWING X11Max Combo CCW
HOBBYWING X11Max Combo CCW
HOBBYWING X11Max Combo CCW

HOBBYWING X11Max Combo CCW

Non-returnable
₹49,769.00

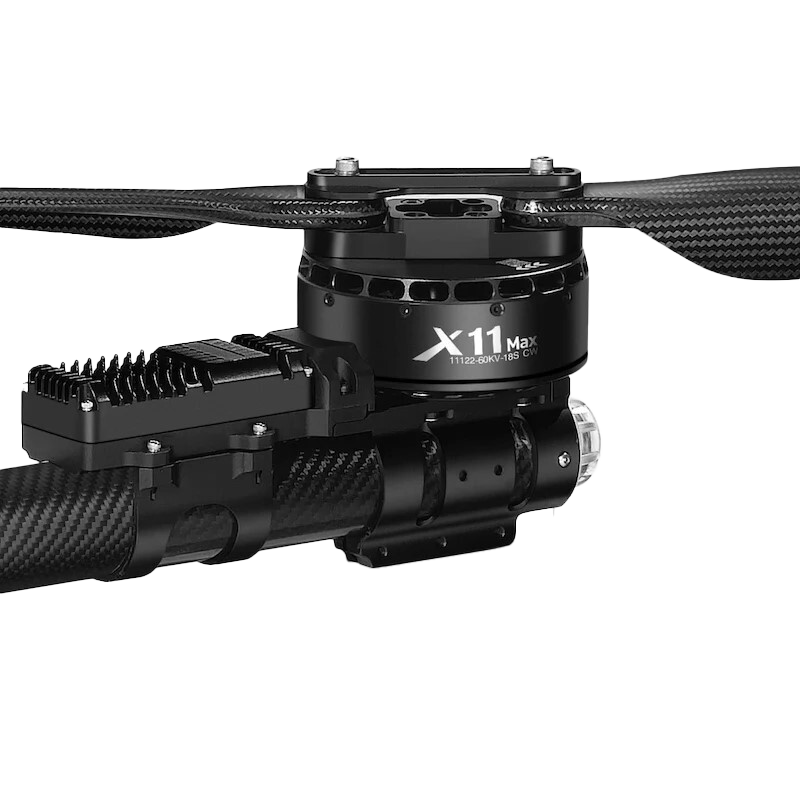

The Hobbywing X11 Max Combo is a high-performance, integrated propulsion system for heavy-lift industrial drones. This unit combines a powerful brushless motor, ESC, and propeller, delivering exceptional thrust and reliability. Designed for demanding applications like agricultural spraying and logistics, it ensures stable and efficient operation.
Choose Quantity
+ Add to Cart
Product Details
Features:

  • Integrated motor, ESC, and propeller.
  • High thrust output.
  • IPX7 waterproof and dustproof.
  • FOC (Field-Oriented Control) ESC.
  • Multiple intelligent protection features.
  • Real-time operating status data output.
  • Optimized heat dissipation.
  • Robust and reliable design.
  • CCW rotation.

Technical Specifications:

  • Max Thrust: 44kg/rotor (70V, Sea Level)
  • Recommended Takeoff Weight: 20-22kg/Axis (70V, Sea Level)
  • Recommended Battery: 18S (LiPo)
  • Operating Temperature: -20~50°C
  • Total Weight: 2800g
  • Ingress Protection: IPX6
  • Rated power input: 2961W
  • Rated power output: 2573W
  • KV Rating: 60rpm/V
  • Stator Size: 111*22mm
  • Powertrain Arm Tube Outer Diameter: 50mm
  • Bearing: Bearings imported from Japan
  • Recommended LiPo Battery: 18S(LiPo)
  • PWM Input Signal Level: 3.3V/5V
  • Throttle Signal Frequency: 50-500Hz
  • Operating Pulse Width: 1050-1950us(Fixed or cannot be Programmed)
  • Max. Input Voltage: 78.3V
  • Max. Input Current (Short duration): 150A(With/ Good Heat Dissipation)
  • BEC: No
  • Propeller Diameter*Pitch: 48*17.5

Additional Details:

  • Manufacturer: Hobbywing
  • Brand: Hobbywing
  • Generic Name: Drone Propulsion System || Integrated Motor ESC || UAV Power System || Agricultural Drone Motor || Industrial Drone Power || Heavy-Lift Motor || Brushless Motor Combo || Drone Engine || Multi-rotor Power System || Professional Drone Part
  • Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
  • Ideal For: Agricultural Spraying Drones || Heavy-Lift Cargo Drones || Industrial Inspection UAVs || Large Mapping & Surveying Drones || Logistics Drones || Professional Cinematography Platforms || Custom Heavy-Duty Drone Builds || Firefighting Drones || Search and Rescue Drones || All-Weather Drone Operations

Package Details:

  • HOBBYWING X11Max Combo CCW

Frequently Asked Questions:

Q1: What is the primary purpose of the Hobbywing X11 Max Combo?
Ans: It's designed for heavy-lift industrial drones, offering a reliable and powerful propulsion solution.

Q2: What does the IPX7 rating mean?
Ans: It's fully waterproof and dustproof, suitable for demanding environments.

Q3: What does CCW indicate?
Ans: Counterclockwise rotation of the motor and propeller.
