HOBBYWING-X11 COMBO MOTOR
Non-returnable
₹31,959.00

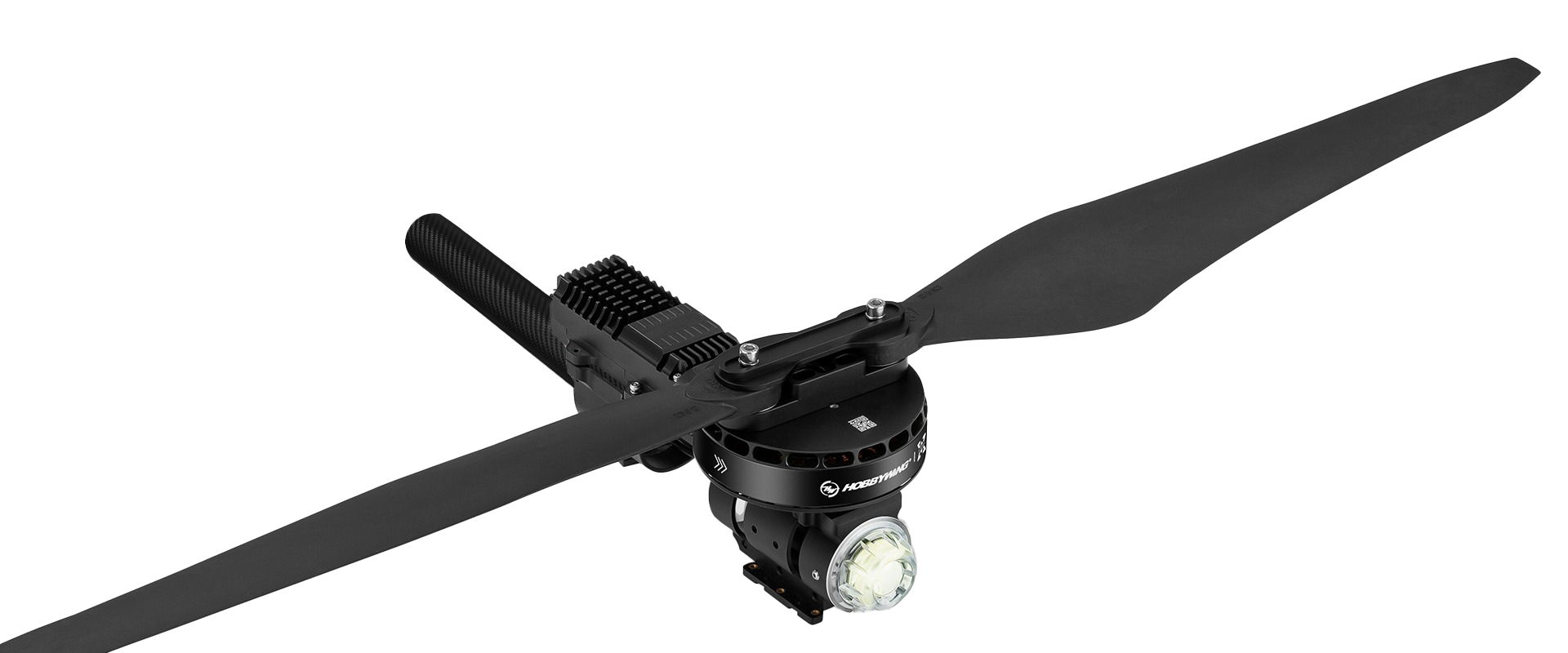

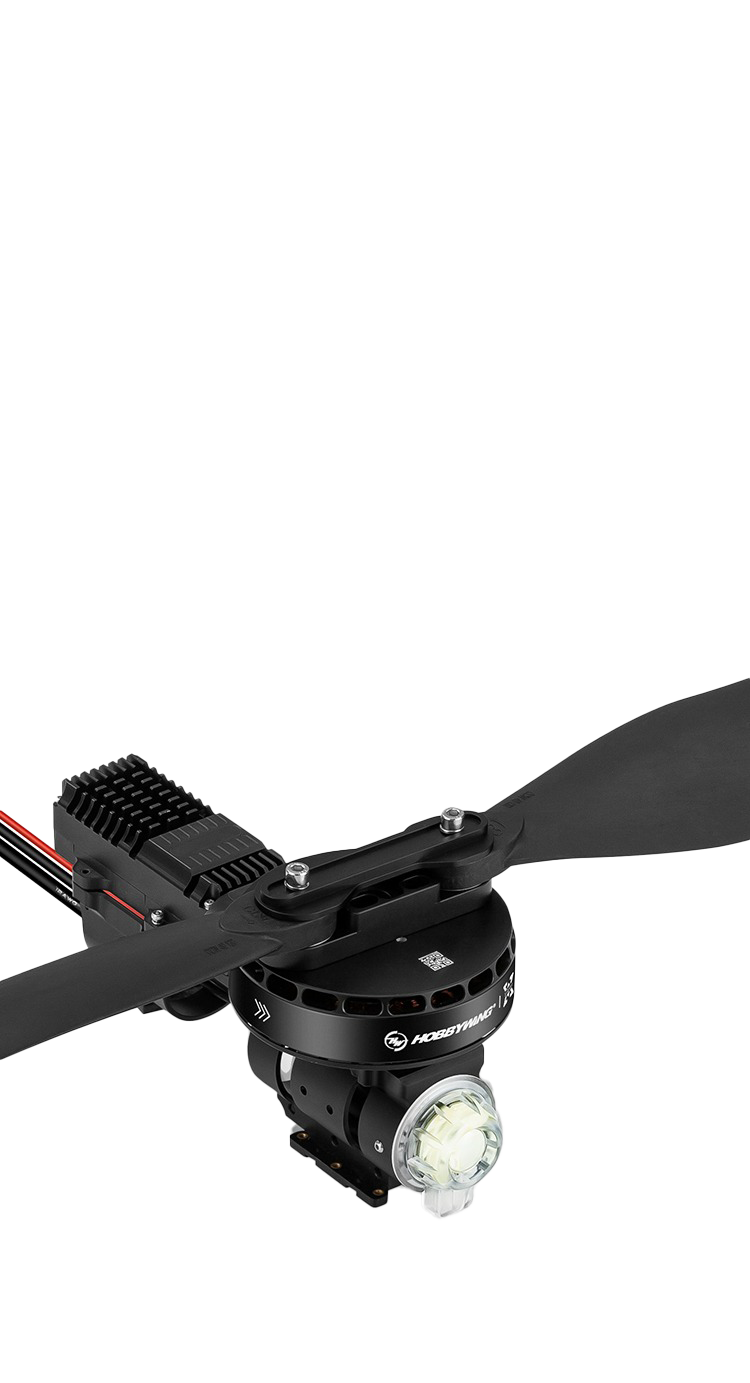

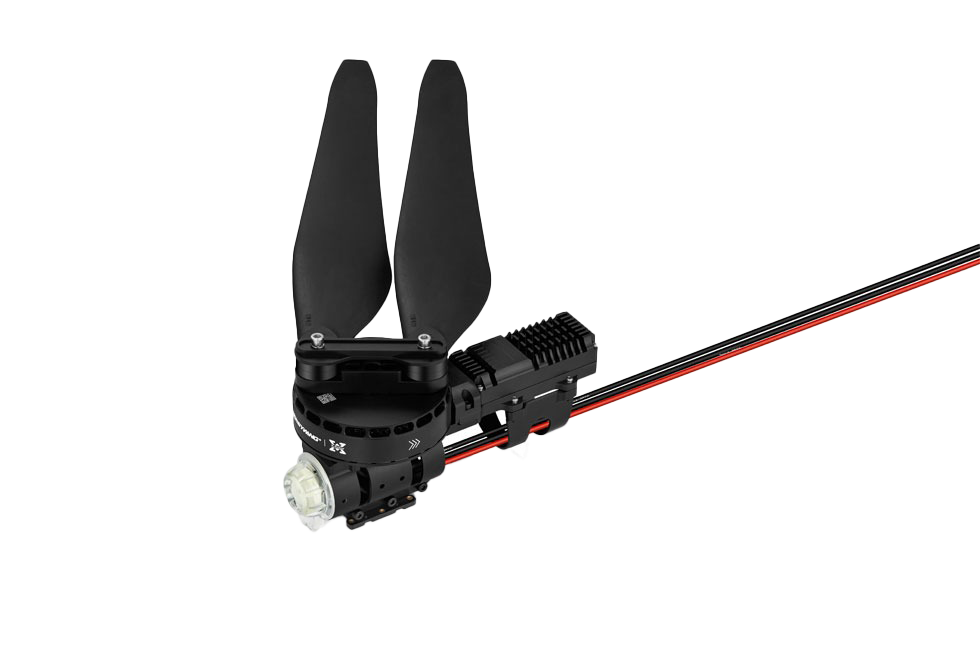

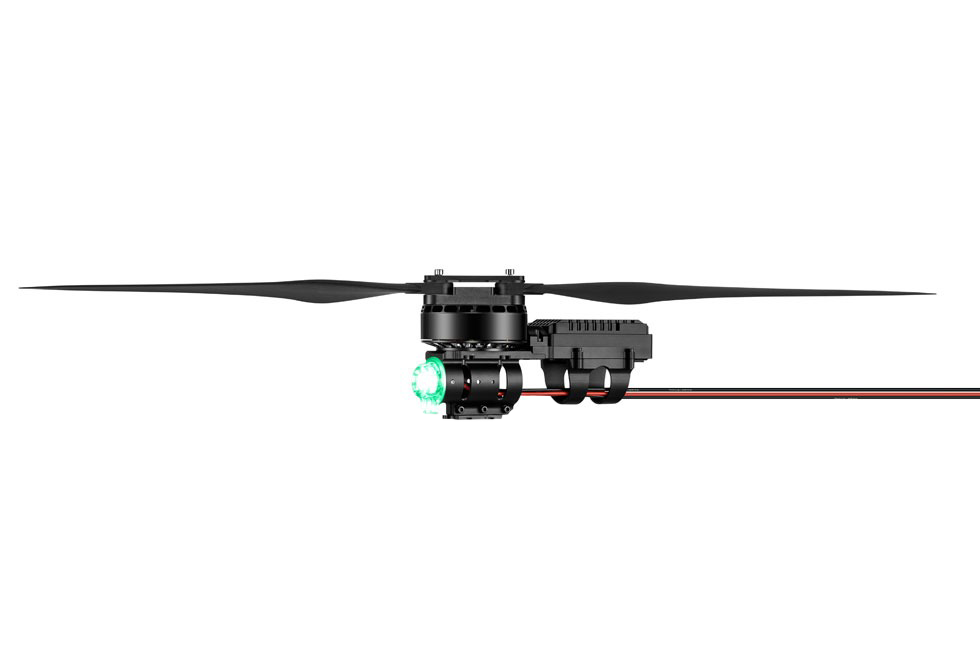

The Hobbywing X11 Propulsion System Combo is a high-performance integrated unit, featuring a powerful brushless motor and matched ESC. Designed for heavy-lift industrial and agricultural drones (15-18kg/axis recommended takeoff weight), it delivers exceptional thrust, efficiency, and reliability for demanding tasks like crop spraying and logistics. It ensures stable, long-duration operations.
Direction : CW / CCW
Choose Quantity
Product Details
Features:
- Integrated motor, ESC, and propeller.
- High power output, up to 37kg thrust/rotor.
- Designed for 15-18kg/axis takeoff weight.
- IPX7 waterproof and dustproof rating.
- Advanced FOC vector control ESC.
- Multiple intelligent protection functions.
- Optimized heat dissipation for motor and ESC.
- CAN/Serial port data transmission.
- Real-time operating status data output.
- Japanese imported high-quality bearings.
Technical Specifications:
- X11-14S/18S Power System for Agricultural Drones
- Recommended Takeoff Weight：15-17kg/axis 15/18kg/axis
- Total Weight：2330g
- Recommended LiPo Battery：14S/18S
- Propeller：41135
- Tube Diameter：50mm
- Recommended Drone: For the drone about load up 30L water.
- Max. Thrust: 34kg/ axis（53.6V,sealevel）
- Recommended Takeoff Weight:15-17kg/axis(sea level)
- Recommended LiPo Battery: 14S LIPO
- Operating Temperature: -20-55℃
- Combo Weight: 2340g
- Waterproof Rating- IPX7
- Motor KV Rating: 95KV
- Motor Stator Size: 111*15
- Motor Tube Diameter: φ45/50mm
- Motor Bearing: Waterproof Bearing
- Recommended LiPo Battery: 14S LIPO
- PWM Input Signal Level: 3.3V/5V
- Throttle Signal Frequency: 50-500Hz
- Operating Pulse Width: 1050-1950us
- Max. Input Voltage: 60.9V
- Max. Peak Current (10s): 150A (excellent heat dissipation are required)
- BEC : NO
- Mounting Holes for Nozzle: φ28.4mm-2*M3
- Propeller Diameter × Pitch 41135
Additional Details:
- Manufacturer: Hobbywing
- Brand: Hobbywing
- Generic Name: Drone Propulsion System || Integrated Motor ESC || UAV Power System || Agricultural Drone Motor || Industrial Drone Power || Heavy-Lift Motor || Brushless Motor Combo || Drone Engine || Multi-rotor Power System || Professional Drone Part
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Agricultural Spraying Drones || Heavy-Lift Cargo Drones || Industrial Inspection UAVs || Large Mapping & Surveying Drones || Logistics Drones || Professional Cinematography Platforms || Custom Heavy-Duty Drone Builds || Firefighting Drones || Search and Rescue Drones || All-Weather Drone Operations
Package Details:
Includes:
HOBBYWING-X11 COMBO MOTOR
Frequently Asked Questions:
Q1. What is the primary application for the Hobbywing X11 Combo Motor?
Ans. This propulsion system is primarily designed for large-scale industrial and agricultural drones that require significant lift capacity, long flight times, and reliable operation in challenging environments, such as crop spraying.
Q2. What does the IPX7 waterproof rating signify for this system?
Ans. The IPX7 rating means the motor and ESC are fully protected against immersion in water up to 1 meter for 30 minutes, ensuring excellent waterproofing and dustproofing for use in harsh conditions including rain, pesticides, and dust.
Q3. Can the Hobbywing X11 system provide real-time operational data to the flight controller?
Ans. Yes, the X11 power system supports CAN/serial port data transmission, allowing it to output real-time operating status data (like throttle, speed, current, voltage, temperature) to the flight controller for enhanced performance and safety.
