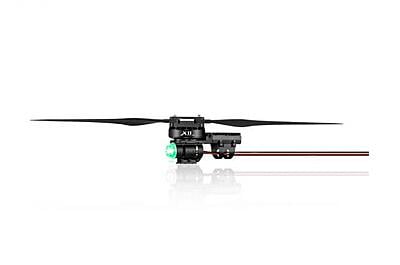

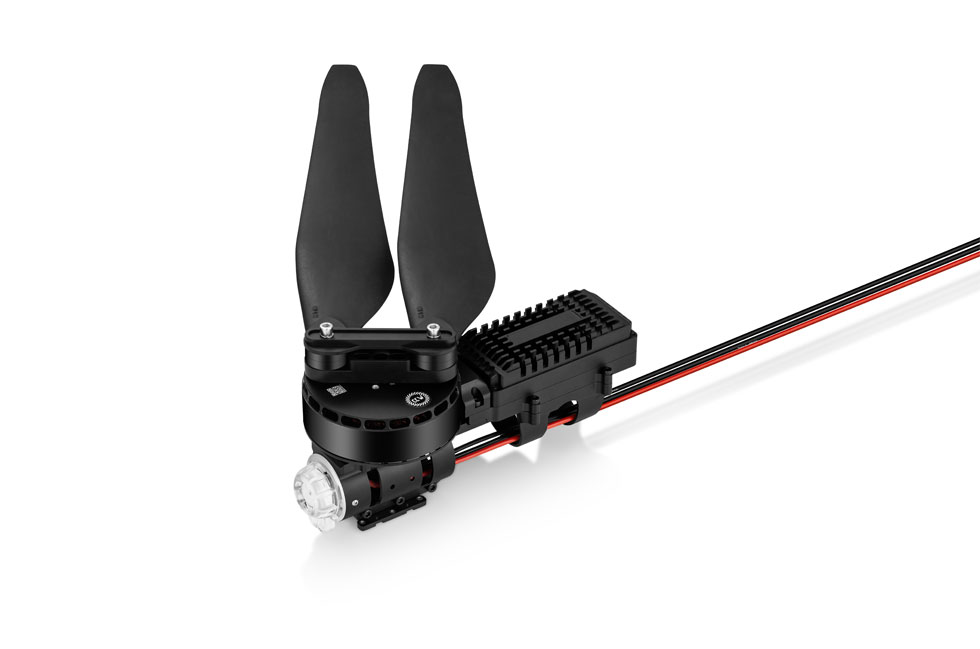

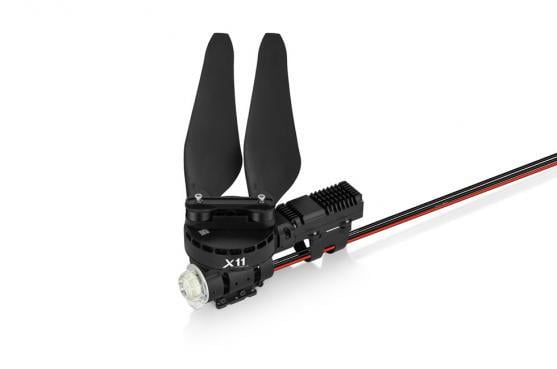

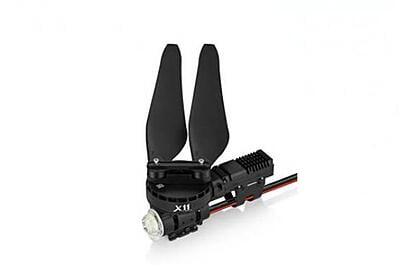

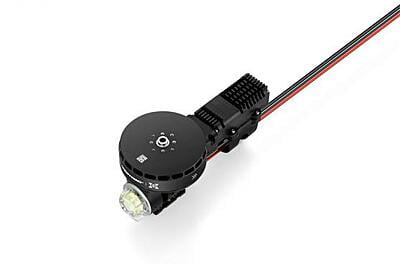

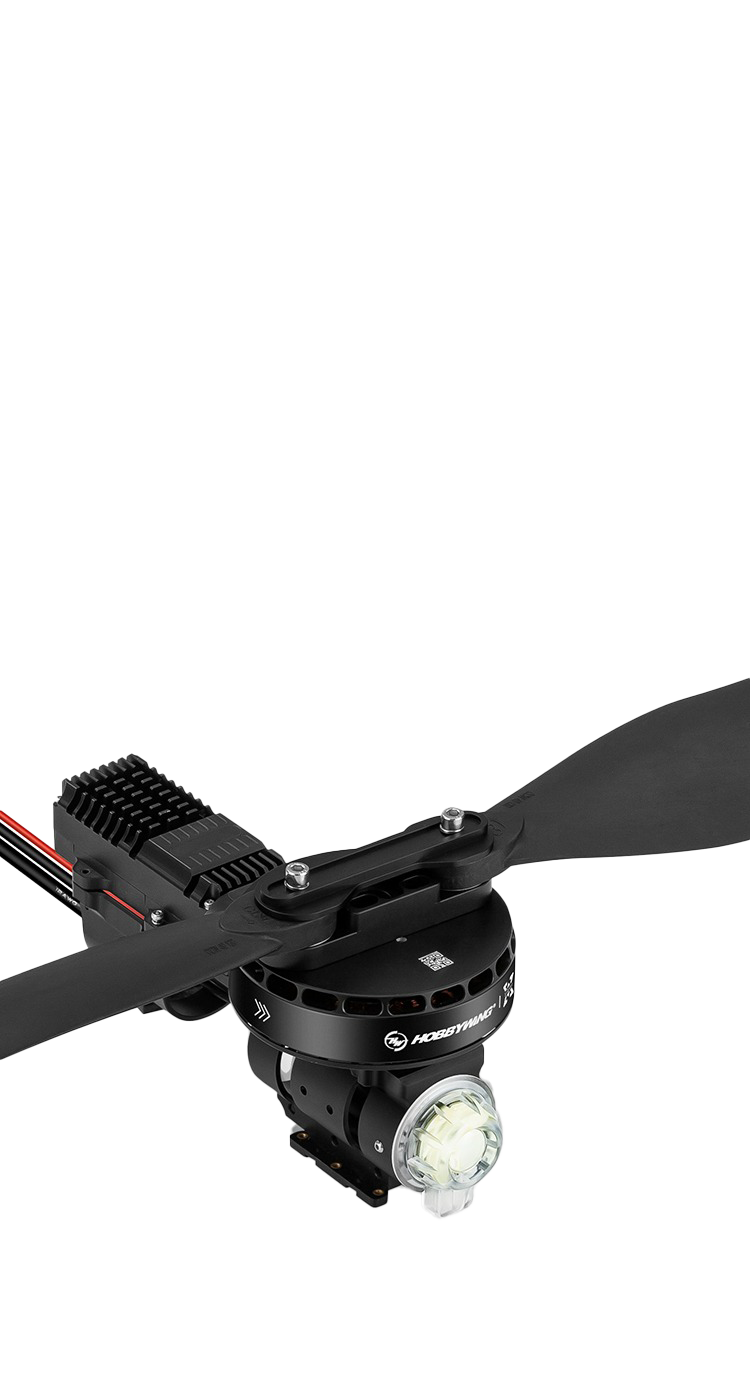

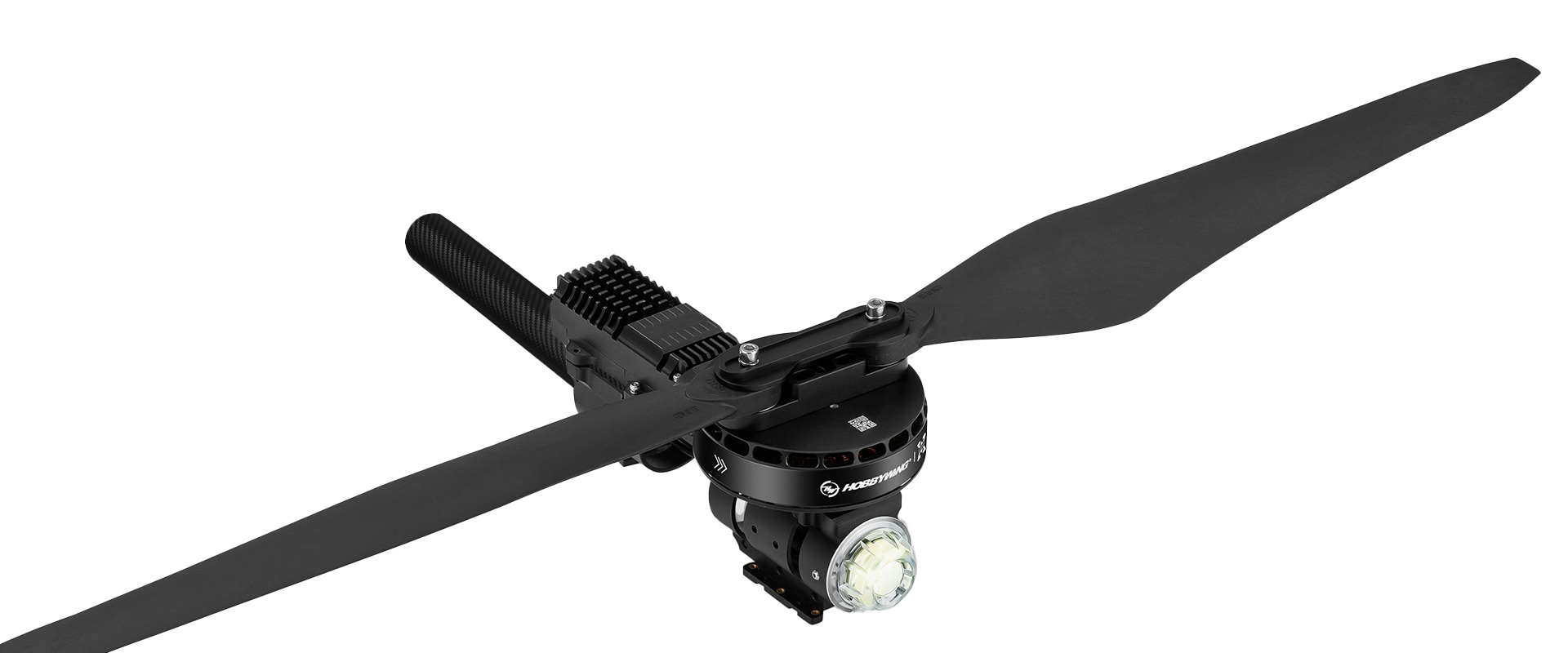

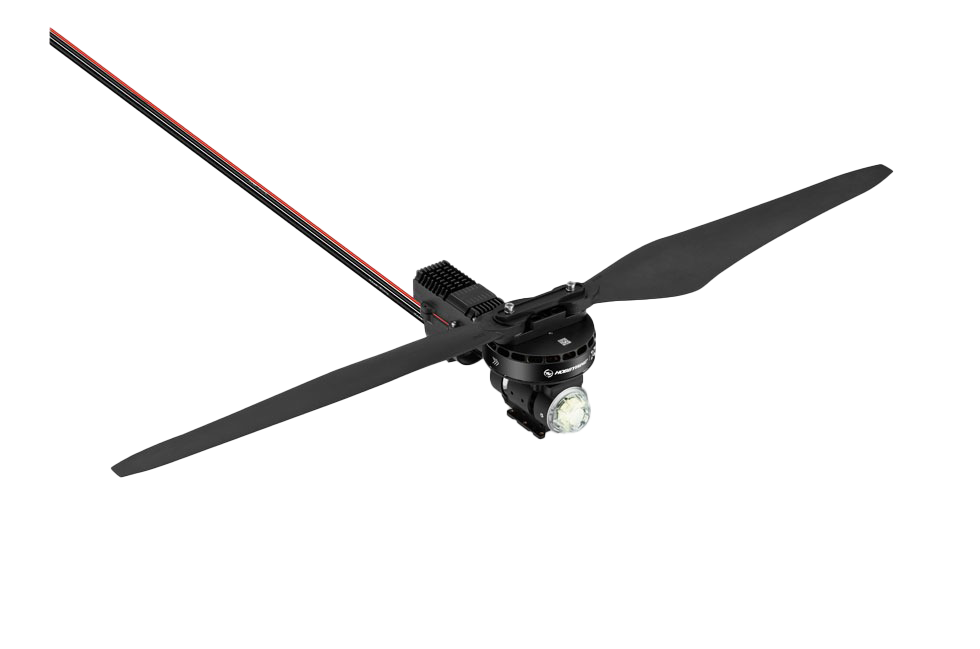

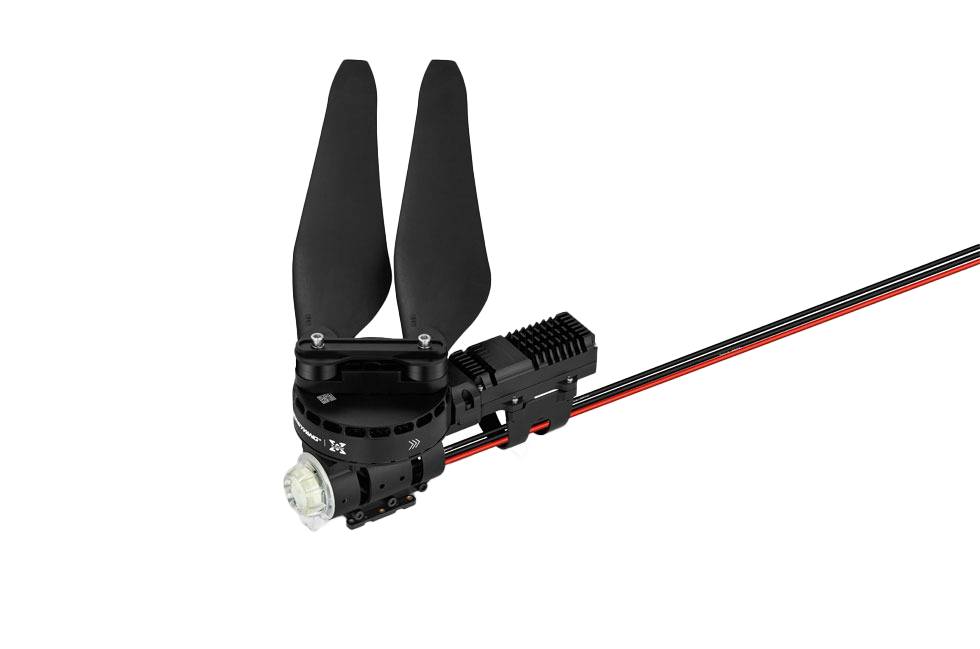

HOBBYWING-X11 COMBO MOTOR
Specifications
Max. Thrust-34kg/ axis（53.6V,sealevel）
Recommended LiPo Battery- 14S (LIPO)
Operating Temperature- -20-55℃
Combo Weight- 2340g
Waterproof Rating- IPX7
X11-14S/18S Power System for Agricultural Drones
Recommended Takeoff Weight：15-17kg/axis 15/18kg/axis
Total Weight：2330g
Recommended LiPo Battery：14S/18S
Propeller：41135
Tube Diameter：50mm
Recommended Drone：For the drone about loadup 30L water.
Specifications
Max. Thrust-34kg/ axis（53.6V,sealevel）
Recommended Takeoff Weight-15-17kg/axis(sea level)
Recommended LiPo Battery- 14S LIPO
Operating Temperature- -20-55℃
Combo Weight- 2340g
Waterproof Rating- IPX7
Motor
KV Rating- 95KV
Stator Size- 111*15
Tube Diameter- φ45/50mm
Bearing- Waterproof Bearing
ESC
Recommended LiPo Battery- 14S LIPO
PWM Input Signal Level- 3.3V/5V
Throttle Signal Frequency- 50-500Hz
Operating Pulse Width- 1050-1950us
Max. Input Voltage- 60.9V
Max. Peak Current (10s)- 150A (excellent heat dissipation are required)
BEC - NO
Mounting Holes for Nozzle-
φ28.4mm-2*M3
Propeller
Diameter × Pitch 4314
