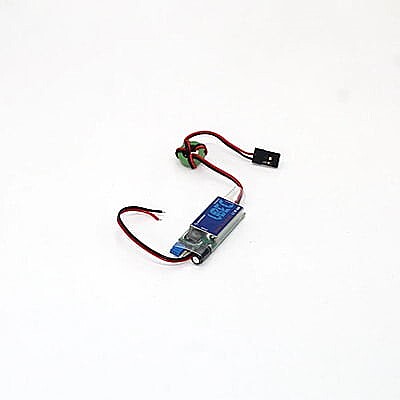

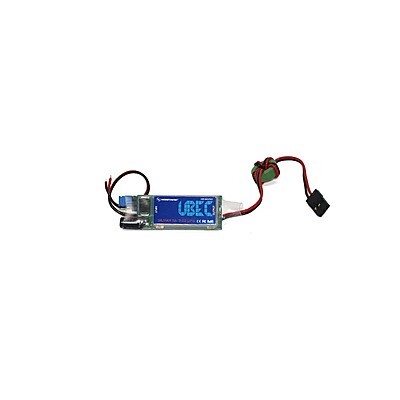

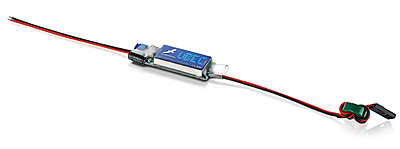

HOBBYWING UBEC 3A (2-6S LIPO INPUT)

Features :

• Supports 2S to 6S LiPo input voltage.




• Provides selectable 5V or 6V output.




• 3 Amps continuous output current capability.




• High efficiency switch mode design.




• Eliminates need for separate receiver battery.




• Compact size and lightweight for easy integration.




• Built-in over-current and over-temperature protection.




• Reduces heat generation compared to linear BECs.




• Ideal for RC airplanes, helicopters, and drones.




• Ensures stable power to sensitive electronics.

Technical Specifications:

• Input Voltage: 5.5V - 26V (2-6S LiPo, 5-18 Cells NiMH/NiCd)

• Output Voltage: Selectable 5V or 6V

• Output Current (Continuous): 3A

• Output Current (Burst): 5A (for 10 seconds)

• Efficiency: Up to 92%

• Operating Temperature: -20℃ to 85℃

• Dimensions: Approx. 27mm x 15mm x 5mm (L x W x H)

• Weight: Approx. 6g - 8g (with wires)

• Cables: Input and output cables typically pre-wired with standard servo plugs or bare wires.

• Protection: Over-current protection, Over-temperature protection.

Additional Details:

• Manufacturer: HOBBYWING

• Brand: HOBBYWING

• Generic Name: UBEC || Universal Battery Eliminator Circuit || BEC || Voltage Regulator || DC-DC Converter || RC Power Supply || Receiver Power || Servo Power || RC Electronics Power || Power Module

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: RC Airplanes || RC Helicopters || RC Gliders || Fixed-Wing Drones || Multirotor Drones (without built-in BEC) || Large Scale RC Models || Robotics Projects || UAV Accessories || FPV Systems (for VTX/Camera power) || Custom RC Builds

Package Details:

Includes:

• 1x HOBBYWING UBEC 3A (2-6S LiPo Input)

• 1x User Manual / Wiring Diagram

Frequently Asked Questions:

Q1. What is a UBEC, and why would I need an external one like this HOBBYWING 3A UBEC?

Ans. A UBEC (Universal Battery Eliminator Circuit) is a voltage regulator that steps down your main flight battery's higher voltage to a lower, stable voltage (e.g., 5V or 6V) required by your RC receiver, servos, and flight controller. You might need an external UBEC if your ESC is an "OPTO" type (no built-in BEC), or if your existing ESC's BEC cannot supply enough current for all your onboard electronics, preventing brownouts.

Q2. How do I select between 5V and 6V output on this HOBBYWING UBEC?

Ans. The HOBBYWING UBEC 3A typically has a small jumper or a tiny switch that allows you to select between 5V and 6V output. Refer to the included user manual for the exact method, but it usually involves placing or removing a jumper cap on specific pins, or toggling a small switch on the UBEC board itself.

Q3. Can I use this HOBBYWING UBEC to power my FPV camera and video transmitter (VTX)?

Ans. Yes, the HOBBYWING UBEC 3A can be used to power FPV cameras and video transmitters, provided their combined current draw does not exceed the UBEC's continuous 3A output. The selectable 5V/6V output is compatible with many FPV components. Always check the power requirements of your specific camera and VTX to ensure they are within the UBEC's capabilities.
