HOBBYWING Skywalker ESC

Features :

• High-performance microprocessor for optimal motor control.




• DEO Technology for improved throttle response and efficiency.




• Built-in UBEC provides stable power to receiver.




• Multiple protection features (low voltage, overheat, signal loss).




• Supports various programming methods for customization.




• Compatible with LiPo and NiMH battery types.




• Normal and reverse brake modes for flexible landing.




• Search mode helps locate lost aircraft with alarm.




• Easy to install and calibrate for quick setup.




• Durable design for reliable performance in RC aircraft.

Technical Specifications:

• Continuous Current: Varies by model (e.g., 40A, 50A, 60A, 80A, 100A, 120A)

• Burst Current: Varies by model (e.g., 55A for 40A, 100A for 80A, 150A for 120A - refer to specific model for exact burst current)

• Input Voltage: Varies by model (e.g., 2-3S LiPo for lower amps, 2-6S LiPo for mid-range, 3-8S LiPo for higher amps; compatible with 5-18 cells NiMH - refer to specific model)

• BEC Output: Switch Mode BEC (e.g., 5V/3A for lower amps, 5V/5A, 5V/7A, or 5V/10A for higher amps; output voltage may be programmable on some V2 models - refer to specific model)

• Throttle Signal Refresh Rate: 50Hz to 432Hz

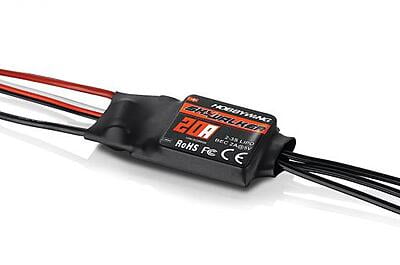

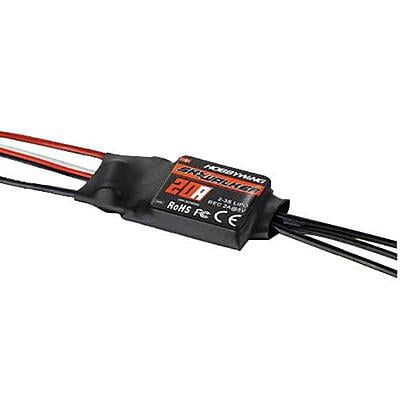

20A ESC :

• Continuous Current: 20A

• Peak Current (10s): 40A

• Input Voltage (LiPo): 2–3S

• BEC Output: 5V / 3A (Linear)

• Size: 45 × 23 × 8 mm

• Weight: 19 g

• Input Wires: 16 AWG

• Output Wires: 18 AWG

• Output Connectors: 3.5 mm female

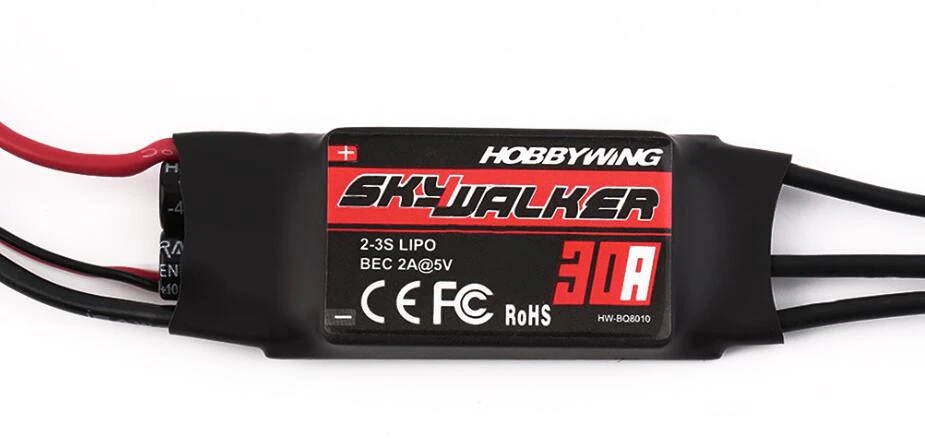

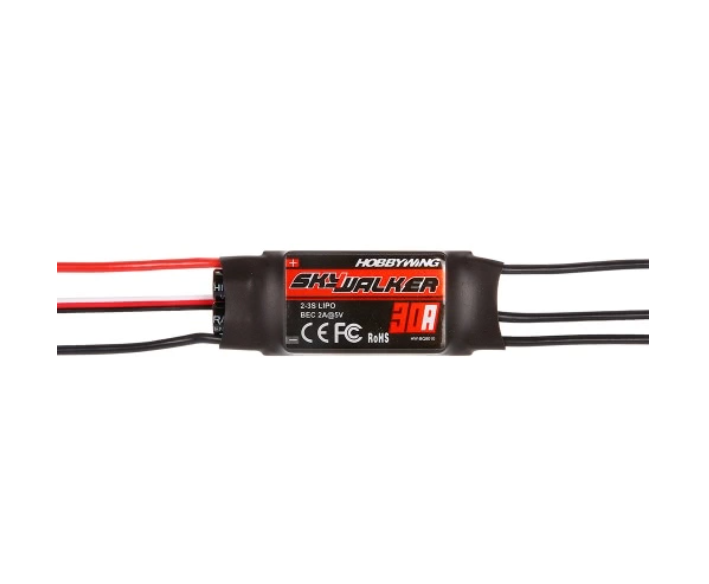

30A ESC :

• Continuous Current: 30A

• Peak Current (10s): 50A

• Input Voltage (LiPo): 3–4S

• BEC Output: 5V / 3A (Linear)

• Size: 60 × 25 × 8 mm

• Weight: 33 g

• Input Wires: 14 AWG

• Output Wires: 16 AWG

• Output Connectors: 3.5 mm female

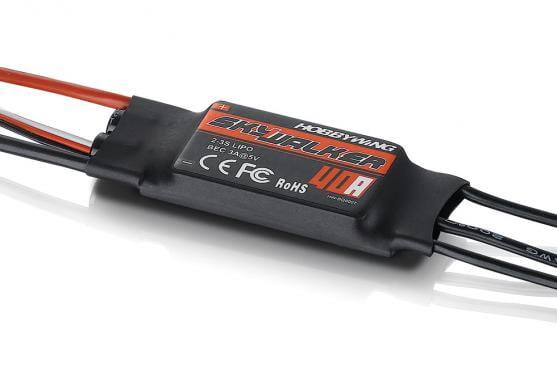

40A ESC :

• Continuous Current: 40A

• Peak Current (10s): 60A

• Input Voltage (LiPo): 3–4S

• BEC Output: 5V / 5A

• Size: 60 × 25 × 8 mm

• Weight: 36 g

• Input Wires: 14 AWG

• Output Wires: 16 AWG

• Output Connectors: 3.5 mm female

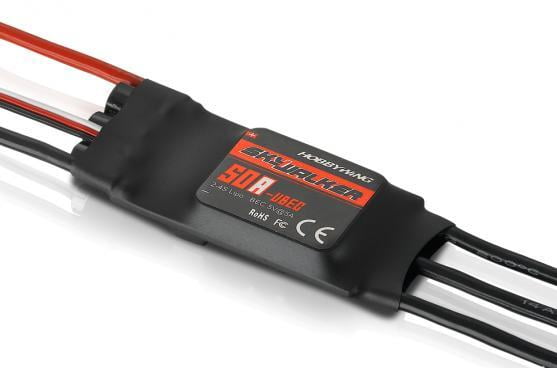

50A ESC :

• Continuous Current: 50A

• Peak Current (10s): 65A

• Input Voltage (LiPo): 2–4S

• BEC Output: 5V / 5A

• Size: 60 × 25 × 8 mm

• Weight: 36 g

• Input Wires: 14 AWG

• Output Wires: 16 AWG

• Output Connectors: 3.5 mm female

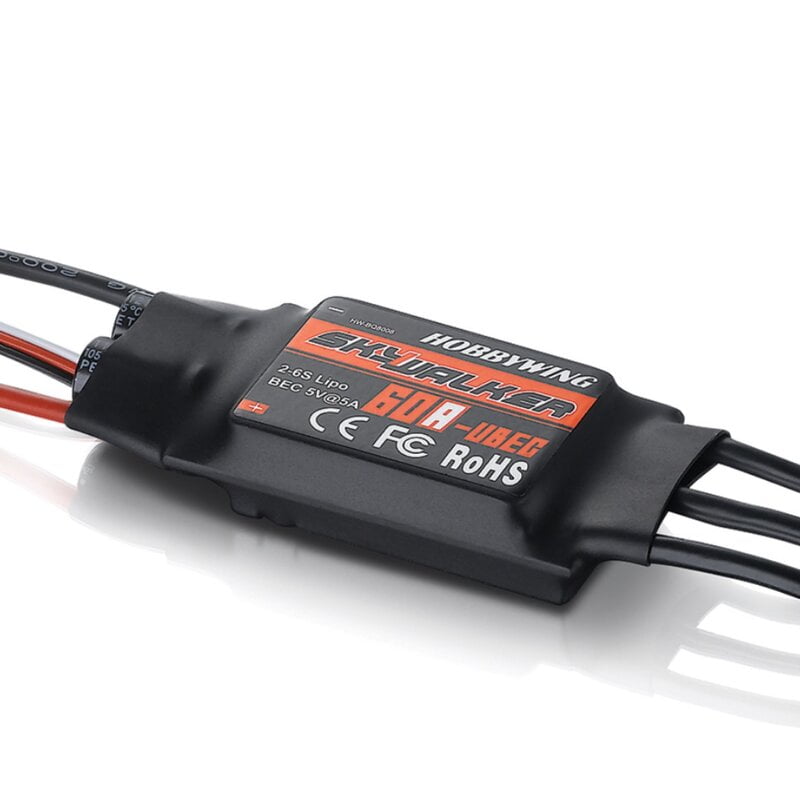

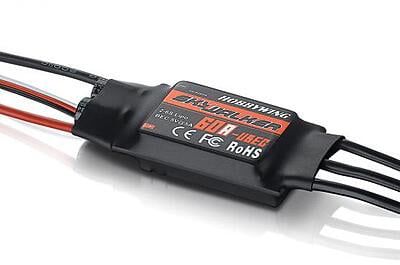

60A ESC :

• Continuous Current: 60A

• Peak Current (10s): 80A

• Input Voltage (LiPo): 3–6S

• BEC Output: 5V / 7A

• Size: 77 × 35 × 14 mm

• Weight: 63 g

• Input Wires: 14 AWG

• Output Wires: 14 AWG

• Output Connectors: None

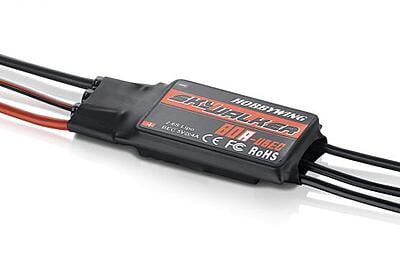

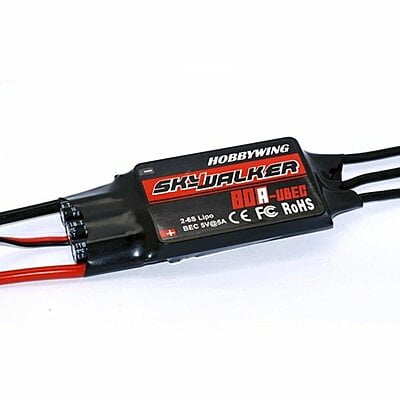

80A ESC :

• Continuous Current: 80A

• Peak Current (10s): 100A

• Input Voltage (LiPo): 2–6S or 3–6S

• BEC Output: 5V / 5A or 5V / 7A

• Size: 86 × 38 × 12 mm

• Weight: 82 g

• Input Wires: 12 AWG

• Output Wires: 14 AWG

• Output Connectors: None

Additional Details:

• Manufacturer: HOBBYWING

• Brand: HOBBYWING

• Generic Name: Electronic Speed Controller || ESC || Brushless ESC || Motor Controller || Speed Controller || RC ESC || Airplane ESC || Fixed Wing ESC || UBEC ESC || Model Aircraft ESC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: RC Airplanes || Fixed-Wing Drones || Model Aircraft || Gliders || Trainer Planes || Sport Planes || EDF Jets || Hobby Projects || Electric Propulsion Systems || DIY Aircraft

Package Details:

Includes:

• 1x HOBBYWING Skywalker Brushless Electronic Speed Controller (specific amperage model)

• 1x User Manual / Instruction Guide

Frequently Asked Questions:

Q1. What is the purpose of the built-in UBEC in the HOBBYWING Skywalker ESC?

Ans. The UBEC (Universal Battery Eliminator Circuit) integrated into the HOBBYWING Skywalker ESC provides a regulated 5V output to power your RC receiver and servos directly from the main flight battery. This eliminates the need for a separate receiver battery, simplifying wiring and reducing overall weight in your aircraft.

Q2. How can I program the HOBBYWING Skywalker ESC?

Ans. The HOBBYWING Skywalker ESC offers multiple programming methods. You can typically program it using your transmitter stick (a sequence of throttle stick movements and motor beeps), or for easier and more precise adjustments, you can use an optional HOBBYWING LED Program Card (sold separately).

Q3. What kind of protection features does the Skywalker ESC offer?

Ans. The HOBBYWING Skywalker ESC is equipped with comprehensive protection features to safeguard your electronics and aircraft. These include low voltage cutoff protection to prevent over-discharge of your battery, over-heat protection for the ESC itself, and throttle signal loss protection (failsafe) to handle situations where the signal from your transmitter is lost.
